FJ62LV-PNEA (1987)

Toyota Land Cruiser

Production Aug 1987 - Aug 1988
Engine 3FE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9208)3F

Click highlighted areas on diagram

diagram 11101 11101A 11115 11116A 11116B 11116C 11117B 11118A 11119A 11122 11126 11131 11135 11201 11201A 11201B 11213 12108 12108A
Part # Description Qty Price

(8708- )

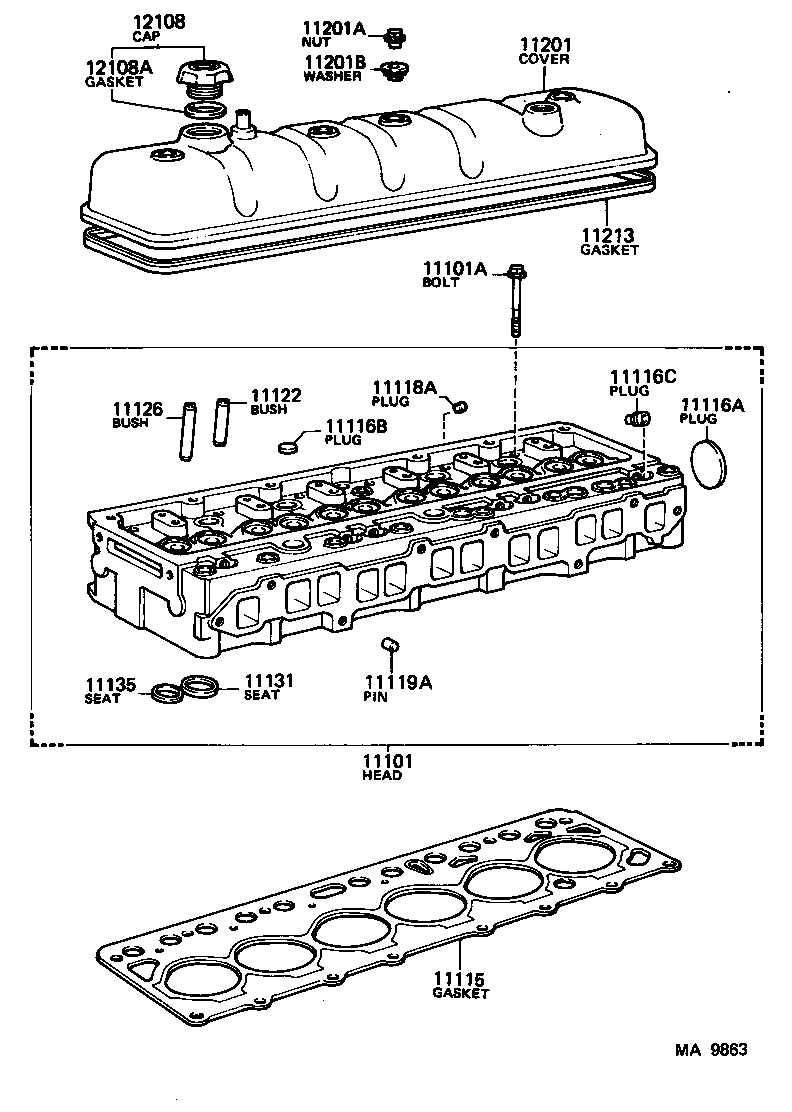

Click highlighted areas on diagram

diagram 11101 11101A 11115 11116A 11116B 11116C 11118A 11119A 11122 11126 11131 11135 11201 11201A 11201B 11213 12108 12108A
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-61080

3FE..FJ62

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90105-13005

3FE..FJ62

*13-1.75PX138-27

 2
90910-02050

3FE..FJ62

*13-1.75PX120.5-27

 13
11115 - GASKET, CYLINDER HEAD
11115-61020

3FE..FJ62

T=1.40

 1
11116A - PLUG, TIGHT, NO.1
96411-45000

3FE..FJ62

 1
11116B - PLUG, TIGHT, NO.2
96411-42500

3FE..FJ62

 6
11116C - PLUG, TIGHT, NO.3
90340-14001

3FE..FJ62

 2
11118A - PLUG, STRAIGHT, NO.1
90334-07009

3FE..FJ62

 1
11119A - PIN, STRAIGHT, NO.1
90250-08120

3FE..FJ62

L=18,OD=8

 4
11122 - BUSH, INTAKE VALVE GUIDE
11122-61011

3FE..FJ62

STD

 6
11123-61011

3FE..FJ62

O/S 0.05

 6
11126 - BUSH, EXHAUST VALVE GUIDE
11126-61011

3FE..FJ62

STD

 6
11127-61011

3FE..FJ62

O/S 0.05

 6
11131 - SEAT, INTAKE VALVE
11132-61010

3FE..FJ62

O/S 0.03

 6
11131-61010

3FE..FJ62

STD

 6
11135 - SEAT, EXHAUST VALVE
11136-60030

3FE..FJ62

O/S 0.03

 6
11135-60010

3FE..FJ62

STD

 6
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-61041

3FE..FJ62

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-08014

3FE..FJ62

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-13001

3FE..FJ62

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-61020

3FE..FJ62

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-61010

3FE..FJ62

 1
12108A - GASKET(FOR OIL FILLER CAP)
12195-71020

3FE..FJ62

 1
