FJ62LG-PNEK (1987)
Toyota Land Cruiser
Production
Aug 1987
-
Jan 1990
Engine
3FE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )
Click highlighted areas on diagram

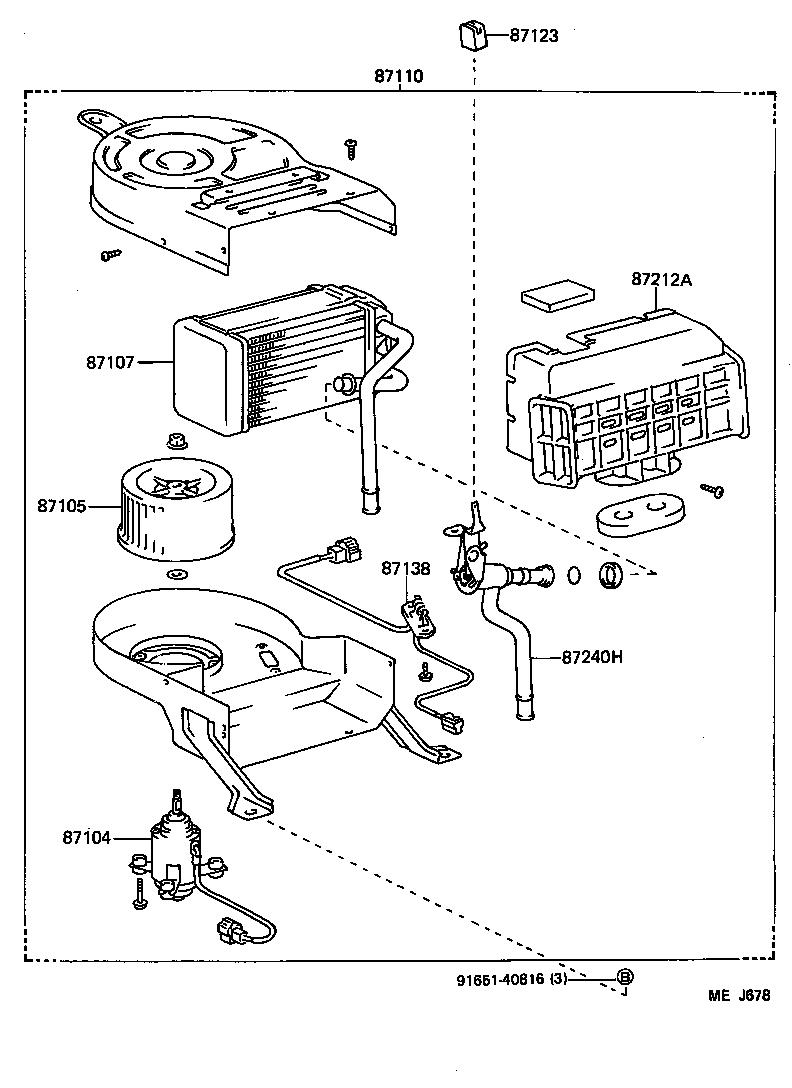

REAR HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-90K03 |
FJ62 REAR |
1 | ||
| 87104-90A00 |
FJ62 FRONT |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-14020 |
FJ62 FRONT |
1 | ||
| 87105-87002 |
FJ62 REAR |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-90A04 |
FJ62 FRONT |
1 | ||
| 87107-90A06 |
FJ62 REAR |
1 | ||
| 87110 - HEATER ASSY | ||||
| 87110-90A02 |
FJ62 |
1 | ||
| 87123 - KNOB, HEATER | ||||
| 55905-12070 |
FJ62 |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-22030 |
FJ62 FRONT |
1 | ||
| 87138-90K02 |
FJ62 REAR |
1 | ||
| 87212A - DUCT, AIR, REAR NO.1 | ||||
| 87212-90A00 |
FJ62 |
1 | ||
| 87240H - VALVE ASSY, WATER UNIT | ||||
| 87240-90A02 |
FJ62 |
1 | ||
| Common parts | ||||
| 91651-40816 | ||||
(8708- )
Click highlighted areas on diagram
FRONT HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-90K03 |
FJ62 REAR |
1 | ||
| 87104-90A00 |
FJ62 FRONT |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-14020 |
FJ62 FRONT |
1 | ||
| 87105-87002 |
FJ62 REAR |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-90A04 |
FJ62 FRONT |
1 | ||
| 87107-90A06 |
FJ62 REAR |
1 | ||
| 87126 - CLAMP, HEATER CONTROL | ||||
| 87126-90A01 |
FJ62 RADIATOR |
2 | ||
| 87126-16010 |
FJ62 BLOWER |
1 | ||
| 87126 - CLAMP, HEATER CONTROL | ||||
| 87126-90A01 |
FJ62 RADIATOR |
2 | ||
| 87126-16010 |
FJ62 BLOWER |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-90A01 |
FJ62 |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-22030 |
FJ62 FRONT |
1 | ||
| 87138-90K02 |
FJ62 REAR |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-90A14 |
FJ62 |
1 | ||
| 87248H - PIPE, HEATER WATER INLET | ||||
| 87248-90A01 |
FJ62 |
1 | ||
| 87249 - PIPE, WATER | ||||
| 87248-90A03 |
FJ62 |
1 | ||
| Common parts | ||||
| 90119-06373 | ||||
| 90160-40018 | ||||
| 90179-06115 | ||||
| 90179-06158 | ||||
