FJ62LG-PNEK (1987)
Toyota Land Cruiser
Production
Aug 1987
-
Jan 1990
Engine
3FE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 3 OF 4(9001-0907)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 83791-60080 | ||||
| 83791-90K00 | ||||
| 90159-60081 | ||||
| 90179-06009 | ||||
| 90179-06070 | ||||
| 90189-06006 | ||||
| 90464-00165 | ||||
| 90989-01038 | ||||
| 90989-01039 | ||||
| 90989-01050 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 5551 | ||||

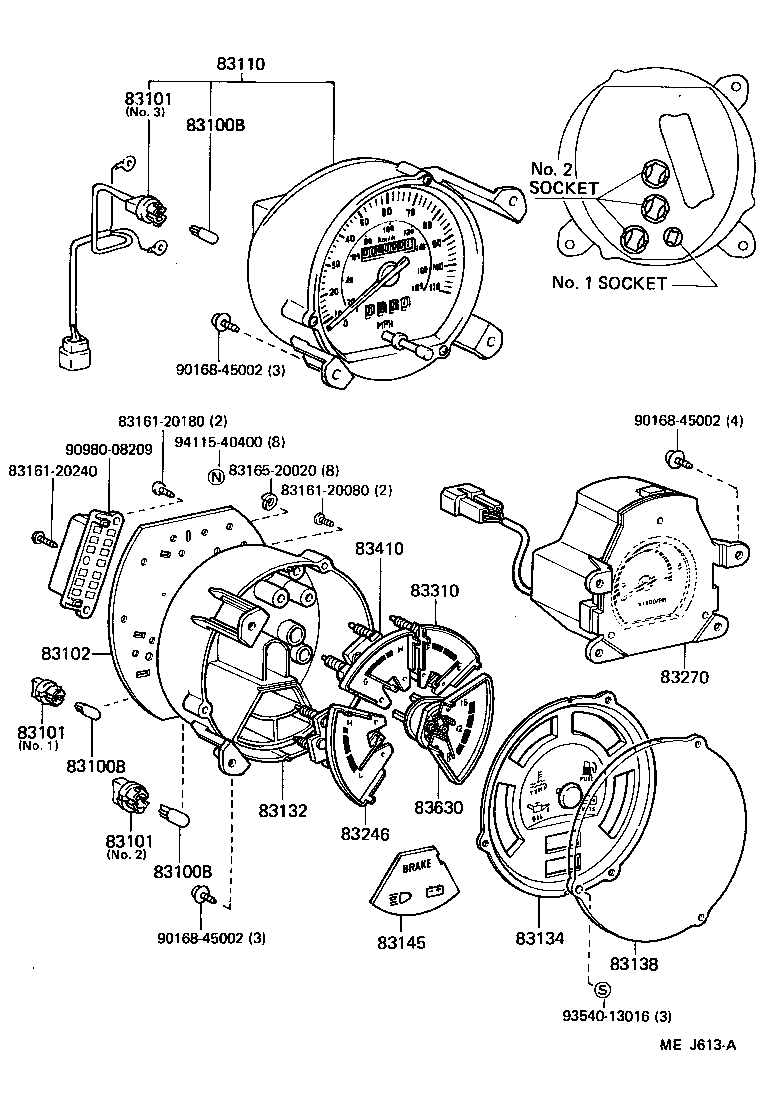

ILLUST NO. 1 OF 2(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
FJ62 12V 3.4W |
3 | ||
| 90981-11018 |
FJ62 12V 1.2W W/O SOCKET |
1 | ||
| 99132-12034 |
FJ62 12V 3.4W |
2 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
FJ62 12V 3.4W |
3 | ||
| 90981-11018 |
FJ62 12V 1.2W W/O SOCKET |
1 | ||
| 99132-12034 |
FJ62 12V 3.4W |
2 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
FJ62 12V 3.4W |
3 | ||
| 90981-11018 |
FJ62 12V 1.2W W/O SOCKET |
1 | ||
| 99132-12034 |
FJ62 12V 3.4W |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-36010 |
FJ62 NO.3 |
2 | ||
| 83101-14040 |
FJ62 NO.1 |
1 | ||
| 83101-20040 |
FJ62 NO.2 |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-36010 |
FJ62 NO.3 |
2 | ||
| 83101-14040 |
FJ62 NO.1 |
1 | ||
| 83101-20040 |
FJ62 NO.2 |
3 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-36010 |
FJ62 NO.3 |
2 | ||
| 83101-14040 |
FJ62 NO.1 |
1 | ||
| 83101-20040 |
FJ62 NO.2 |
3 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-90A05 |
FJ62 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-90A47 |
FJ62..CND |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-90A04 |
FJ62 |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-90A06 |
FJ62 |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-90A00 |
FJ62 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-90A02 |
FJ62..CND |
1 | ||
| 83246 - GAUGE, OIL PRESSURE RECEIVER | ||||
| 83246-90A05 |
FJ62 |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83270-90A10 |
FJ62..CND |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-90A03 |
FJ62 |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-90A02 |
FJ62 |
1 | ||
| 83630 - VOLTMETER ASSY | ||||
| 83245-90A03 |
FJ62 |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20180 | ||||
| 83161-20240 | ||||
| 83165-20020 | ||||
| 90168-45002 | ||||
| 90980-08209 | ||||
| 93540-13016 | ||||
| 94115-40400 | ||||
ILLUST NO. 2 OF 2(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-90A20 |
FJ62 |
1 | ||
| 83710-90A13 |
FJ62 |
1 | ||
| 83710-90A06 |
FJ62 |
1 | ||
| 83710B - BUSH, SPEEDOMETER DRIVE CABLE | ||||
| 90389-02001 |
FJ62 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-90A11 |
FJ62 |
1 | ||
| Common parts | ||||
| 83791-90A01 | ||||
| 90168-45002 | ||||
| 90201-07069 | ||||
| 90463-10521 | ||||
