FJ62LG-PNEK (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 3FE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9608)

Click highlighted areas on diagram

2-BATTERY

diagram 28800 28800 28800A 28800B 28800C 28800D 28800F 28800F 28897 8271112200 8271112200 9011908116 9011908116 9017908146 9046400373 9165161016
Part # Description Qty Price
Common parts
82711-12200
90119-08116
90179-08146
90464-00373
91651-61016

(8708- )

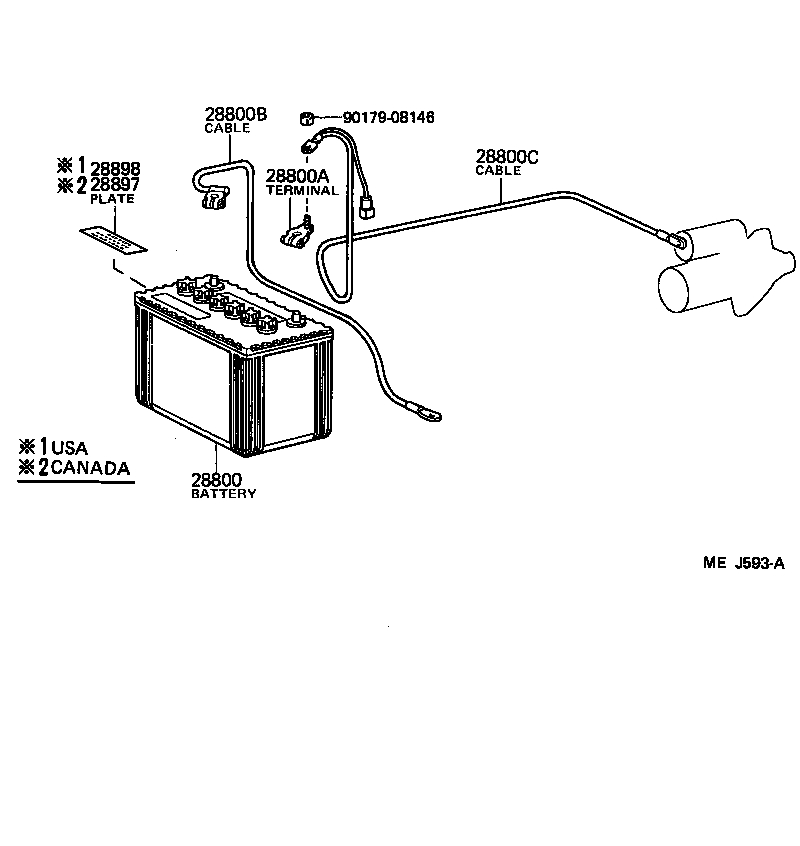

Click highlighted areas on diagram

diagram 28800 28800A 28800B 28800C 28897 28898 9017908146
Part # Description Qty Price
28800 - BATTERY
28800-61030

3FE..FJ62

75D31R

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05030

3FE..FJ62

 1
28800B - CABLE, BATTERY TO GROUND
90982-02207

3FE..FJ62

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01414

3FE..FJ62

 1
82122-90A01

3FE..FJ62..WGG

 1
28897 - PLATE, BATTERY CAUTION
28897-38010

3FE..FJ62..CND

 2
Common parts
90179-08146
