FJ62LG-PNEK (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990
Engine 3FE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9001-0907)HZJ78 ; (9001-0907)FJ7#,FZJ70,71,73,74,75,78,HJ75,HZJ70,71,73,75,KZJ7#,L

Click highlighted areas on diagram

diagram 58811A 58839A 58865A 58866A 58901A 58905 58912 58915 58923A 58944A 58959B 58964 58965A 58968A 58968A 58976 58993 58995A 58996A 58997 9015950002 9015950002 9018305094 9018305094 9018305094 9165140616 9356055016 9356055016 9356055016 9356055016 9356854512 9356854512 9356854512 9616000500 9616000500
Part # Description Qty Price
Common parts
90159-50002
90183-05094
91651-40616
93560-55016
93568-54512
96160-00500

(8708- )

Click highlighted areas on diagram

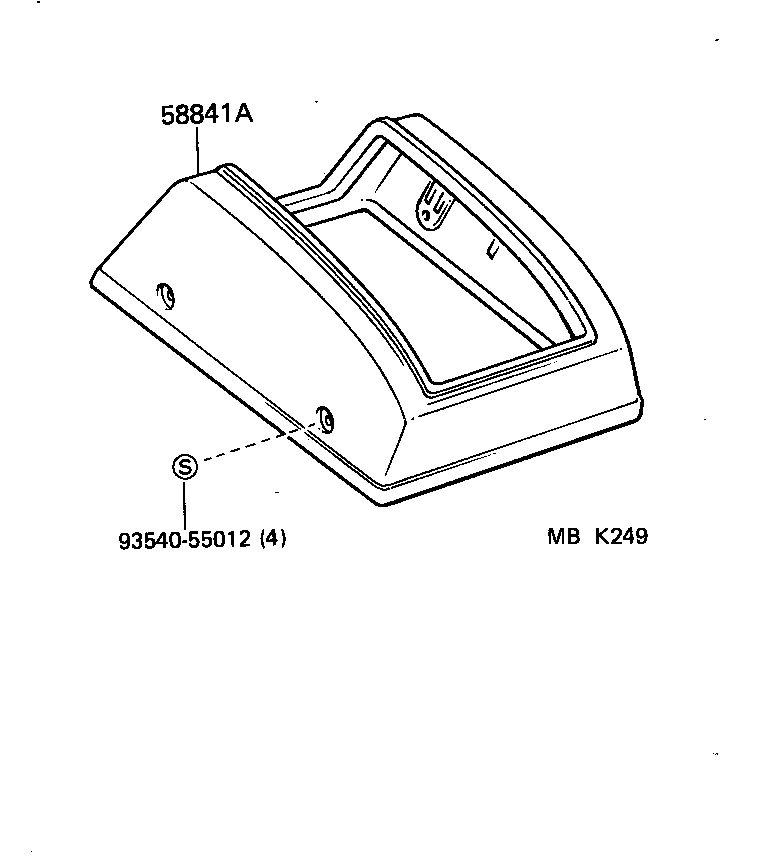

diagram 58841A 9354055012
Part # Description Qty Price
58841A - COVER, SHIFTING HOLE
58841-90A0106

FJ62

SEPIA BROWN,TRIM4#

 1
58841-90A0103

FJ62

SHADOW GRAY,TRIM1#

 1
Common parts
93540-55012

(8708- )

Click highlighted areas on diagram

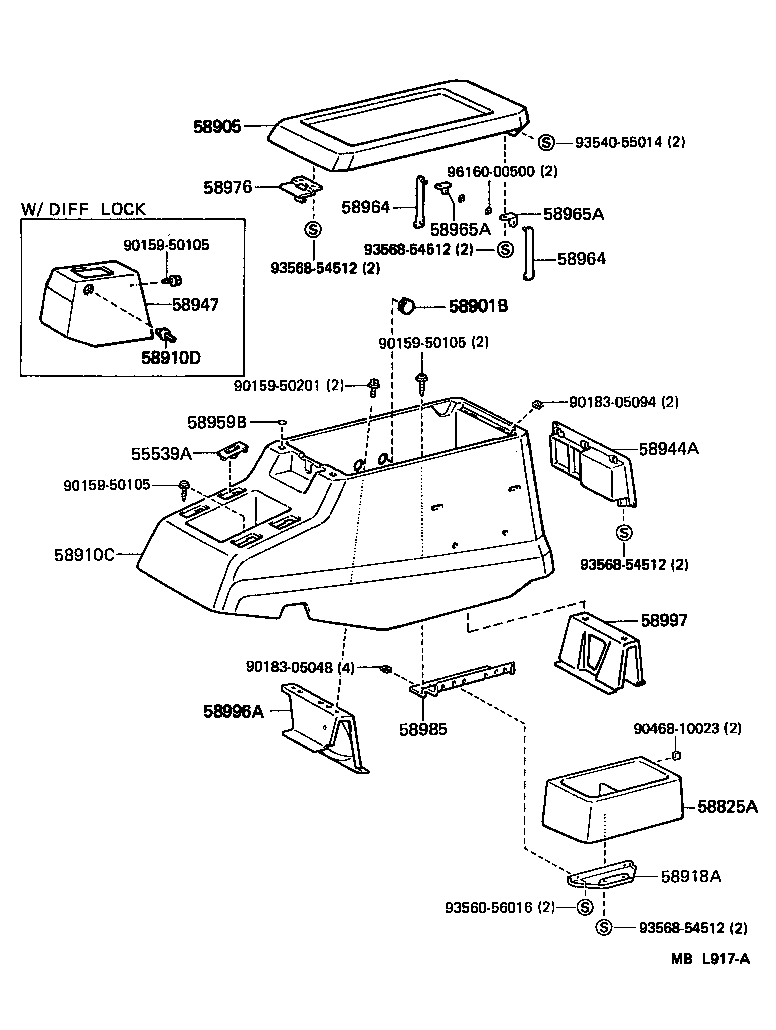

diagram 55539A 58825A 58901B 58905 58910C 58910D 58918A 58944A 58947 58959B 58964 58964 58965A 58965A 58976 58985 58996A 58997 9015950105 9015950105 9015950105 9015950201 9018305048 9018305094 9046810023 9354055014 9356056016 9356854512 9356854512 9356854512 9356854512 9616000500
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-2002013

FJ62

SHADOW GRAY,TRIM1#

 3
55539-2002026

FJ62

SEPIA BROWN,TRIM4#

 3
58825A - POCKET, CONSOLE BOX
58825-90A0106

FJ62

SEPIA BROWN,TRIM4#

 1
58825-90A0103

FJ62

SHADOW GRAY,TRIM1#

 1
58901B - PLUG, HOLE(FOR REAR CONSOLE BOX)
90950-0107303

FJ62

SHADOW GRAY,TRIM1#

 4
90950-0107306

FJ62

SEPIA BROWN,TRIM4#

 4
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58951-90A0106

FJ62

SEPIA BROWN,TRIM4#

 1
58951-90A0103

FJ62

SHADOW GRAY,TRIM1#

 1
58910C - BOX ASSY, CONSOLE, REAR
58911-90A0303

FJ62

W(REAR HEATER),SHADOW GRAY,TRIM1#

 1
58911-90A0506

FJ62

W(DIFFERENTIAL LOCK),SEPIA BROWN,TRIM4#

 1
58911-90A0503

FJ62

W(DIFFERENTIAL LOCK),SHADOW GRAY,TRIM1#

 1
58911-90A0306

FJ62

W(REAR HEATER),SEPIA BROWN,TRIM4#

 1
58910D - CLIP(FOR CONSOLE BOX)
90467-0704103

FJ62

GRAY,TRIM1#

 2
90467-0704106

FJ62

SEPIA BROWN,TRIM4#

 2
58918A - BRACKET, BOX SUPPORT
58918-90A00

FJ62

 1
58944A - COVER, CONSOLE, REAR
58944-90A0103

FJ62

W(REAR HEATER),SHADOW GRAY,TRIM1#

 1
58944-90A0106

FJ62

W(REAR HEATER),SEPIA BROWN,TRIM4#

 1
58947 - COVER, DIFFERENTIAL LOCK LEVER
58947-90A0306

FJ62

SEPIA BROWN,TRIM4#

 1
58947-90A0303

FJ62

SHADOW GRAY,TRIM1#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-16010

FJ62

 2
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-30030

FJ62

LH

 1
58964-90K00

FJ62

RH

 1
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-30030

FJ62

LH

 1
58964-90K00

FJ62

RH

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-20020

FJ62

RH

 1
58965-12010

FJ62

LH

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-20020

FJ62

RH

 1
58965-12010

FJ62

LH

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-20010

FJ62

 1
58985 - RETAINER, CONSOLE BOX
58985-90A00

FJ62

 2
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-90A04

FJ62

 1
Common parts
90159-50105
90159-50201
90183-05048
90183-05094
90468-10023
93540-55014
93560-56016
93568-54512
96160-00500
