FJ62LG-PNEK (1987)
Toyota Land Cruiser
Production
Aug 1987
-
Jan 1990
Engine
3FE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

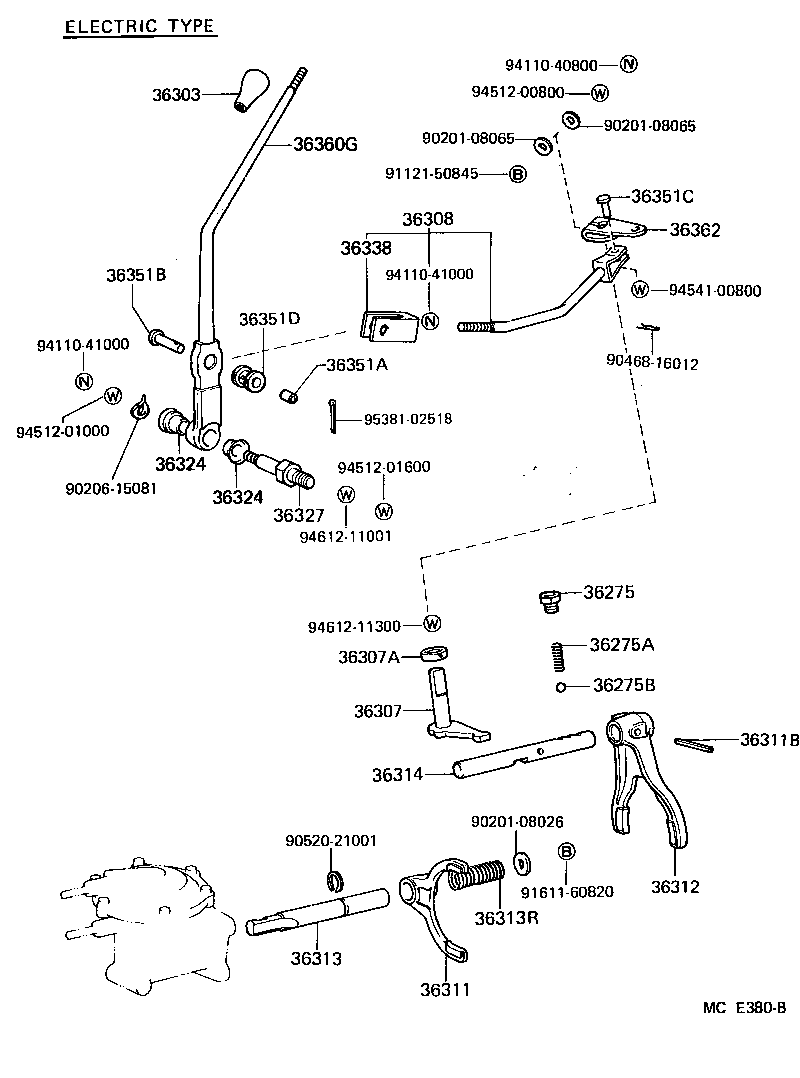

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-15001 |
FJ62 |
1 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-16115 |
FJ62 L=17.7 |
1 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
FJ62 OD=9.52,STEEL |
1 | ||
| 36303 - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 36303-60130 |
FJ62 |
1 | ||
| 36307 - LEVER SUB-ASSY, HIGH & LOW SHIFT INNER | ||||
| 36307-60040 |
FJ62 |
1 | ||
| 36307A - SEAL, OIL (FOR HIGH & LOW SHIFT INNER LEVER) | ||||
| 90313-13001 |
FJ62 |
1 | ||
| 36308 - ROD SUB-ASSY, HIGH & LOW SHIFT | ||||
| 36308-60100 |
FJ62 |
1 | ||
| 36311 - FORK, TRANSFER GEAR SHIFT, NO.1 | ||||
| 36311-60041 |
FJ62 |
1 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05016 |
FJ62 L=25.5 |
1 | ||
| 36312 - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36312-60040 |
FJ62 |
1 | ||
| 36313 - SHAFT, TRANSFER FRONT DRIVE SHIFT | ||||
| 36313-60070 |
FJ62 |
1 | ||
| 36313R - SPRING, COMPRESSION (FOR TRANSFER FRONT DRIVE SHIFT SHA | ||||
| 90501-29003 |
FJ62 |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-60040 |
FJ62 |
1 | ||
| 36324 - BUSH, TRANSFER SHIFT LEVER | ||||
| 36324-60050 |
FJ62 |
2 | ||
| 36324 - BUSH, TRANSFER SHIFT LEVER | ||||
| 36324-60050 |
FJ62 |
2 | ||
| 36327 - SHAFT, TRANSFER SHIFT LEVER | ||||
| 36327-60031 |
FJ62 |
1 | ||
| 36338 - CLEVIS, TRANSFER SHIFT ROD | ||||
| 36338-60030 |
FJ62 |
1 | ||
| 36351A - SPACER (FOR HIGH & LOW SHIFT ROD) | ||||
| 90560-10406 |
FJ62 |
1 | ||
| 36351B - PIN (FOR HIGH & LOW SHIFT ROD) | ||||
| 90240-10157 |
FJ62 |
1 | ||
| 36351C - PIN (FOR HIGH & LOW SHIFT ROD) | ||||
| 90240-08128 |
FJ62 |
1 | ||
| 36351D - GROMMET (FOR HIGH & LOW SHIFT ROD) | ||||
| 90480-17401 |
FJ62 |
1 | ||
| 36360G - LEVER ASSY, TRANSFER HIGH & LOW SHIFT | ||||
| 36360-60220 |
FJ62 |
1 | ||
| 36362 - LEVER, TRANSFER HIGH AND LOW SHIFT OUTER | ||||
| 36362-60020 |
FJ62 |
1 | ||
| Common parts | ||||
| 90201-08026 | ||||
| 90201-08065 | ||||
| 90206-15081 | ||||
| 90468-16012 | ||||
| 90520-21001 | ||||
| 91121-50845 | ||||
| 91611-60820 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94512-01600 | ||||
| 94541-00800 | ||||
| 94612-11001 | ||||
| 94612-11300 | ||||
| 95381-02518 | ||||
