FJ62LG-PNEK (1987)
Toyota Land Cruiser
Production
Aug 1987
-
Jan 1990
Engine
3FE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

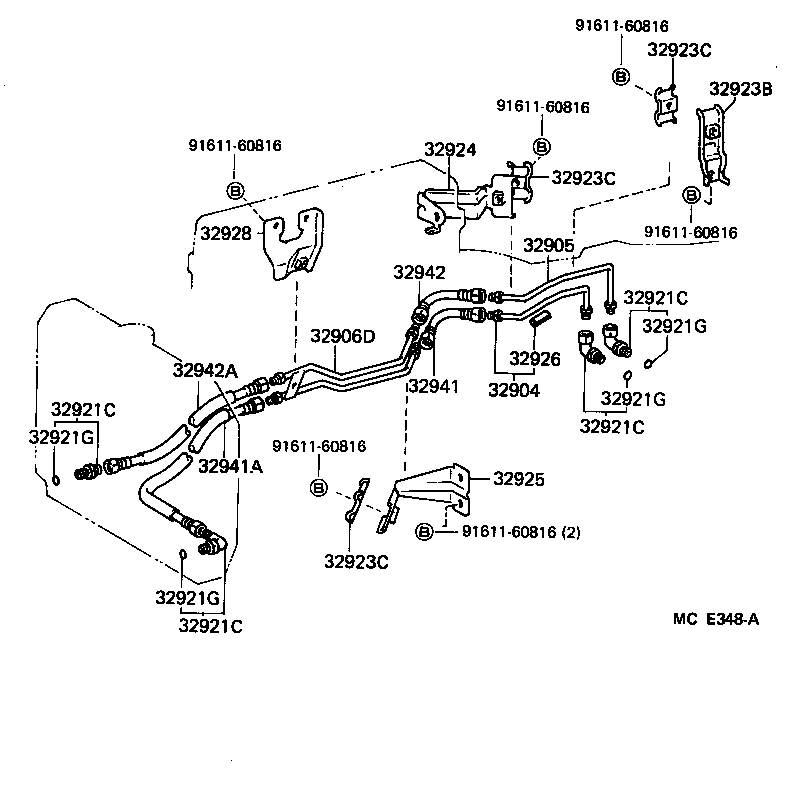

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32904 - TUBE SUB-ASSY, OIL COOLER INLET, NO.1 | ||||
| 32904-60012 |
FJ62 |
1 | ||
| 32905 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1 | ||||
| 32905-60012 |
FJ62 |
1 | ||
| 32906D - TUBE SUB-ASSY, OIL COOLER, NO.2 | ||||
| 32906-60012 |
FJ62 |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16006 |
FJ62 TRANSMISSION SIDE |
2 | ||
| 90407-16013 |
FJ62 RADIATOR SIDE INLET |
1 | ||
| 90407-14005 |
FJ62 RADIATOR SIDE OUTLET |
1 | ||
| 90404-16022 |
FJ62 RADIATOR SIDE INLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16006 |
FJ62 TRANSMISSION SIDE |
2 | ||
| 90407-16013 |
FJ62 RADIATOR SIDE INLET |
1 | ||
| 90407-14005 |
FJ62 RADIATOR SIDE OUTLET |
1 | ||
| 90404-16022 |
FJ62 RADIATOR SIDE INLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16006 |
FJ62 TRANSMISSION SIDE |
2 | ||
| 90407-16013 |
FJ62 RADIATOR SIDE INLET |
1 | ||
| 90407-14005 |
FJ62 RADIATOR SIDE OUTLET |
1 | ||
| 90404-16022 |
FJ62 RADIATOR SIDE INLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90407-16006 |
FJ62 TRANSMISSION SIDE |
2 | ||
| 90407-16013 |
FJ62 RADIATOR SIDE INLET |
1 | ||
| 90407-14005 |
FJ62 RADIATOR SIDE OUTLET |
1 | ||
| 90404-16022 |
FJ62 RADIATOR SIDE INLET |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
FJ62 |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
FJ62 |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
FJ62 |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
FJ62 |
2 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32923-36010 |
FJ62 |
1 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 90462-12038 |
FJ62 |
3 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 90462-12038 |
FJ62 |
3 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 90462-12038 |
FJ62 |
3 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-60011 |
FJ62 |
1 | ||
| 32925 - CLAMP, OIL COOLER TUBE, NO.3 | ||||
| 32925-60030 |
FJ62 |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
FJ62 L=35,ID=10 |
6 | ||
| 32928 - CLAMP, FLEXIBLE HOSE, NO.1 | ||||
| 32928-60011 |
FJ62 |
1 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32943-60010 |
FJ62 |
1 | ||
| 32941A - HOSE, OIL COOLER INLET, NO.2 | ||||
| 32942-60030 |
FJ62 |
1 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32943-60010 |
FJ62 |
1 | ||
| 32942A - HOSE, OIL COOLER OUTLET, NO.2 | ||||
| 32942-60010 |
FJ62 |
1 | ||
| Common parts | ||||
| 91611-60816 | ||||
