FJ62LG-PNEA (1987)

Toyota Land Cruiser

Production Aug 1987 - Jan 1990

Engine 3FE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8708- )

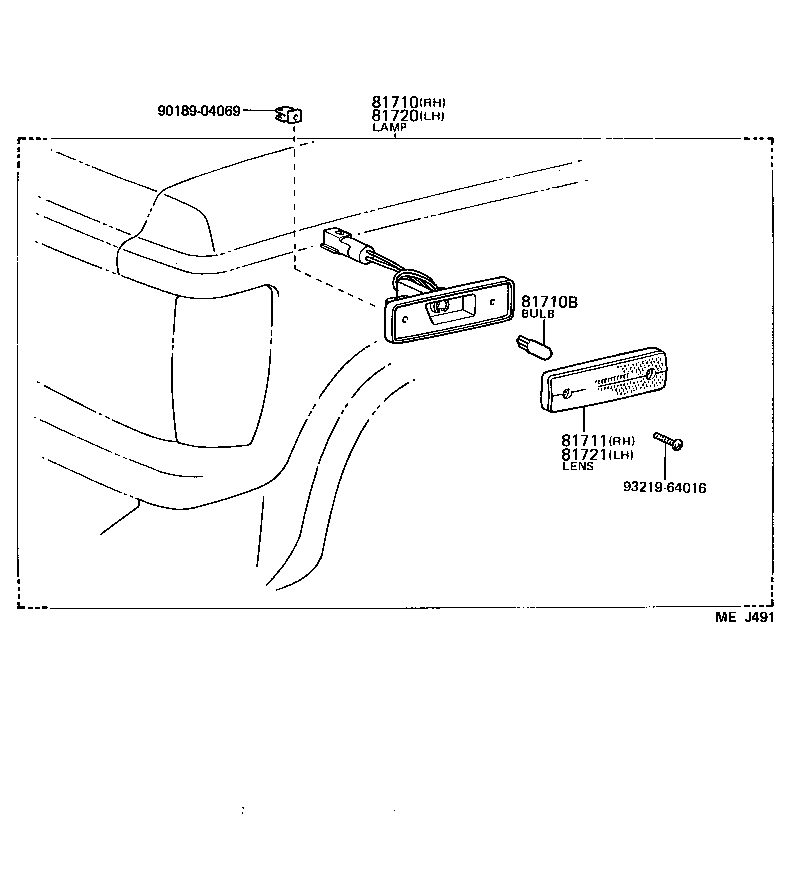

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
81710 - LAMP ASSY, FRONT MARKER, RH
81730-14110	FJ62	08/1987 - 02/1989	1
81730-90A05	FJ62	02/1989 - 01/1990	1
81710B - BULB, FRONT MARKER LAMP
90981-11020	FJ62 12V 3.8W	08/1987 - 01/1990	2
81711 - LENS, FRONT MARKER LAMP, RH
81731-14110	FJ62	08/1987 - 01/1990	1
81720 - LAMP ASSY, FRONT MARKER, LH
81740-14110	FJ62	08/1987 - 02/1989	1
81740-90A05	FJ62	02/1989 - 01/1990	1
81721 - LENS, FRONT MARKER LAMP, LH
81741-14110	FJ62	08/1987 - 01/1990	1
Common parts
90189-04069
93219-64016
