FJ62LG-PNEA (1987)
Toyota Land Cruiser
Production
Aug 1987
-
Jan 1990
Engine
3FE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

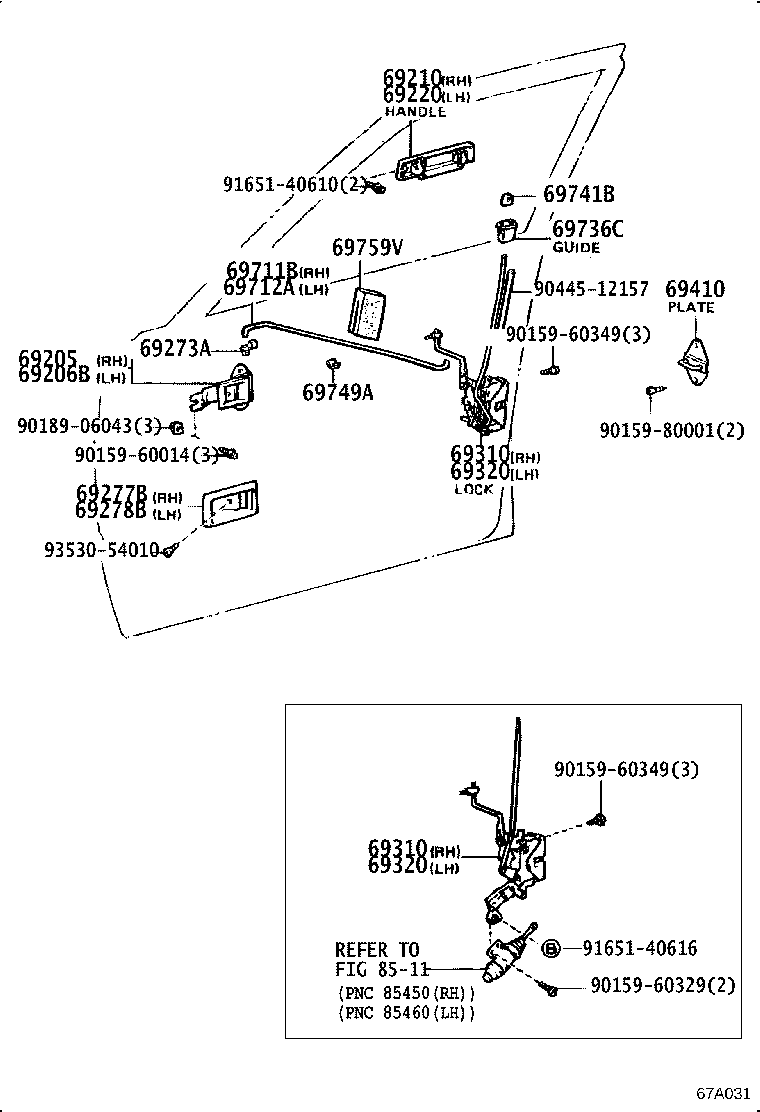

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-20020 |
FJ62 |
1 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-20020 |
FJ62 |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-90A00 |
FJ62 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-90A00 |
FJ62 |
1 | ||
| 69273A - SNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR) | ||||
| 69273-30020 |
FJ62 |
2 | ||
| 69277B - BEZEL, FRONT DOOR INSIDE HANDLE, RH | ||||
| 69277-1604023 |
FJ62 GRAY,TRIM1# |
1 | ||
| 69277-1604036 |
FJ62 SEPIA BROWN,TRIM4# |
1 | ||
| 69278B - BEZEL, FRONT DOOR INSIDE HANDLE, LH | ||||
| 69277-1604023 |
FJ62 GRAY,TRIM1# |
1 | ||
| 69277-1604036 |
FJ62 SEPIA BROWN,TRIM4# |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-90A02 |
FJ62 |
1 | ||
| 69310-90A03 |
FJ62 W(POWER WINDOW) |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-90A02 |
FJ62 |
1 | ||
| 69310-90A03 |
FJ62 W(POWER WINDOW) |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-90A02 |
FJ62 |
1 | ||
| 69320-90A03 |
FJ62 W(POWER WINDOW) |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-90A02 |
FJ62 |
1 | ||
| 69320-90A03 |
FJ62 W(POWER WINDOW) |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-90B00 |
FJ62 |
2 | ||
| 69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69711-90A00 |
FJ62 |
1 | ||
| 69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69712-90A00 |
FJ62 |
1 | ||
| 69736C - GUIDE, FRONT DOOR LOCKING LINK | ||||
| 69736-90K00 |
FJ62 |
2 | ||
| 69741B - KNOB, FRONT DOOR LOCK CONTROL | ||||
| 69741-90K0006 |
FJ62 SEPIA BROWN,TRIM4# |
2 | ||
| 69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1 | ||||
| 69749-12010 |
FJ62 |
2 | ||
| 69759V - SILENCER, FRONT DOOR LOCK LINK | ||||
| 69759-30021 |
FJ62 |
2 | ||
| Common parts | ||||
| 90159-60014 | ||||
| 90159-60329 | ||||
| 90159-60349 | ||||
| 90159-80001 | ||||
| 90189-06043 | ||||
| 90445-12157 | ||||
| 91651-40610 | ||||
| 91651-40616 | ||||
| 93530-54010 | ||||
| Linked diagrams | ||||
| 8511 | ||||
