FJ60LV-KK (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1981
Engine 2F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8110)FJ60..CND

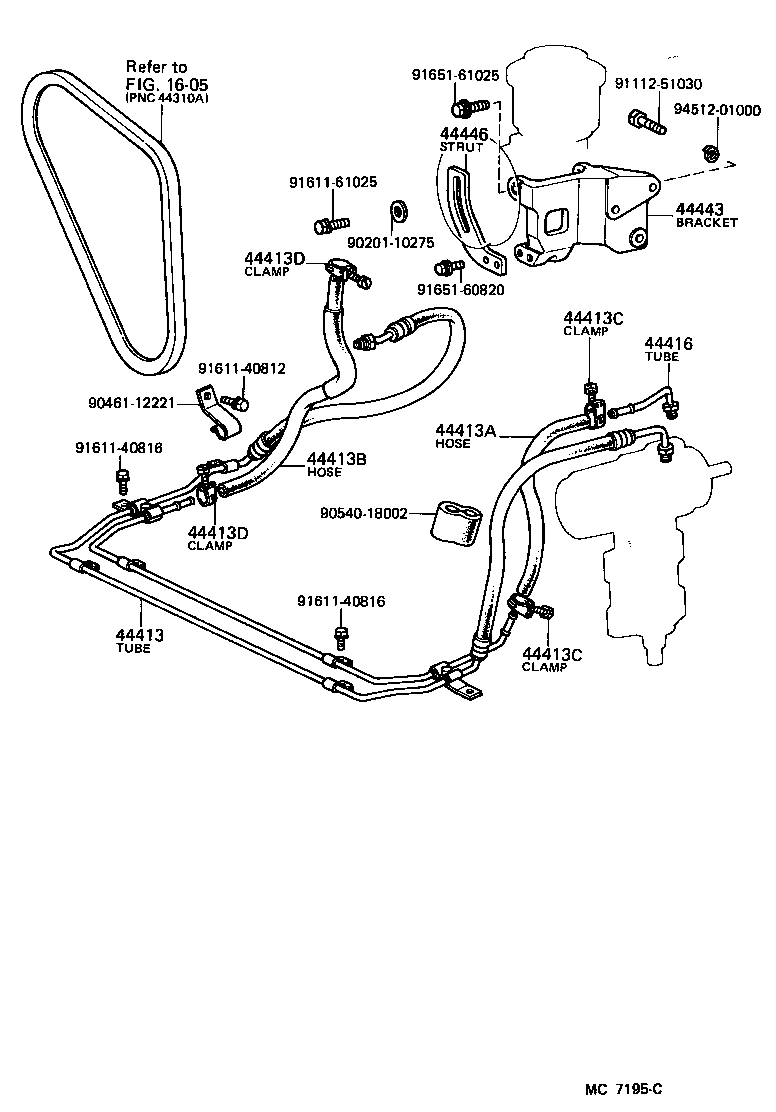

Click highlighted areas on diagram

diagram 1605 44413 44413A 44413B 44413C 44413C 44413D 44413D 44416 44443 44446 9020110275 9046112221 9054018002 9111251030 9161140812 9161140816 9161140816 9161161025 9165160820 9165161025 9451201000
Part # Description Qty Price
44413 - TUBE, PRESSURE FEED, NO.1
44410-60040

FJ60..CND

 1
44410-60041

FJ60..CND

 1
44413A - HOSE(FOR RETURN TUBE OUTLET)
90445-18089

FJ60..CND

 1
44413B - HOSE(FOR RESERVOIR TANK INLET)
90445-18090

FJ60..CND

 1
44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE)
90460-01001

FJ60..CND

 2
44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE)
90460-01001

FJ60..CND

 2
44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE)
90460-01001

FJ60..CND

 2
44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE)
90460-01001

FJ60..CND

 2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-60060

FJ60

 1
44443 - BRACKET, PUMP
44443-60010

FJ60..CND

 1
44446 - STRUT, ADJUSTING
44446-60010

FJ60..CND

 1
Common parts
90201-10275
90461-12221
90540-18002
91112-51030
91611-40812
91611-40816
91611-61025
91651-60820
91651-61025
94512-01000
Linked diagrams
1605
