FJ60LV-KA (1986)
Toyota Land Cruiser
Production
Sep 1986
-
Aug 1987
Engine
2F
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8609- )WGV

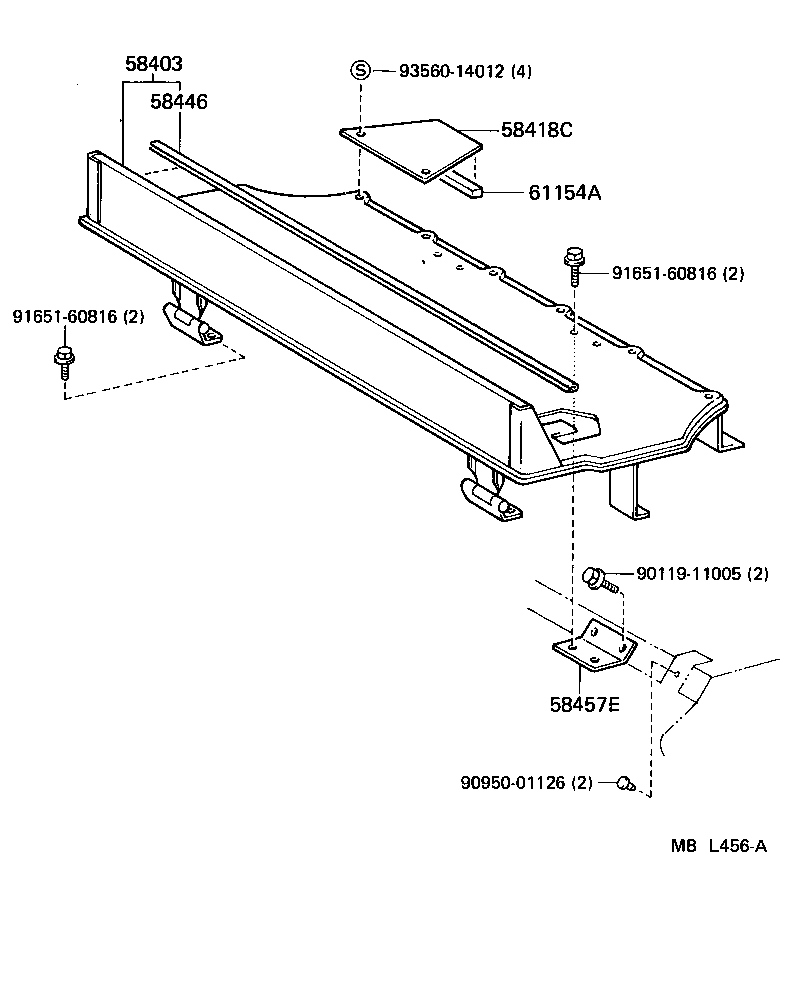

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58403 - BOARD SUB-ASSY, DECK | ||||
| 58410-90A00 |
FJ60..WGV |
1 | ||
| 58418C - PLATE, DECK BOARD | ||||
| 58418-90A00 |
FJ60..WGV |
2 | ||
| 58446 - PROTECTOR, DECK BOARD BRACKET | ||||
| 58446-90A00 |
FJ60..WGV |
1 | ||
| 58457E - BRACKET, DECK BOARD, REAR | ||||
| 58457-90A00 |
FJ60..WGV |
2 | ||
| 61154A - CUSHION, SIDE PANEL STIFFENER, NO.4 | ||||
| 61154-90C00 |
FJ60..WGV |
2 | ||
| Common parts | ||||
| 90119-11005 | ||||
| 90950-01126 | ||||
| 91651-60816 | ||||
| 93560-14012 | ||||
