Toyota Land cruiser FJ60 MOUNTING

FJ60LG-KA (1980)

Toyota Land Cruiser

Production Aug 1980 - Aug 1987

Engine 2F

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

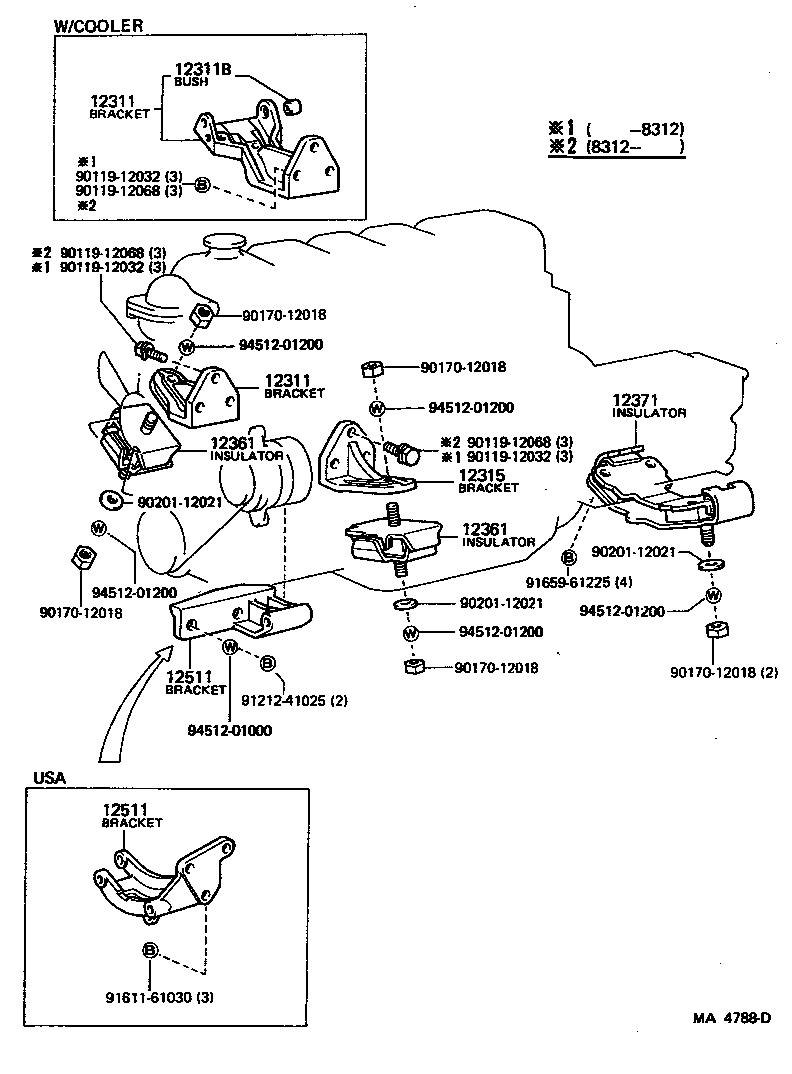

Click highlighted areas on diagram

Part #	Description	Period	Qty
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12301-61013	2F..FJ60 W/COOLER	12/1983 - 11/1984	1
12301-61012	2F..FJ60..USA W/COOLER	08/1980 - 12/1983	1
12301-61014	2F..FJ60 W/COOLER	11/1984 - 08/1987	1
12311-61070	2F..FJ60	11/1984 - 04/1986	1
12311-61011	2F..FJ60	08/1980 - 12/1983	1
12311-61012	2F..FJ60	12/1983 - 11/1984	1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12301-61013	2F..FJ60 W/COOLER	12/1983 - 11/1984	1
12301-61012	2F..FJ60..USA W/COOLER	08/1980 - 12/1983	1
12301-61014	2F..FJ60 W/COOLER	11/1984 - 08/1987	1
12311-61070	2F..FJ60	11/1984 - 04/1986	1
12311-61011	2F..FJ60	08/1980 - 12/1983	1
12311-61012	2F..FJ60	12/1983 - 11/1984	1
12311B - BUSH(FOR ENGINE MOUNTING BRACKET)
90387-10028	2F..FJ60..USA W/COOLER	08/1980 - 08/1987	1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-61011	2F..FJ60	08/1980 - 12/1983	1
12315-61012	2F..FJ60	12/1983 - 11/1984	1
12315-61013	2F..FJ60	11/1984 - 08/1987	1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-61020	2F..FJ60	08/1980 - 08/1987	2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-61020	2F..FJ60	08/1980 - 08/1987	2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-61020	2F..FJ60	08/1980 - 11/1984	1
12371-61030	2F..FJ60	11/1984 - 08/1987	1
12511 - BRACKET, ALTERNATOR, NO.1
12511-61021	2F..FJ60..USA	08/1980 - 08/1987	1
12511 - BRACKET, ALTERNATOR, NO.1
12511-61021	2F..FJ60..USA	08/1980 - 08/1987	1
Common parts
90119-12032
90119-12068
90170-12018
90201-12021
91212-41025
91611-61030
91659-61225
94512-01000
94512-01200

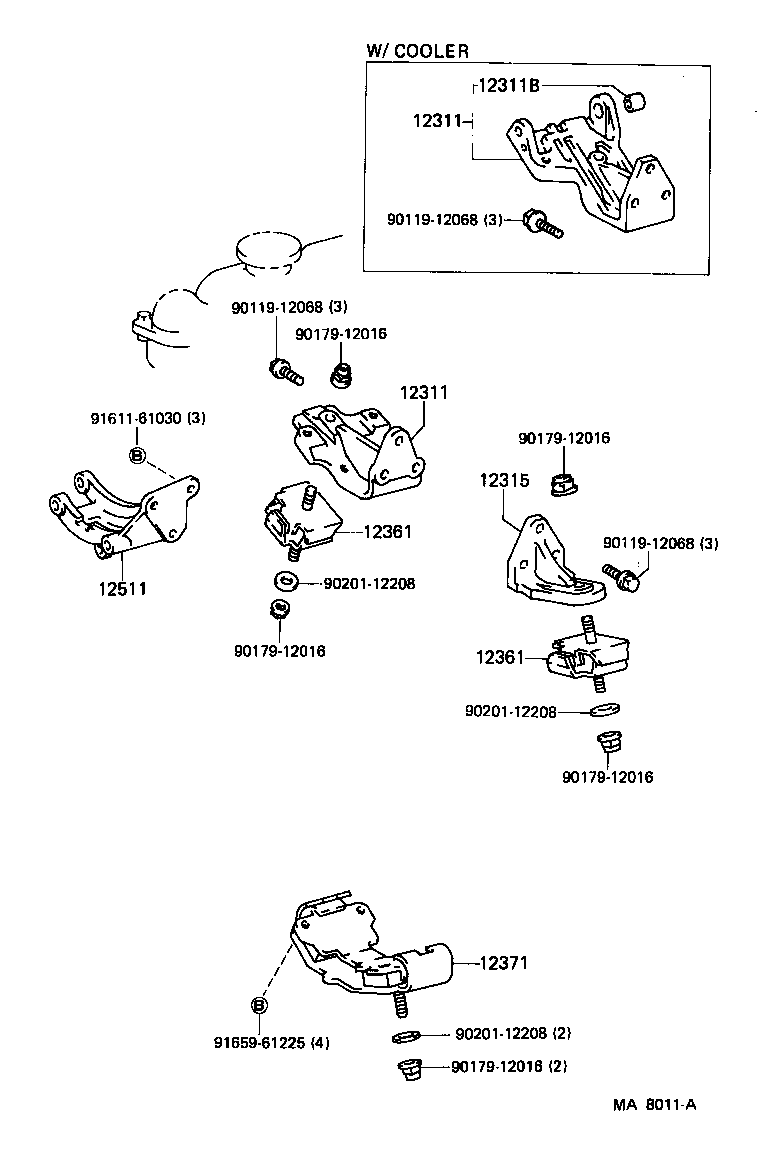

Click highlighted areas on diagram

Part #	Description	Period	Qty
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12301-61013	2F..FJ60 W/COOLER	12/1983 - 11/1984	1
12301-61012	2F..FJ60..USA W/COOLER	08/1980 - 12/1983	1
12301-61014	2F..FJ60 W/COOLER	11/1984 - 08/1987	1
12311-61070	2F..FJ60	11/1984 - 04/1986	1
12311-61011	2F..FJ60	08/1980 - 12/1983	1
12311-61012	2F..FJ60	12/1983 - 11/1984	1
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12301-61013	2F..FJ60 W/COOLER	12/1983 - 11/1984	1
12301-61012	2F..FJ60..USA W/COOLER	08/1980 - 12/1983	1
12301-61014	2F..FJ60 W/COOLER	11/1984 - 08/1987	1
12311-61070	2F..FJ60	11/1984 - 04/1986	1
12311-61011	2F..FJ60	08/1980 - 12/1983	1
12311-61012	2F..FJ60	12/1983 - 11/1984	1
12311B - BUSH(FOR ENGINE MOUNTING BRACKET)
90387-10028	2F..FJ60..USA W/COOLER	08/1980 - 08/1987	1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-61011	2F..FJ60	08/1980 - 12/1983	1
12315-61012	2F..FJ60	12/1983 - 11/1984	1
12315-61013	2F..FJ60	11/1984 - 08/1987	1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-61020	2F..FJ60	08/1980 - 08/1987	2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-61020	2F..FJ60	08/1980 - 08/1987	2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-61020	2F..FJ60	08/1980 - 11/1984	1
12371-61030	2F..FJ60	11/1984 - 08/1987	1
12511 - BRACKET, ALTERNATOR, NO.1
12511-61021	2F..FJ60..USA	08/1980 - 08/1987	1
Common parts
90119-12068
90179-12016
90201-12208
91611-61030
91659-61225
