Toyota Land cruiser FJ55 FUEL TANK & TUBE

FJ55LG-KK (1976)

Toyota Land Cruiser

Production Feb 1976 - Jul 1980

Engine 2F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9001-9908)FZJ75,HZJ70..ARL ; (9001-0701)FJ75,FZJ75,HZJ75,PZJ75..CBR,DSL ; (9401-99

Click highlighted areas on diagram

FUEL SUB TANK

Part #	Description	Period	Qty	Price
Common parts
90119-06621
90119-08701
90119-10153
90119-10539
90119-10556
90159-40155
90460-65002
90461-06174
90461-12296
90464-00239
90467-20134
91626-B0818
91651-40614
91651-60814
91651-60820
91665-40616
93383-15014
93383-A6014
96132-41100
Linked diagrams
8401

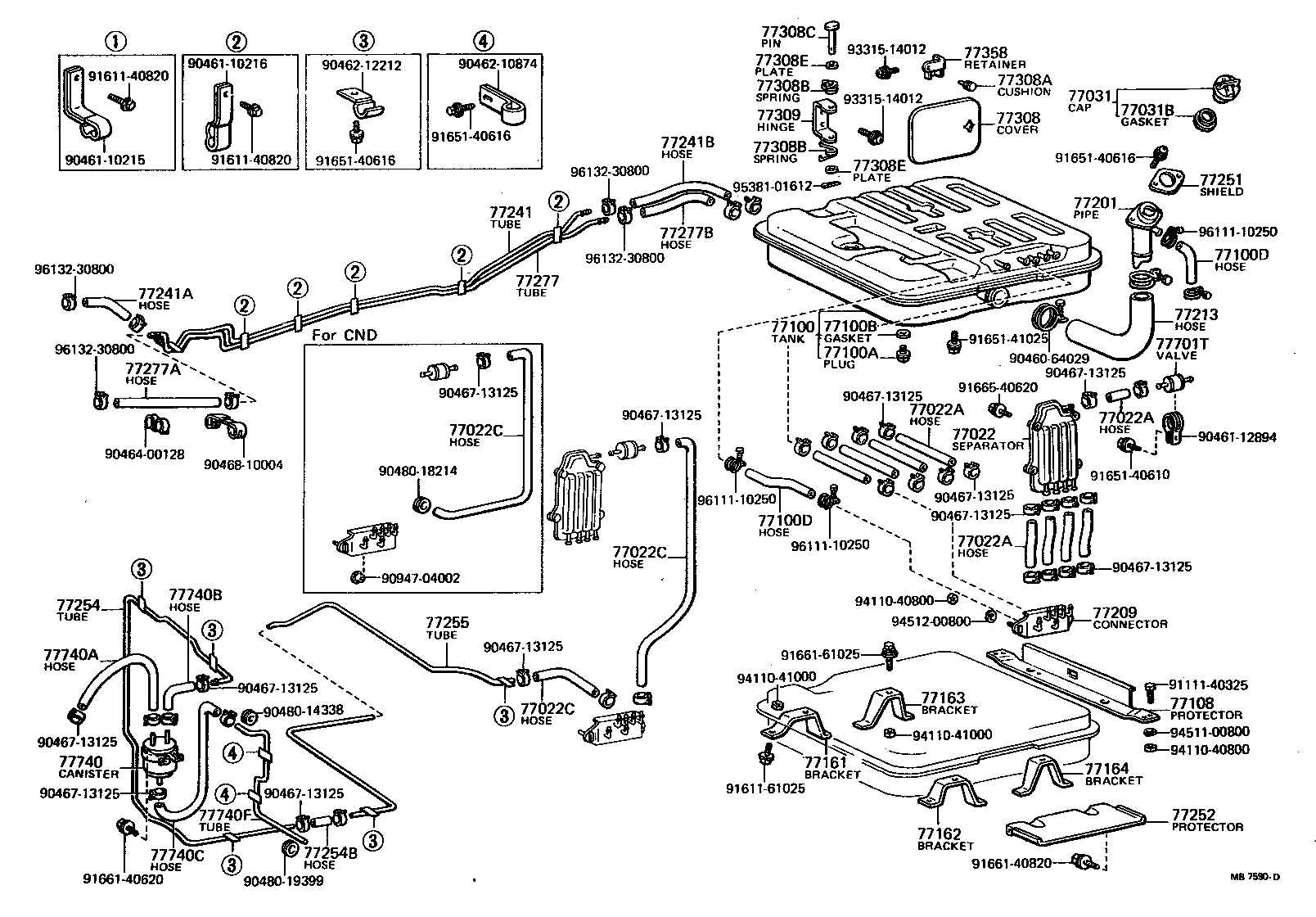

(7608-7709)FJ55

Click highlighted areas on diagram

Part #	Description	Period	Qty
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95331-08036	FJ55 *H,L=360	08/1976 - 06/1977	4
95332-06005	FJ55 *H,L=50	06/1977 - 09/1977	1
95332-08015	FJ55 *H,L=150,ID=7.6	06/1977 - 04/1979	4
95331-08015	FJ55 *H,L=150	08/1976 - 06/1977	4
95332-08036	FJ55 *H,L=360,ID=7.6	06/1977 - 04/1979	4
95332-06010	FJ55..CND *H,L=50	04/1979 - 07/1980	1
95332-08020	FJ55 *H,L=150,ID=7.6	04/1979 - 07/1980	4
95332-06005	FJ55..CND *H,L=50	09/1977 - 04/1979	1
95332-08040	FJ55 *H,L=360,ID=7.6	04/1979 - 07/1980	4
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95331-08036	FJ55 *H,L=360	08/1976 - 06/1977	4
95332-06005	FJ55 *H,L=50	06/1977 - 09/1977	1
95332-08015	FJ55 *H,L=150,ID=7.6	06/1977 - 04/1979	4
95331-08015	FJ55 *H,L=150	08/1976 - 06/1977	4
95332-08036	FJ55 *H,L=360,ID=7.6	06/1977 - 04/1979	4
95332-06010	FJ55..CND *H,L=50	04/1979 - 07/1980	1
95332-08020	FJ55 *H,L=150,ID=7.6	04/1979 - 07/1980	4
95332-06005	FJ55..CND *H,L=50	09/1977 - 04/1979	1
95332-08040	FJ55 *H,L=360,ID=7.6	04/1979 - 07/1980	4
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95331-08036	FJ55 *H,L=360	08/1976 - 06/1977	4
95332-06005	FJ55 *H,L=50	06/1977 - 09/1977	1
95332-08015	FJ55 *H,L=150,ID=7.6	06/1977 - 04/1979	4
95331-08015	FJ55 *H,L=150	08/1976 - 06/1977	4
95332-08036	FJ55 *H,L=360,ID=7.6	06/1977 - 04/1979	4
95332-06010	FJ55..CND *H,L=50	04/1979 - 07/1980	1
95332-08020	FJ55 *H,L=150,ID=7.6	04/1979 - 07/1980	4
95332-06005	FJ55..CND *H,L=50	09/1977 - 04/1979	1
95332-08040	FJ55 *H,L=360,ID=7.6	04/1979 - 07/1980	4
77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)
95331-06100	FJ55..CND L=1000	08/1976 - 06/1977	1
95332-06100	FJ55..CND L=1000	06/1977 - 09/1977	1
95332-06110	FJ55..CND L=1100	09/1978 - 07/1980	1
95332-06150	FJ55..CND L=1500	09/1977 - 09/1978	1
77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)
95331-06100	FJ55..CND L=1000	08/1976 - 06/1977	1
95332-06100	FJ55..CND L=1000	06/1977 - 09/1977	1
95332-06110	FJ55..CND L=1100	09/1978 - 07/1980	1
95332-06150	FJ55..CND L=1500	09/1977 - 09/1978	1
77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)
95331-06100	FJ55..CND L=1000	08/1976 - 06/1977	1
95332-06100	FJ55..CND L=1000	06/1977 - 09/1977	1
95332-06110	FJ55..CND L=1100	09/1978 - 07/1980	1
95332-06150	FJ55..CND L=1500	09/1977 - 09/1978	1
77031 - CAP ASSY, FUEL TANK
77310-60010	FJ40,55 L/VALVE,L/KEY	03/1969 - 02/1970	1
77310-14070	FJ40,55 W/VALVE,L/KEY	01/1978 - 07/1980	1
77310-14070	FJ4#,55 W/VALVE,L/KEY	09/1977 - 01/1978	1
77031B - GASKET (FOR FUEL TANK CAP)
90430-40059	FJ40,55	03/1969 - 02/1970	1
77316-12050	FJ40,55	01/1979 - 07/1980	1
77316-12050	FJ4#,55	09/1977 - 01/1979	1
77100 - TANK ASSY, FUEL
77001-90353	FJ55	03/1969 - 09/1969	1
77100-60080	FJ55	08/1976 - 09/1977	1
77100-90371	FJ55	05/1976 - 08/1976	1
77100-60082	FJ55	01/1979 - 07/1980	1
77100-60081	FJ55	09/1977 - 01/1979	1
77100A - PLUG(FOR FUEL TANK)
90105-12018	FJ55	01/1979 - 07/1980	1
90105-12005	FJ40,55	03/1969 - 08/1969	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	FJ4#,55	06/1977 - 01/1979	1
90430-12245	FJ55	01/1979 - 07/1980	1
90430-12038	FJ4#,55	03/1969 - 06/1977	1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
77264-90351	FJ55	03/1969 - 05/1969	2
90445-24014	FJ55 L=160	08/1976 - 07/1980	1
90445-24015	FJ55 L=270	08/1976 - 07/1980	1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
77264-90351	FJ55	03/1969 - 05/1969	2
90445-24014	FJ55 L=160	08/1976 - 07/1980	1
90445-24015	FJ55 L=270	08/1976 - 07/1980	1
77108 - PROTECTOR SUB-ASSY, FUEL TANK
77135-60010	FJ55	08/1976 - 07/1980	1
77161 - BRACKET, FUEL TANK, FRONT RH
77501-60010	FJ55	08/1976 - 07/1980	1
77162 - BRACKET, FUEL TANK, FRONT LH
77162-60010	FJ55	08/1976 - 07/1980	1
77163 - BRACKET, FUEL TANK, REAR RH
77142-60010	FJ55	08/1976 - 07/1980	1
77164 - BRACKET, FUEL TANK, REAR LH
77142-60010	FJ55	08/1976 - 07/1980	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-90354	FJ55 W/STRAINER	03/1969 - 09/1969	1
77201-90353	FJ55	03/1969 - 09/1969	1
77201-60121	FJ55	01/1977 - 09/1977	1
77201-60122	FJ55	09/1977 - 01/1979	1
77201-60120	FJ55	08/1976 - 01/1977	1
77201-60102	FJ55..CND	01/1979 - 07/1980	1
77209 - CONNECTOR SUB-ASSY, FUEL TUBE
77209-60010	FJ55	08/1976 - 07/1980	1
77213 - HOSE, FUEL TANK SUB INLET
77213-60023	FJ55	01/1979 - 07/1980	1
77213-60020	FJ55	08/1976 - 09/1977	1
77212-90352	FJ55	03/1969 - 09/1972	1
77213-60022	FJ55	09/1977 - 01/1979	1
77241 - TUBE, FUEL MAIN, NO.1
77256-90351	FJ55	03/1969 - 06/1970	1
77251-60091	FJ55	09/1977 - 01/1979	1
77251-60140	FJ55	01/1979 - 07/1980	1
77251-60090	FJ55	08/1976 - 09/1977	1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77202-90351	FJ55 L=400	03/1969 - 06/1970	1
95331-08005	FJ55 *H,L=50	08/1976 - 09/1977	1
95332-08020	FJ55 *H,L=200,ID=7.6	09/1977 - 07/1980	1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
77203-90351	FJ55 L=300	03/1969 - 06/1970	1
90445-14030	FJ55 L=410	08/1976 - 07/1980	1
77251 - SHIELD, FUEL TANK, INLET, NO.1
77293-60030	FJ55	08/1976 - 01/1979	1
77262-90351	FJ55	03/1969 - 12/1970	1
77293-60030	BJ40,FJ4#,55	01/1979 - 07/1980	1
77252 - PROTECTOR, FUEL TUBE
77276-60011	FJ55	01/1979 - 07/1980	1
77276-60010	FJ55	08/1976 - 01/1979	1
77254 - TUBE, FUEL EMISSION, NO.1
77244-60100	FJ55..CND	09/1978 - 07/1980	1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
95332-06011	FJ55 *H,L=110	06/1977 - 09/1977	1
77277 - TUBE, FUEL RETURN, NO.1
77255-60030	FJ55	08/1976 - 01/1979	1
77255-60070	FJ55	01/1979 - 07/1980	1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-08060	FJ4#,55 *H,L=550,ID=7.6	04/1979 - 07/1980	1
95332-08055	FJ4#,55 *H,L=550,ID=7.6	09/1977 - 04/1979	1
95331-08040	FJ55 *H,L=400	08/1976 - 06/1977	1
95332-08040	FJ55 *H,L=400,ID=7.6	06/1977 - 09/1977	1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
77259-60050	FJ55	09/1977 - 07/1980	1
95331-08038	FJ55 *H,L=380	08/1976 - 06/1977	1
95332-08038	FJ55 *H,L=380,ID=7.6	06/1977 - 09/1977	1
77308 - COVER SUB-ASSY, FUEL INLET BOX
61803-90352	FJ55	05/1978 - 07/1980	1
61821-90904	FJ55	03/1969 - 08/1972	1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-06008	FJ55	03/1969 - 08/1972	1
77308B - SPRING, TORSION(FOR FUEL INLET BOX COVER)
61828-90351	FJ55 LOWER	03/1969 - 05/1978	1
61827-90351	FJ55 UPPER	03/1969 - 07/1980	1
77308B - SPRING, TORSION(FOR FUEL INLET BOX COVER)
61828-90351	FJ55 LOWER	03/1969 - 05/1978	1
61827-90351	FJ55 UPPER	03/1969 - 07/1980	1
77308C - PIN, STRAIGHT(FOR FUEL INLET BOX COVER)
61824-90355	FJ55	05/1978 - 07/1980	1
61824-90351	FJ55	03/1969 - 08/1972	1
77308E - PLATE, FUEL INLET BOX
61825-90351	FJ55	03/1969 - 08/1972	2
77308E - PLATE, FUEL INLET BOX
61825-90351	FJ55	03/1969 - 08/1972	2
77309 - HINGE SUB-ASSY, FUEL INLET BOX COVER
61823-90351	FJ55	03/1969 - 08/1972	1
77358 - RETAINER, FUEL INLET CUSHION
61815-90351	FJ55	03/1969 - 08/1972	1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10020	BJ40,FJ4#,55..CND	09/1977 - 07/1980	1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95332-06034	FJ55 *H,L=340	06/1977 - 09/1977	1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
95331-08020	FJ55 *H,L=200	08/1976 - 06/1977	1
95332-08020	FJ55 *H,L=200,ID=7.6	06/1977 - 09/1977	1
Common parts
90460-64029
90461-10215
90461-10216
90461-12894
90462-10874
90462-12212
90464-00128
90467-13125
90468-10004
90480-14338
90480-18214
90480-19399
90947-04002
91111-40325
91611-40820
91611-61025
91651-40610
91651-40616
91651-41025
91661-40620
91661-40820
91661-61025
91665-40620
93315-14012
94110-40800
94110-41000
94511-00800
94512-00800
95381-01612
96111-10250
96132-30800

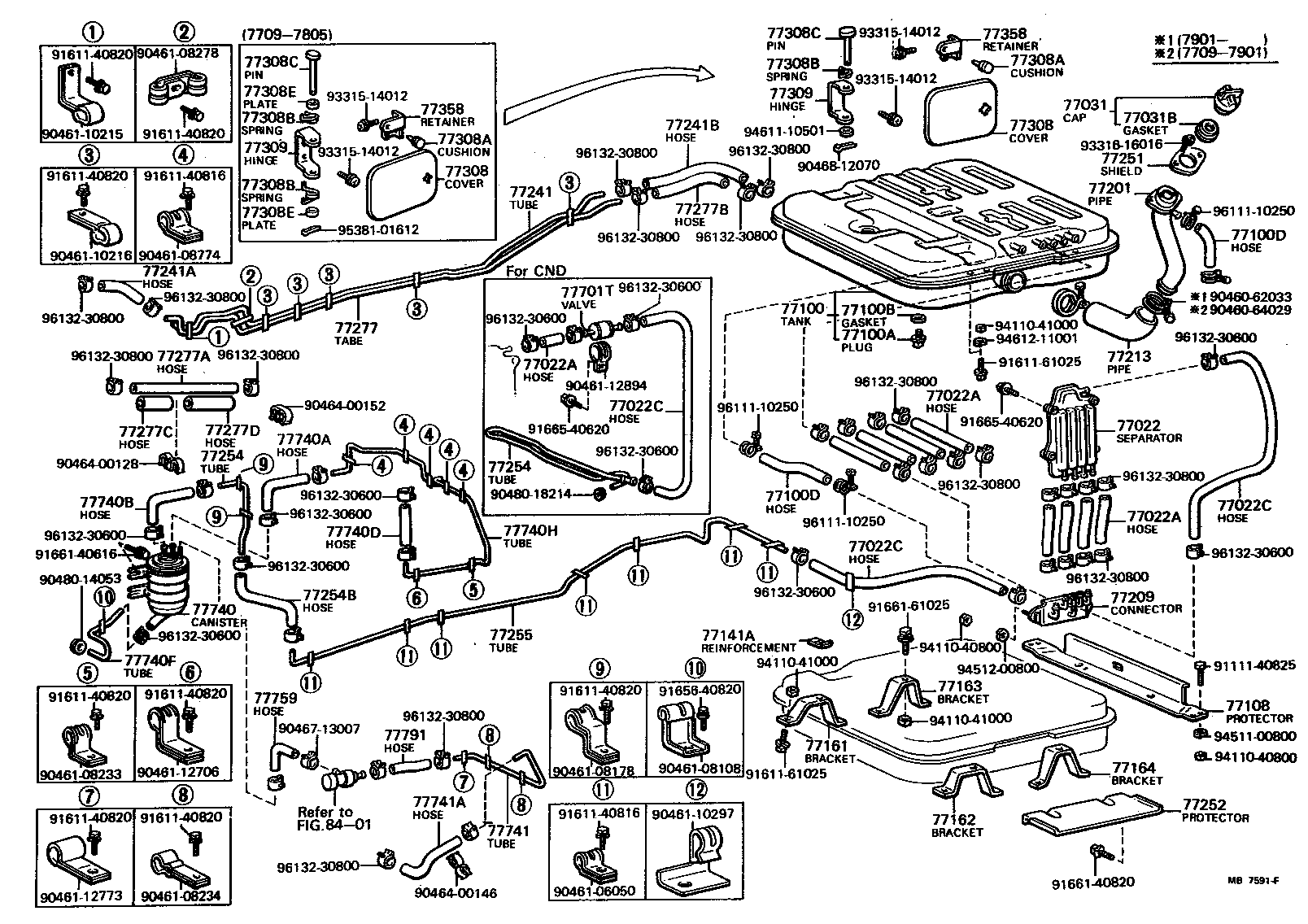

(7709-8007)FJ55

Click highlighted areas on diagram

Part #	Description	Period	Qty
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95331-08036	FJ55 *H,L=360	08/1976 - 06/1977	4
95332-06005	FJ55 *H,L=50	06/1977 - 09/1977	1
95332-08015	FJ55 *H,L=150,ID=7.6	06/1977 - 04/1979	4
95331-08015	FJ55 *H,L=150	08/1976 - 06/1977	4
95332-08036	FJ55 *H,L=360,ID=7.6	06/1977 - 04/1979	4
95332-06010	FJ55..CND *H,L=50	04/1979 - 07/1980	1
95332-08020	FJ55 *H,L=150,ID=7.6	04/1979 - 07/1980	4
95332-06005	FJ55..CND *H,L=50	09/1977 - 04/1979	1
95332-08040	FJ55 *H,L=360,ID=7.6	04/1979 - 07/1980	4
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95331-08036	FJ55 *H,L=360	08/1976 - 06/1977	4
95332-06005	FJ55 *H,L=50	06/1977 - 09/1977	1
95332-08015	FJ55 *H,L=150,ID=7.6	06/1977 - 04/1979	4
95331-08015	FJ55 *H,L=150	08/1976 - 06/1977	4
95332-08036	FJ55 *H,L=360,ID=7.6	06/1977 - 04/1979	4
95332-06010	FJ55..CND *H,L=50	04/1979 - 07/1980	1
95332-08020	FJ55 *H,L=150,ID=7.6	04/1979 - 07/1980	4
95332-06005	FJ55..CND *H,L=50	09/1977 - 04/1979	1
95332-08040	FJ55 *H,L=360,ID=7.6	04/1979 - 07/1980	4
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95331-08036	FJ55 *H,L=360	08/1976 - 06/1977	4
95332-06005	FJ55 *H,L=50	06/1977 - 09/1977	1
95332-08015	FJ55 *H,L=150,ID=7.6	06/1977 - 04/1979	4
95331-08015	FJ55 *H,L=150	08/1976 - 06/1977	4
95332-08036	FJ55 *H,L=360,ID=7.6	06/1977 - 04/1979	4
95332-06010	FJ55..CND *H,L=50	04/1979 - 07/1980	1
95332-08020	FJ55 *H,L=150,ID=7.6	04/1979 - 07/1980	4
95332-06005	FJ55..CND *H,L=50	09/1977 - 04/1979	1
95332-08040	FJ55 *H,L=360,ID=7.6	04/1979 - 07/1980	4
77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)
95331-06100	FJ55..CND L=1000	08/1976 - 06/1977	1
95332-06100	FJ55..CND L=1000	06/1977 - 09/1977	1
95332-06110	FJ55..CND L=1100	09/1978 - 07/1980	1
95332-06150	FJ55..CND L=1500	09/1977 - 09/1978	1
77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)
95331-06100	FJ55..CND L=1000	08/1976 - 06/1977	1
95332-06100	FJ55..CND L=1000	06/1977 - 09/1977	1
95332-06110	FJ55..CND L=1100	09/1978 - 07/1980	1
95332-06150	FJ55..CND L=1500	09/1977 - 09/1978	1
77022C - HOSE OR TUBE(FOR FUEL EVAPORATIVE SEPARATOR)
95331-06100	FJ55..CND L=1000	08/1976 - 06/1977	1
95332-06100	FJ55..CND L=1000	06/1977 - 09/1977	1
95332-06110	FJ55..CND L=1100	09/1978 - 07/1980	1
95332-06150	FJ55..CND L=1500	09/1977 - 09/1978	1
77031 - CAP ASSY, FUEL TANK
77310-60010	FJ40,55 L/VALVE,L/KEY	03/1969 - 02/1970	1
77310-14070	FJ40,55 W/VALVE,L/KEY	01/1978 - 07/1980	1
77310-14070	FJ4#,55 W/VALVE,L/KEY	09/1977 - 01/1978	1
77031B - GASKET (FOR FUEL TANK CAP)
90430-40059	FJ40,55	03/1969 - 02/1970	1
77316-12050	FJ40,55	01/1979 - 07/1980	1
77316-12050	FJ4#,55	09/1977 - 01/1979	1
77100 - TANK ASSY, FUEL
77001-90353	FJ55	03/1969 - 09/1969	1
77100-60080	FJ55	08/1976 - 09/1977	1
77100-90371	FJ55	05/1976 - 08/1976	1
77100-60082	FJ55	01/1979 - 07/1980	1
77100-60081	FJ55	09/1977 - 01/1979	1
77100A - PLUG(FOR FUEL TANK)
90105-12018	FJ55	01/1979 - 07/1980	1
90105-12005	FJ40,55	03/1969 - 08/1969	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	FJ4#,55	06/1977 - 01/1979	1
90430-12245	FJ55	01/1979 - 07/1980	1
90430-12038	FJ4#,55	03/1969 - 06/1977	1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
77264-90351	FJ55	03/1969 - 05/1969	2
90445-24014	FJ55 L=160	08/1976 - 07/1980	1
90445-24015	FJ55 L=270	08/1976 - 07/1980	1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
77264-90351	FJ55	03/1969 - 05/1969	2
90445-24014	FJ55 L=160	08/1976 - 07/1980	1
90445-24015	FJ55 L=270	08/1976 - 07/1980	1
77108 - PROTECTOR SUB-ASSY, FUEL TANK
77135-60010	FJ55	08/1976 - 07/1980	1
77141A - REINFORCEMENT, FUEL TANK FLANGE
77141-60020	FJ55	10/1977 - 07/1980	1
77161 - BRACKET, FUEL TANK, FRONT RH
77501-60010	FJ55	08/1976 - 07/1980	1
77162 - BRACKET, FUEL TANK, FRONT LH
77162-60010	FJ55	08/1976 - 07/1980	1
77163 - BRACKET, FUEL TANK, REAR RH
77142-60010	FJ55	08/1976 - 07/1980	1
77164 - BRACKET, FUEL TANK, REAR LH
77142-60010	FJ55	08/1976 - 07/1980	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-90354	FJ55 W/STRAINER	03/1969 - 09/1969	1
77201-90353	FJ55	03/1969 - 09/1969	1
77201-60121	FJ55	01/1977 - 09/1977	1
77201-60122	FJ55	09/1977 - 01/1979	1
77201-60120	FJ55	08/1976 - 01/1977	1
77201-60102	FJ55..CND	01/1979 - 07/1980	1
77209 - CONNECTOR SUB-ASSY, FUEL TUBE
77209-60010	FJ55	08/1976 - 07/1980	1
77213 - HOSE, FUEL TANK SUB INLET
77213-60023	FJ55	01/1979 - 07/1980	1
77213-60020	FJ55	08/1976 - 09/1977	1
77212-90352	FJ55	03/1969 - 09/1972	1
77213-60022	FJ55	09/1977 - 01/1979	1
77241 - TUBE, FUEL MAIN, NO.1
77256-90351	FJ55	03/1969 - 06/1970	1
77251-60091	FJ55	09/1977 - 01/1979	1
77251-60140	FJ55	01/1979 - 07/1980	1
77251-60090	FJ55	08/1976 - 09/1977	1
77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)
77202-90351	FJ55 L=400	03/1969 - 06/1970	1
95331-08005	FJ55 *H,L=50	08/1976 - 09/1977	1
95332-08020	FJ55 *H,L=200,ID=7.6	09/1977 - 07/1980	1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
77203-90351	FJ55 L=300	03/1969 - 06/1970	1
90445-14030	FJ55 L=410	08/1976 - 07/1980	1
77251 - SHIELD, FUEL TANK, INLET, NO.1
77293-60030	FJ55	08/1976 - 01/1979	1
77262-90351	FJ55	03/1969 - 12/1970	1
77293-60030	BJ40,FJ4#,55	01/1979 - 07/1980	1
77252 - PROTECTOR, FUEL TUBE
77276-60011	FJ55	01/1979 - 07/1980	1
77276-60010	FJ55	08/1976 - 01/1979	1
77254 - TUBE, FUEL EMISSION, NO.1
77244-60100	FJ55..CND	09/1978 - 07/1980	1
77254 - TUBE, FUEL EMISSION, NO.1
77244-60100	FJ55..CND	09/1978 - 07/1980	1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
95332-06011	FJ55 *H,L=110	06/1977 - 09/1977	1
77277 - TUBE, FUEL RETURN, NO.1
77255-60030	FJ55	08/1976 - 01/1979	1
77255-60070	FJ55	01/1979 - 07/1980	1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-08060	FJ4#,55 *H,L=550,ID=7.6	04/1979 - 07/1980	1
95332-08055	FJ4#,55 *H,L=550,ID=7.6	09/1977 - 04/1979	1
95331-08040	FJ55 *H,L=400	08/1976 - 06/1977	1
95332-08040	FJ55 *H,L=400,ID=7.6	06/1977 - 09/1977	1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
77259-60050	FJ55	09/1977 - 07/1980	1
95331-08038	FJ55 *H,L=380	08/1976 - 06/1977	1
95332-08038	FJ55 *H,L=380,ID=7.6	06/1977 - 09/1977	1
77277C - HOSE, FUEL, NO.3(FOR RETURN TUBE, NO.1)
90445-25006	FJ55 L=165	09/1977 - 07/1980	1
77277D - HOSE, FUEL, NO.4 (FOR RETURN TUBE, NO.1)
90445-25010	FJ55..CND L=150	09/1977 - 09/1978	1
90445-25005	FJ55 L=250	09/1978 - 07/1980	1
77308 - COVER SUB-ASSY, FUEL INLET BOX
61803-90352	FJ55	05/1978 - 07/1980	1
61821-90904	FJ55	03/1969 - 08/1972	1
77308 - COVER SUB-ASSY, FUEL INLET BOX
61803-90352	FJ55	05/1978 - 07/1980	1
61821-90904	FJ55	03/1969 - 08/1972	1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-06008	FJ55	03/1969 - 08/1972	1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-06008	FJ55	03/1969 - 08/1972	1
77308B - SPRING, TORSION(FOR FUEL INLET BOX COVER)
61828-90351	FJ55 LOWER	03/1969 - 05/1978	1
61827-90351	FJ55 UPPER	03/1969 - 07/1980	1
77308B - SPRING, TORSION(FOR FUEL INLET BOX COVER)
61828-90351	FJ55 LOWER	03/1969 - 05/1978	1
61827-90351	FJ55 UPPER	03/1969 - 07/1980	1
77308B - SPRING, TORSION(FOR FUEL INLET BOX COVER)
61828-90351	FJ55 LOWER	03/1969 - 05/1978	1
61827-90351	FJ55 UPPER	03/1969 - 07/1980	1
77308C - PIN, STRAIGHT(FOR FUEL INLET BOX COVER)
61824-90355	FJ55	05/1978 - 07/1980	1
61824-90351	FJ55	03/1969 - 08/1972	1
77308C - PIN, STRAIGHT(FOR FUEL INLET BOX COVER)
61824-90355	FJ55	05/1978 - 07/1980	1
61824-90351	FJ55	03/1969 - 08/1972	1
77308E - PLATE, FUEL INLET BOX
61825-90351	FJ55	03/1969 - 08/1972	2
77308E - PLATE, FUEL INLET BOX
61825-90351	FJ55	03/1969 - 08/1972	2
77309 - HINGE SUB-ASSY, FUEL INLET BOX COVER
61823-90351	FJ55	03/1969 - 08/1972	1
77309 - HINGE SUB-ASSY, FUEL INLET BOX COVER
61823-90351	FJ55	03/1969 - 08/1972	1
77358 - RETAINER, FUEL INLET CUSHION
61815-90351	FJ55	03/1969 - 08/1972	1
77358 - RETAINER, FUEL INLET CUSHION
61815-90351	FJ55	03/1969 - 08/1972	1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10020	BJ40,FJ4#,55..CND	09/1977 - 07/1980	1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95332-06034	FJ55 *H,L=340	06/1977 - 09/1977	1
Common parts
90460-62033
90460-64029
90461-06050
90461-08108
90461-08178
90461-08233
90461-08234
90461-08278
90461-08774
90461-10215
90461-10216
90461-10297
90461-12706
90461-12773
90461-12894
90464-00128
90464-00146
90464-00152
90467-13007
90468-12070
90480-14053
90480-18214
91111-40825
91611-40816
91611-40820
91611-61025
91656-40820
91661-40616
91661-40820
91661-61025
91665-40620
93315-14012
93316-16016
94110-40800
94110-41000
94511-00800
94512-00800
94611-10501
94612-11001
95381-01612
96111-10250
96132-30600
96132-30800
Linked diagrams
8401

FJ55LG-KK (1976)

ILLUST NO. 1 OF 3(9001-9908)FZJ75,HZJ70..ARL ; (9001-0701)FJ75,FZJ75,HZJ75,PZJ75..CBR,DSL ; (9401-99

(7608-7709)FJ55

(7709-8007)FJ55

Part Price Details
