FJ55LG-KK (1976)

Toyota Land Cruiser

Production Feb 1976 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7608-7901)2F..FJ40..USA ; (7901-8007)2F

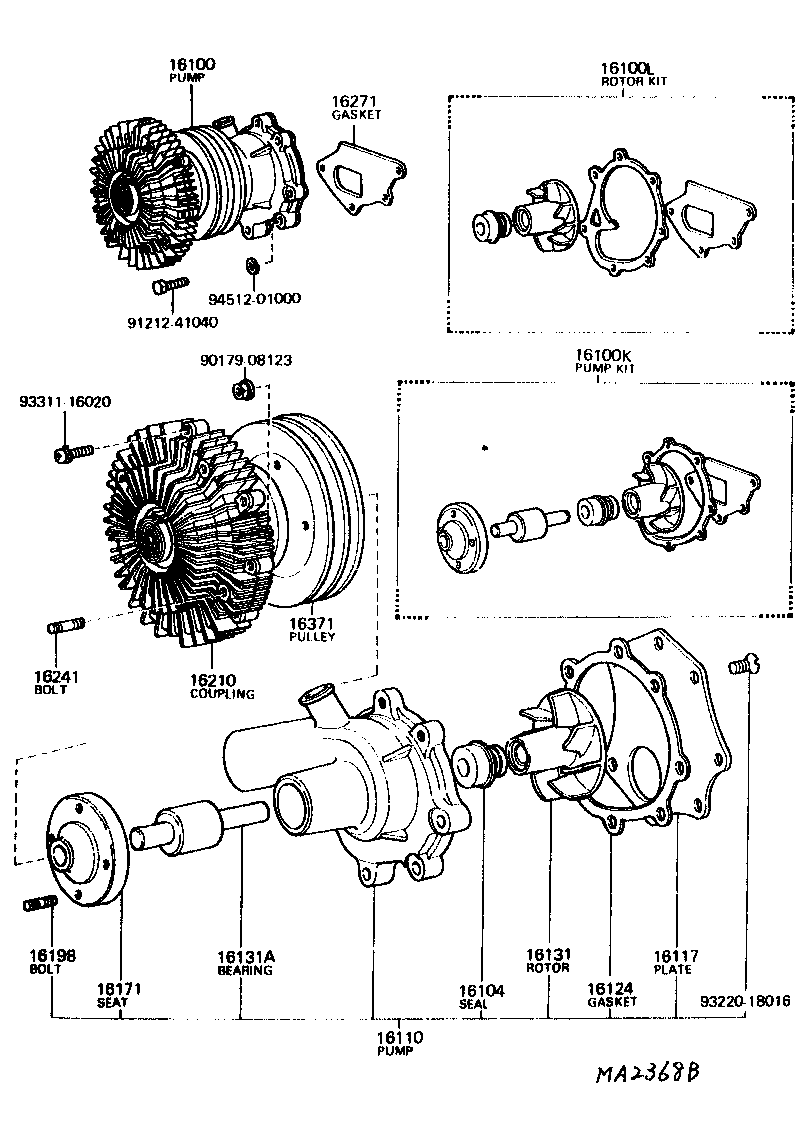

Click highlighted areas on diagram

diagram 16100 16100K 16100L 16104 16110 16117 16124 16131 16131A 16171 16198 16210 16241 16271 16371 9017908123 9121241040 9322018016 9331116020 9451201000
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-60080

F..FJ40,55

 1
16100-61071

2F..FJ40,55

 1
16100-61012

2F..FJ45,55;2F..FJ40..CND

 1
16100K - PUMP KIT, WATER
04161-60090

F..FJ40,55

 1
04161-61011

2F..FJ45,55;2F..FJ40..CND

 1
16100L - ROTOR KIT, WATER PUMP
04162-60070

F..FJ40,55

 1
04162-61020

2F..FJ40,55

 1
16104 - SEAL SET, WATER PUMP
16104-60080

F..FJ40,55

 1
16104-41111

2F..FJ4#,55

 1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-61071

2F..FJ40,55

 1
16110-61081

2F..FJ40,55

W/OIL COOLER

 1
16117 - PLATE, WATER PUMP
16117-60010

F..FJ40,55

 1
16124 - GASKET, WATER PUMP COVER
16124-60080

F..FJ40,55

 1
16131 - ROTOR, WATER PUMP
16131-61071

2F..FJ40,55

 1
16131-60080

F..FJ40,55

 1
16131A - BEARING, WATER PUMP
90369-35007

2F..FJ40,55

 1
90369-30008

F..FJ40,55

885141CF

 1
90369-30028

2F..FJ45,55;2F..FJ40..CND

WPB16112-2RS

 1
16171 - SEAT, WATER PUMP PULLEY
16171-56010

2F..FJ45,55;2F..FJ40..CND

 1
16171-61071

2F..FJ40,55

 1
16171-60080

F..FJ40,55

 1
16198 - BOLT, STUD(FOR WATER PUMP PULLEY SEAT)
16198-41050

2F..FJ40,55

 4
16210 - COUPLING ASSY, FLUID
16210-61071

2F..FJ40,55

 1
16210-61120

2F..FJ40,55

W/COOLER

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
90116-06200

2F..FJ40,55

 4
16271 - GASKET, WATER PUMP
16271-60010

F..FJ40,55

 1
16371 - PULLEY, FAN
16371-60070

F..FJ40,55

 1
16371-61010

2F..FJ4#,55..CND

 1
16173-61070

2F..FJ40,55

 1
Common parts
90179-08123
91212-41040
93220-18016
93311-16020
94512-01000
