FJ55LG-KA (1976)
Toyota Land Cruiser
Production
Feb 1976
-
Jul 1980
Engine
2F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

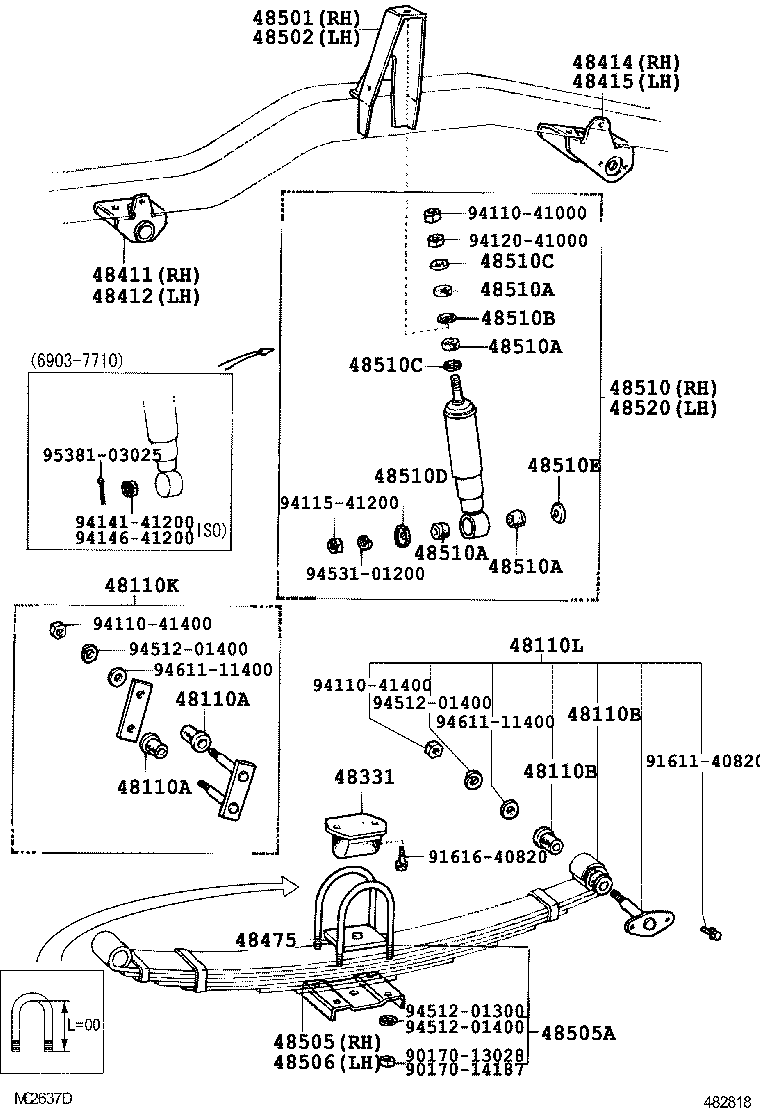

(6903-8007)FJ55
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18025 |
FJ55 |
8 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-18025 |
FJ55 |
8 | ||
| 48110B - BUSH(FOR FRONT SPRING PIN) | ||||
| 90385-18025 |
FJ55 |
4 | ||
| 48110B - BUSH(FOR FRONT SPRING PIN) | ||||
| 90385-18025 |
FJ55 |
4 | ||
| 48110K - SHACKLE KIT, FRONT SPRING | ||||
| 04481-36020 |
FJ55 |
2 | ||
| 48110L - PIN KIT, FRONT SPRING | ||||
| 04484-35020 |
FJ55 |
2 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48304-60010 |
FJ55 |
2 | ||
| 48411 - BRACKET, FRONT SPRING(FOR FRONT RH) | ||||
| 48411-60020 |
FJ55 |
1 | ||
| 48412 - BRACKET, FRONT SPRING(FOR FRONT LH) | ||||
| 48411-60020 |
FJ55 |
1 | ||
| 48414 - BRACKET, FRONT SPRING(FOR REAR RH) | ||||
| 48433-60010 |
FJ55 |
1 | ||
| 48415 - BRACKET, FRONT SPRING(FOR REAR LH) | ||||
| 48434-60010 |
FJ55 |
1 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-60011 |
FJ55 |
2 | ||
| 48475-60011 |
FJ4#,55 |
2 | ||
| 48501 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER RH | ||||
| 48512-60020 |
FJ55 |
1 | ||
| 48502 - BRACKET SUB-ASSY, FRONT SHOCK ABSORBER, UPPER LH | ||||
| 48512-60020 |
FJ55 |
1 | ||
| 48505 - SEAT, FRONT SPRING, RH | ||||
| 48473-60012 |
BJ40,FJ4#,55 |
1 | ||
| 48473-60040 |
BJ40,FJ4#,55 |
1 | ||
| 48473-60010 |
FJ40,55 |
1 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90118-13114 |
FJ40,55 L=175,D=13,RH OUTSIDE & LH |
3 | ||
| 90118-14160 |
BJ40,FJ4#,55 L=180,D=14,RH OUTSIDE & LH. |
3 | ||
| 90118-13113 |
FJ40,55 L=200,D=13,RH INSIDE |
1 | ||
| 90118-14111 |
FJ55 L=215,L=215,D=14,RH INSIDE |
1 | ||
| 90118-14108 |
FJ55 L=185,D=14,LH & RH OUTSIDE. |
3 | ||
| 48506 - SEAT, FRONT SPRING, LH | ||||
| 48474-60030 |
BJ40,FJ4#,55 |
1 | ||
| 48473-60010 |
FJ40,55 |
1 | ||
| 48473-60012 |
BJ40,FJ4#,55 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-69045 |
FJ55 |
1 | ||
| 48511-69047 |
FJ55 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01002 |
FJ55 UPPER |
4 | ||
| 90385-16007 |
FJ55 LOWER |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01002 |
FJ55 UPPER |
4 | ||
| 90385-16007 |
FJ55 LOWER |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01002 |
FJ55 UPPER |
4 | ||
| 90385-16007 |
FJ55 LOWER |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01002 |
FJ55 UPPER |
4 | ||
| 90385-16007 |
FJ55 LOWER |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02005 |
FJ55 |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02004 |
FJ55 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02004 |
FJ55 |
4 | ||
| 48510D - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03003 |
BJ40,FJ4#,55 |
2 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BJ40,FJ4#,55 |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-69045 |
FJ55 |
1 | ||
| 48511-69047 |
FJ55 |
1 | ||
| Common parts | ||||
| 90170-13028 | ||||
| 90170-14187 | ||||
| 91611-40820 | ||||
| 91616-40820 | ||||
| 94110-41000 | ||||
| 94110-41400 | ||||
| 94115-41200 | ||||
| 94120-41000 | ||||
| 94141-41200 | ||||
| 94146-41200 | ||||
| 94512-01300 | ||||
| 94512-01400 | ||||
| 94531-01200 | ||||
| 94611-11400 | ||||
| 95381-03025 | ||||

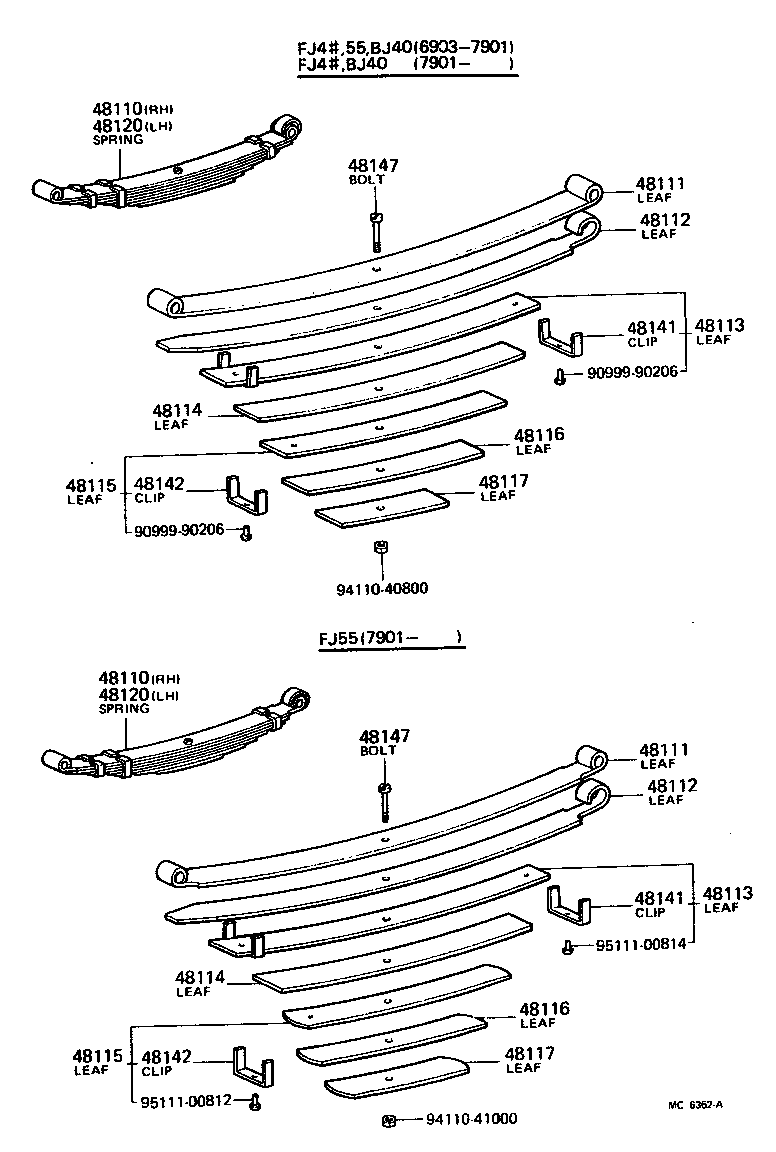

(6903-8007)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-60081 |
FJ55 |
1 | ||
| 48110-60130 |
FJ55 |
1 | ||
| 48110-60080 |
FJ55 |
1 | ||
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-60081 |
FJ55 |
1 | ||
| 48110-60130 |
FJ55 |
1 | ||
| 48110-60080 |
FJ55 |
1 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48111-60080 |
FJ55 |
2 | ||
| 48111-60081 |
FJ55 |
2 | ||
| 48111-60130 |
FJ55 |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48111-60080 |
FJ55 |
2 | ||
| 48111-60081 |
FJ55 |
2 | ||
| 48111-60130 |
FJ55 |
2 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-60081 |
FJ55 |
2 | ||
| 48112-60130 |
FJ55 |
2 | ||
| 48112-60080 |
FJ55 |
2 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-60081 |
FJ55 |
2 | ||
| 48112-60130 |
FJ55 |
2 | ||
| 48112-60080 |
FJ55 |
2 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-60130 |
FJ55 |
2 | ||
| 48102-60081 |
FJ55 |
2 | ||
| 48102-60080 |
FJ55 |
2 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-60130 |
FJ55 |
2 | ||
| 48102-60081 |
FJ55 |
2 | ||
| 48102-60080 |
FJ55 |
2 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-60080 |
FJ55 |
2 | ||
| 48114-60081 |
FJ55 |
2 | ||
| 48114-60130 |
FJ55 |
2 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48114-60080 |
FJ55 |
2 | ||
| 48114-60081 |
FJ55 |
2 | ||
| 48114-60130 |
FJ55 |
2 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48103-60080 |
FJ55 |
2 | ||
| 48103-60081 |
FJ55 |
2 | ||
| 48103-60130 |
FJ55 |
2 | ||
| 48115 - LEAF, FRONT SPRING, NO.5 | ||||
| 48103-60080 |
FJ55 |
2 | ||
| 48103-60081 |
FJ55 |
2 | ||
| 48103-60130 |
FJ55 |
2 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48116-60080 |
FJ55 |
2 | ||
| 48116-60081 |
FJ55 |
2 | ||
| 48116-60130 |
FJ55 |
2 | ||
| 48116 - LEAF, FRONT SPRING, NO.6 | ||||
| 48116-60080 |
FJ55 |
2 | ||
| 48116-60081 |
FJ55 |
2 | ||
| 48116-60130 |
FJ55 |
2 | ||
| 48117 - LEAF, FRONT SPRING, NO.7 | ||||
| 48117-60130 |
FJ55 |
2 | ||
| 48117-60081 |
FJ55 |
2 | ||
| 48117-60080 |
FJ55 |
2 | ||
| 48117 - LEAF, FRONT SPRING, NO.7 | ||||
| 48117-60130 |
FJ55 |
2 | ||
| 48117-60081 |
FJ55 |
2 | ||
| 48117-60080 |
FJ55 |
2 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-60080 |
FJ55 |
1 | ||
| 48110-60130 |
FJ55 |
1 | ||
| 48110-60081 |
FJ55 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-60080 |
FJ55 |
1 | ||
| 48110-60130 |
FJ55 |
1 | ||
| 48110-60081 |
FJ55 |
1 | ||
| 48141 - CLIP, FRONT SPRING, NO.1 | ||||
| 48141-60060 |
BJ40,FJ4#,55 |
4 | ||
| 48141-60120 |
BJ40,FJ4#,55 |
4 | ||
| 48141-60081 |
FJ55 |
4 | ||
| 48141 - CLIP, FRONT SPRING, NO.1 | ||||
| 48141-60060 |
BJ40,FJ4#,55 |
4 | ||
| 48141-60120 |
BJ40,FJ4#,55 |
4 | ||
| 48141-60081 |
FJ55 |
4 | ||
| 48142 - CLIP, FRONT SPRING, NO.2 | ||||
| 48142-60081 |
FJ55 |
2 | ||
| 48142-60060 |
BJ40,FJ4#,55 |
2 | ||
| 48142 - CLIP, FRONT SPRING, NO.2 | ||||
| 48142-60081 |
FJ55 |
2 | ||
| 48142-60060 |
BJ40,FJ4#,55 |
2 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48247-36020 |
FJ55 |
2 | ||
| 48147-60061 |
BJ40,FJ4#,55 |
2 | ||
| 48147-60080 |
BJ40,FJ4#,55 |
2 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48247-36020 |
FJ55 |
2 | ||
| 48147-60061 |
BJ40,FJ4#,55 |
2 | ||
| 48147-60080 |
BJ40,FJ4#,55 |
2 | ||
| Common parts | ||||
| 90999-90206 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 95111-00812 | ||||
| 95111-00814 | ||||
