Toyota Land cruiser FJ55 EXHAUST GAS RECIRCULATION SYSTEM

Manufacturers Home
Toyota
US
LAND CRUISER
FJ55LG-KA (1976)
2501 - EXHAUST GAS RECIRCULATION SYSTEM

FJ55LG-KA (1976)

Toyota Land Cruiser

Production Feb 1976 - Jul 1980

Engine 2F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

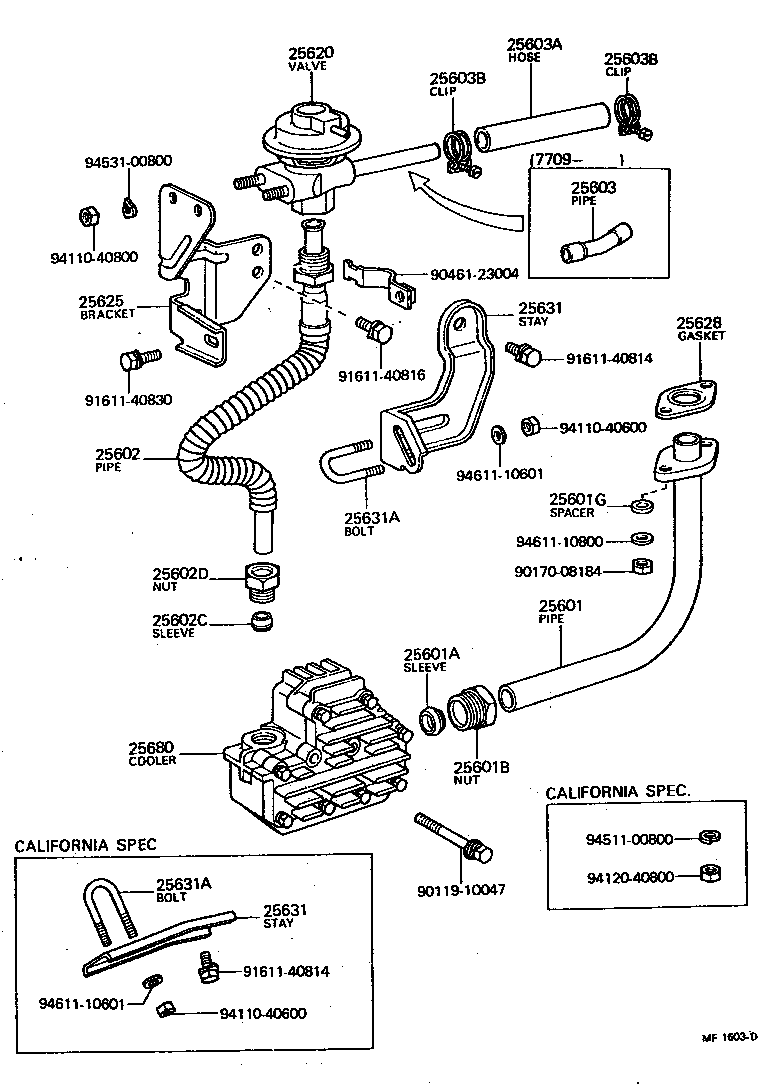

(7608-7901)2F

Click highlighted areas on diagram

Part #	Description	Period	Qty
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-61010	2F..FJ40,55..USA	02/1976 - 08/1976	1
25601-61020	2F..FJ40,55..USA CALIFORNIA SPEC.	02/1976 - 01/1979	1
25601-61030	2F..FJ40,55..USA	08/1976 - 01/1979	1
25601-61040	2F..FJ40,55..USA	01/1979 - 07/1980	1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-25041	2F..FJ40,55..USA	02/1976 - 07/1980	1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-33078	2F..FJ40,55..USA	02/1976 - 08/1976	1
90402-33079	2F..FJ40,55..USA CALIFORNIA SPEC.	02/1976 - 08/1976	1
90402-33079	2F..FJ40,55..USA	08/1976 - 07/1980	1
25601G - SPACER(FOR EGR PIPE, NO.1)
90560-09004	2F..FJ40,55..USA CALIFORNIA SPEC.	05/1977 - 01/1979	2
25602 - PIPE SUB-ASSY, EGR, NO.2
25602-61021	2F..FJ40,55..USA CALIFORNIA SPEC.	02/1976 - 08/1976	1
25602-61010	2F..FJ40,55..USA	02/1976 - 08/1976	1
25602-61021	2F..FJ40,55..USA	08/1976 - 01/1979	1
25602-61030	2F..FJ40,55..USA	01/1979 - 07/1980	1
25602C - SLEEVE, BALL(FOR EGR PIPE, NO.2)
90410-18038	2F..FJ40,55..USA	08/1976 - 07/1980	1
90410-18038	2F..FJ40,55..USA CALIFORNIA SPEC.	02/1976 - 08/1976	1
25602D - NUT, UNION(FOR EGR PIPE, NO.2)
90402-26072	2F..FJ40,55..USA	08/1976 - 07/1980	1
90402-26072	2F..FJ40,55..USA CALIFORNIA SPEC.	02/1976 - 08/1976	1
25603 - PIPE SUB-ASSY, EGR, NO.3
25603-61010	2F..FJ40,55..USA	02/1976 - 08/1976	1
25613-61020	2F..FJ40,55..USA	09/1977 - 01/1979	1
25603A - HOSE(FOR EGR PIPE, NO.3)
90445-24005	2F..FJ40,55..USA	02/1976 - 09/1977	1
90445-29002	2F..FJ40,55..USA	09/1977 - 01/1979	2
25603B - CLIP(FOR EGR PIPE, NO.3)
96112-10250	2F..FJ40,55..USA	02/1976 - 09/1977	2
90467-26001	2F..FJ40,55..USA	09/1977 - 01/1979	4
25603B - CLIP(FOR EGR PIPE, NO.3)
96112-10250	2F..FJ40,55..USA	02/1976 - 09/1977	2
90467-26001	2F..FJ40,55..USA	09/1977 - 01/1979	4
25620 - VALVE ASSY, EGR
25620-61031	2F..FJ55..USA CALIFORNIA SPEC.	02/1976 - 08/1976	1
25620-61011	2F..FJ55..USA	08/1976 - 09/1977	1
25620-61012	2F..FJ55..USA	09/1977 - 01/1979	1
25620-61010	2F..FJ55..USA	02/1976 - 08/1976	1
25620-61060	2F..FJ40,55..USA	01/1979 - 07/1980	1
25620-61033	2F..FJ40,55..USA CALIFORNIA SPEC.	09/1977 - 01/1979	1
25620-61070	2F..FJ40,55..USA CALIFORNIA SPEC.	01/1979 - 07/1980	1
25620-61032	2F..FJ55..USA CALIFORNIA SPEC.	08/1976 - 09/1977	1
25625 - BRACKET, EGR VALVE
25625-61010	2F..FJ40,55..USA	02/1976 - 08/1976	1
25625-61011	2F..FJ40,55..USA	08/1976 - 01/1979	1
25628 - GASKET, EGR INLET
25628-61010	2F..FJ40,55..USA CALIFORNIA SPEC.	02/1976 - 01/1979	1
25628-61030	2F..FJ40,55..USA FOR EGR INLET	01/1979 - 07/1980	1
25628-61020	2F..FJ40,55..USA FOR EGR PIPE	08/1976 - 07/1980	1
25631 - STAY, EGR PIPE, NO.1
25631-61012	2F..FJ40,55..USA	08/1976 - 01/1979	1
25631-61010	2F..FJ40,55..USA	02/1976 - 08/1976	1
25631-61030	2F..FJ40,55..USA	01/1979 - 07/1980	1
25631-61020	2F..FJ40,55..USA CALIFORNIA SPEC.	02/1976 - 01/1979	1
25631 - STAY, EGR PIPE, NO.1
25631-61012	2F..FJ40,55..USA	08/1976 - 01/1979	1
25631-61010	2F..FJ40,55..USA	02/1976 - 08/1976	1
25631-61030	2F..FJ40,55..USA	01/1979 - 07/1980	1
25631-61020	2F..FJ40,55..USA CALIFORNIA SPEC.	02/1976 - 01/1979	1
25631A - BOLT(FOR EGR PIPE CLAMP)
90117-06131	2F..FJ40,55..USA	02/1976 - 07/1980	1
25631A - BOLT(FOR EGR PIPE CLAMP)
90117-06131	2F..FJ40,55..USA	02/1976 - 07/1980	1
25680 - COOLER ASSY, EGR
25680-61020	2F..FJ40,55..USA	08/1976 - 01/1979	1
25680-61020	2F..FJ40,55..USA CALIFORNIA SPEC.	02/1976 - 08/1976	1
25680-61030	2F..FJ40,55..USA	01/1979 - 07/1980	1
Common parts
90119-10047
90170-08184
90461-23004
91611-40814
91611-40816
91611-40830
94110-40600
94110-40800
94120-40800
94511-00800
94531-00800
94611-10601
94611-10800

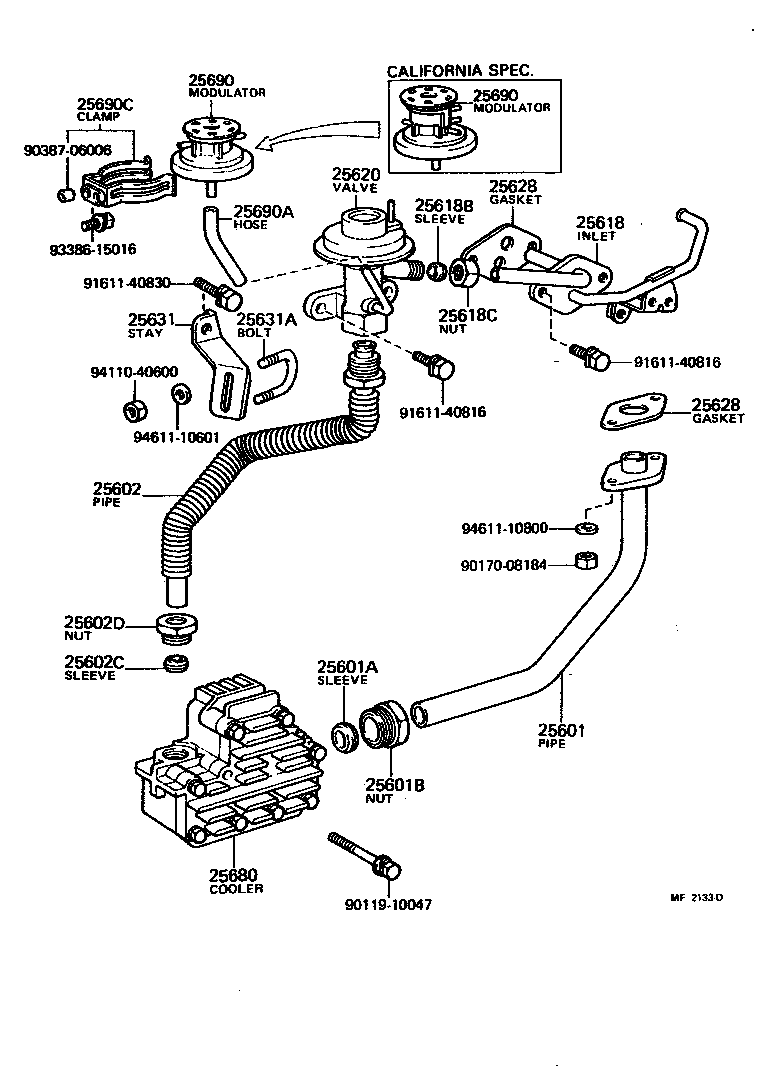

(7901-8007)2F

Click highlighted areas on diagram

Part #	Description	Period	Qty
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-61010	2F..FJ40,55..USA	02/1976 - 08/1976	1
25601-61020	2F..FJ40,55..USA CALIFORNIA SPEC.	02/1976 - 01/1979	1
25601-61030	2F..FJ40,55..USA	08/1976 - 01/1979	1
25601-61040	2F..FJ40,55..USA	01/1979 - 07/1980	1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-25041	2F..FJ40,55..USA	02/1976 - 07/1980	1
25601B - NUT, UNION, EGR PIPE, NO.1
90402-33078	2F..FJ40,55..USA	02/1976 - 08/1976	1
90402-33079	2F..FJ40,55..USA CALIFORNIA SPEC.	02/1976 - 08/1976	1
90402-33079	2F..FJ40,55..USA	08/1976 - 07/1980	1
25602 - PIPE SUB-ASSY, EGR, NO.2
25602-61021	2F..FJ40,55..USA CALIFORNIA SPEC.	02/1976 - 08/1976	1
25602-61010	2F..FJ40,55..USA	02/1976 - 08/1976	1
25602-61021	2F..FJ40,55..USA	08/1976 - 01/1979	1
25602-61030	2F..FJ40,55..USA	01/1979 - 07/1980	1
25602C - SLEEVE, BALL(FOR EGR PIPE, NO.2)
90410-18038	2F..FJ40,55..USA	08/1976 - 07/1980	1
90410-18038	2F..FJ40,55..USA CALIFORNIA SPEC.	02/1976 - 08/1976	1
25602D - NUT, UNION(FOR EGR PIPE, NO.2)
90402-26072	2F..FJ40,55..USA	08/1976 - 07/1980	1
90402-26072	2F..FJ40,55..USA CALIFORNIA SPEC.	02/1976 - 08/1976	1
25618 - INLET, EGR
25618-61010	2F..FJ40,55..USA	01/1979 - 07/1980	1
25618B - SLEEVE, BALL(FOR EGR INLET)
90410-12042	2F..FJ40,55..USA	01/1979 - 07/1980	1
25618C - NUT, OLIVE E(FOR EGR INLET)
96315-12009	2F..FJ40,55..USA	01/1979 - 07/1980	1
25620 - VALVE ASSY, EGR
25620-61031	2F..FJ55..USA CALIFORNIA SPEC.	02/1976 - 08/1976	1
25620-61011	2F..FJ55..USA	08/1976 - 09/1977	1
25620-61012	2F..FJ55..USA	09/1977 - 01/1979	1
25620-61010	2F..FJ55..USA	02/1976 - 08/1976	1
25620-61060	2F..FJ40,55..USA	01/1979 - 07/1980	1
25620-61033	2F..FJ40,55..USA CALIFORNIA SPEC.	09/1977 - 01/1979	1
25620-61070	2F..FJ40,55..USA CALIFORNIA SPEC.	01/1979 - 07/1980	1
25620-61032	2F..FJ55..USA CALIFORNIA SPEC.	08/1976 - 09/1977	1
25628 - GASKET, EGR INLET
25628-61010	2F..FJ40,55..USA CALIFORNIA SPEC.	02/1976 - 01/1979	1
25628-61030	2F..FJ40,55..USA FOR EGR INLET	01/1979 - 07/1980	1
25628-61020	2F..FJ40,55..USA FOR EGR PIPE	08/1976 - 07/1980	1
25628 - GASKET, EGR INLET
25628-61010	2F..FJ40,55..USA CALIFORNIA SPEC.	02/1976 - 01/1979	1
25628-61030	2F..FJ40,55..USA FOR EGR INLET	01/1979 - 07/1980	1
25628-61020	2F..FJ40,55..USA FOR EGR PIPE	08/1976 - 07/1980	1
25631 - STAY, EGR PIPE, NO.1
25631-61030	2F..FJ40,55..USA	01/1979 - 07/1980	1
25631-61012	2F..FJ40,55..USA	08/1976 - 01/1979	1
25631-61010	2F..FJ40,55..USA	02/1976 - 08/1976	1
25631-61020	2F..FJ40,55..USA CALIFORNIA SPEC.	02/1976 - 01/1979	1
25631A - BOLT(FOR EGR PIPE CLAMP)
90117-06131	2F..FJ40,55..USA	02/1976 - 07/1980	1
25680 - COOLER ASSY, EGR
25680-61020	2F..FJ40,55..USA	08/1976 - 01/1979	1
25680-61020	2F..FJ40,55..USA CALIFORNIA SPEC.	02/1976 - 08/1976	1
25680-61030	2F..FJ40,55..USA	01/1979 - 07/1980	1
25690 - MODULATOR ASSY, EGR VACUUM
25690-61010	2F..FJ40,55..USA	01/1979 - 07/1980	1
25870-61010	2F..FJ40,55..USA CALIFORNIA SPEC.	01/1979 - 07/1980	1
25690 - MODULATOR ASSY, EGR VACUUM
25690-61010	2F..FJ40,55..USA	01/1979 - 07/1980	1
25870-61010	2F..FJ40,55..USA CALIFORNIA SPEC.	01/1979 - 07/1980	1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90445-11049	2F..FJ40,55..USA	01/1979 - 07/1980	1
25690C - CLAMP(FOR EGR VACUUM MODULATOR)
90461-10448	2F..FJ40,55..USA	01/1979 - 07/1980	1
90461-10443	2F..FJ40,55..USA CALIFORNIA SPEC.	01/1979 - 07/1980	1
Common parts
90119-10047
90170-08184
90387-06006
91611-40816
91611-40830
93386-15016
94110-40600
94611-10601
94611-10800
