FJ55LG-KA (1975)
Toyota Land Cruiser
Production
Jan 1975
-
Feb 1976
Engine
2F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 3 OF 4(9001-0907)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 83791-60080 | ||||
| 83791-90K00 | ||||
| 90159-60081 | ||||
| 90179-06009 | ||||
| 90179-06070 | ||||
| 90189-06006 | ||||
| 90464-00165 | ||||
| 90989-01038 | ||||
| 90989-01039 | ||||
| 90989-01050 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 5551 | ||||

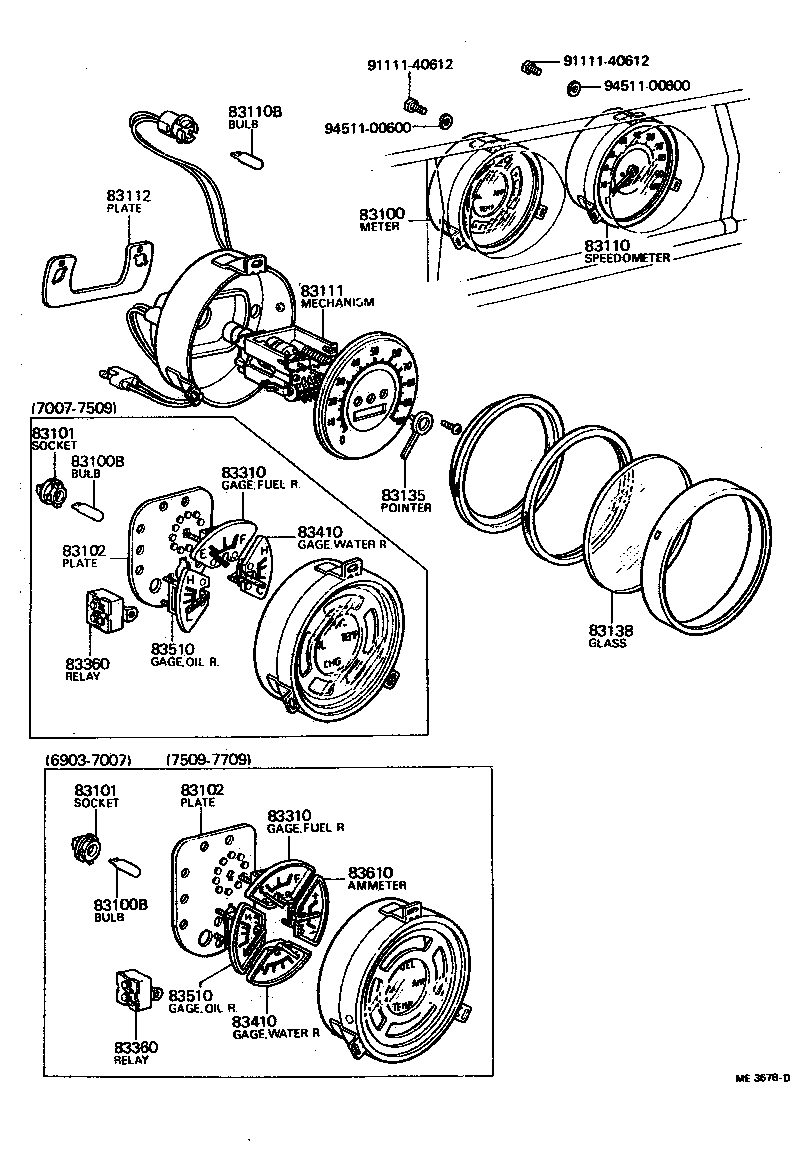

(6903-7709)FJ55
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100 - METER ASSY, COMBINATION | ||||
| 83100-60050 |
FJ55 |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11007 |
FJ55 12V 3W,12V 3W |
2 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11007 |
FJ55 12V 3W,12V 3W |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20030 |
FJ55 |
2 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20030 |
FJ55 |
2 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83102-60010 |
FJ55 |
1 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83102-60010 |
FJ55 |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-60040 |
FJ55 |
1 | ||
| 83110B - BULB, SPEEDOMETER | ||||
| 90981-11007 |
FJ55 12V 3W |
2 | ||
| 83112 - PLATE SUB-ASSY, SPEEDOMETER CIRCUIT | ||||
| 83102-36010 |
FJ55 |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83310-60031 |
FJ55 |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83310-60031 |
FJ55 |
1 | ||
| 83360 - RELAY ASSY, FUEL SENDER | ||||
| 83360-20011 |
FJ55 |
1 | ||
| 83360 - RELAY ASSY, FUEL SENDER | ||||
| 83360-20011 |
FJ55 |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83410-60031 |
FJ55 |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83410-60031 |
FJ55 |
1 | ||
| 83510 - GAGE ASSY, OIL PRESSURE RECEIVER | ||||
| 83510-60031 |
FJ55 |
1 | ||
| 83510 - GAGE ASSY, OIL PRESSURE RECEIVER | ||||
| 83510-60031 |
FJ55 |
1 | ||
| 83610 - AMMETER ASSY | ||||
| 83610-60031 |
FJ55 |
1 | ||
| Common parts | ||||
| 91111-40612 | ||||
| 94511-00600 | ||||

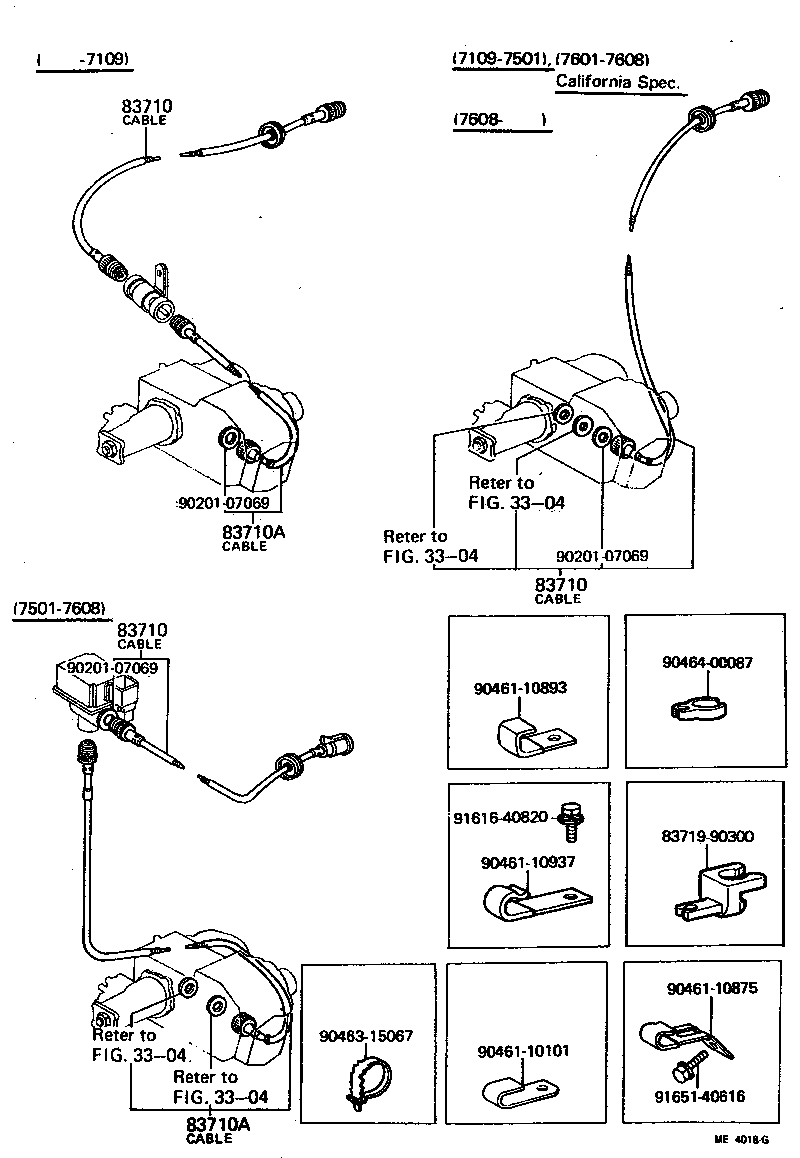

(6903-8007)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-60090 |
FJ40,55 |
1 | ||
| 83710-19015 |
FJ55 L=1300 |
1 | ||
| 83710-69095 |
FJ55 L=1700,CALIFORNIA SPEC. |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-60090 |
FJ40,55 |
1 | ||
| 83710-19015 |
FJ55 L=1300 |
1 | ||
| 83710-69095 |
FJ55 L=1700,CALIFORNIA SPEC. |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-60090 |
FJ40,55 |
1 | ||
| 83710-19015 |
FJ55 L=1300 |
1 | ||
| 83710-69095 |
FJ55 L=1700,CALIFORNIA SPEC. |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 89449-69015 |
FJ40,55 |
1 | ||
| 83710-60040 |
FJ40,55 L=270 |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 89449-69015 |
FJ40,55 |
1 | ||
| 83710-60040 |
FJ40,55 L=270 |
1 | ||
| Common parts | ||||
| 83719-90300 | ||||
| 90201-07069 | ||||
| 90461-10101 | ||||
| 90461-10875 | ||||
| 90461-10893 | ||||
| 90461-10937 | ||||
| 90463-15067 | ||||
| 90464-00087 | ||||
| 91616-40820 | ||||
| 91651-40616 | ||||
| Linked diagrams | ||||
| 3304 | ||||
