FJ55LG-KA (1975)
Toyota Land Cruiser
Production
Jan 1975
-
Feb 1976
Engine
2F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

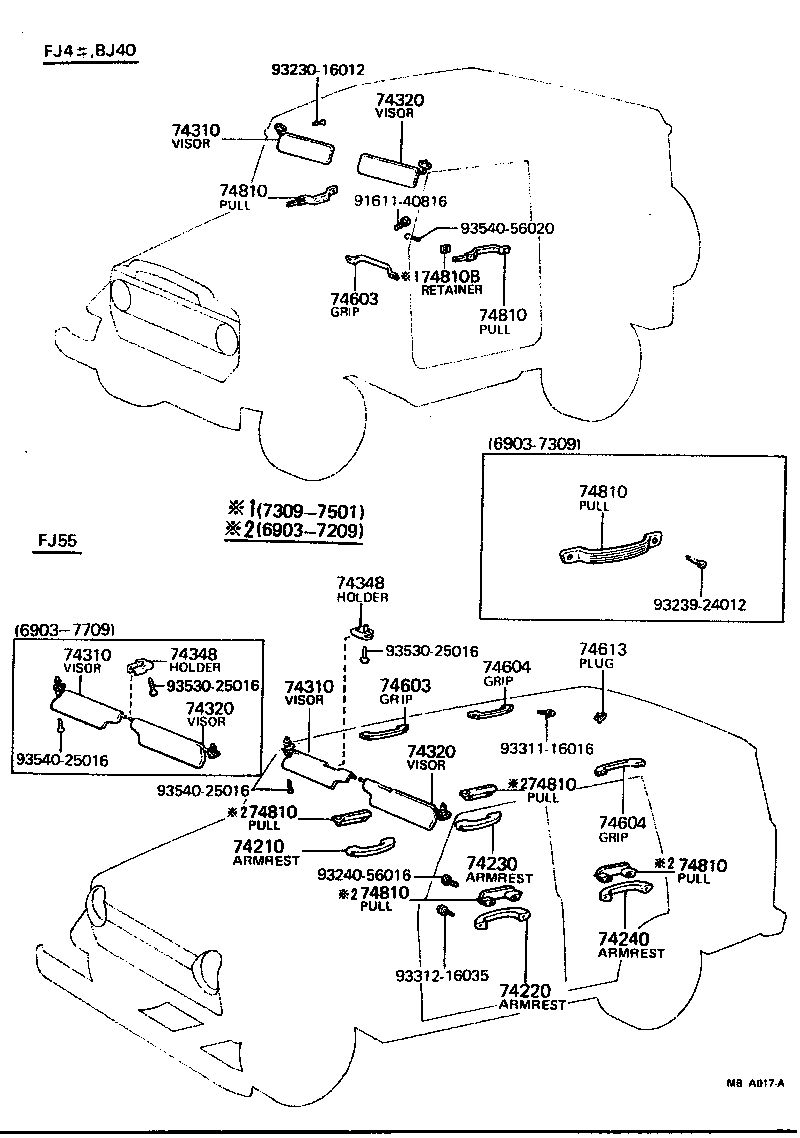

ILLUST NO. 1 OF 3(9001-0907)
Click highlighted areas on diagram
ARMREST & VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60251 | ||||
| 90159-60367 | ||||
| 90179-08241 | ||||
| 90189-06018 | ||||
| 90189-06024 | ||||
| 90189-06043 | ||||
| 90468-05047 | ||||
| 93311-26025 | ||||
| 93530-25020 | ||||
| 93530-45020 | ||||
| 93530-55020 | ||||
| 93540-16025 | ||||
| 93540-56020 | ||||
| 93540-A6030 | ||||
| 94180-40800 | ||||
(6903-8007)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-3001101 |
FJ55 BLACK |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74210-3001101 |
FJ55 BLACK |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74210-3001101 |
FJ55 BLACK |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74210-3001101 |
FJ55 BLACK |
1 | ||
| 74310 - VISOR ASSY, RH | ||||
| 74310-90351 |
FJ55 |
1 | ||
| 74310 - VISOR ASSY, RH | ||||
| 74310-90351 |
FJ55 |
1 | ||
| 74310 - VISOR ASSY, RH | ||||
| 74310-90351 |
FJ55 |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-90351 |
FJ55 |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-90351 |
FJ55 |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-90351 |
FJ55 |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74311-90351 |
FJ55 |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74311-90351 |
FJ55 |
1 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74610-90351 |
FJ55 |
1 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74610-90351 |
FJ55 |
1 | ||
| 74604 - GRIP SUB-ASSY, ASSIST, REAR | ||||
| 74610-90351 |
FJ55 |
2 | ||
| 74604 - GRIP SUB-ASSY, ASSIST, REAR | ||||
| 74610-90351 |
FJ55 |
2 | ||
| 74810 - PULL ASSY, DOOR, INSIDE | ||||
| 69272-20020 |
FJ55 |
4 | ||
| 74810 - PULL ASSY, DOOR, INSIDE | ||||
| 69272-20020 |
FJ55 |
4 | ||
| 74810 - PULL ASSY, DOOR, INSIDE | ||||
| 69272-20020 |
FJ55 |
4 | ||
| 74810 - PULL ASSY, DOOR, INSIDE | ||||
| 69272-20020 |
FJ55 |
4 | ||
| 74810 - PULL ASSY, DOOR, INSIDE | ||||
| 69272-20020 |
FJ55 |
4 | ||
| 74810 - PULL ASSY, DOOR, INSIDE | ||||
| 69272-20020 |
FJ55 |
4 | ||
| 74810 - PULL ASSY, DOOR, INSIDE | ||||
| 69272-20020 |
FJ55 |
4 | ||
| Common parts | ||||
| 91611-40816 | ||||
| 93230-16012 | ||||
| 93239-24012 | ||||
| 93240-56016 | ||||
| 93311-16016 | ||||
| 93312-16035 | ||||
| 93530-25016 | ||||
| 93540-25016 | ||||
| 93540-56020 | ||||
