FJ55LG-KA (1975)
Toyota Land Cruiser
Production
Jan 1975
-
Feb 1976
Engine
2F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7501-7602) ; (7602-8007)2F..FJ40,55..USA

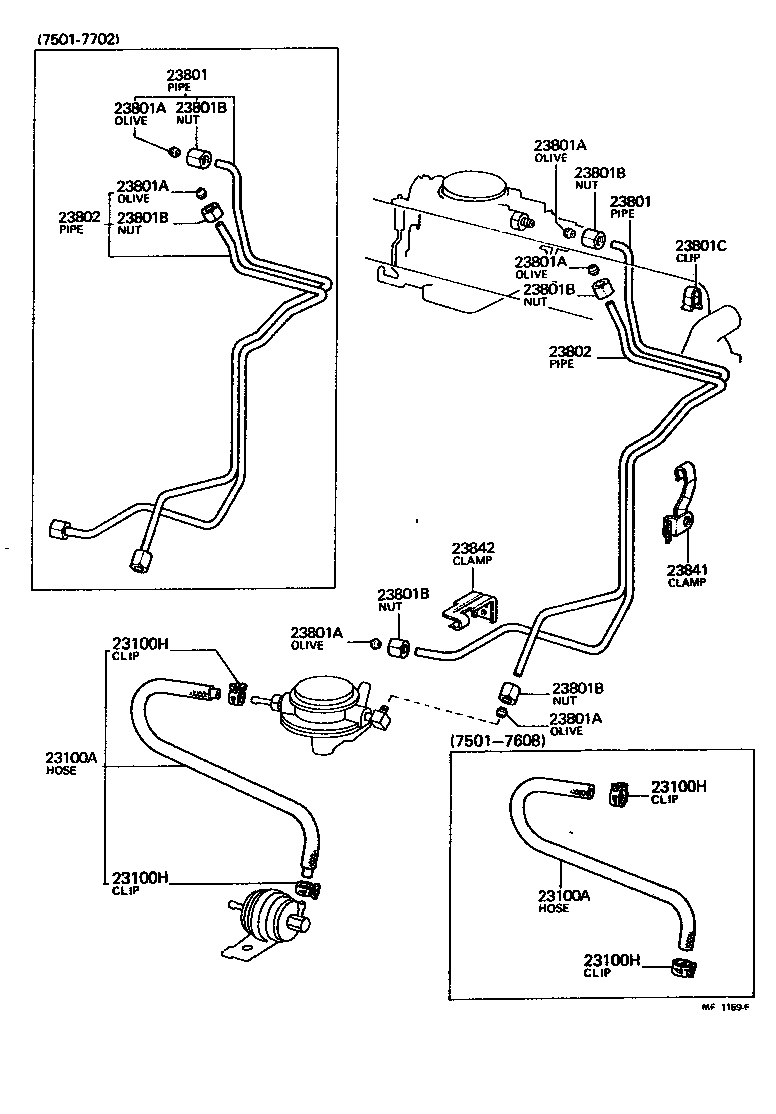

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100A - HOSE, FUEL | ||||
| 90923-01019 |
F..FJ40,55 |
1 | ||
| 95331-08028 |
2F..FJ55 |
1 | ||
| 23100A - HOSE, FUEL | ||||
| 90923-01019 |
F..FJ40,55 |
1 | ||
| 95331-08028 |
2F..FJ55 |
1 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 23801-60130 |
F..FJ40,55 |
1 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 23801-60130 |
F..FJ40,55 |
1 | ||
| 23801A - OLIVE(FOR FUEL PIPE) | ||||
| 96395-71400 |
F,2F..FJ4#,55 |
4 | ||
| 23801A - OLIVE(FOR FUEL PIPE) | ||||
| 96395-71400 |
F,2F..FJ4#,55 |
4 | ||
| 23801A - OLIVE(FOR FUEL PIPE) | ||||
| 96395-71400 |
F,2F..FJ4#,55 |
4 | ||
| 23801A - OLIVE(FOR FUEL PIPE) | ||||
| 96395-71400 |
F,2F..FJ4#,55 |
4 | ||
| 23801A - OLIVE(FOR FUEL PIPE) | ||||
| 96395-71400 |
F,2F..FJ4#,55 |
4 | ||
| 23801A - OLIVE(FOR FUEL PIPE) | ||||
| 96395-71400 |
F,2F..FJ4#,55 |
4 | ||
| 23801B - NUT, UNION(FOR FUEL PIPE) | ||||
| 90402-13041 |
F,2F..FJ4#,55 |
4 | ||
| 23801B - NUT, UNION(FOR FUEL PIPE) | ||||
| 90402-13041 |
F,2F..FJ4#,55 |
4 | ||
| 23801B - NUT, UNION(FOR FUEL PIPE) | ||||
| 90402-13041 |
F,2F..FJ4#,55 |
4 | ||
| 23801B - NUT, UNION(FOR FUEL PIPE) | ||||
| 90402-13041 |
F,2F..FJ4#,55 |
4 | ||
| 23801B - NUT, UNION(FOR FUEL PIPE) | ||||
| 90402-13041 |
F,2F..FJ4#,55 |
4 | ||
| 23801B - NUT, UNION(FOR FUEL PIPE) | ||||
| 90402-13041 |
F,2F..FJ4#,55 |
4 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 90468-05025 |
F,2F..FJ4#,55 |
4 | ||
| 23841 - CLAMP, FUEL PIPE(HOSE), NO.1 | ||||
| 23841-60020 |
F..FJ40,55 |
1 | ||
