FJ55LG- (1969)
Toyota Land Cruiser
Production
Mar 1969
-
Jan 1975
Engine
F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(6903-8007)FJ55

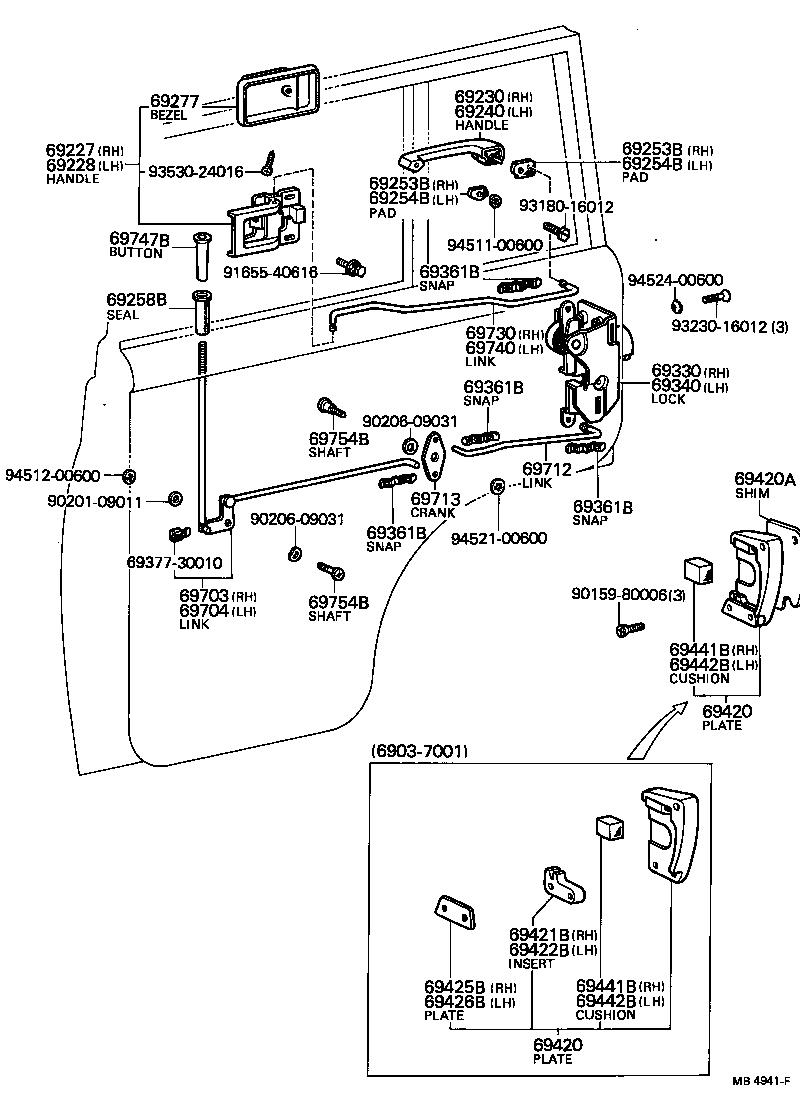

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69227 - HANDLE, REAR DOOR INSIDE, RH | ||||
| 69270-39015 |
FJ55 |
1 | ||
| 69228 - HANDLE, REAR DOOR INSIDE, LH | ||||
| 69270-39015 |
FJ55 |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69210-90351 |
FJ55 |
1 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69220-90351 |
FJ55 |
1 | ||
| 69253B - PAD, REAR DOOR OUTSIDE HANDLE, NO.2 RH | ||||
| 69253-35010 |
FJ55 FRONT |
1 | ||
| 69251-90351 |
FJ55 REAR |
1 | ||
| 69253B - PAD, REAR DOOR OUTSIDE HANDLE, NO.2 RH | ||||
| 69253-35010 |
FJ55 FRONT |
1 | ||
| 69251-90351 |
FJ55 REAR |
1 | ||
| 69254B - PAD, REAR DOOR OUTSIDE HANDLE, NO.2 LH | ||||
| 69254-35010 |
FJ55 FRONT |
1 | ||
| 69252-90351 |
FJ55 REAR |
1 | ||
| 69254B - PAD, REAR DOOR OUTSIDE HANDLE, NO.2 LH | ||||
| 69254-35010 |
FJ55 FRONT |
1 | ||
| 69252-90351 |
FJ55 REAR |
1 | ||
| 69258B - SEAL, REAR DOOR OUTSIDE PANEL HOLE | ||||
| 90480-10102 |
FJ55 |
2 | ||
| 69277 - BEZEL, REAR DOOR INSIDE HANDLE | ||||
| 69276-30010 |
FJ55 |
2 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-90352 |
FJ55 |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-90352 |
FJ55 |
1 | ||
| 69361B - SNAP, DOOR LOCK CONNECTING ROD(FOR REAR DOOR) | ||||
| 69361-20020 |
FJ55 |
8 | ||
| 69361B - SNAP, DOOR LOCK CONNECTING ROD(FOR REAR DOOR) | ||||
| 69361-20020 |
FJ55 |
8 | ||
| 69361B - SNAP, DOOR LOCK CONNECTING ROD(FOR REAR DOOR) | ||||
| 69361-20020 |
FJ55 |
8 | ||
| 69361B - SNAP, DOOR LOCK CONNECTING ROD(FOR REAR DOOR) | ||||
| 69361-20020 |
FJ55 |
8 | ||
| 69420 - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-20031 |
FJ55 RH. |
1 | ||
| 69420-20031 |
FJ55 LH. |
1 | ||
| 69420 - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-20031 |
FJ55 RH. |
1 | ||
| 69420-20031 |
FJ55 LH. |
1 | ||
| 69421B - INSERT, REAR DOOR LOCK STRIKER, RH | ||||
| 69422-20031 |
FJ55 |
1 | ||
| 69422B - INSERT, REAR DOOR LOCK STRIKER, LH | ||||
| 69422-20031 |
FJ55 |
1 | ||
| 69425B - PLATE, DOOR LOCK STRIKER AUXILIARY, RH(FOR REAR DOOR) | ||||
| 69425-20031 |
FJ55 |
1 | ||
| 69426B - PLATE, DOOR LOCK STRIKER AUXILIARY, LH(FOR REAR DOOR) | ||||
| 69426-20031 |
FJ55 |
1 | ||
| 69441B - CUSHION, REAR DOOR LOCK, RH | ||||
| 69441-20031 |
FJ55 |
1 | ||
| 69441B - CUSHION, REAR DOOR LOCK, RH | ||||
| 69441-20031 |
FJ55 |
1 | ||
| 69442B - CUSHION, REAR DOOR LOCK, LH | ||||
| 69441-20031 |
FJ55 |
1 | ||
| 69442B - CUSHION, REAR DOOR LOCK, LH | ||||
| 69441-20031 |
FJ55 |
1 | ||
| 69703 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH | ||||
| 69703-90351 |
FJ55 |
1 | ||
| 69704 - LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH | ||||
| 69704-90351 |
FJ55 |
1 | ||
| 69712 - LINK, REAR DOOR LOCKING CONTROL, REAR | ||||
| 69712-90351 |
FJ55 |
2 | ||
| 69713 - CRANK, REAR DOOR LOCKING CONTROL | ||||
| 69713-90351 |
FJ55 |
2 | ||
| 69730 - LINK ASSY, REAR DOOR OPEN CONTROL, RH | ||||
| 69711-90351 |
FJ55 |
1 | ||
| 69740 - LINK ASSY, REAR DOOR OPEN CONTROL, LH | ||||
| 69711-90351 |
FJ55 |
1 | ||
| 69747B - BUTTON, DOOR LOCKING(FOR REAR DOOR) | ||||
| 69747-20020 |
FJ55 |
2 | ||
| 69754B - SHAFT, BELLCRANK, CENTER(FOR REAR DOOR) | ||||
| 69754-90351 |
FJ55 |
4 | ||
| 69754B - SHAFT, BELLCRANK, CENTER(FOR REAR DOOR) | ||||
| 69754-90351 |
FJ55 |
4 | ||
| Common parts | ||||
| 69377-30010 | ||||
| 90159-80006 | ||||
| 90201-09011 | ||||
| 90206-09031 | ||||
| 91655-40616 | ||||
| 93180-16012 | ||||
| 93230-16012 | ||||
| 93530-24016 | ||||
| 94511-06000 | ||||
| 94512-00600 | ||||
| 94521-00600 | ||||
| 94524-00600 | ||||
