FJ55LG- (1969)
Toyota Land Cruiser
Production
Mar 1969
-
Jan 1975
Engine
F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(6903-8007)FJ55

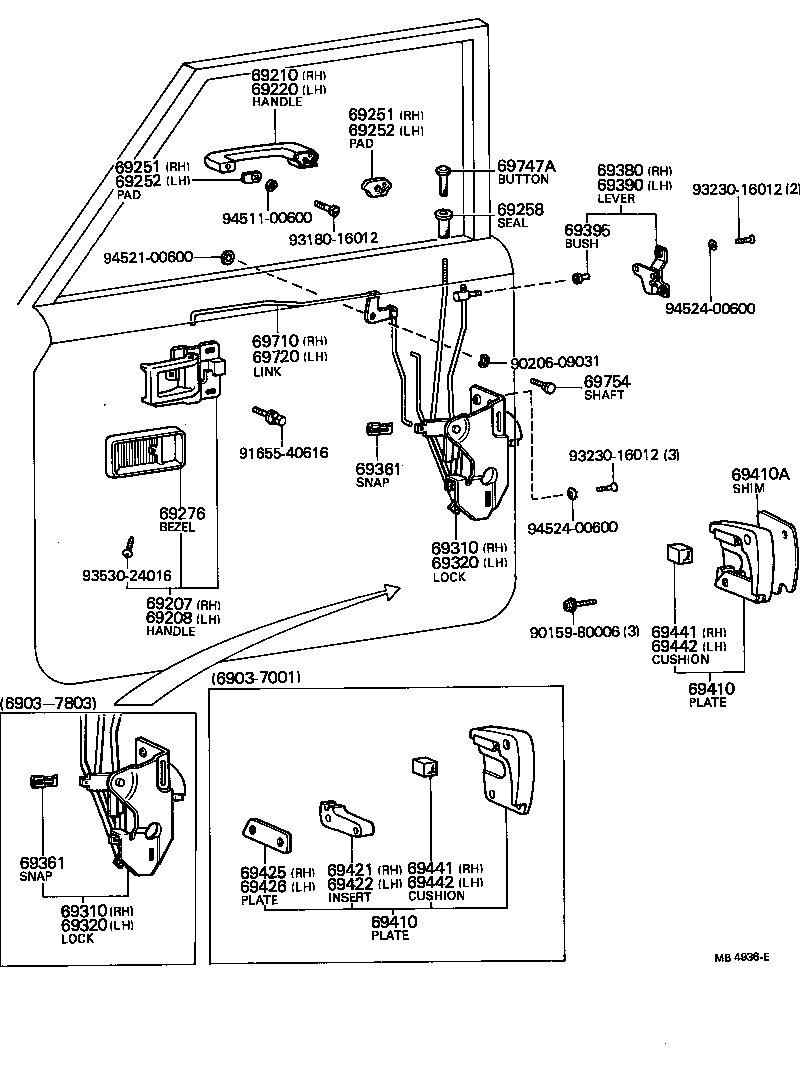

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69270-39015 |
FJ55 |
1 | ||
| 69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69270-39015 |
FJ55 |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-90351 |
FJ55 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-90351 |
FJ55 |
1 | ||
| 69251 - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH | ||||
| 69251-90351 |
FJ55 REAR |
1 | ||
| 69253-35010 |
FJ55 FRONT |
1 | ||
| 69251 - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH | ||||
| 69251-90351 |
FJ55 REAR |
1 | ||
| 69253-35010 |
FJ55 FRONT |
1 | ||
| 69252 - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT LH | ||||
| 69252-90351 |
FJ55 REAR |
1 | ||
| 69254-35010 |
FJ55 FRONT |
1 | ||
| 69252 - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT LH | ||||
| 69252-90351 |
FJ55 REAR |
1 | ||
| 69254-35010 |
FJ55 FRONT |
1 | ||
| 69258 - SEAL, DOOR OUTSIDE PANEL HOLE | ||||
| 90480-10102 |
FJ55 |
2 | ||
| 69276 - BEZEL, FRONT DOOR INSIDE HANDLE | ||||
| 69276-30010 |
FJ55 |
2 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-90352 |
FJ55 |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-90352 |
FJ55 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-90352 |
FJ55 |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-90352 |
FJ55 |
1 | ||
| 69361 - SNAP, DOOR LOCK CONNECTING ROD | ||||
| 69361-30010 |
FJ55 |
2 | ||
| 69361 - SNAP, DOOR LOCK CONNECTING ROD | ||||
| 69361-30010 |
FJ55 |
2 | ||
| 69380 - LEVER ASSY, DOOR OUTSIDE HANDLE REMOTE CONTROL, RH | ||||
| 69360-90351 |
FJ55 |
1 | ||
| 69390 - LEVER ASSY, DOOR OUTSIDE HANDLE REMOTE CONTROL, LH | ||||
| 69390-90351 |
FJ55 |
1 | ||
| 69395 - BUSH(FOR DOOR OUTSIDE HANDLE) | ||||
| 69395-20020 |
FJ55 |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69420-20031 |
FJ55 LH. |
1 | ||
| 69410-20031 |
FJ55 RH. |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69420-20031 |
FJ55 LH. |
1 | ||
| 69410-20031 |
FJ55 RH. |
1 | ||
| 69421 - INSERT, DOOR LOCK STRIKER, RH | ||||
| 69422-20031 |
FJ55 |
1 | ||
| 69422 - INSERT, DOOR LOCK STRIKER, LH | ||||
| 69422-20031 |
FJ55 |
1 | ||
| 69425 - PLATE, DOOR LOCK STRIKER AUXILIARY, RH | ||||
| 69425-20031 |
FJ55 |
1 | ||
| 69426 - PLATE, DOOR LOCK STRIKER AUXILIARY, LH | ||||
| 69426-20031 |
FJ55 |
1 | ||
| 69441 - CUSHION, DOOR LOCK, RH | ||||
| 69441-20031 |
FJ55 |
1 | ||
| 69441 - CUSHION, DOOR LOCK, RH | ||||
| 69441-20031 |
FJ55 |
1 | ||
| 69442 - CUSHION, DOOR LOCK, LH | ||||
| 69441-20031 |
FJ55 |
1 | ||
| 69442 - CUSHION, DOOR LOCK, LH | ||||
| 69441-20031 |
FJ55 |
1 | ||
| 69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH | ||||
| 69710-90351 |
FJ55 |
1 | ||
| 69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH | ||||
| 69720-90351 |
FJ55 |
1 | ||
| 69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR) | ||||
| 69747-20020 |
FJ55 |
2 | ||
| 69754 - SHAFT, BELLCRANK, CENTER | ||||
| 69754-90351 |
FJ55 |
2 | ||
| Common parts | ||||
| 90159-80006 | ||||
| 90206-09031 | ||||
| 91655-40616 | ||||
| 93180-16012 | ||||
| 93230-16012 | ||||
| 93530-24016 | ||||
| 94511-00600 | ||||
| 94521-00600 | ||||
| 94524-00600 | ||||
