FJ55LG- (1969)
Toyota Land Cruiser
Production
Mar 1969
-
Jan 1975
Engine
F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9001-0701)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06647 | ||||
| 90119-08511 | ||||
| 90119-08681 | ||||
| Linked diagrams | ||||
| 8202 | ||||

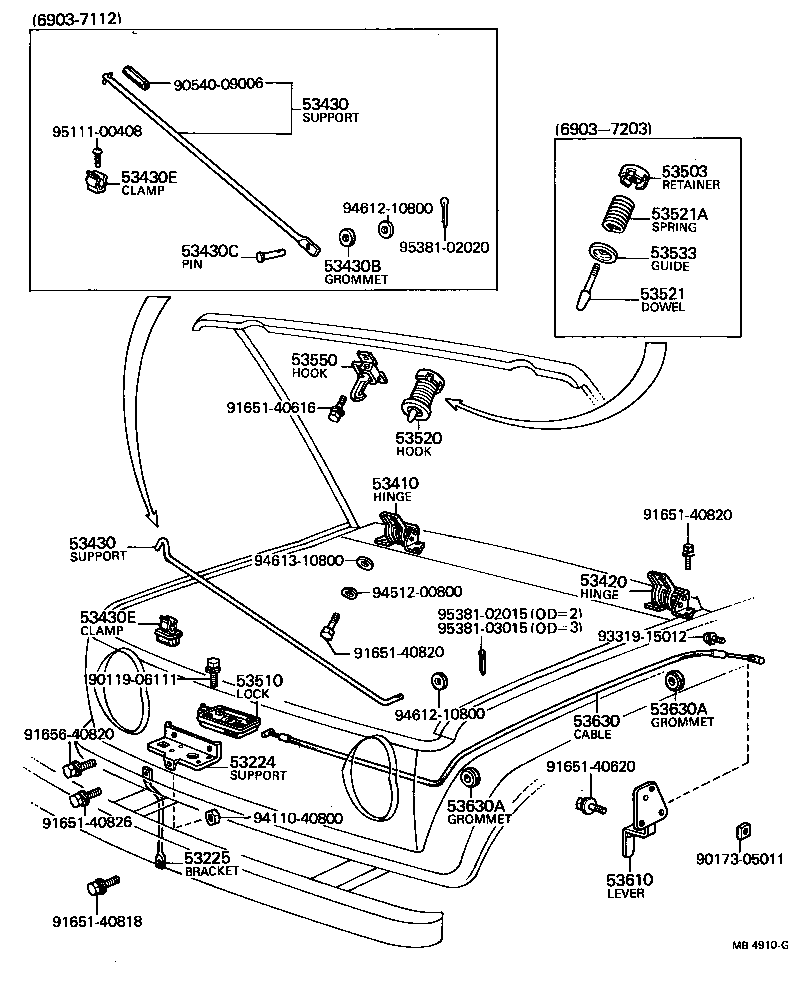

(6903-8007)FJ55
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53224 - SUPPORT, HOOD LOCK, UPPER | ||||
| 53224-90352 |
FJ55 |
1 | ||
| 53225 - BRACKET, GRILLE SUPPORT, UPPER CENTER | ||||
| 53225-90351 |
FJ55 |
1 | ||
| 53410 - HINGE ASSY, HOOD, RH | ||||
| 53410-90351 |
FJ55 |
1 | ||
| 53420 - HINGE ASSY, HOOD, LH | ||||
| 53410-90351 |
FJ55 |
1 | ||
| 53430 - SUPPORT ASSY, HOOD | ||||
| 53401-90351 |
FJ55 |
1 | ||
| 53451-90352 |
FJ55 |
1 | ||
| 53430 - SUPPORT ASSY, HOOD | ||||
| 53401-90351 |
FJ55 |
1 | ||
| 53451-90352 |
FJ55 |
1 | ||
| 53430B - GROMMET(FOR HOOD SUPPORT) | ||||
| 90480-14053 |
FJ55 |
1 | ||
| 90480-14053 |
FJ40,55 |
1 | ||
| 53430C - PIN, W/HOLE(FOR HOOD SUPPORT) | ||||
| 90240-08007 |
FJ40,55 |
1 | ||
| 53430E - CLAMP, HOOD SUPPORT | ||||
| 90467-14008 |
FJ55 |
1 | ||
| 53430E - CLAMP, HOOD SUPPORT | ||||
| 90467-14008 |
FJ55 |
1 | ||
| 53503 - RETAINER SUB-ASSY, HOOD LOCK DOWEL | ||||
| 53532-30010 |
FJ55 1.5P |
1 | ||
| 53532-30011 |
FJ55 1.25P |
1 | ||
| 53510 - LOCK ASSY, HOOD | ||||
| 53510-30021 |
FJ55 |
1 | ||
| 53521 - DOWEL, HOOD LOCK | ||||
| 53531-30021 |
FJ55 |
1 | ||
| 53531-30020 |
FJ55 |
1 | ||
| 53521A - SPRING, COMPRESSION(FOR HOOD LOCK DOWEL) | ||||
| 53515-90351 |
FJ55 |
1 | ||
| 53533 - GUIDE, HOOD LOCK | ||||
| 53533-30020 |
FJ55 |
1 | ||
| 53550 - HOOK ASSY, HOOD AUXILIARY CATCH | ||||
| 53550-90351 |
FJ55 |
1 | ||
| 53610 - LEVER ASSY, HOOD LOCK RELEASE | ||||
| 53610-35013 |
FJ55 |
1 | ||
| 53630 - CABLE ASSY, HOOD LOCK CONTROL | ||||
| 53620-90352 |
FJ55 |
1 | ||
| 53630A - GROMMET(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90480-15045 |
FJ55 OD=15,ID=5.5 |
2 | ||
| 53630A - GROMMET(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90480-15045 |
FJ55 OD=15,ID=5.5 |
2 | ||
| Common parts | ||||
| 90119-06111 | ||||
| 90173-05011 | ||||
| 90540-09006 | ||||
| 91651-40616 | ||||
| 91651-40620 | ||||
| 91651-40818 | ||||
| 91651-40820 | ||||
| 91651-40826 | ||||
| 91656-40820 | ||||
| 93319-15012 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
| 95111-00408 | ||||
| 95381-02015 | ||||
| 95381-02020 | ||||
| 95381-03015 | ||||
