FJ55LG- (1969)
Toyota Land Cruiser
Production
Mar 1969
-
Jan 1975
Engine
F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

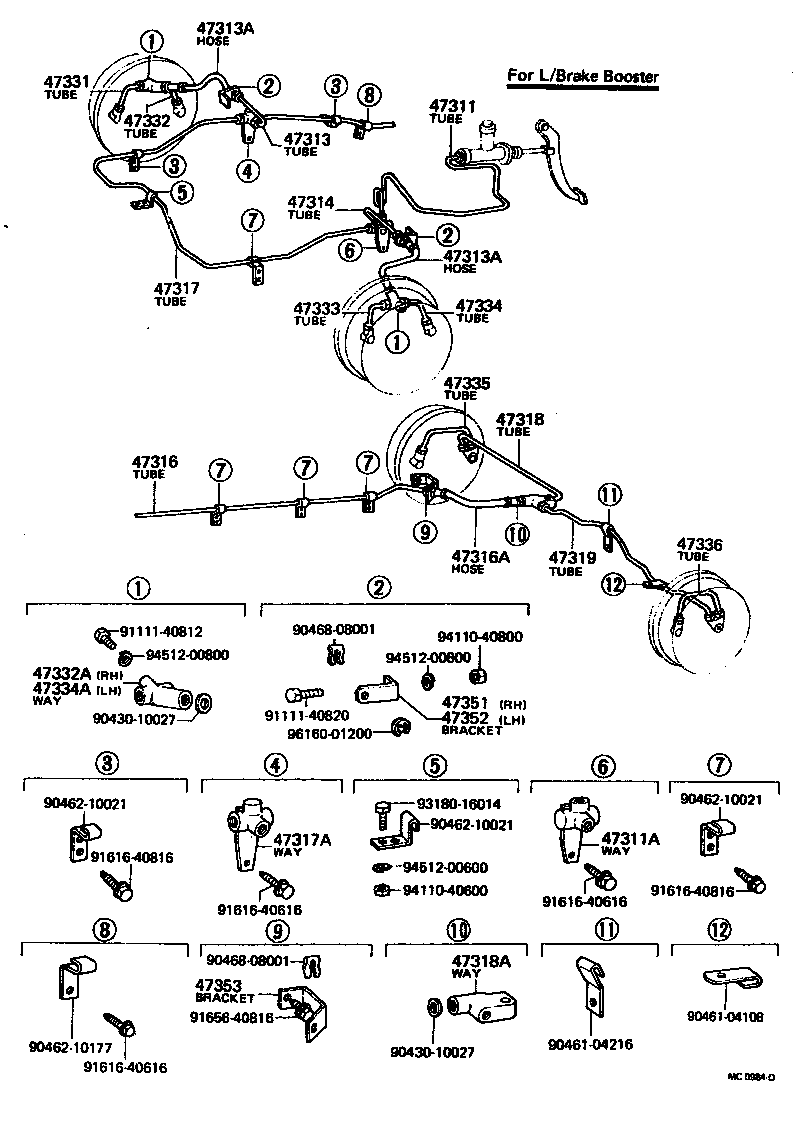

(6903-7007)FJ55
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47322-60010 |
FJ55 |
1 | ||
| 47311-60110 |
FJ55 |
1 | ||
| 47311-60051 |
FJ55 FOR L/BOOSTER |
1 | ||
| 47311-60070 |
FJ55 FOR W/BOOSTER |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10050 |
FJ55 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-60050 |
FJ55 |
1 | ||
| 47313-60030 |
FJ55 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02073 |
FJ55 |
2 | ||
| 90947-02134 |
FJ55 |
2 | ||
| 96920-31221 |
FJ40,55 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02073 |
FJ55 |
2 | ||
| 90947-02134 |
FJ55 |
2 | ||
| 96920-31221 |
FJ40,55 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-60081 |
FJ55 |
1 | ||
| 47313-60030 |
FJ55 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-60061 |
FJ55 |
1 | ||
| 47316-60060 |
FJ55 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02012 |
FJ55 |
1 | ||
| 90947-02093 |
FJ55 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47312-60030 |
FJ55 |
1 | ||
| 47317A - WAY(FOR BRAKE TUBE) | ||||
| 90413-10039 |
FJ55 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-60040 |
FJ55 |
1 | ||
| 47318-60050 |
FJ40,55 |
1 | ||
| 47318A - WAY(FOR REAR RH BRAKE TUBE) | ||||
| 90413-10023 |
FJ55 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-60040 |
FJ55 |
1 | ||
| 47319-60050 |
FJ40,55 |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-60030 |
FJ40,55 |
1 | ||
| 47331-60020 |
FJ55 |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-60020 |
FJ55 |
1 | ||
| 47332-60030 |
FJ40,55 |
1 | ||
| 47332A - WAY(FOR BRAKE WHEEL CYLINDER FRONT RH TUBE) | ||||
| 90413-10049 |
FJ55 |
1 | ||
| 90413-10099 |
FJ40,55 |
1 | ||
| 90413-10088 |
FJ55 |
1 | ||
| 90413-10083 |
FJ55 |
1 | ||
| 47333 - TUBE, REAR BRAKE, NO.12 | ||||
| 47331-60030 |
FJ40,55 |
1 | ||
| 47331-60020 |
FJ55 |
1 | ||
| 47334 - TUBE, REAR BRAKE, NO.13 | ||||
| 47332-60030 |
FJ40,55 |
1 | ||
| 47332-60020 |
FJ55 |
1 | ||
| 47334A - WAY(FOR BRAKE WHEEL CYLINDER FRONT LH TUBE) | ||||
| 90413-10083 |
FJ55 |
1 | ||
| 90413-10089 |
FJ55 |
1 | ||
| 90413-10099 |
FJ40,55 |
1 | ||
| 90413-10049 |
FJ55 |
1 | ||
| 47335 - TUBE, REAR BRAKE, NO.14 | ||||
| 47335-60010 |
FJ40,55 |
1 | ||
| 47335-60010 |
FJ55 |
1 | ||
| 47336 - TUBE, REAR BRAKE, NO.15 | ||||
| 47335-60010 |
FJ55 |
1 | ||
| 47335-60010 |
FJ40,55 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-60030 |
FJ55 |
1 | ||
| 47351-60050 |
FJ55 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47351-60030 |
FJ55 |
1 | ||
| 47352-60040 |
FJ55 |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-61020 |
FJ55 |
1 | ||
| Common parts | ||||
| 90430-10027 | ||||
| 90461-04108 | ||||
| 90461-04216 | ||||
| 90462-10021 | ||||
| 90462-10177 | ||||
| 90468-08001 | ||||
| 91111-40812 | ||||
| 91111-40820 | ||||
| 91616-40616 | ||||
| 91616-40816 | ||||
| 91656-40816 | ||||
| 93180-16014 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||
| 96160-01200 | ||||

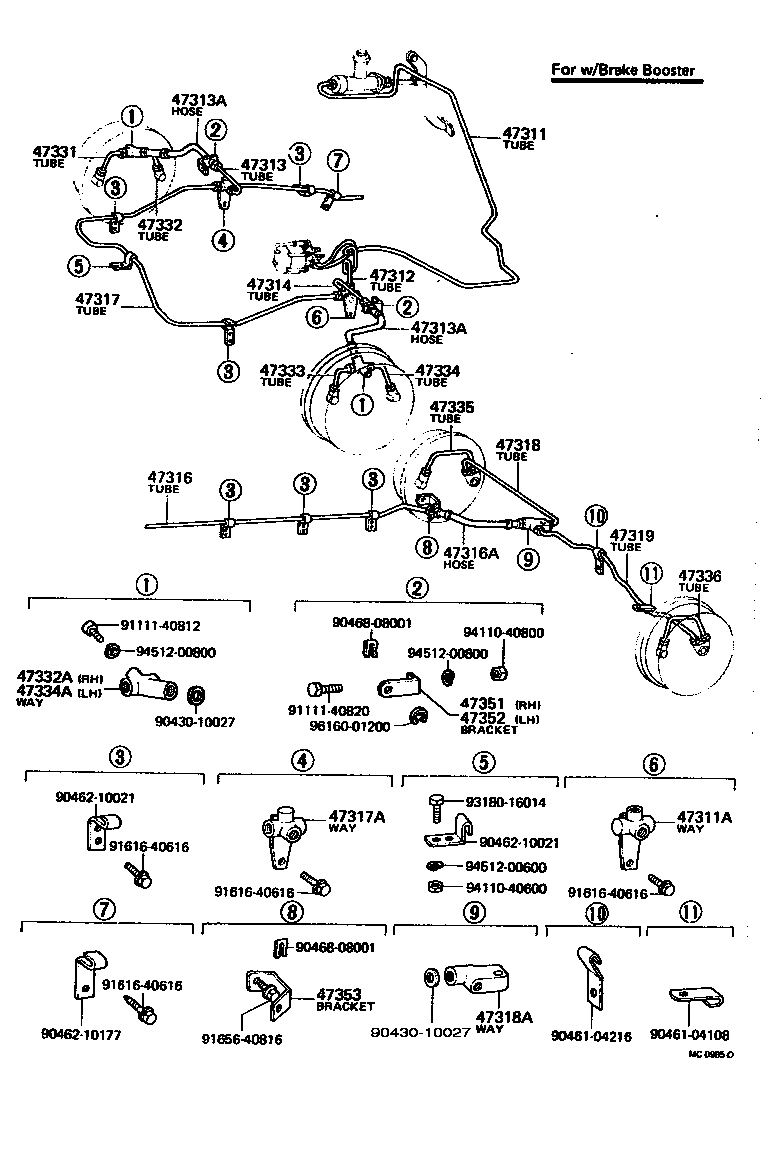

(6903-7007)FJ55
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47322-60010 |
FJ55 |
1 | ||
| 47311-60110 |
FJ55 |
1 | ||
| 47311-60051 |
FJ55 FOR L/BOOSTER |
1 | ||
| 47311-60070 |
FJ55 FOR W/BOOSTER |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10050 |
FJ55 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-60040 |
FJ55 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-60050 |
FJ55 |
1 | ||
| 47313-60030 |
FJ55 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02073 |
FJ55 |
2 | ||
| 90947-02134 |
FJ55 |
2 | ||
| 96920-31221 |
FJ40,55 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02073 |
FJ55 |
2 | ||
| 90947-02134 |
FJ55 |
2 | ||
| 96920-31221 |
FJ40,55 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-60081 |
FJ55 |
1 | ||
| 47313-60030 |
FJ55 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-60061 |
FJ55 |
1 | ||
| 47316-60060 |
FJ55 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02012 |
FJ55 |
1 | ||
| 90947-02093 |
FJ55 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47312-60030 |
FJ55 |
1 | ||
| 47317A - WAY(FOR BRAKE TUBE) | ||||
| 90413-10039 |
FJ55 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-60040 |
FJ55 |
1 | ||
| 47318-60050 |
FJ40,55 |
1 | ||
| 47318A - WAY(FOR REAR RH BRAKE TUBE) | ||||
| 90413-10023 |
FJ55 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-60040 |
FJ55 |
1 | ||
| 47319-60050 |
FJ40,55 |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-60030 |
FJ40,55 |
1 | ||
| 47331-60020 |
FJ55 |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-60020 |
FJ55 |
1 | ||
| 47332-60030 |
FJ40,55 |
1 | ||
| 47332A - WAY(FOR BRAKE WHEEL CYLINDER FRONT RH TUBE) | ||||
| 90413-10049 |
FJ55 |
1 | ||
| 90413-10099 |
FJ40,55 |
1 | ||
| 90413-10088 |
FJ55 |
1 | ||
| 90413-10083 |
FJ55 |
1 | ||
| 47333 - TUBE, REAR BRAKE, NO.12 | ||||
| 47331-60030 |
FJ40,55 |
1 | ||
| 47331-60020 |
FJ55 |
1 | ||
| 47334 - TUBE, REAR BRAKE, NO.13 | ||||
| 47332-60030 |
FJ40,55 |
1 | ||
| 47332-60020 |
FJ55 |
1 | ||
| 47334A - WAY(FOR BRAKE WHEEL CYLINDER FRONT LH TUBE) | ||||
| 90413-10083 |
FJ55 |
1 | ||
| 90413-10089 |
FJ55 |
1 | ||
| 90413-10099 |
FJ40,55 |
1 | ||
| 90413-10049 |
FJ55 |
1 | ||
| 47335 - TUBE, REAR BRAKE, NO.14 | ||||
| 47335-60010 |
FJ40,55 |
1 | ||
| 47335-60010 |
FJ55 |
1 | ||
| 47336 - TUBE, REAR BRAKE, NO.15 | ||||
| 47335-60010 |
FJ55 |
1 | ||
| 47335-60010 |
FJ40,55 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-60030 |
FJ55 |
1 | ||
| 47351-60050 |
FJ55 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47351-60030 |
FJ55 |
1 | ||
| 47352-60040 |
FJ55 |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-61020 |
FJ55 |
1 | ||
| Common parts | ||||
| 90430-10027 | ||||
| 90461-04108 | ||||
| 90461-04216 | ||||
| 90462-10021 | ||||
| 90462-10177 | ||||
| 90468-08001 | ||||
| 91111-40812 | ||||
| 91111-40820 | ||||
| 91616-40616 | ||||
| 91656-40816 | ||||
| 93180-16014 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94512-00600 | ||||
| 94512-00800 | ||||
| 96160-01200 | ||||

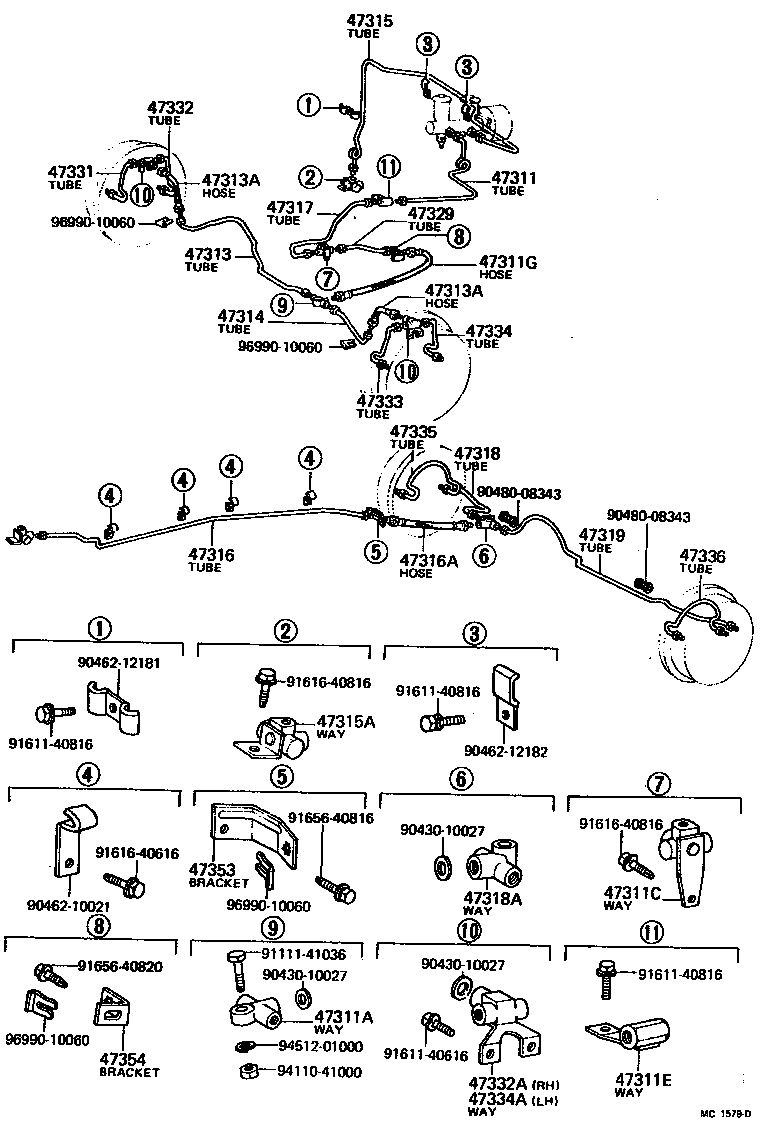

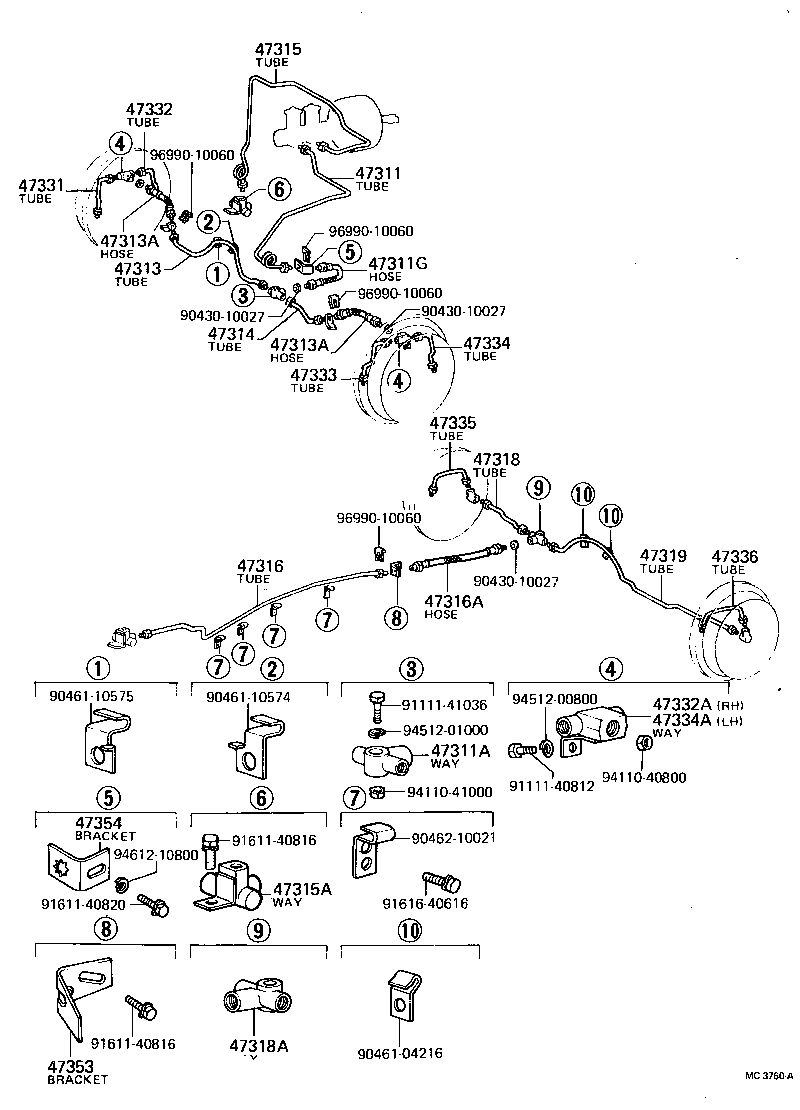

(7109-7501)FJ55
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47322-60010 |
FJ55 |
1 | ||
| 47311-60110 |
FJ55 |
1 | ||
| 47311-60051 |
FJ55 FOR L/BOOSTER |
1 | ||
| 47311-60070 |
FJ55 FOR W/BOOSTER |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10050 |
FJ55 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02133 |
FJ55 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-60050 |
FJ55 |
1 | ||
| 47313-60030 |
FJ55 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02073 |
FJ55 |
2 | ||
| 90947-02134 |
FJ55 |
2 | ||
| 96920-31221 |
FJ40,55 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02073 |
FJ55 |
2 | ||
| 90947-02134 |
FJ55 |
2 | ||
| 96920-31221 |
FJ40,55 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-60081 |
FJ55 |
1 | ||
| 47313-60030 |
FJ55 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47321-60010 |
FJ55 |
1 | ||
| 47315-60030 |
FJ55 |
1 | ||
| 47315-60031 |
FJ55 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-60061 |
FJ55 |
1 | ||
| 47316-60060 |
FJ55 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02012 |
FJ55 |
1 | ||
| 90947-02093 |
FJ55 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47312-60030 |
FJ55 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-60040 |
FJ55 |
1 | ||
| 47318-60050 |
FJ40,55 |
1 | ||
| 47318A - WAY(FOR REAR RH BRAKE TUBE) | ||||
| 90413-10023 |
FJ55 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-60040 |
FJ55 |
1 | ||
| 47319-60050 |
FJ40,55 |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-60020 |
FJ55 |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-60030 |
FJ40,55 |
1 | ||
| 47331-60020 |
FJ55 |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-60020 |
FJ55 |
1 | ||
| 47332-60030 |
FJ40,55 |
1 | ||
| 47332A - WAY(FOR BRAKE WHEEL CYLINDER FRONT RH TUBE) | ||||
| 90413-10049 |
FJ55 |
1 | ||
| 90413-10099 |
FJ40,55 |
1 | ||
| 90413-10088 |
FJ55 |
1 | ||
| 90413-10083 |
FJ55 |
1 | ||
| 47333 - TUBE, REAR BRAKE, NO.12 | ||||
| 47331-60030 |
FJ40,55 |
1 | ||
| 47331-60020 |
FJ55 |
1 | ||
| 47334 - TUBE, REAR BRAKE, NO.13 | ||||
| 47332-60030 |
FJ40,55 |
1 | ||
| 47332-60020 |
FJ55 |
1 | ||
| 47334A - WAY(FOR BRAKE WHEEL CYLINDER FRONT LH TUBE) | ||||
| 90413-10083 |
FJ55 |
1 | ||
| 90413-10089 |
FJ55 |
1 | ||
| 90413-10099 |
FJ40,55 |
1 | ||
| 90413-10049 |
FJ55 |
1 | ||
| 47335 - TUBE, REAR BRAKE, NO.14 | ||||
| 47335-60010 |
FJ40,55 |
1 | ||
| 47335-60010 |
FJ55 |
1 | ||
| 47336 - TUBE, REAR BRAKE, NO.15 | ||||
| 47335-60010 |
FJ55 |
1 | ||
| 47335-60010 |
FJ40,55 |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-61020 |
FJ55 |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-60010 |
FJ40,55 |
1 | ||
| 47351-60070 |
FJ55 |
1 | ||
| Common parts | ||||
| 90430-10027 | ||||
| 90462-10021 | ||||
| 90462-12181 | ||||
| 90462-12182 | ||||
| 90480-08343 | ||||
| 91111-41036 | ||||
| 91611-40616 | ||||
| 91611-40816 | ||||
| 91616-40616 | ||||
| 91616-40816 | ||||
| 91656-40816 | ||||
| 91656-40820 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
| 96990-10060 | ||||
(7007-7109)FJ55
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47322-60010 |
FJ55 |
1 | ||
| 47311-60110 |
FJ55 |
1 | ||
| 47311-60051 |
FJ55 FOR L/BOOSTER |
1 | ||
| 47311-60070 |
FJ55 FOR W/BOOSTER |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10050 |
FJ55 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 90947-02133 |
FJ55 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-60050 |
FJ55 |
1 | ||
| 47313-60030 |
FJ55 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02073 |
FJ55 |
2 | ||
| 90947-02134 |
FJ55 |
2 | ||
| 96920-31221 |
FJ40,55 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02073 |
FJ55 |
2 | ||
| 90947-02134 |
FJ55 |
2 | ||
| 96920-31221 |
FJ40,55 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-60081 |
FJ55 |
1 | ||
| 47313-60030 |
FJ55 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47321-60010 |
FJ55 |
1 | ||
| 47315-60030 |
FJ55 |
1 | ||
| 47315-60031 |
FJ55 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-60061 |
FJ55 |
1 | ||
| 47316-60060 |
FJ55 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02012 |
FJ55 |
1 | ||
| 90947-02093 |
FJ55 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-60040 |
FJ55 |
1 | ||
| 47318-60050 |
FJ40,55 |
1 | ||
| 47318A - WAY(FOR REAR RH BRAKE TUBE) | ||||
| 90413-10023 |
FJ55 |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-60040 |
FJ55 |
1 | ||
| 47319-60050 |
FJ40,55 |
1 | ||
| 47331 - TUBE, REAR BRAKE, NO.10 | ||||
| 47331-60030 |
FJ40,55 |
1 | ||
| 47331-60020 |
FJ55 |
1 | ||
| 47332 - TUBE, REAR BRAKE, NO.11 | ||||
| 47332-60020 |
FJ55 |
1 | ||
| 47332-60030 |
FJ40,55 |
1 | ||
| 47332A - WAY(FOR BRAKE WHEEL CYLINDER FRONT RH TUBE) | ||||
| 90413-10049 |
FJ55 |
1 | ||
| 90413-10099 |
FJ40,55 |
1 | ||
| 90413-10088 |
FJ55 |
1 | ||
| 90413-10083 |
FJ55 |
1 | ||
| 47333 - TUBE, REAR BRAKE, NO.12 | ||||
| 47331-60030 |
FJ40,55 |
1 | ||
| 47331-60020 |
FJ55 |
1 | ||
| 47334 - TUBE, REAR BRAKE, NO.13 | ||||
| 47332-60030 |
FJ40,55 |
1 | ||
| 47332-60020 |
FJ55 |
1 | ||
| 47334A - WAY(FOR BRAKE WHEEL CYLINDER FRONT LH TUBE) | ||||
| 90413-10083 |
FJ55 |
1 | ||
| 90413-10089 |
FJ55 |
1 | ||
| 90413-10099 |
FJ40,55 |
1 | ||
| 90413-10049 |
FJ55 |
1 | ||
| 47335 - TUBE, REAR BRAKE, NO.14 | ||||
| 47335-60010 |
FJ40,55 |
1 | ||
| 47335-60010 |
FJ55 |
1 | ||
| 47336 - TUBE, REAR BRAKE, NO.15 | ||||
| 47335-60010 |
FJ55 |
1 | ||
| 47335-60010 |
FJ40,55 |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-61020 |
FJ55 |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-60010 |
FJ40,55 |
1 | ||
| 47351-60070 |
FJ55 |
1 | ||
| Common parts | ||||
| 90430-10027 | ||||
| 90461-04216 | ||||
| 90461-10574 | ||||
| 90461-10575 | ||||
| 90462-10021 | ||||
| 91111-40812 | ||||
| 91111-41036 | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 91616-40616 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 94612-10800 | ||||
| 96990-10060 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
