FJ55LG- (1969)

Toyota Land Cruiser

Production Mar 1969 - Jan 1975
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-8007)

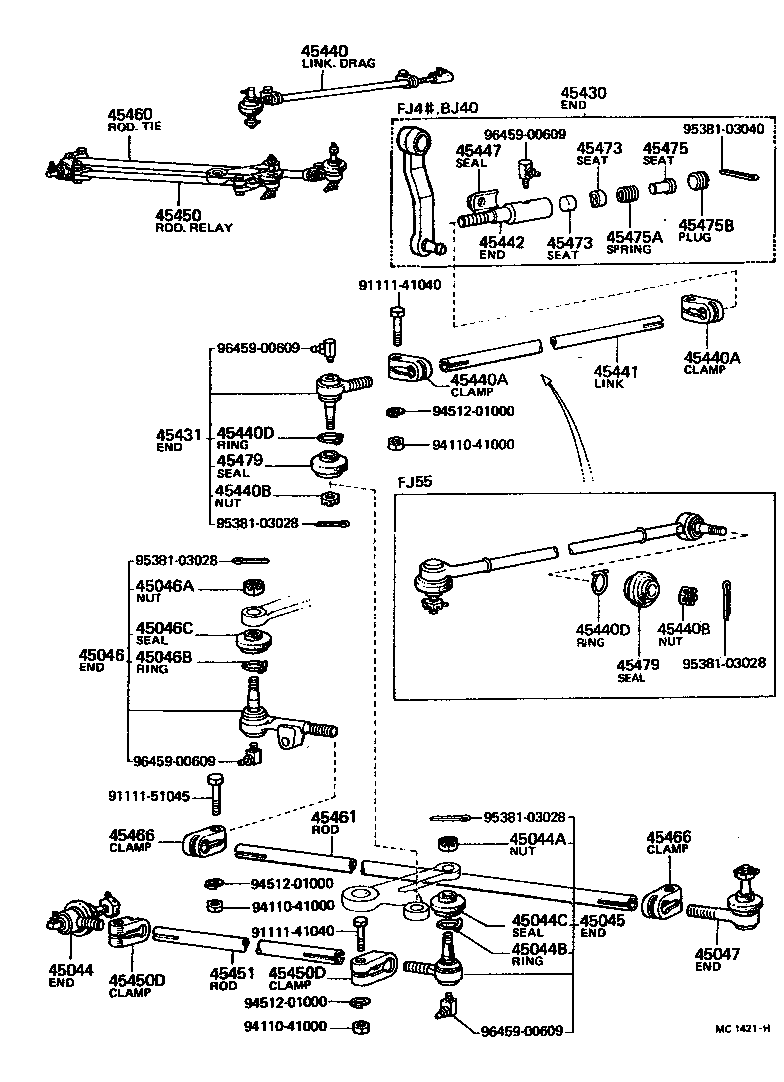

Click highlighted areas on diagram

diagram 45044 45044A 45044B 45044C 45045 45046 45046A 45046B 45046C 45047 45430 45431 45440 45440A 45440A 45440B 45440B 45440D 45440D 45441 45442 45447 45450 45450D 45450D 45451 45460 45461 45466 45466 45473 45473 45475 45475A 45475B 45479 45479 9111141040 9111141040 9111151045 9411041000 9411041000 9411041000 9451201000 9451201000 9451201000 9538103028 9538103028 9538103028 9538103028 9538103040 9645900609 9645900609 9645900609 9645900609
Part # Description Qty Price
45044 - END SUB-ASSY, STEERING RELAY ROD, RH
45045-60013

FJ40,55

 1
45044A - NUT, CASTLE(FOR RELAY ROD)
90171-12005

FJ40,55

 2
45044B - RING, SET(FOR RELAY ROD)
90522-32011

BJ40,FJ4#,55

 2
45044C - SEAL, DUST(FOR RELAY ROD)
45479-30030

BJ40,FJ4#,55

 2
45045 - END SUB-ASSY, STEERING RELAY ROD, LH
45046-60033

FJ40,55

 1
45046 - END SUB-ASSY, TIE ROD, RH
45046-60081

FJ40,55

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12005

FJ40,55

 2
45046B - RING, SET(FOR TIE ROD END DUST SEAL)
90522-32011

BJ40,FJ4#,55

 2
45046C - SEAL, DUST(FOR TIE ROD END)
45479-30030

BJ40,FJ4#,55

 2
45047 - END SUB-ASSY, TIE ROD, LH
45046-60042

FJ40,55

 1
45440 - LINK ASSY, STEERING DRAG
45440-60032

FJ55

 1
45440B - NUT, CASTLE(FOR STEERING DRAG LINK)
90171-12005

FJ40,55

 2
45440B - NUT, CASTLE(FOR STEERING DRAG LINK)
90171-12005

FJ40,55

 2
45440D - RING, SET(FOR STEERING DRAG LINK)
90522-32011

BJ40,FJ4#,55

 2
45440D - RING, SET(FOR STEERING DRAG LINK)
90522-32011

BJ40,FJ4#,55

 2
45450 - ROD ASSY, STEERING RELAY
45450-60040

FJ55

 1
45450D - CLAMP, STEERING RELAY ROD END
45466-30010

BJ40,FJ4#,55

 2
45450D - CLAMP, STEERING RELAY ROD END
45466-30010

BJ40,FJ4#,55

 2
45451 - ROD, STEERING RELAY
45451-60031

FJ55

 1
45460 - ROD ASSY, TIE, RH
45460-60041

FJ40,55

 1
45461 - ROD, STEERING TIE
45461-60021

BJ40,FJ4#,55

 1
45466 - CLAMP, TIE ROD END
45466-55010

BJ40,FJ4#,55

 2
45466 - CLAMP, TIE ROD END
45466-55010

BJ40,FJ4#,55

 2
45479 - SEAL, STEERING LINK JOINT DUST
45479-30030

BJ40,FJ4#,55

 2
45479 - SEAL, STEERING LINK JOINT DUST
45479-30030

BJ40,FJ4#,55

 2
Common parts
91111-41040
91111-51045
94110-41000
94512-01000
95381-03028
95381-03040
96459-00609

(6903-8007)FJ55 ; (6906-8007)BJ40,FJ4#

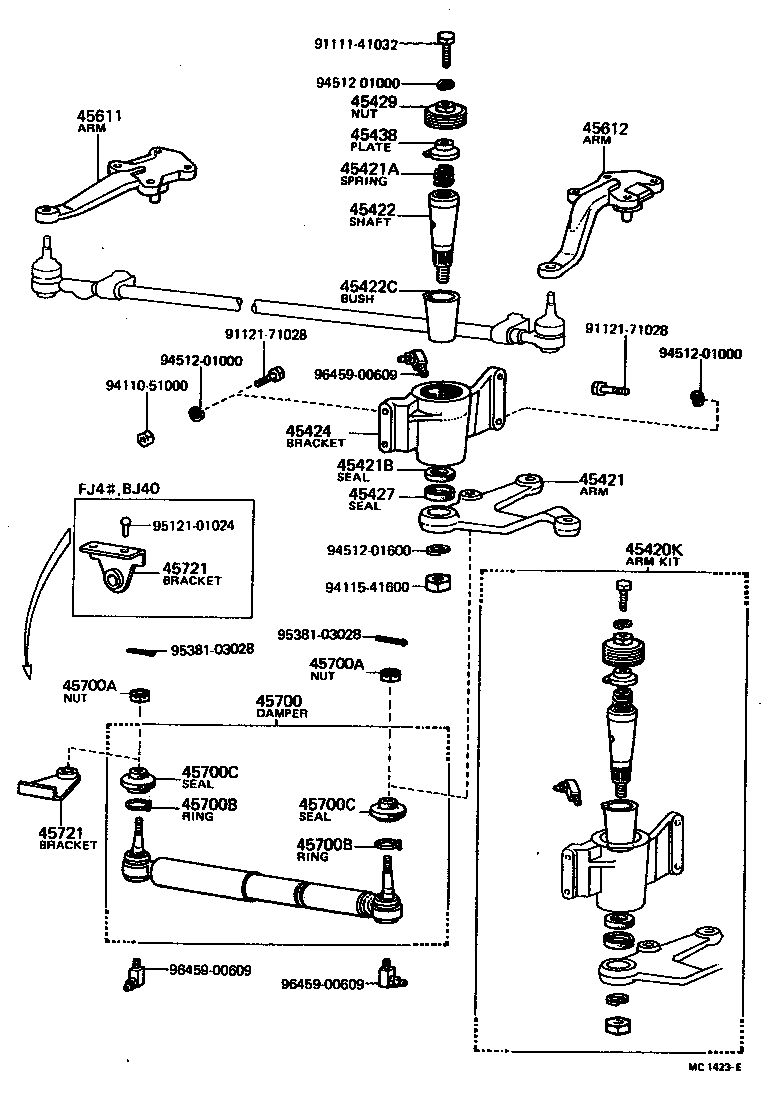

Click highlighted areas on diagram

diagram 45420K 45421 45421A 45421B 45422 45422C 45424 45427 45429 45438 45611 45612 45700 45700A 45700A 45700B 45700B 45700C 45700C 45721 45721 9111141032 9112171028 9112171028 9411051000 9411541600 9451201000 9451201000 9451201000 9451201600 9512101024 9538103028 9538103028 9645900609 9645900609 9645900609
Part # Description Qty Price
45421 - ARM, STEERING CENTER
45421-60041

FJ55

 1
45421A - SPRING, COMPRESSION(FOR STEERING CENTER ARM)
90501-45123

BJ40,FJ4#,55

 1
45421B - SEAL, DUST(FOR STEERING CENTER ARM)
90303-24033

FJ55

 1
45422 - SHAFT, CENTER ARM
45422-60020

FJ55

 1
45422C - BUSH(FOR CENTER ARM SHAFT)
90384-26102

FJ55

 1
45424 - BRACKET, CENTER ARM
45424-60040

FJ55

 1
45427 - SEAL, CENTER ARM DUST, LOWER
45427-60020

FJ55

 1
45429 - NUT, CENTER ARM SHAFT
45429-60020

FJ55

 1
45438 - PLATE, CENTER ARM NUT LOCK
45438-60010

FJ55

 1
45611 - ARM, STEERING KNUCKLE, RH
45611-60020

BJ40,FJ4#,55

 1
45612 - ARM, STEERING KNUCKLE, LH
45612-60020

BJ40,FJ4#,55

 1
45700 - DAMPER ASSY, STEERING
45700-60010

FJ40,55

 1
45700-60011

FJ40,55

 1
45700A - NUT(FOR STEERING DAMPER)
90171-12005

FJ40,55

 2
45700A - NUT(FOR STEERING DAMPER)
90171-12005

FJ40,55

 2
45700B - RING, SET(FOR STEERING DAMPER DUST SEAL)
90522-32011

BJ40,FJ4#,55

 2
45700B - RING, SET(FOR STEERING DAMPER DUST SEAL)
90522-32011

BJ40,FJ4#,55

 2
45700C - SEAL, DUST(FOR STEERING DAMPER)
45479-30030

BJ40,FJ4#,55

 2
45700C - SEAL, DUST(FOR STEERING DAMPER)
45479-30030

BJ40,FJ4#,55

 2
45721 - BRACKET, STEERING DAMPER
45721-60020

FJ55

 1
45721 - BRACKET, STEERING DAMPER
45721-60020

FJ55

 1
Common parts
91111-41032
91121-71028
94110-51000
94115-41600
94512-01000
94512-01600
95121-01024
95381-03028
96459-00609
