FJ55LG- (1969)
Toyota Land Cruiser
Production
Mar 1969
-
Jan 1975
Engine
F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9001-0405)FZJ70,75..ARL ; (9001-0405)FJ7#,FZJ70,73,75,HJ75,HZJ70,73,75,KZJ7#,LJ7#,
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08560 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 91611-60616 | ||||
| 91611-60820 | ||||
| 91651-60616 | ||||
| 91651-60818 | ||||
| 91651-60825 | ||||
| 93319-14010 | ||||
| 94612-11001 | ||||
ILLUST NO. 2 OF 2(9001-0907)
Click highlighted areas on diagram
TILT STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-08112 | ||||
| 90114-08002 | ||||
| 90119-06029 | ||||
| 90119-08165 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90980-07195 | ||||
| 91611-60840 | ||||
| 91651-60616 | ||||
| 93315-14010 | ||||
| 94130-00802 | ||||
| 94182-10800 | ||||
| 94183-60601 | ||||
| 94531-00800 | ||||
| 94612-11001 | ||||
ILLUST NO. 1 OF 2(9001-0907)
Click highlighted areas on diagram
TILT STEERING(COLLAPSIBLE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08042 | ||||
| 90119-08560 | ||||
| 91611-60618 | ||||
| 91611-B0816 | ||||
| 91651-60616 | ||||
| 91651-60818 | ||||
| 91651-60825 | ||||
| 91651-B0820 | ||||
| 91651-B0822 | ||||
| 93319-14012 | ||||

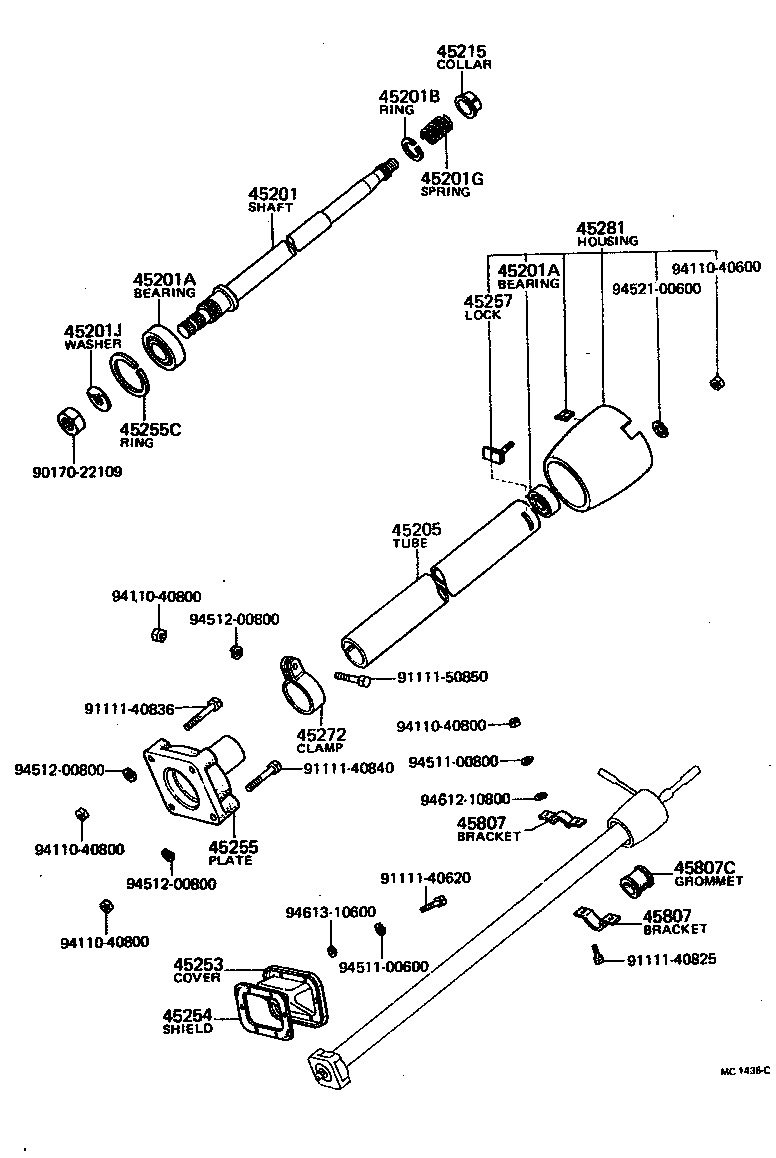

(6903-7209)FJ55
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45201-60040 |
FJ55 |
1 | ||
| 45201-60041 |
FJ55 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90369-36003 |
FJ55 UPPER |
1 | ||
| 90363-22036 |
FJ55 LOWER |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90369-36003 |
FJ55 UPPER |
1 | ||
| 90363-22036 |
FJ55 LOWER |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17106 |
FJ55 |
1 | ||
| 90520-18043 |
FJ55 |
1 | ||
| 90520-17042 |
FJ40,55 T=1.20 |
2 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-20102 |
FJ55 |
1 | ||
| 45201J - WASHER, CLAW(FOR STEERING MAIN SHAFT BEARING SET) | ||||
| 90214-23023 |
FJ55 |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45251-60050 |
FJ55 |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-20011 |
FJ55 |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45253-60020 |
FJ55 FOR COLUMN SHIFT |
1 | ||
| 45253-60040 |
FJ55 FOR FLOOR SHIFT |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-60010 |
FJ55 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45291-60010 |
FJ55 |
1 | ||
| 45255C - RING, HOLE SNAP(FOR STEERING COLUMN TUBE SUPPORT) | ||||
| 90521-55007 |
FJ55 |
1 | ||
| 45257 - LOCK, STEERING COLUMN TUBE | ||||
| 45257-60011 |
FJ55 |
2 | ||
| 45272 - CLAMP, STEERING COLUMN, LOWER | ||||
| 45272-55010 |
FJ40,55 |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45208-60031 |
FJ55 FOR FLOOR SHIFT |
1 | ||
| 45208-60041 |
FJ55 FOR COLUMN SHIFT |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 55662-90351 |
FJ55 LOWER |
1 | ||
| 55661-90351 |
FJ55 UPPER |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 55662-90351 |
FJ55 LOWER |
1 | ||
| 55661-90351 |
FJ55 UPPER |
1 | ||
| 45807C - GROMMET(FOR STEERING COLUMN CLAMP) | ||||
| 90480-45092 |
FJ4#,55 |
1 | ||
| Common parts | ||||
| 90170-22109 | ||||
| 91111-40620 | ||||
| 91111-40825 | ||||
| 91111-40836 | ||||
| 91111-40840 | ||||
| 91111-50850 | ||||
| 94110-40600 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
| 94512-00800 | ||||
| 94521-00600 | ||||
| 94612-10800 | ||||
| 94613-10600 | ||||

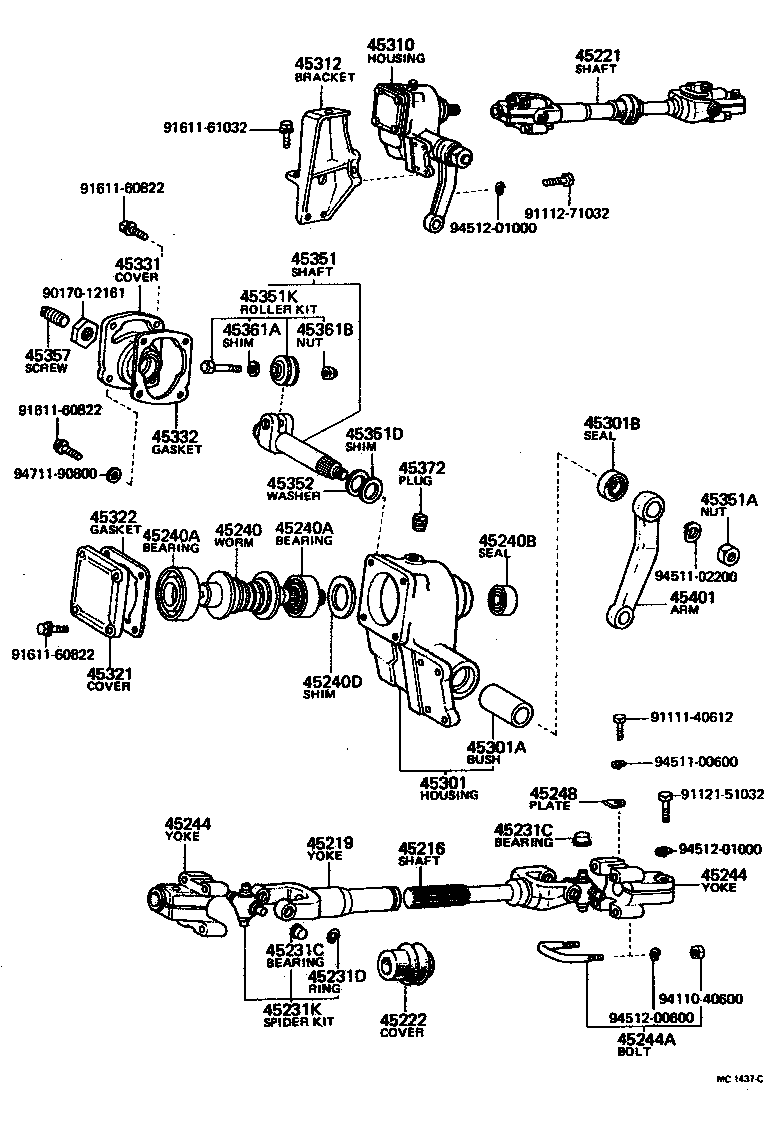

(6903-7204)FJ55
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45216 - SHAFT, STEERING SLIDING | ||||
| 45216-60010 |
FJ55 |
1 | ||
| 45219 - YOKE, STEERING SLIDING | ||||
| 45209-60010 |
FJ55 |
1 | ||
| 45221 - SHAFT, STEERING INTERMEDIATE | ||||
| 45220-60010 |
FJ55 |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-60010 |
FJ55 |
1 | ||
| 45231C - BEARING, UNIVERSAL JOINT SPIDER(FOR STEERING MAIN SHAFT | ||||
| 37402-10020 |
FJ55 OVER SIZE |
8 | ||
| 45231C - BEARING, UNIVERSAL JOINT SPIDER(FOR STEERING MAIN SHAFT | ||||
| 37402-10020 |
FJ55 OVER SIZE |
8 | ||
| 45231D - RING, HOLE SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90521-22011 |
FJ55 T=1.175-1.225 |
8 | ||
| 90521-22012 |
FJ55 T=1.225-1.275 |
8 | ||
| 90521-22013 |
FJ55 T=1.275-1.325 |
8 | ||
| 45231K - SPIDER KIT, UNIVERSAL JOINT(FOR STEERING MAIN SHAFT) | ||||
| 04371-10011 |
FJ55 |
2 | ||
| 45240 - WORM ASSY, STEERING | ||||
| 45241-60040 |
FJ55 |
1 | ||
| 45240-36040 |
FJ55 |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 97600-30206 |
FJ40,55 FOR FRONT |
1 | ||
| 90363-20062 |
FJ55 |
2 | ||
| 97600-30205 |
FJ40,55 FOR REAR |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 97600-30206 |
FJ40,55 FOR FRONT |
1 | ||
| 90363-20062 |
FJ55 |
2 | ||
| 97600-30205 |
FJ40,55 FOR REAR |
1 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-18125 |
FJ40,55 |
1 | ||
| 90311-18125 |
FJ55 |
1 | ||
| 90311-18021 |
FJ55 |
1 | ||
| 45240D - SHIM(FOR STEERING WORM BEARING ADJUST) | ||||
| 90564-40037 |
FJ40,55 T=0.5 |
1 | ||
| 90564-40039 |
FJ40,55 T=0.1 |
1 | ||
| 90564-40038 |
FJ40,55 T=0.2 |
1 | ||
| 45244 - YOKE, STEERING WORM | ||||
| 45244-55020 |
FJ55 |
2 | ||
| 45244 - YOKE, STEERING WORM | ||||
| 45244-55020 |
FJ55 |
2 | ||
| 45244A - BOLT, U, STEERING WORM YOKE | ||||
| 90118-06112 |
FJ55 |
4 | ||
| 45248 - PLATE, CUP STOPPER, NO.1 | ||||
| 45248-55010 |
FJ55 |
4 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-60030 |
FJ55 |
1 | ||
| 45301-36050 |
FJ55 |
1 | ||
| 45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1 | ||||
| 90999-73061 |
FJ55 |
1 | ||
| 90999-73018 |
FJ40,55 |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-32024 |
BJ40,FJ4#,55 |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-60020 |
FJ55 |
1 | ||
| 45310-36070 |
FJ55 |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45312-60030 |
FJ55 |
1 | ||
| 45321 - COVER, GEAR HOUSING END | ||||
| 45321-36020 |
FJ55 |
1 | ||
| 45321-60012 |
FJ40,55 |
1 | ||
| 45322 - GASKET, GEAR HOUSING END COVER | ||||
| 45324-55010 |
FJ40,55 T=0.3 |
2 | ||
| 45322-55010 |
FJ40,55 T=0.1 |
2 | ||
| 45323-55010 |
FJ40,55 T=0.2 |
2 | ||
| 45322-60010 |
FJ40,55 T=0.5 |
2 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-36020 |
FJ55 |
1 | ||
| 45304-60010 |
FJ40,55 |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-60010 |
FJ40,55 |
1 | ||
| 45332-36010 |
FJ55 |
1 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45351-36020 |
FJ55 |
1 | ||
| 45350-60020 |
FJ40,55 |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
BJ40,FJ4#,55 |
1 | ||
| 45351D - SHIM(FOR STEERING SECTOR ADJUSTING) | ||||
| 90564-33106 |
FJ40,55 T=0.50 |
4 | ||
| 90564-33113 |
FJ40,55 T=1.00 |
9 | ||
| 90564-33110 |
FJ40,55 T=0.30 |
3 | ||
| 45351K - ROLLER KIT, STEERING SECTOR | ||||
| 04452-55010 |
FJ40,55 |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-36010 |
FJ55 T=2.00,T=2.00 |
1 | ||
| 45355-36010 |
FJ55 T=2.15,T=2.15 |
1 | ||
| 45353-36010 |
FJ55 T=2.05,T=2.05 |
1 | ||
| 45354-36010 |
FJ55 T=2.10,T=2.10 |
1 | ||
| 45352-55010 |
FJ40,55 |
1 | ||
| 45356-36010 |
FJ55 T=2.20,T=2.20 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 90113-14012 |
FJ40,55 |
1 | ||
| 45357-36020 |
FJ55 |
1 | ||
| 45361A - SHIM(FOR STEERING SECTOR ROLLER ADJUST) | ||||
| 90564-10059 |
FJ40,55 |
2 | ||
| 45361B - NUT(FOR STEERING SECTOR ROLLER SETTING) | ||||
| 90170-10054 |
FJ40,55 |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90345-53008 |
FJ40,55 |
1 | ||
| 90345-53020 |
FJ40,55 ISO |
1 | ||
| 90930-03058 |
FJ55 |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45411-60032 |
FJ55 |
1 | ||
| Common parts | ||||
| 90170-12161 | ||||
| 91111-40612 | ||||
| 91112-71032 | ||||
| 91121-51032 | ||||
| 91611-60822 | ||||
| 91611-61032 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| 94511-02200 | ||||
| 94512-00600 | ||||
| 94512-01000 | ||||
| 94711-90800 | ||||
