FJ55LG- (1969)

Toyota Land Cruiser

Production Mar 1969 - Jan 1975
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-7608)

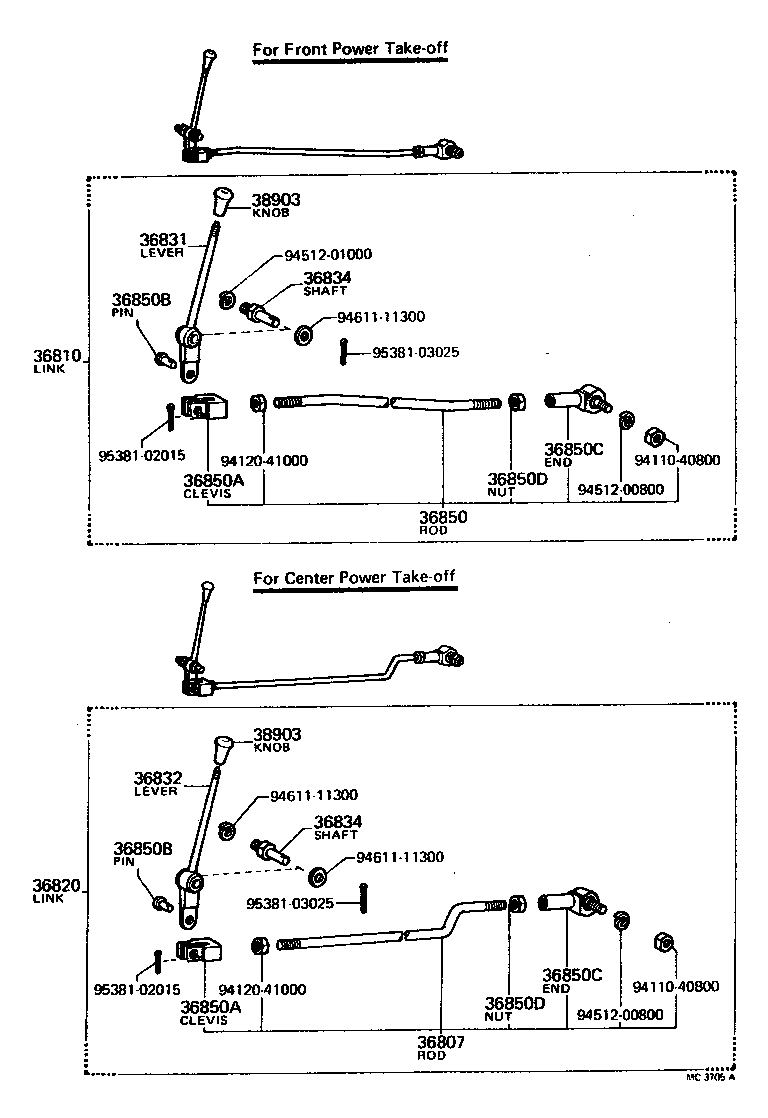

Click highlighted areas on diagram

diagram 36807 36810 36820 36831 36832 36834 36834 36850 36850A 36850A 36850B 36850B 36850C 36850C 36850D 36850D 38903 38903 9411040800 9411040800 9412041000 9412041000 9451200800 9451200800 9451201000 9461111300 9461111300 9461111300 9538102015 9538102015 9538103025 9538103025
Part # Description Qty Price
36810 - LINK ASSY, FRONT POWER TAKE-OFF SHIFT
36810-60020

FJ55

FOR 3-SPEED TRANSMISSION

 1
36831 - LEVER, POWER TAKE-OFF SHIFT
36831-60040

FJ55

 1
36834 - SHAFT, LEVER SUPPORT
36834-60010

FJ4#,55

 1
36834 - SHAFT, LEVER SUPPORT
36834-60010

FJ4#,55

 1
36850 - ROD ASSY, POWER TAKE-OFF SHIFT
36850-60020

FJ55

FOR 3-SPEED TRANSMISSION

 1
36850A - CLEVIS (FOR POWER TAKE-OFF SHIFT LEVER)
33724-60010

FJ4#,55

 2
36850A - CLEVIS (FOR POWER TAKE-OFF SHIFT LEVER)
33724-60010

FJ4#,55

 2
36850B - PIN (FOR POWER TAKE-OFF SHIFT LEVER)
90240-08028

FJ4#,55

 2
36850B - PIN (FOR POWER TAKE-OFF SHIFT LEVER)
90240-08028

FJ4#,55

 2
36850C - END ASSY, POWER TAKE-OFF SHIFT ROD
33740-35011

FJ55

 1
36850C - END ASSY, POWER TAKE-OFF SHIFT ROD
33740-35011

FJ55

 1
36850D - NUT (FOR POWER TAKE-OFF SHIFT ROD)
94120-40800

FJ55

 1
36850D - NUT (FOR POWER TAKE-OFF SHIFT ROD)
94120-40800

FJ55

 1
38903 - KNOB SUB-ASSY, CONTROL
36303-60010

FJ40,55

 1
38903 - KNOB SUB-ASSY, CONTROL
36303-60010

FJ40,55

 1
Common parts
94110-40800
94120-41000
94512-00800
94512-01000
94611-11300
95381-02015
95381-03025
