FJ55LG- (1969)

Toyota Land Cruiser

Production Mar 1969 - Jan 1975
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-7408)

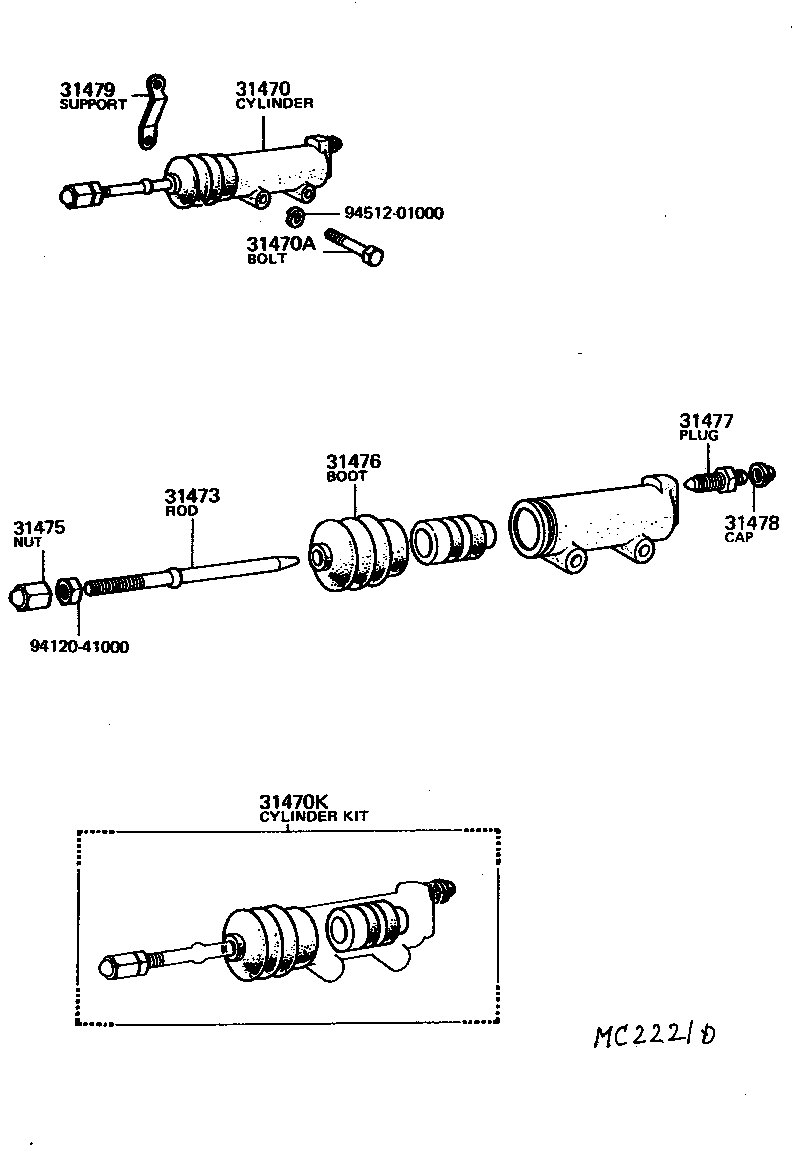

Click highlighted areas on diagram

diagram 31470 31470A 31470K 31473 31475 31476 31477 31478 31479 9412041000 9451201000
Part # Description Qty Price
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-60030

FJ55

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
91111-51063

FJ55

 2
31470K - CYLINDER KIT, CLUTCH RELEASE
04313-60011

FJ40,55

 1
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-60031

FJ55

 1
31475 - NUT, CLUTCH RELEASE CYLINDER PUSH ROD
31474-60010

FJ40,55

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-60020

FJ40,55

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-30020

FJ40,55

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
47548-20010

FJ40,55

 1
Common parts
94120-41000
94512-01000
