FJ55LG- (1969)

Toyota Land Cruiser

Production Mar 1969 - Jan 1975
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-7007)

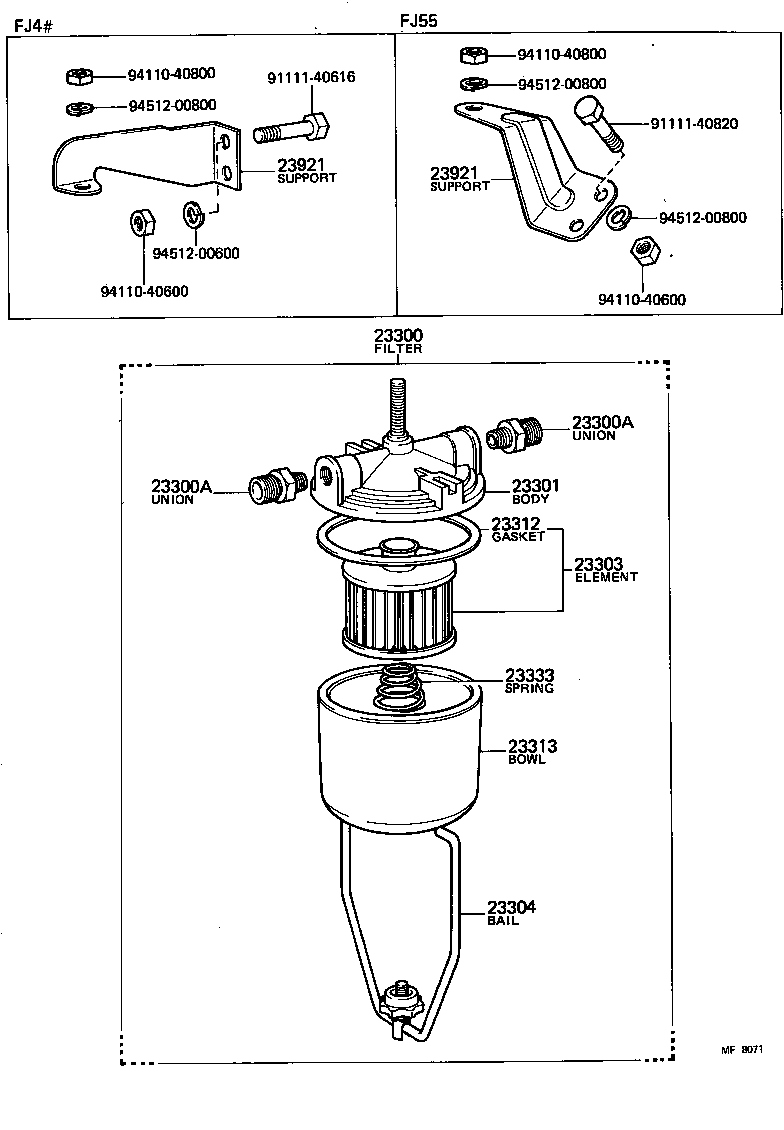

Click highlighted areas on diagram

diagram 23300 23300A 23300A 23301 23303 23304 23312 23313 23333 23921 23921 9111140616 9111140820 9411040600 9411040600 9411040800 9411040800 9451200600 9451200800 9451200800 9451200800
Part # Description Qty Price
23300 - FILTER ASSY, FUEL
23300-30012

F..FJ40,55

 1
23300-30011

F..FJ40,55

 1
23030-24011

F..FJ40,55

 1
23300A - UNION, NIPPLE(FOR FUEL FILTER INLET)
90404-13105

F..FJ40,55

 2
23300A - UNION, NIPPLE(FOR FUEL FILTER INLET)
90404-13105

F..FJ40,55

 2
23301 - BODY SUB-ASSY, FUEL FILTER
23301-30011

F..FJ40,55

 1
23301-30010

F..FJ40,55

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
04234-30010

F..FJ40,55

 1
23304 - BAIL SUB-ASSY, FILTER BOWL
23304-30010

F..FJ40,55

 1
23312 - GASKET, FILTER BOWL
23312-30010

F..FJ40,55

 1
23313 - BOWL OR CYLINDER, FUEL FILTER
23313-30010

F..FJ40,55

 1
23333 - SPRING, FILTER ELEMENT SET
23333-30010

F..FJ40,55

 1
23921 - SUPPORT, FUEL FILTER
23921-60050

F..FJ55

 1
23921 - SUPPORT, FUEL FILTER
23921-60050

F..FJ55

 1
Common parts
91111-40616
91111-40820
94110-40600
94110-40800
94512-00600
94512-00800
