Toyota Land cruiser FJ55 EXHAUST PIPE

FJ55LG- (1969)

Toyota Land Cruiser

Production Mar 1969 - Jan 1975

Engine F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

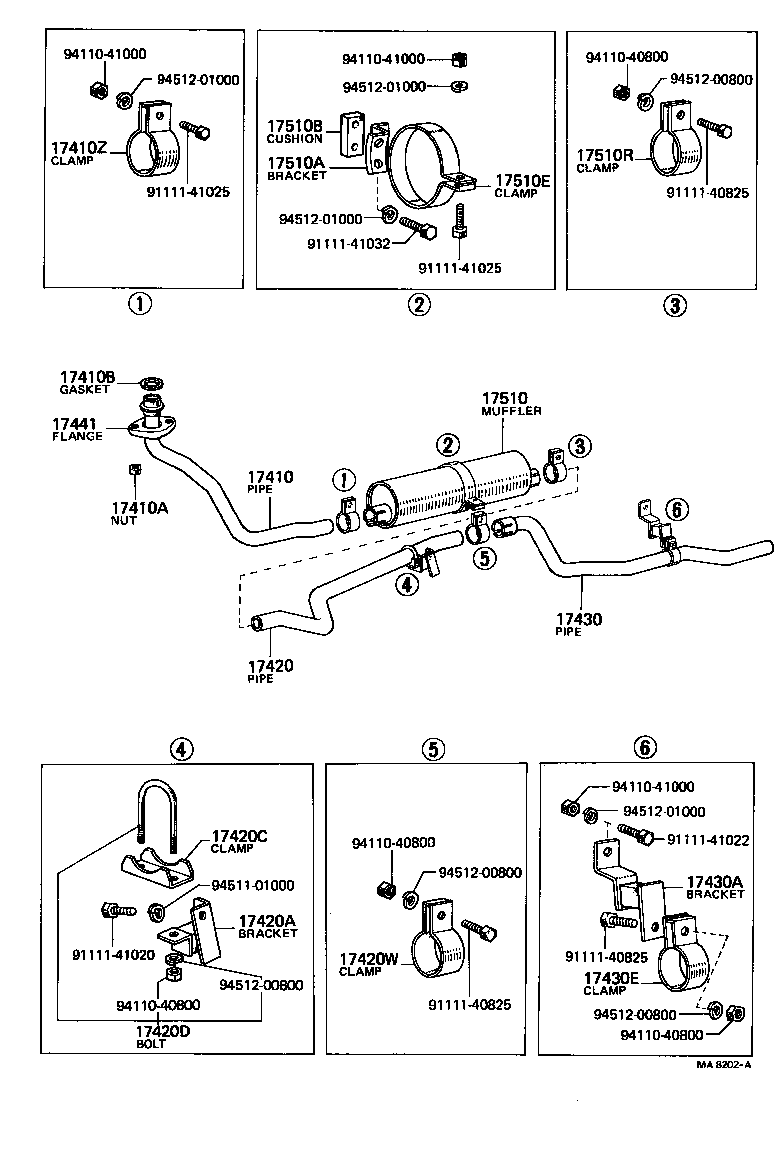

(6903-6909)F..FJ55

Click highlighted areas on diagram

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17401-60200	F..FJ55	03/1969 - 01/1975	1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90170-10049	F..FJ40,55	03/1969 - 12/1972	2
90170-10199	F..FJ40,55	12/1972 - 01/1975	2
17410B - GASKET, EXHAUST PIPE
90917-06005	F..FJ40,55	03/1969 - 01/1975	1
17410Z - CLAMP NO.2, EXHAUST PIPE FRONT (FOR REAR)
90461-23469	F..FJ40,55	03/1969 - 01/1975	1
17420 - PIPE ASSY, EXHAUST, CENTER
17421-60080	F..FJ55 ALUMINIZED	09/1973 - 01/1975	1
17421-60052	F..FJ55	09/1969 - 01/1975	1
17421-60051	F..FJ55	03/1969 - 09/1969	1
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17561-60041	F..FJ55	03/1969 - 09/1969	2
17561-60060	F..FJ55	09/1969 - 01/1975	2
17420C - CLAMP NO.1, EXHAUST PIPE CENTER, FRONT
90917-04007	F..FJ55	03/1969 - 09/1969	1
17420D - BOLT OR RING, EXHAUST PIPE CENTER, FRONT
90118-10081	F..FJ55	03/1969 - 09/1969	1
17420W - CLAMP NO.2, EXHAUST PIPE CENTER, REAR
90461-23387	F..FJ55	09/1969 - 01/1975	1
90461-23071	F..FJ55	03/1969 - 09/1969	1
17430 - PIPE ASSY, EXHAUST, TAIL
17431-60161	F..FJ55	09/1969 - 07/1970	1
17431-60250	F..FJ55 ALUMINIZED	09/1973 - 01/1975	1
17431-60210	F..FJ55	07/1970 - 01/1975	1
17431-60260	F..FJ55 W/HOOK ALUMINIZED	09/1973 - 01/1975	1
17431-60160	F..FJ55	03/1969 - 09/1969	1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17506-60050	F..FJ55	03/1969 - 09/1969	1
17562-60080	F..FJ55	09/1969 - 01/1975	1
17430E - CLAMP NO.2, EXHAUST TAIL PIPE(FOR FRONT)
90461-23387	F..FJ55	03/1969 - 09/1969	1
17441 - FLANGE, EXHAUST PIPE
17441-60010	F..FJ40,55	03/1969 - 01/1975	1
17510 - MUFFLER ASSY
17510-60021	F..FJ40,55	03/1969 - 09/1969	1
17510-60110	F..FJ40,55 ALUMINIZED	09/1973 - 01/1975	1
17510-60070	F..FJ40,55	09/1969 - 01/1975	1
17510A - BRACKET, MUFFLER, FRONT
17566-60020	F..FJ55	03/1969 - 01/1975	1
17510B - CUSHION, MUFFLER, FRONT
90917-09007	F..FJ55	03/1969 - 01/1975	1
17510E - CLAMP NO.2, MUFFLER, FRONT
17578-60020	F..FJ40,55	03/1969 - 01/1975	1
17510R - CLAMP NO.2, MUFFLER, REAR
90461-23223	F..FJ40,55	09/1969 - 01/1970	1
90461-23387	F..FJ40,55	01/1970 - 01/1975	1
90461-23071	F..FJ40,55	03/1969 - 09/1969	1
Common parts
91111-40825
91111-41020
91111-41022
91111-41025
91111-41032
94110-40800
94110-41000
94511-01000
94512-00800
94512-01000

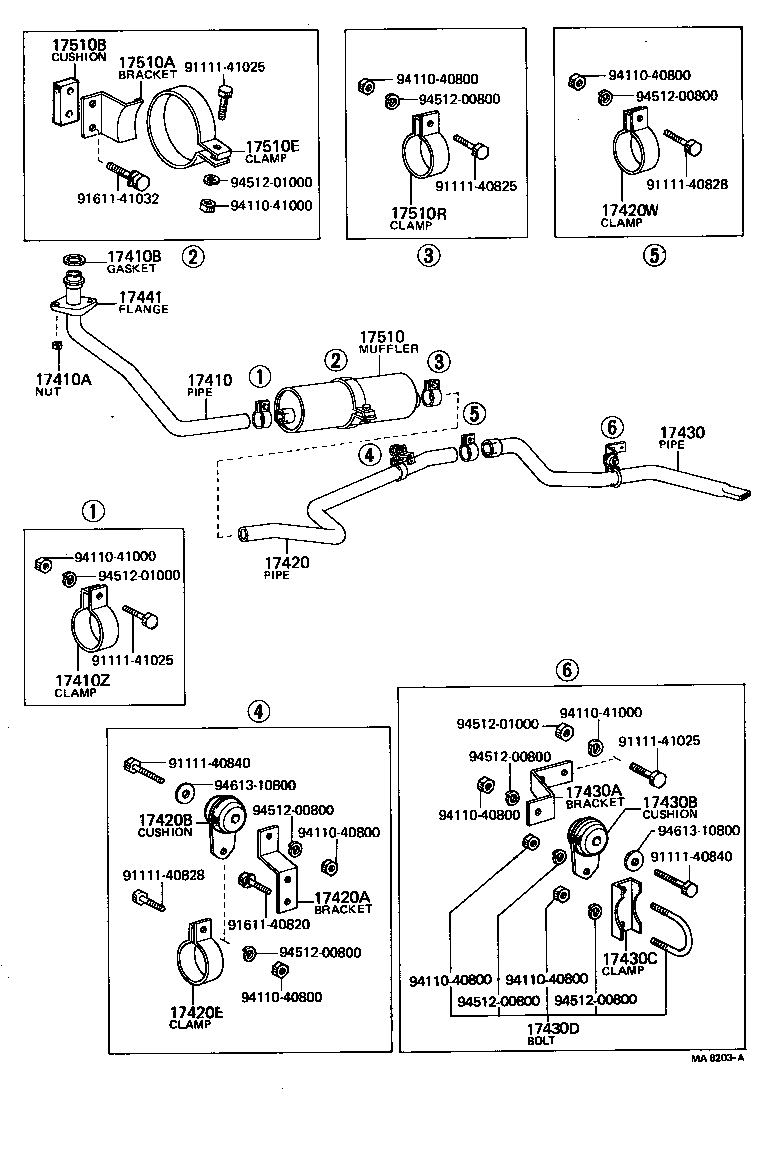

(6909-7501)F..FJ55

Click highlighted areas on diagram

Part #	Description	Period	Qty
17410 - PIPE ASSY, EXHAUST, FRONT
17401-60200	F..FJ55	03/1969 - 01/1975	1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90170-10049	F..FJ40,55	03/1969 - 12/1972	2
90170-10199	F..FJ40,55	12/1972 - 01/1975	2
17410B - GASKET, EXHAUST PIPE
90917-06005	F..FJ40,55	03/1969 - 01/1975	1
17410Z - CLAMP NO.2, EXHAUST PIPE FRONT (FOR REAR)
90461-23469	F..FJ40,55	03/1969 - 01/1975	1
17420 - PIPE ASSY, EXHAUST, CENTER
17421-60080	F..FJ55 ALUMINIZED	09/1973 - 01/1975	1
17421-60052	F..FJ55	09/1969 - 01/1975	1
17421-60051	F..FJ55	03/1969 - 09/1969	1
17420A - BRACKET, EXHAUST PIPE CENTER, FRONT
17561-60041	F..FJ55	03/1969 - 09/1969	2
17561-60060	F..FJ55	09/1969 - 01/1975	2
17420B - CUSHION, EXHAUST PIPE CENTER, FRONT
90917-08004	F..FJ55	09/1969 - 01/1975	1
17420E - CLAMP NO.2, EXHAUST PIPE CENTER, FRONT
90461-23387	F..FJ55	09/1969 - 01/1975	1
17420W - CLAMP NO.2, EXHAUST PIPE CENTER, REAR
90461-23387	F..FJ55	09/1969 - 01/1975	1
90461-23071	F..FJ55	03/1969 - 09/1969	1
17430 - PIPE ASSY, EXHAUST, TAIL
17431-60161	F..FJ55	09/1969 - 07/1970	1
17431-60250	F..FJ55 ALUMINIZED	09/1973 - 01/1975	1
17431-60210	F..FJ55	07/1970 - 01/1975	1
17431-60260	F..FJ55 W/HOOK ALUMINIZED	09/1973 - 01/1975	1
17431-60160	F..FJ55	03/1969 - 09/1969	1
17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT)
17506-60050	F..FJ55	03/1969 - 09/1969	1
17562-60080	F..FJ55	09/1969 - 01/1975	1
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
90917-08004	F..FJ55	09/1969 - 01/1975	1
17430C - CLAMP NO.1, EXHAUST TAIL PIPE (FOR FRONT)
90917-04008	F..FJ40,55	09/1969 - 01/1975	1
17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT)
90118-08045	F..FJ40,55	09/1969 - 01/1975	1
17441 - FLANGE, EXHAUST PIPE
17441-60010	F..FJ40,55	03/1969 - 01/1975	1
17510 - MUFFLER ASSY
17510-60021	F..FJ40,55	03/1969 - 09/1969	1
17510-60110	F..FJ40,55 ALUMINIZED	09/1973 - 01/1975	1
17510-60070	F..FJ40,55	09/1969 - 01/1975	1
17510A - BRACKET, MUFFLER, FRONT
17566-60020	F..FJ55	03/1969 - 01/1975	1
17510B - CUSHION, MUFFLER, FRONT
90917-09007	F..FJ55	03/1969 - 01/1975	1
17510E - CLAMP NO.2, MUFFLER, FRONT
17578-60020	F..FJ40,55	03/1969 - 01/1975	1
17510R - CLAMP NO.2, MUFFLER, REAR
90461-23223	F..FJ40,55	09/1969 - 01/1970	1
90461-23387	F..FJ40,55	01/1970 - 01/1975	1
90461-23071	F..FJ40,55	03/1969 - 09/1969	1
Common parts
91111-40825
91111-40828
91111-40840
91111-41025
91611-40820
91611-41032
94110-40800
94110-41000
94512-00800
94512-01000
94613-10800
