FJ55LG- (1969)
Toyota Land Cruiser
Production
Mar 1969
-
Jan 1975
Engine
F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(6903-7501)

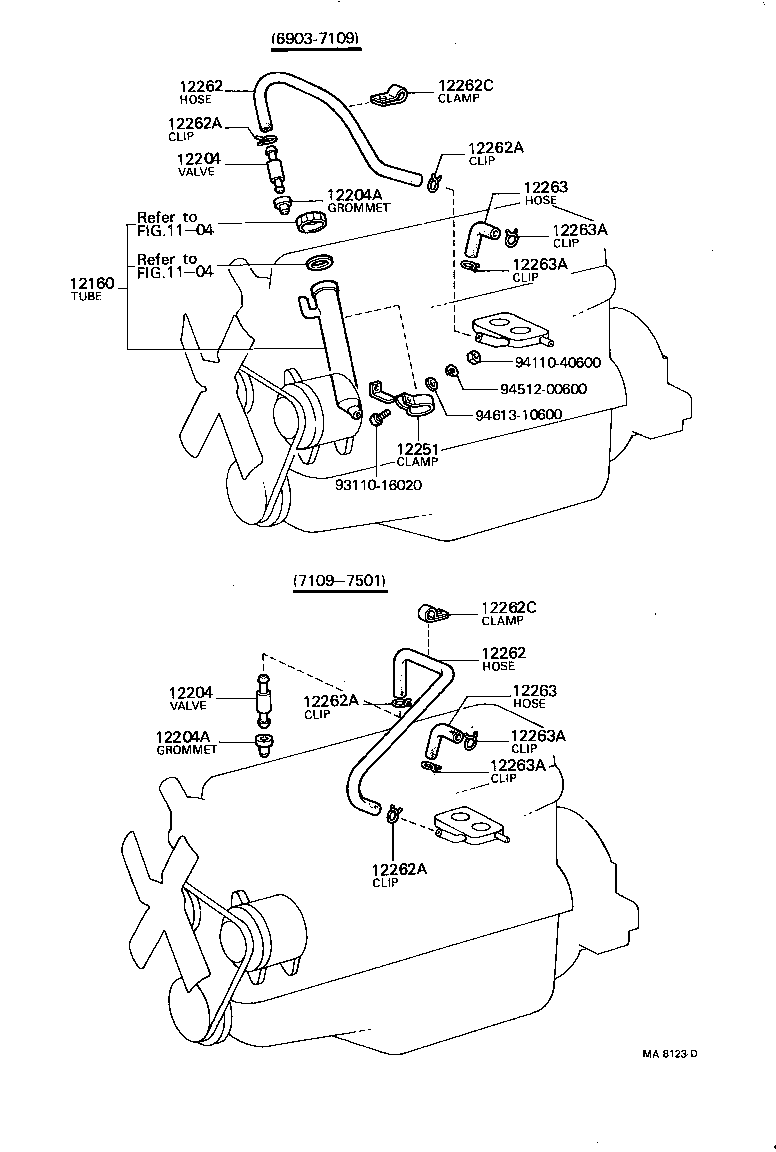

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12160 - TUBE ASSY, OIL FILLER | ||||
| 12160-60070 |
F..FJ40,55 |
1 | ||
| 12160-60071 |
F..FJ40,55 |
1 | ||
| 12160-60041 |
F..FJ40,55 |
1 | ||
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-51011 |
F..FJ40,55 |
1 | ||
| 12204-60021 |
F..FJ40,55 |
1 | ||
| 12204-51010 |
F..FJ40,55 |
1 | ||
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-51011 |
F..FJ40,55 |
1 | ||
| 12204-60021 |
F..FJ40,55 |
1 | ||
| 12204-51010 |
F..FJ40,55 |
1 | ||
| 12251 - CLAMP, VENTILATION TUBE | ||||
| 12251-60010 |
F..FJ40,55 |
1 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 90445-18473 |
F..FJ40,55 |
1 | ||
| 90445-18580 |
F..FJ40,55 |
1 | ||
| 90445-18473 |
F..FJ40,55 |
1 | ||
| 90445-20377 |
F..FJ40,55 |
1 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 90445-18473 |
F..FJ40,55 |
1 | ||
| 90445-18580 |
F..FJ40,55 |
1 | ||
| 90445-18473 |
F..FJ40,55 |
1 | ||
| 90445-20377 |
F..FJ40,55 |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-18028 |
F,2F..FJ4#,55 |
2 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-18028 |
F,2F..FJ4#,55 |
2 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-18028 |
F,2F..FJ4#,55 |
2 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-18028 |
F,2F..FJ4#,55 |
2 | ||
| 12262C - CLAMP, VENTILATION HOSE, NO.2 | ||||
| 90461-12045 |
F..FJ40,55 |
1 | ||
| 90461-10238 |
F..FJ40,55 |
1 | ||
| 90461-10853 |
F..FJ40,55 |
1 | ||
| 90461-10676 |
F..FJ40,55 |
1 | ||
| 12262C - CLAMP, VENTILATION HOSE, NO.2 | ||||
| 90461-12045 |
F..FJ40,55 |
1 | ||
| 90461-10238 |
F..FJ40,55 |
1 | ||
| 90461-10853 |
F..FJ40,55 |
1 | ||
| 90461-10676 |
F..FJ40,55 |
1 | ||
| 12263 - HOSE, VENTILATION, NO.3 | ||||
| 90910-05036 |
F..FJ40,55 |
1 | ||
| 90910-05033 |
F..FJ40,55 |
1 | ||
| 12263 - HOSE, VENTILATION, NO.3 | ||||
| 90910-05036 |
F..FJ40,55 |
1 | ||
| 90910-05033 |
F..FJ40,55 |
1 | ||
| 12263A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-24038 |
F,2F..FJ4#,55 |
2 | ||
| 12263A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-24038 |
F,2F..FJ4#,55 |
2 | ||
| 12263A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-24038 |
F,2F..FJ4#,55 |
2 | ||
| 12263A - CLIP(FOR VENTILATION HOSE) | ||||
| 90467-24038 |
F,2F..FJ4#,55 |
2 | ||
| Common parts | ||||
| 93110-16020 | ||||
| 94110-40600 | ||||
| 94512-00600 | ||||
| 94613-10600 | ||||
| Linked diagrams | ||||
| 1104 | ||||
