FJ45LP-KK (1976)
Toyota Land Cruiser
Production
Jun 1976
-
Jul 1980
Engine
2F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

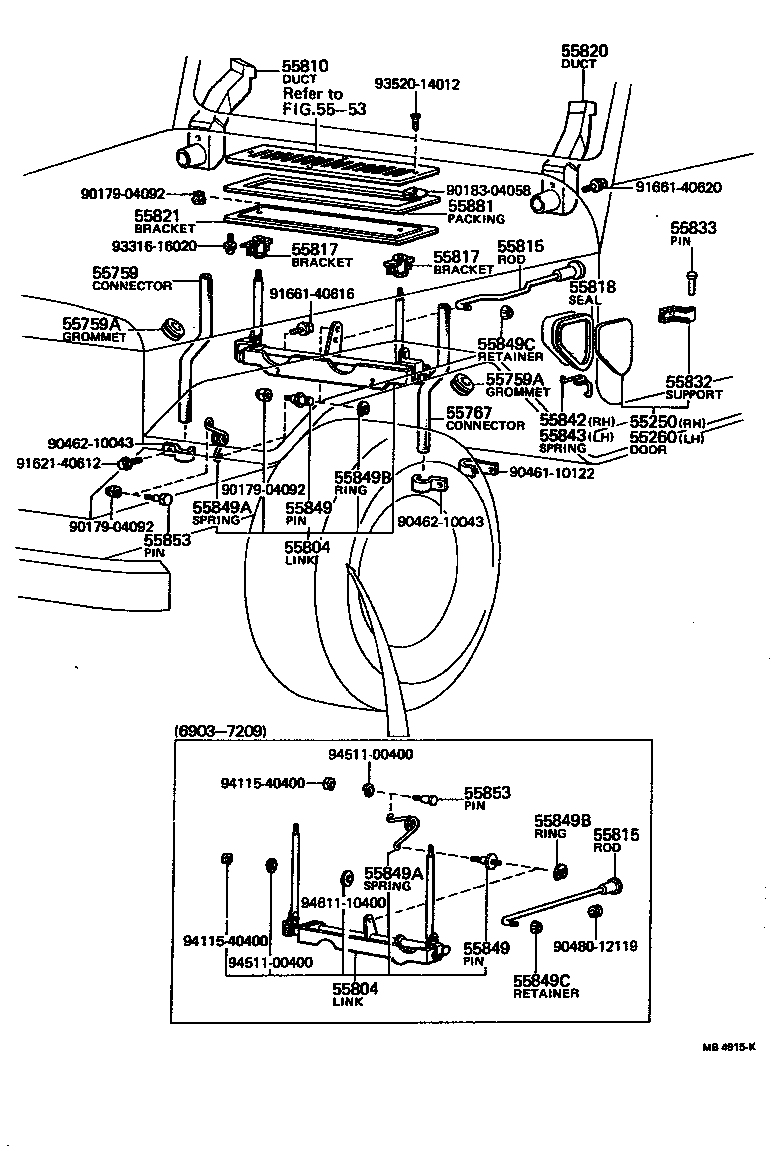

(6903-7909)BJ40,FJ4#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55250 - DOOR ASSY, COWL SIDE VENTILATOR, RH | ||||
| 55708-60011 |
BJ40,FJ4# |
1 | ||
| 55260 - DOOR ASSY, COWL SIDE VENTILATOR, LH | ||||
| 55709-60011 |
BJ40,FJ4# |
1 | ||
| 55767 - CONNECTOR, COWL VENTILATOR DRAIN HOSE | ||||
| 55762-90300 |
FJ4# |
1 | ||
| 55810 - DUCT ASSY, SIDE VENTILATOR, RH | ||||
| 87211-60110 |
BJ40,FJ4# |
1 | ||
| 55817 - BRACKET, COWL VENTILATOR ROD | ||||
| 55805-60010 |
FJ4# |
2 | ||
| 55851-90300 |
FJ4# |
2 | ||
| 55817 - BRACKET, COWL VENTILATOR ROD | ||||
| 55805-60010 |
FJ4# |
2 | ||
| 55851-90300 |
FJ4# |
2 | ||
| 55820 - DUCT ASSY, SIDE VENTILATOR, LH | ||||
| 87211-60120 |
BJ40,FJ4# |
1 | ||
| 55821 - BRACKET, COWL VENTILATOR | ||||
| 55848-60010 |
FJ4# |
1 | ||
| 55848-90300 |
FJ4# |
1 | ||
| 55832 - SUPPORT, FRONT VENTILATOR | ||||
| 55784-60010 |
BJ40,FJ4# |
2 | ||
| 55833 - PIN, FRONT VENTILATOR SUPPORT | ||||
| 90241-05002 |
BJ40,FJ4# |
2 | ||
| 55842 - SPRING, FRONT VENTILATOR, RH | ||||
| 55787-25010 |
BJ40,FJ4# |
1 | ||
| 90508-16028 |
BJ40,FJ4# |
1 | ||
| 55843 - SPRING, FRONT VENTILATOR, LH | ||||
| 55788-25010 |
BJ40,FJ4# |
1 | ||
| 90508-16029 |
BJ40,FJ4# |
1 | ||
| 55849 - PIN, COWL VENTILATOR CONTROL WIRE | ||||
| 55849-60021 |
FJ4# |
1 | ||
| 55849 - PIN, COWL VENTILATOR CONTROL WIRE | ||||
| 55849-60021 |
FJ4# |
1 | ||
| 55849A - SPRING, TORSION(FOR COWL VENTILATOR CONTROL WIRE PIN) | ||||
| 90508-18084 |
FJ4# |
1 | ||
| 55849A - SPRING, TORSION(FOR COWL VENTILATOR CONTROL WIRE PIN) | ||||
| 90508-18084 |
FJ4# |
1 | ||
| 55849C - RETAINER, COWL VENTILATOR CONTROL WIRE PIN | ||||
| 55925-30010 |
FJ4# |
1 | ||
| 55849C - RETAINER, COWL VENTILATOR CONTROL WIRE PIN | ||||
| 55925-30010 |
FJ4# |
1 | ||
| 55853 - PIN,COWL VENTILATOR DAMPER SPRING | ||||
| 55853-60011 |
FJ4# |
1 | ||
| 55853 - PIN,COWL VENTILATOR DAMPER SPRING | ||||
| 55853-60011 |
FJ4# |
1 | ||
| 55881 - PACKING, FRONT VENTILATOR | ||||
| 55881-60010 |
FJ4# |
1 | ||
| 55881-90300 |
FJ4# |
1 | ||
| Common parts | ||||
| 90179-04092 | ||||
| 90183-04058 | ||||
| 90461-10122 | ||||
| 90462-10043 | ||||
| 90480-12119 | ||||
| 91621-40612 | ||||
| 91661-40616 | ||||
| 91661-40620 | ||||
| 93316-16020 | ||||
| 93520-14012 | ||||
| 94115-40400 | ||||
| 94511-00400 | ||||
| 94611-10400 | ||||
| Linked diagrams | ||||
| 5553 | ||||

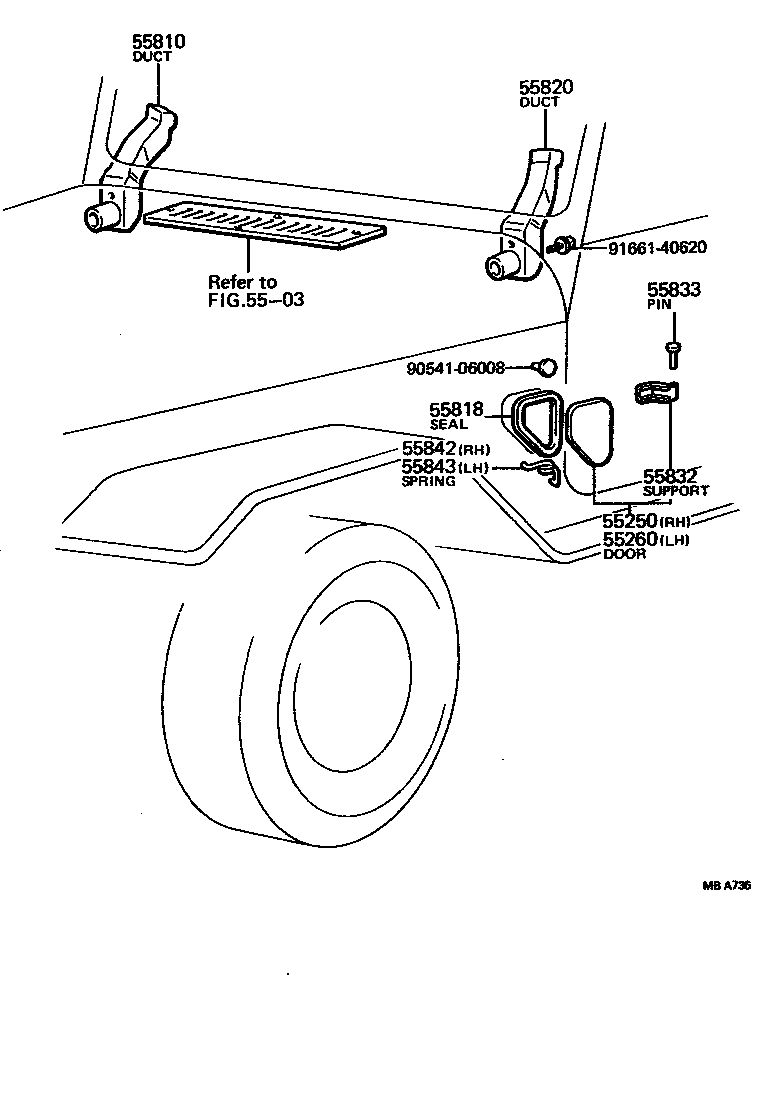

(7909-8007)BJ40,FJ4#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55250 - DOOR ASSY, COWL SIDE VENTILATOR, RH | ||||
| 55708-60011 |
BJ40,FJ4# |
1 | ||
| 55260 - DOOR ASSY, COWL SIDE VENTILATOR, LH | ||||
| 55709-60011 |
BJ40,FJ4# |
1 | ||
| 55810 - DUCT ASSY, SIDE VENTILATOR, RH | ||||
| 87211-60110 |
BJ40,FJ4# |
1 | ||
| 55820 - DUCT ASSY, SIDE VENTILATOR, LH | ||||
| 87211-60120 |
BJ40,FJ4# |
1 | ||
| 55832 - SUPPORT, FRONT VENTILATOR | ||||
| 55784-60010 |
BJ40,FJ4# |
2 | ||
| 55833 - PIN, FRONT VENTILATOR SUPPORT | ||||
| 90241-05002 |
BJ40,FJ4# |
2 | ||
| 55842 - SPRING, FRONT VENTILATOR, RH | ||||
| 55787-25010 |
BJ40,FJ4# |
1 | ||
| 90508-16028 |
BJ40,FJ4# |
1 | ||
| 55843 - SPRING, FRONT VENTILATOR, LH | ||||
| 55788-25010 |
BJ40,FJ4# |
1 | ||
| 90508-16029 |
BJ40,FJ4# |
1 | ||
| Common parts | ||||
| 90541-06008 | ||||
| 91661-40620 | ||||
| Linked diagrams | ||||
| 5503 | ||||
