FJ45LP-KK (1976)

Toyota Land Cruiser

Production Jun 1976 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7606-8007)FJ45

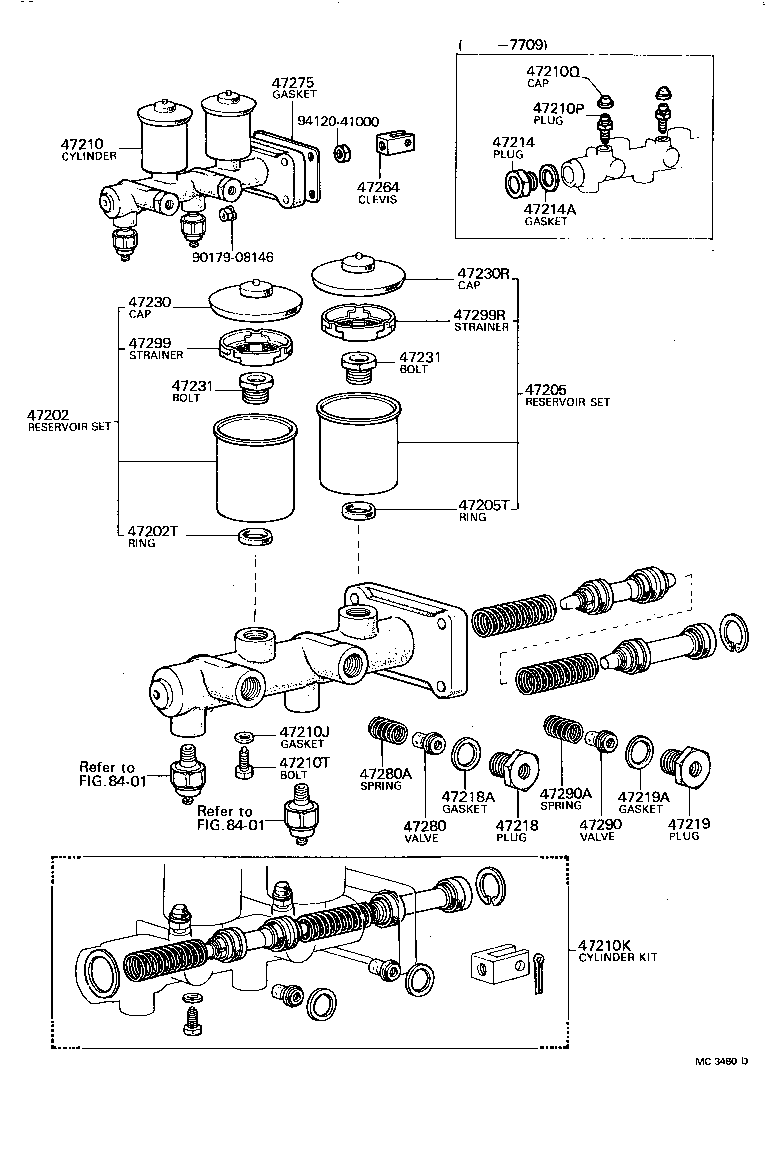

Click highlighted areas on diagram

diagram 47202 47202T 47205 47205T 47210 47210J 47210K 47210P 47210Q 47210T 47214 47214A 47218 47218A 47219 47219A 47230 47230R 47231 47231 47264 47275 47280 47280A 47290 47290A 47299 47299R 8401 8401 9017908146 9412041000
Part # Description Qty Price
47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE)
47202-60010

FJ45

 1
47210 - CYLINDER ASSY, MASTER, W/O BOOSTER
47201-60040

FJ45

 1
47210K - CYLINDER KIT, BRAKE MASTER
04493-60030

FJ45

 1
47210P - PLUG, BLEEDER(FOR BRAKE MASTER CYLINDER)
47547-40010

FJ45

 2
47210Q - CAP, BLEEDER PLUG(FOR BRAKE MASTER CYLINDER)
47548-60010

FJ45

 2
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06008

BJ40,FJ4#,55

 1
47214 - PLUG, MASTER CYLINDER
47214-36030

FJ45

 1
47214A - GASKET(FOR MASTER CYLINDER CAP)
90430-34017

FJ45

 1
47218 - PLUG, MASTER CYLINDER FLUID OUTLET
47218-10010

FJ45

 1
47218A - GASKET(FOR FLUID OUTLET PLUG)
90430-20018

FJ45

 1
47219 - PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE)
47218-10010

FJ45

 1
47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE)
90430-20018

FJ45

 1
47230R - CAP ASSY, RESERVOIR, NO.2(FOR REAR SIDE)
47230-20030

FJ45

 1
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-35010

FJ4#..CND

FOR SINGLE BOOSTER

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-22010

FJ4#

FOR SINGLE BOOSTER

 1
47275-22010

FJ4#..CND

FOR SINGLE BOOSTER

 1
47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK
47280-35010

FJ45

 1
47280A - SPRING, COMPRESSION
90501-10698

FJ45

 1
47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE)
47280-35010

FJ45

 1
47290A - SPRING, COMPRESSION(FOR FLUID OUTLET REAR SIDE)
90501-10698

FJ45

 1
47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR
47299-22020

FJ45

 1
Common parts
90179-08146
94120-41000
Linked diagrams
8401
