FJ45LP-KK (1976)
Toyota Land Cruiser
Production
Jun 1976
-
Jul 1980
Engine
2F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7608-7709)

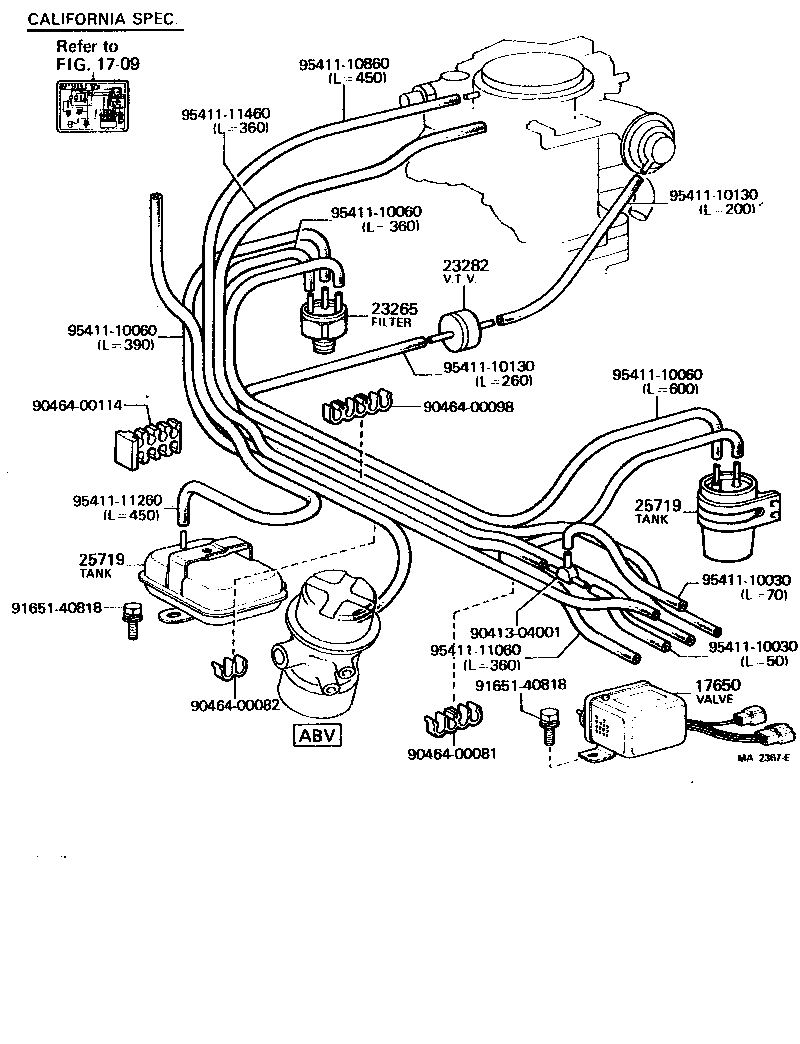

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90413-04001 | ||||
| 90413-04003 | ||||
| 90461-10200 | ||||
| 90464-00076 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00113 | ||||
| 95411-10460 | ||||
| 95411-10530 | ||||
| 95411-10560 | ||||
| 95411-11130 | ||||
| 95411-11260 | ||||
| 95411-11330 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
(7608-7709)

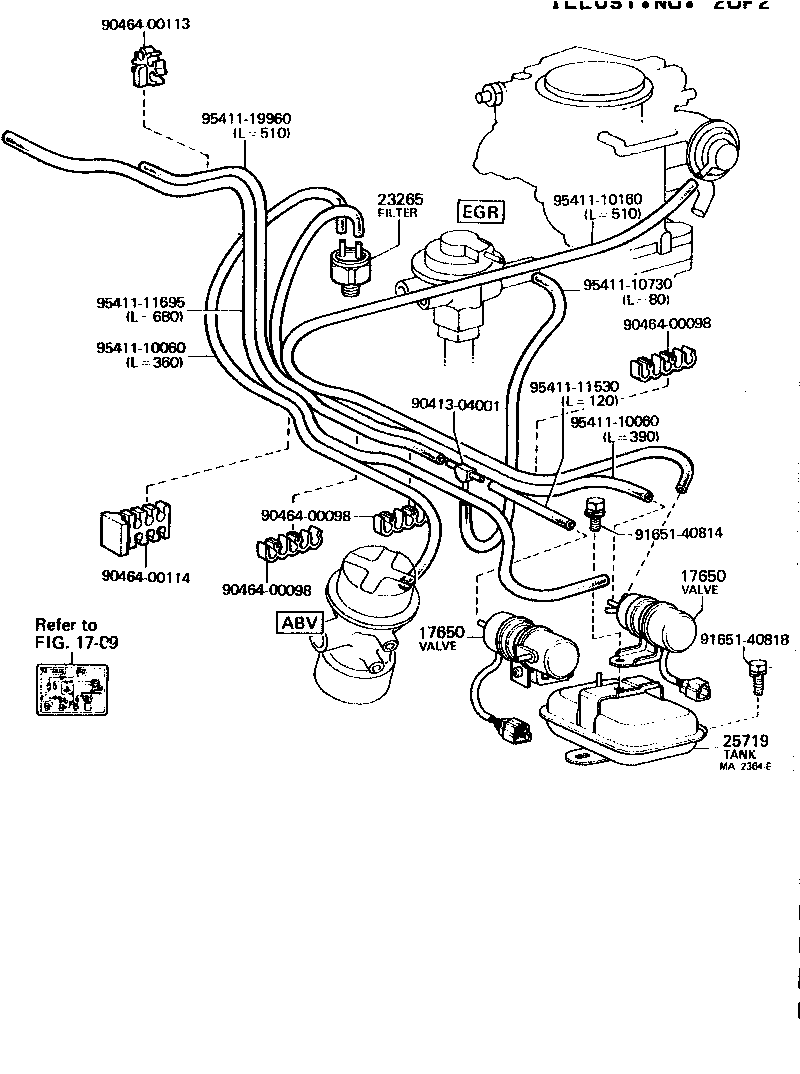

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
2F..FJ4#,55..CND |
1 | ||
| 90917-11023 |
2F..FJ4#,55 |
1 | ||
| Common parts | ||||
| 90413-04001 | ||||
| 90464-00098 | ||||
| 90464-00113 | ||||
| 90464-00114 | ||||
| 91651-40814 | ||||
| 91651-40818 | ||||
| 95411-10060 | ||||
| 95411-10160 | ||||
| 95411-10730 | ||||
| 95411-11530 | ||||
| 95411-11695 | ||||
| 95411-19960 | ||||
| Linked diagrams | ||||
| 1709 | ||||
(7608-7709)

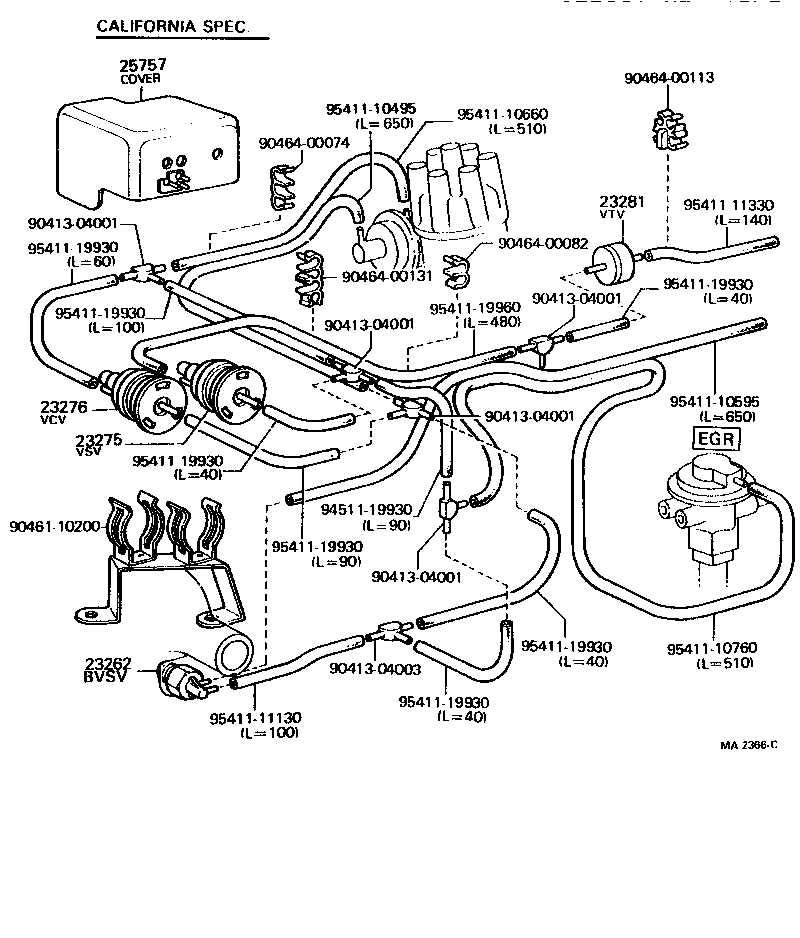

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90413-04001 | ||||
| 90413-04003 | ||||
| 90461-10200 | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 90464-00113 | ||||
| 90464-00131 | ||||
| 94511-19930 | ||||
| 95411-10495 | ||||
| 95411-10595 | ||||
| 95411-10660 | ||||
| 95411-10760 | ||||
| 95411-11130 | ||||
| 95411-11330 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
(7608-7709)

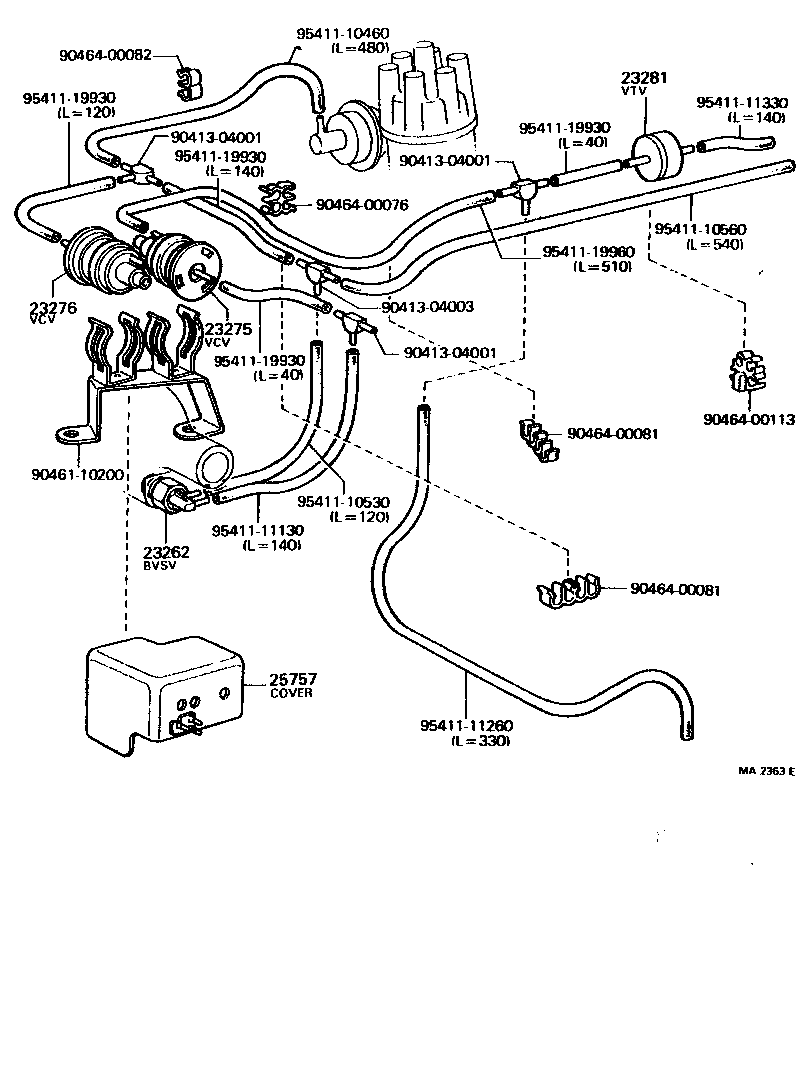

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
2F..FJ4#,55..CND |
1 | ||
| 90917-11023 |
2F..FJ4#,55 |
1 | ||
| Common parts | ||||
| 90413-04001 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00098 | ||||
| 90464-00114 | ||||
| 91651-40818 | ||||
| 95411-10030 | ||||
| 95411-10060 | ||||
| 95411-10130 | ||||
| 95411-10860 | ||||
| 95411-11060 | ||||
| 95411-11260 | ||||
| 95411-11460 | ||||
| Linked diagrams | ||||
| 1709 | ||||
(7709-7901)2F

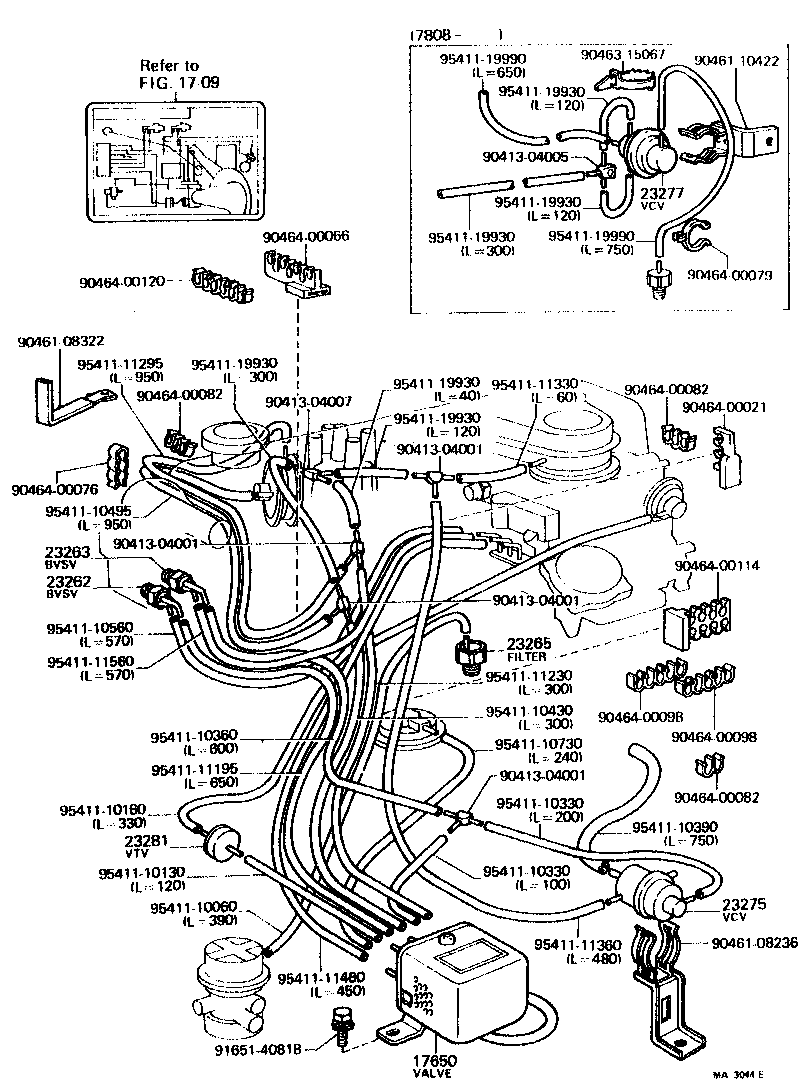

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
2F..FJ4#,55..CND |
1 | ||
| 90917-11023 |
2F..FJ4#,55 |
1 | ||
| 23277 - VALVE, VACUUM CONTROL, NO.3 | ||||
| 90925-03035 |
2F..FJ4#,55 |
1 | ||
| 90925-03058 |
2F..FJ4#,55 |
1 | ||
| Common parts | ||||
| 90413-04001 | ||||
| 90413-04005 | ||||
| 90413-04007 | ||||
| 90461-08236 | ||||
| 90461-08322 | ||||
| 90461-10422 | ||||
| 90463-15067 | ||||
| 90464-00021 | ||||
| 90464-00066 | ||||
| 90464-00076 | ||||
| 90464-00079 | ||||
| 90464-00082 | ||||
| 90464-00098 | ||||
| 90464-00114 | ||||
| 90464-00120 | ||||
| 91651-40818 | ||||
| 95411-10060 | ||||
| 95411-10130 | ||||
| 95411-10160 | ||||
| 95411-10330 | ||||
| 95411-10360 | ||||
| 95411-10390 | ||||
| 95411-10430 | ||||
| 95411-10495 | ||||
| 95411-10560 | ||||
| 95411-10730 | ||||
| 95411-11195 | ||||
| 95411-11230 | ||||
| 95411-11295 | ||||
| 95411-11330 | ||||
| 95411-11360 | ||||
| 95411-11460 | ||||
| 95411-11560 | ||||
| 95411-19930 | ||||
| 95411-19990 | ||||
| Linked diagrams | ||||
| 1709 | ||||
(7709-7901)2F

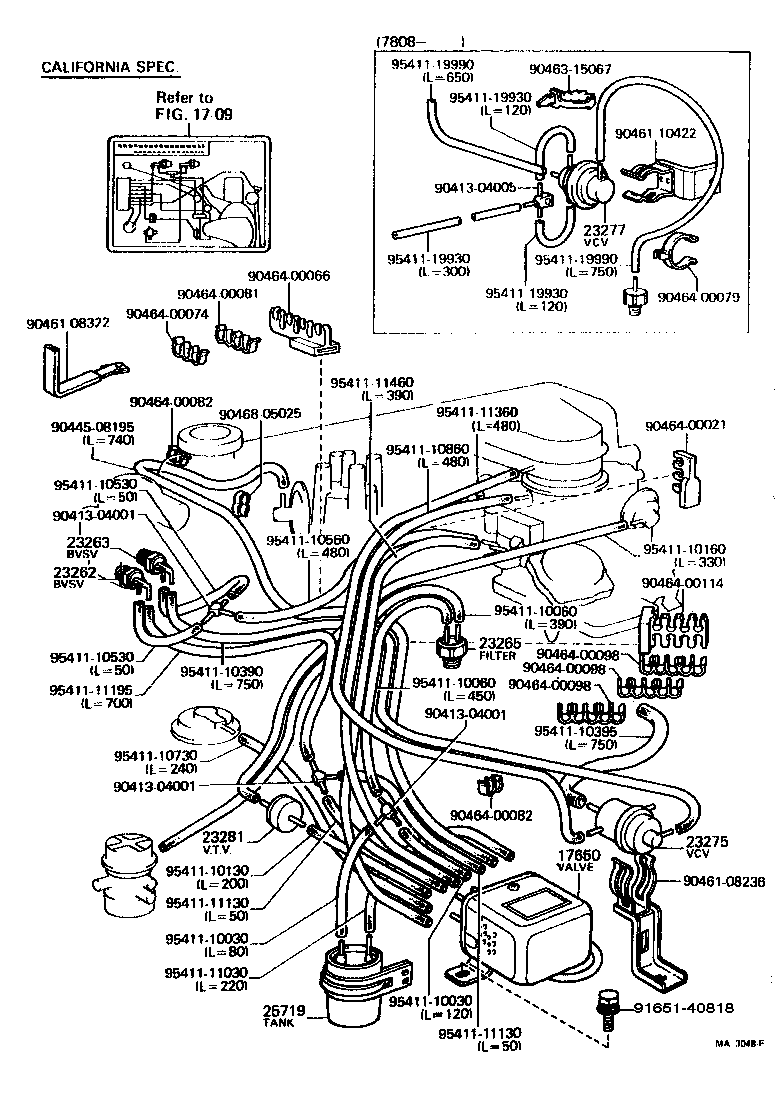

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
2F..FJ4#,55..CND |
1 | ||
| 90917-11023 |
2F..FJ4#,55 |
1 | ||
| 23277 - VALVE, VACUUM CONTROL, NO.3 | ||||
| 90925-03035 |
2F..FJ4#,55 |
1 | ||
| 90925-03058 |
2F..FJ4#,55 |
1 | ||
| Common parts | ||||
| 90413-04001 | ||||
| 90413-04005 | ||||
| 90445-08195 | ||||
| 90461-08236 | ||||
| 90461-08322 | ||||
| 90461-10422 | ||||
| 90463-15067 | ||||
| 90464-00021 | ||||
| 90464-00066 | ||||
| 90464-00074 | ||||
| 90464-00079 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90464-00098 | ||||
| 90464-00114 | ||||
| 90468-05025 | ||||
| 91651-40818 | ||||
| 95411-10030 | ||||
| 95411-10060 | ||||
| 95411-10130 | ||||
| 95411-10160 | ||||
| 95411-10390 | ||||
| 95411-10395 | ||||
| 95411-10530 | ||||
| 95411-10560 | ||||
| 95411-10730 | ||||
| 95411-10860 | ||||
| 95411-11030 | ||||
| 95411-11130 | ||||
| 95411-11195 | ||||
| 95411-11360 | ||||
| 95411-11460 | ||||
| 95411-19930 | ||||
| 95411-19990 | ||||
| Linked diagrams | ||||
| 1709 | ||||
(7901-8007)2F

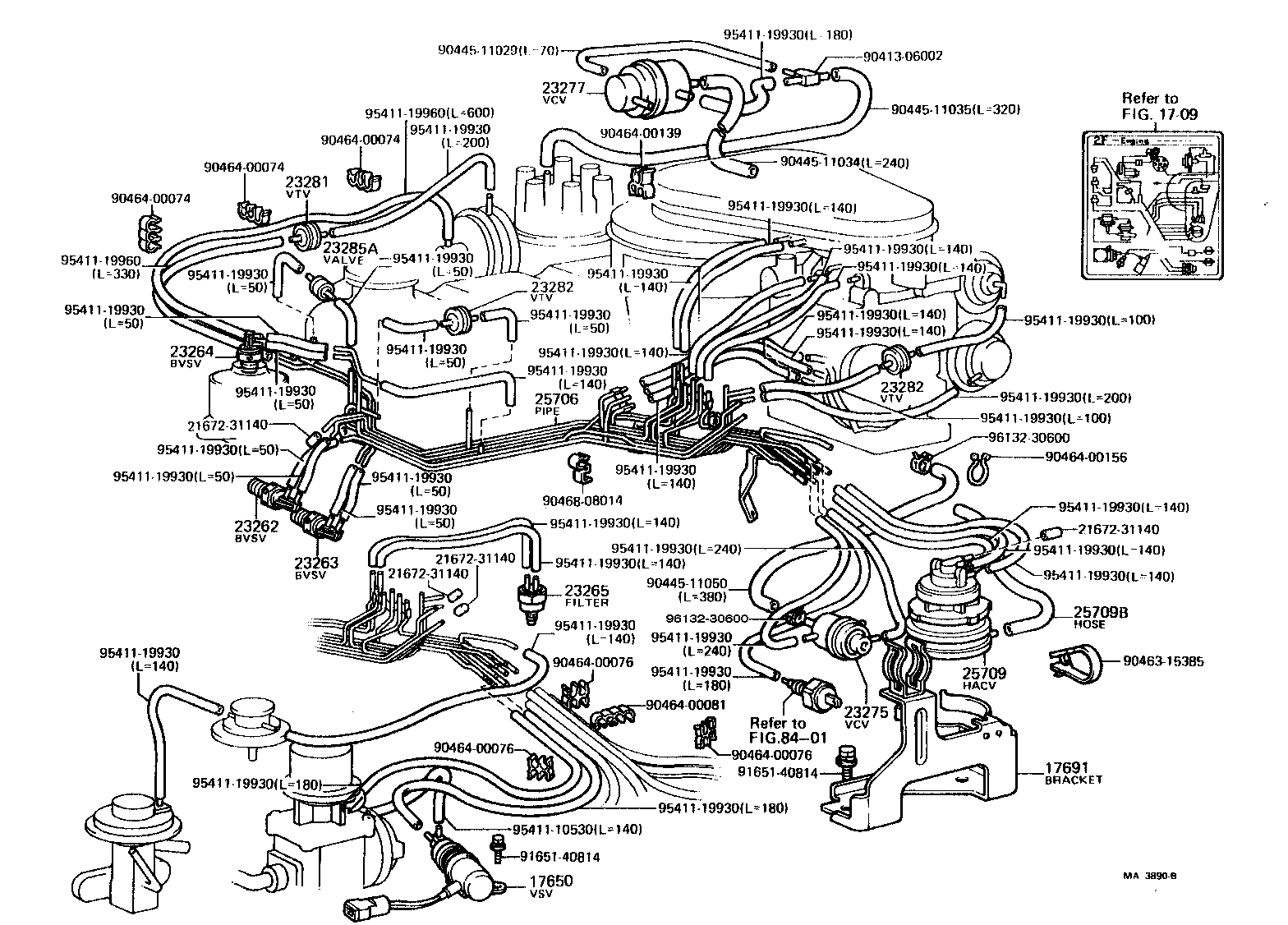

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
2F..FJ4#,55..CND |
1 | ||
| 90917-11023 |
2F..FJ4#,55 |
1 | ||
| 23277 - VALVE, VACUUM CONTROL, NO.3 | ||||
| 90925-03035 |
2F..FJ4#,55 |
1 | ||
| 90925-03058 |
2F..FJ4#,55 |
1 | ||
| Common parts | ||||
| 21672-31140 | ||||
| 90413-06002 | ||||
| 90445-11029 | ||||
| 90445-11034 | ||||
| 90445-11035 | ||||
| 90445-11050 | ||||
| 90463-15385 | ||||
| 90464-00074 | ||||
| 90464-00076 | ||||
| 90464-00081 | ||||
| 90464-00139 | ||||
| 90464-00156 | ||||
| 90468-08014 | ||||
| 91651-40814 | ||||
| 95411-10530 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| 96132-30600 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
(6903-8007)F,2F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90414-04002 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90925-01005 | ||||
| 90925-01006 | ||||
| 90925-01009 | ||||
| 90925-01015 | ||||
| 90925-01019 | ||||
| 90925-01021 | ||||
| 90925-01023 | ||||
| 90925-01024 | ||||
| 90925-01026 | ||||
| 90925-01027 | ||||
| 90925-01029 | ||||
| 90925-01031 | ||||
| 90925-01032 | ||||
| 90925-01041 | ||||
| 90925-01042 | ||||
