FJ45LP-KK (1976)

Toyota Land Cruiser

Production Jun 1976 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7901-8007)2F

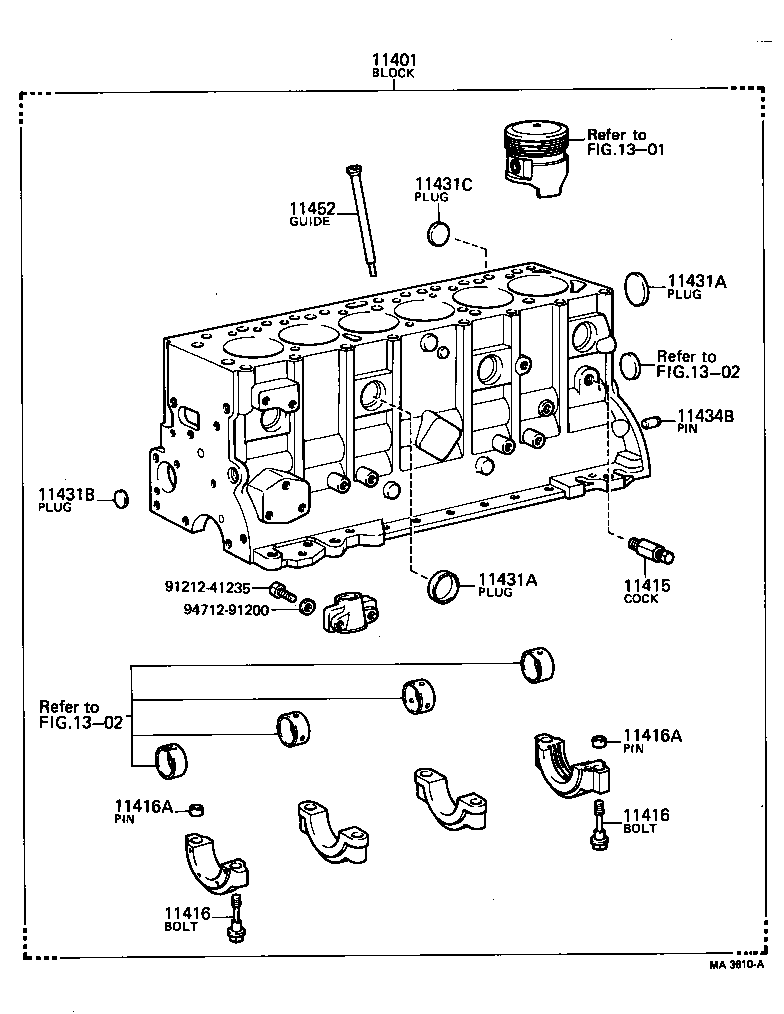

Click highlighted areas on diagram

diagram 11401 11415 11416 11416 11416A 11416A 11431A 11431A 11431B 11431C 11434B 11452 1301 1302 1302 9121241235 9471291200
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-69055

2F..FJ4#,55..CND

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09052

2F..FJ4#,55

 1
90910-09056

2F..FJ4#,55

 1
96432-03833

2F..FJ4#,55

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
90330-24013

F,2F..FJ4#,55

OD=24

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10052

F,2F..FJ4#,55

L=20,OD=10,L=22,OD=10

 2
90250-10192

2F..FJ4#,55

L=22,OD=10,L=22,OD=10

 2
Common parts
91212-41235
94712-91200
Linked diagrams
1301
1302
