FJ40LV-KCJK (1980)
Toyota Land Cruiser
Production
Aug 1980
-
Oct 1981
Engine
2F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8008- )

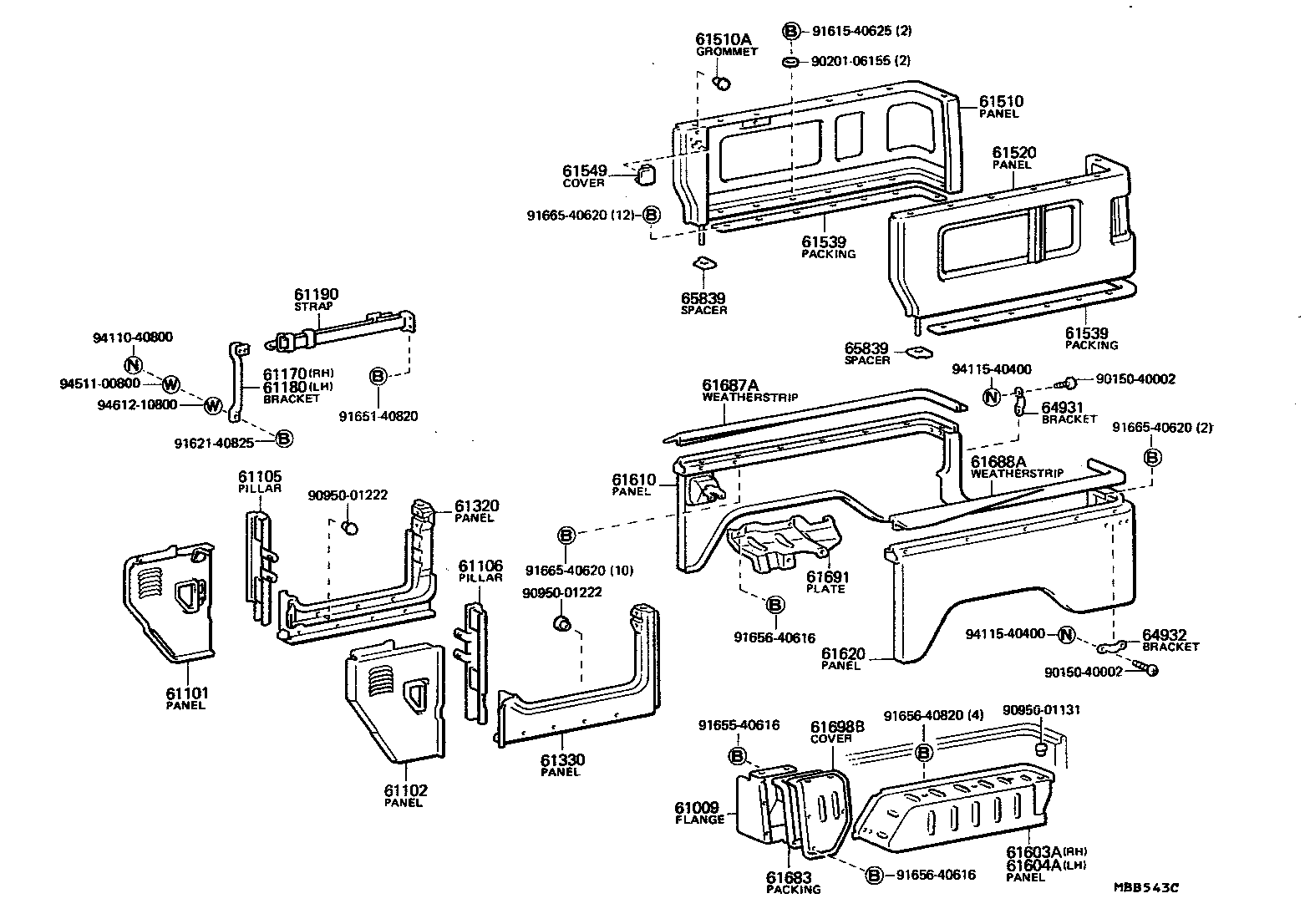

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61009 - FLANGE SUB-ASSY,REAR SIDE SERVICE HOLE COVER SET | ||||
| 61009-90300 |
BJ42,FJ40 |
1 | ||
| 61101 - PANEL SUB-ASSY, COWL SIDE, RH | ||||
| 55706-90310 |
BJ42,FJ40 W/ANTENA |
1 | ||
| 55706-90305 |
BJ42,FJ40 W/O ANTENA |
1 | ||
| 61102 - PANEL SUB-ASSY, COWL SIDE, LH | ||||
| 55707-90311 |
BJ42,FJ40..CND W/O ANTENA |
1 | ||
| 61105 - PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH | ||||
| 61106-90310 |
BJ42,FJ40 |
1 | ||
| 61106 - PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, LH | ||||
| 61107-90317 |
BJ42,FJ40 |
1 | ||
| 61170 - BRACKET ASSY, SAFETY STRAP, RH | ||||
| 61193-90300 |
BJ42,FJ40 |
1 | ||
| 61180 - BRACKET ASSY, SAFETY STRAP, LH | ||||
| 61193-90300 |
BJ42,FJ40 |
1 | ||
| 61190 - STRAP ASSY, SAFETY | ||||
| 61190-90300 |
BJ42,FJ40 |
2 | ||
| 61320 - PANEL, REAR BODY FRONT SIDE, RH | ||||
| 61310-90312 |
BJ42,FJ40..CND |
1 | ||
| 61330 - PANEL, REAR BODY FRONT SIDE, LH | ||||
| 61320-90309 |
BJ42,FJ40..CND |
1 | ||
| 61510 - PANEL ASSY, REAR UPPER SIDE, RH | ||||
| 61501-90318 |
BJ42,FJ40..CND |
1 | ||
| 61510A - GROMMET, SAFETY BELT ANCHORAGE NUT | ||||
| 58276-90300 |
BJ42,FJ40..VKC |
2 | ||
| 61520 - PANEL ASSY, REAR UPPER SIDE,LH | ||||
| 61502-90319 |
BJ42,FJ40..CND |
1 | ||
| 61539 - PACKING, REAR UPPER SIDE PANEL SET | ||||
| 61534-60011 |
BJ42,FJ40..VKC |
2 | ||
| 61539 - PACKING, REAR UPPER SIDE PANEL SET | ||||
| 61534-60011 |
BJ42,FJ40..VKC |
2 | ||
| 61603A - APRON, REAR FENDER, RH | ||||
| 61603-90344 |
BJ42,FJ40..VKC |
1 | ||
| 61604A - APRON, REAR FENDER, LH | ||||
| 61604-90344 |
BJ42,FJ40..VKC |
1 | ||
| 61610 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 61601-90846 |
BJ42,FJ40..VKC |
1 | ||
| 61620 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 61602-90820 |
BJ42,FJ40..VKC |
1 | ||
| 61683 - PACKING, REAR BODY REAR SIDE SERVICE HOLE COVER | ||||
| 61683-90300 |
BJ42,FJ40 |
1 | ||
| 61687A - WEATHERSTRIP, REAR BODY REAR SIDE, RH | ||||
| 61687-90307 |
BJ42,FJ40..VKC |
1 | ||
| 61688A - WEATHERSTRIP, REAR BODY REAR SIDE, LH | ||||
| 61688-90307 |
BJ42,FJ40..VKC |
1 | ||
| 61691 - PLATE, REAR FENDER UNDER GUARD | ||||
| 61691-90300 |
BJ42,FJ40 |
1 | ||
| 61698B - COVER, REAR BODY SIDE SERVICE HOLE | ||||
| 61698-90300 |
BJ42,FJ40 |
1 | ||
| 65839 - SPACER, FRONT SIDE PANEL PILLAR | ||||
| 65839-90300 |
BJ42,FJ40..VKC |
2 | ||
| 65839 - SPACER, FRONT SIDE PANEL PILLAR | ||||
| 65839-90300 |
BJ42,FJ40..VKC |
2 | ||
| Common parts | ||||
| 90150-40002 | ||||
| 90201-06155 | ||||
| 90950-01131 | ||||
| 90950-01222 | ||||
| 91615-40625 | ||||
| 91621-40825 | ||||
| 91651-40820 | ||||
| 91655-40616 | ||||
| 91656-40616 | ||||
| 91656-40820 | ||||
| 91665-40620 | ||||
| 94110-40800 | ||||
| 94115-40400 | ||||
| 94511-00800 | ||||
| 94612-10800 | ||||
