FJ40LV-KCJK (1980)
Toyota Land Cruiser
Production
Aug 1980
-
Oct 1981
Engine
2F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8008-8110)2F..CND

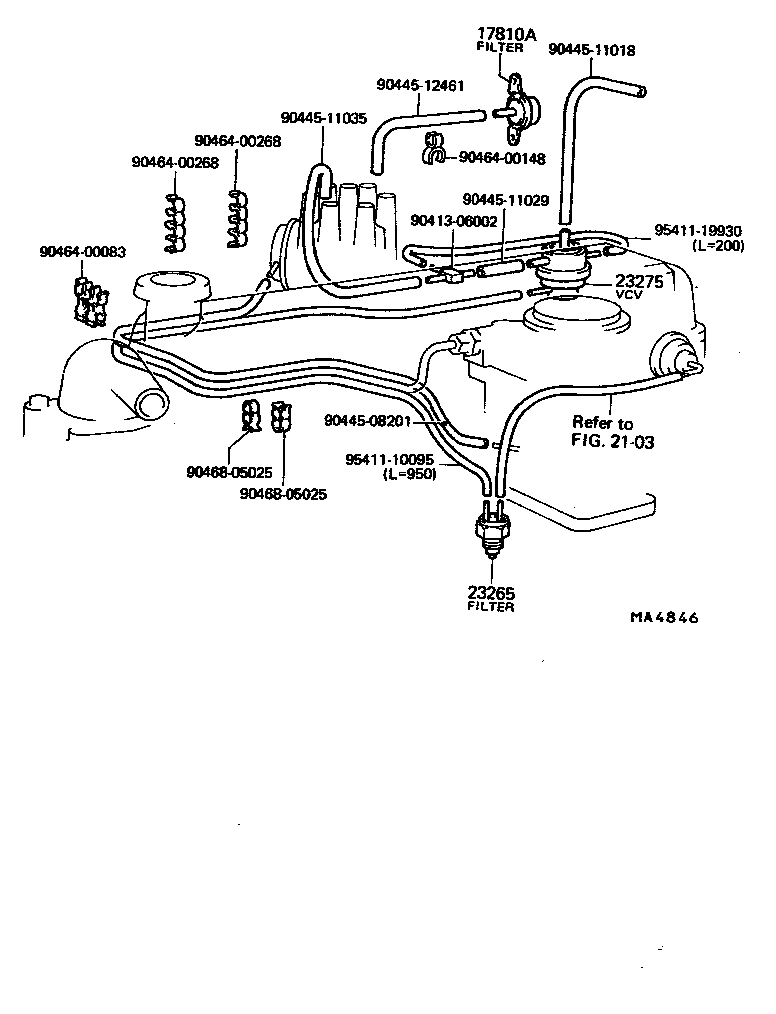

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17810A - FILTER ASSY, AIR | ||||
| 17810-61010 |
2F..FJ40 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11023 |
2F..FJ40..CND |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03058 |
2F..FJ40 |
2 | ||
| Common parts | ||||
| 90413-06002 | ||||
| 90445-08201 | ||||
| 90445-11018 | ||||
| 90445-11029 | ||||
| 90445-11035 | ||||
| 90445-12461 | ||||
| 90464-00083 | ||||
| 90464-00148 | ||||
| 90464-00268 | ||||
| 90468-05025 | ||||
| 95411-10095 | ||||
| 95411-19930 | ||||
| Linked diagrams | ||||
| 2103 | ||||
(8008-8309)2F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90414-04002 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90925-01005 | ||||
| 90925-01006 | ||||
| 90925-01009 | ||||
| 90925-01015 | ||||
| 90925-01019 | ||||
| 90925-01021 | ||||
| 90925-01023 | ||||
| 90925-01024 | ||||
| 90925-01026 | ||||
| 90925-01027 | ||||
| 90925-01029 | ||||
| 90925-01031 | ||||
| 90925-01032 | ||||
| 90925-01041 | ||||
| 90925-01042 | ||||
