FJ40LV-KCJK (1976)
Toyota Land Cruiser
(8008-8309)2F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08063 | ||||
| 90463-15067 | ||||
| 90464-00073 | ||||
| 90464-00265 | ||||

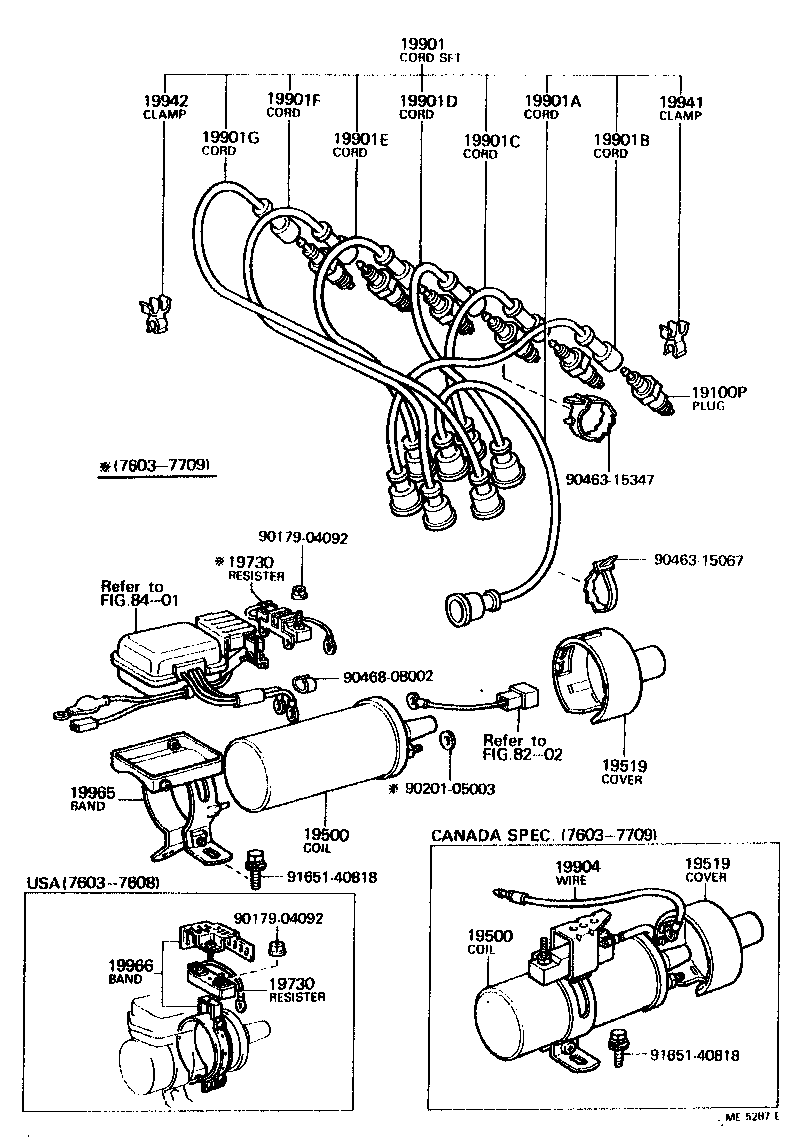

(7603-7709)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01020 |
2F..FJ4#,55..CND W14EP |
6 | ||
| 90919-01004 |
F..FJ40,55 W17ES |
6 | ||
| 90919-01053 |
2F..FJ4#,55..CND W14EPR |
6 | ||
| 90919-01065 |
2F..FJ4#,55..CND W14EXR-U,W14EXR-U |
6 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02004 |
F..FJ40,55 |
1 | ||
| 90919-02091 |
2F..FJ4#,55..CND |
1 | ||
| 90919-02084 |
2F..FJ4#,55..CND |
1 | ||
| 90919-02083 |
2F..FJ4#,55 |
1 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02004 |
F..FJ40,55 |
1 | ||
| 90919-02091 |
2F..FJ4#,55..CND |
1 | ||
| 90919-02084 |
2F..FJ4#,55..CND |
1 | ||
| 90919-02083 |
2F..FJ4#,55 |
1 | ||
| 19519 - COVER, IGNITION COIL | ||||
| 19519-61010 |
2F..FJ4#,55 ARCTIC |
1 | ||
| 19519 - COVER, IGNITION COIL | ||||
| 19519-61010 |
2F..FJ4#,55 ARCTIC |
1 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21139 |
2F..FJ4#..CND ARCTIC |
1 | ||
| 90919-21277 |
2F..FJ4# |
1 | ||
| 90919-21148 |
2F..FJ4# |
1 | ||
| 19901-60060 |
F..FJ40,55 |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 90919-13007 |
F..FJ40,55 |
1 | ||
| 90919-13085 |
2F..FJ4# |
1 | ||
| 90919-13062 |
2F..FJ4# |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-12026 |
F..FJ40,55 |
1 | ||
| 90919-13076 |
2F..FJ4#,55 |
1 | ||
| 90919-12169 |
2F..FJ4#,55 |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-13077 |
2F..FJ4#,55 |
1 | ||
| 90919-12168 |
2F..FJ4#,55 |
1 | ||
| 90919-12029 |
F..FJ40,55 |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-12167 |
2F..FJ4#,55 |
1 | ||
| 90919-12006 |
F..FJ40,55 |
1 | ||
| 90919-13080 |
2F..FJ4#,55 |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-12370 |
2F..FJ4#,55 |
1 | ||
| 90919-12167 |
2F..FJ4#,55 |
1 | ||
| 90919-13082 |
2F..FJ4#,55 |
1 | ||
| 90919-12006 |
F..FJ40,55 |
1 | ||
| 19901F - CORD, SPARK PLUG RESISTIVE, NO.5 | ||||
| 90919-12029 |
F..FJ40,55 |
1 | ||
| 90919-13081 |
2F..FJ4#,55 |
1 | ||
| 90919-12168 |
2F..FJ4#,55 |
1 | ||
| 19901G - CORD, SPARK PLUG RESISTIVE, NO.6 | ||||
| 90919-12371 |
2F..FJ4#,55 |
1 | ||
| 90919-13083 |
2F..FJ4#,55 |
1 | ||
| 90919-12169 |
2F..FJ4#,55 |
1 | ||
| 90919-12026 |
F..FJ40,55 |
1 | ||
| 19904 - WIRE SUB-ASSY, DISTRIBUTOR PRIMARY | ||||
| 19904-60010 |
F..FJ40,55 |
1 | ||
| 19904-60020 |
2F..FJ4#,55..CND |
1 | ||
| 19941 - CLAMP, RESISTIVE CORD, NO.1 | ||||
| 90464-00012 |
2F..FJ4#,55 |
1 | ||
| 19942 - CLAMP, RESISTIVE CORD, NO.2 | ||||
| 90464-00045 |
2F..FJ4#,55 |
3 | ||
| 19965 - BAND, IGNITION COIL, NO.1 | ||||
| 90919-03003 |
F..FJ40,55 |
1 | ||
| 90919-03059 |
2F..FJ4#,55 |
1 | ||
| Common parts | ||||
| 90179-04092 | ||||
| 90201-05003 | ||||
| 90463-15067 | ||||
| 90463-15347 | ||||
| 90468-08002 | ||||
| 91651-40818 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||

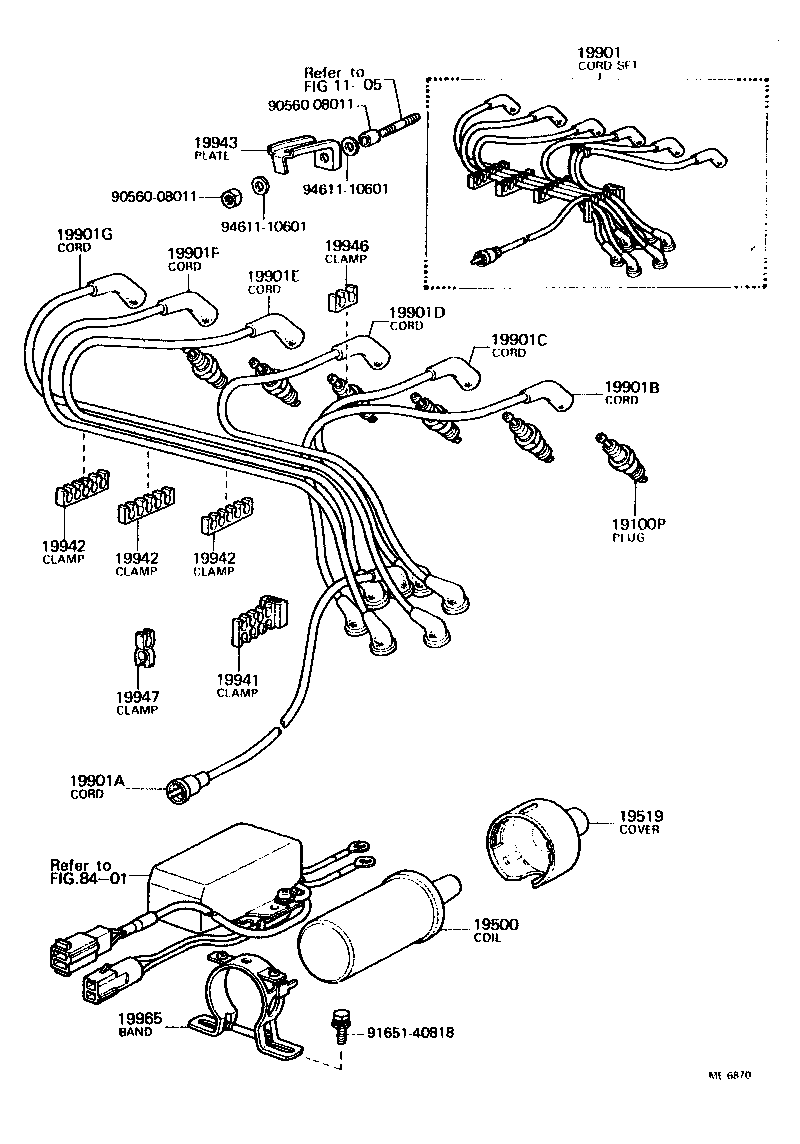

(7709-8007)2F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100P - PLUG, SPARK | ||||
| 90919-01020 |
2F..FJ4#,55..CND W14EP |
6 | ||
| 90919-01004 |
F..FJ40,55 W17ES |
6 | ||
| 90919-01053 |
2F..FJ4#,55..CND W14EPR |
6 | ||
| 90919-01065 |
2F..FJ4#,55..CND W14EXR-U,W14EXR-U |
6 | ||
| 19500 - COIL ASSY, IGNITION | ||||
| 90919-02004 |
F..FJ40,55 |
1 | ||
| 90919-02091 |
2F..FJ4#,55..CND |
1 | ||
| 90919-02084 |
2F..FJ4#,55..CND |
1 | ||
| 90919-02083 |
2F..FJ4#,55 |
1 | ||
| 19519 - COVER, IGNITION COIL | ||||
| 19519-61010 |
2F..FJ4#,55 ARCTIC |
1 | ||
| 19901 - CORD SET, COIL & SPARK, W/RESISTIVE | ||||
| 90919-21139 |
2F..FJ4#..CND ARCTIC |
1 | ||
| 90919-21277 |
2F..FJ4# |
1 | ||
| 90919-21148 |
2F..FJ4# |
1 | ||
| 19901-60060 |
F..FJ40,55 |
1 | ||
| 19901A - CORD, COIL RESISTIVE | ||||
| 90919-13007 |
F..FJ40,55 |
1 | ||
| 90919-13085 |
2F..FJ4# |
1 | ||
| 90919-13062 |
2F..FJ4# |
1 | ||
| 19901B - CORD, SPARK PLUG RESISTIVE, NO.1 | ||||
| 90919-12026 |
F..FJ40,55 |
1 | ||
| 90919-13076 |
2F..FJ4#,55 |
1 | ||
| 90919-12169 |
2F..FJ4#,55 |
1 | ||
| 19901C - CORD, SPARK PLUG RESISTIVE, NO.2 | ||||
| 90919-13077 |
2F..FJ4#,55 |
1 | ||
| 90919-12168 |
2F..FJ4#,55 |
1 | ||
| 90919-12029 |
F..FJ40,55 |
1 | ||
| 19901D - CORD, SPARK PLUG RESISTIVE, NO.3 | ||||
| 90919-12167 |
2F..FJ4#,55 |
1 | ||
| 90919-12006 |
F..FJ40,55 |
1 | ||
| 90919-13080 |
2F..FJ4#,55 |
1 | ||
| 19901E - CORD, SPARK PLUG RESISTIVE, NO.4 | ||||
| 90919-12370 |
2F..FJ4#,55 |
1 | ||
| 90919-12167 |
2F..FJ4#,55 |
1 | ||
| 90919-13082 |
2F..FJ4#,55 |
1 | ||
| 90919-12006 |
F..FJ40,55 |
1 | ||
| 19901F - CORD, SPARK PLUG RESISTIVE, NO.5 | ||||
| 90919-12029 |
F..FJ40,55 |
1 | ||
| 90919-13081 |
2F..FJ4#,55 |
1 | ||
| 90919-12168 |
2F..FJ4#,55 |
1 | ||
| 19901G - CORD, SPARK PLUG RESISTIVE, NO.6 | ||||
| 90919-12371 |
2F..FJ4#,55 |
1 | ||
| 90919-13083 |
2F..FJ4#,55 |
1 | ||
| 90919-12169 |
2F..FJ4#,55 |
1 | ||
| 90919-12026 |
F..FJ40,55 |
1 | ||
| 19941 - CLAMP, RESISTIVE CORD, NO.1 | ||||
| 90464-00012 |
2F..FJ4#,55 |
1 | ||
| 19942 - CLAMP, RESISTIVE CORD, NO.2 | ||||
| 90464-00045 |
2F..FJ4#,55 |
3 | ||
| 19942 - CLAMP, RESISTIVE CORD, NO.2 | ||||
| 90464-00045 |
2F..FJ4#,55 |
3 | ||
| 19942 - CLAMP, RESISTIVE CORD, NO.2 | ||||
| 90464-00045 |
2F..FJ4#,55 |
3 | ||
| 19943 - PLATE, RESISTIVE CORD CLAMP SUPPORT NO.1 | ||||
| 19941-61010 |
2F..FJ4#,55 |
1 | ||
| 19946 - CLAMP, RESISTIVE CORD, NO.3 | ||||
| 90464-00082 |
2F..FJ4#,55 |
1 | ||
| 19947 - CLAMP, RESISTIVE CORD, NO.4 | ||||
| 90464-00140 |
2F..FJ4#,55 |
1 | ||
| 19965 - BAND, IGNITION COIL, NO.1 | ||||
| 90919-03003 |
F..FJ40,55 |
1 | ||
| 90919-03059 |
2F..FJ4#,55 |
1 | ||
| Common parts | ||||
| 90560-08011 | ||||
| 91651-40818 | ||||
| 94611-10601 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 8401 | ||||
