Toyota Land cruiser FJ40 AIR CLEANER

FJ40LV-KCJK (1976)

Toyota Land Cruiser

Production Feb 1976 - Jul 1980

Engine 2F

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(8008-8309)2F

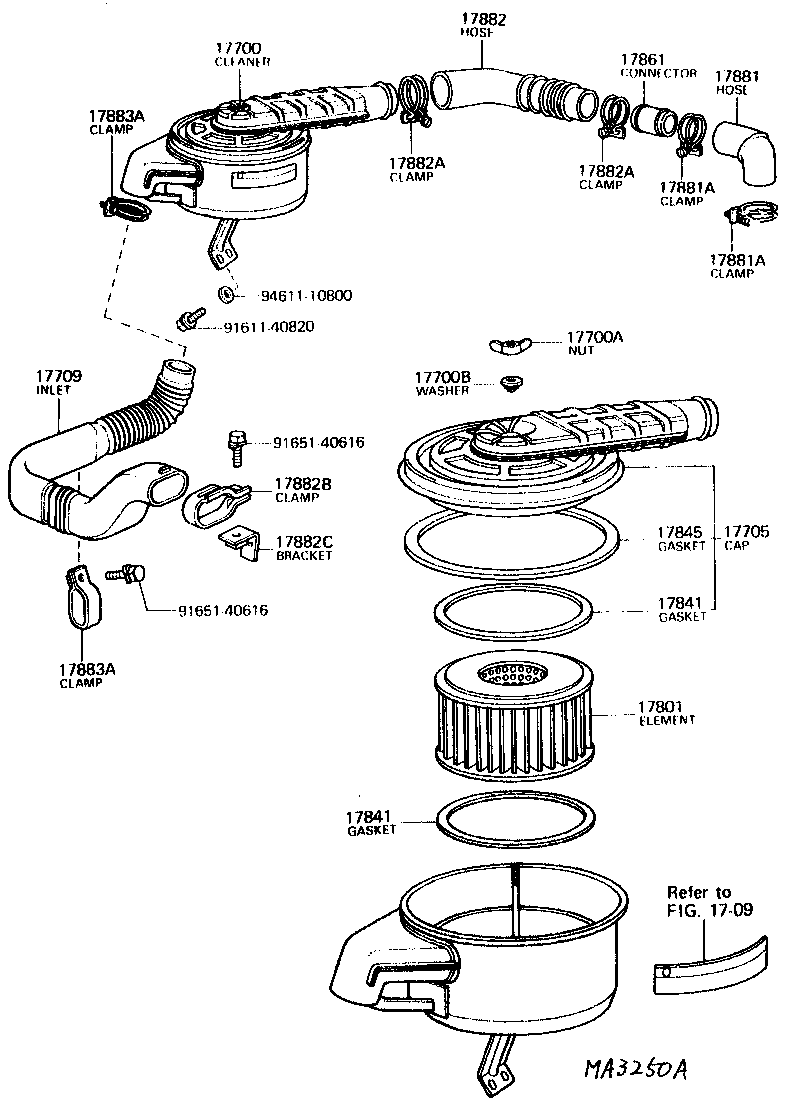

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90179-06027
90339-03005
90339-21001
90339-23001
91651-40818
91661-40816

(7803-8007)B

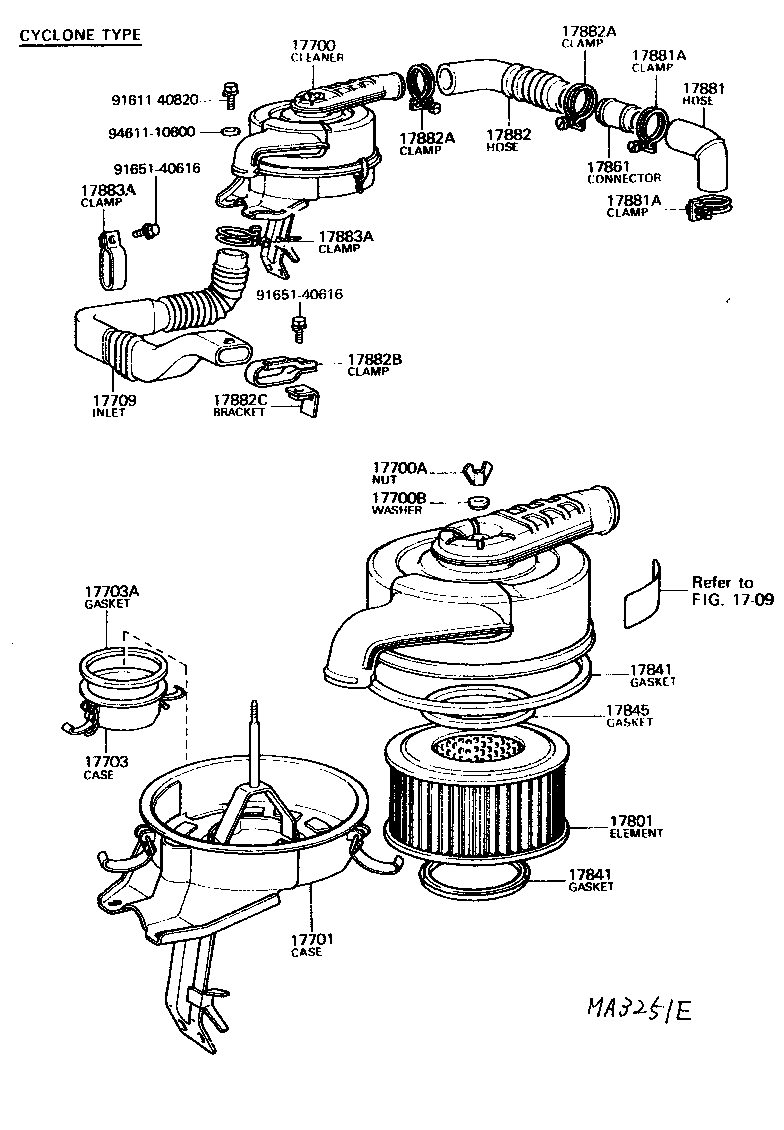

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-69015	F..FJ40,55	03/1969 - 09/1969	1
17700-61022	2F..FJ4#,55	01/1979 - 07/1980	1
17700-61021	2F..FJ4#,55	09/1977 - 01/1979	1
17700A - NUT, WING(FOR AIR CLEANER)
94270-00800	F..FJ40,55	03/1969 - 05/1973	1
90175-06003	2F..FJ4#,55	07/1978 - 07/1980	2
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-08003	F..FJ40,55	03/1969 - 01/1975	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-60151	F..FJ40,55	03/1969 - 09/1969	1
17705-61022	2F..FJ4#,55	01/1979 - 07/1980	1
17705-61021	2F..FJ4#,55	09/1977 - 01/1979	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-60040	F..FJ40,55	03/1969 - 01/1975	1
17841 - GASKET, FILTER ELEMENT
17841-60011	F..FJ40,55	03/1969 - 01/1975	2
17841 - GASKET, FILTER ELEMENT
17841-60011	F..FJ40,55	03/1969 - 01/1975	2
17845 - GASKET, AIR CLEANER CAP
17845-60040	F..FJ40,55	03/1969 - 01/1975	1
17881 - HOSE, AIR CLEANER, NO.1
17881-61010	2F..FJ40,55	01/1979 - 07/1980	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10650	2F..FJ40,55	01/1979 - 07/1980	2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10650	2F..FJ40,55	01/1979 - 07/1980	2
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10800	2F..FJ4#,55..CND	02/1976 - 07/1980	1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10800	2F..FJ4#,55..CND	02/1976 - 07/1980	1
Common parts
91611-40820
91651-40616
94611-10800
Linked diagrams
1709

(7803-8007)B

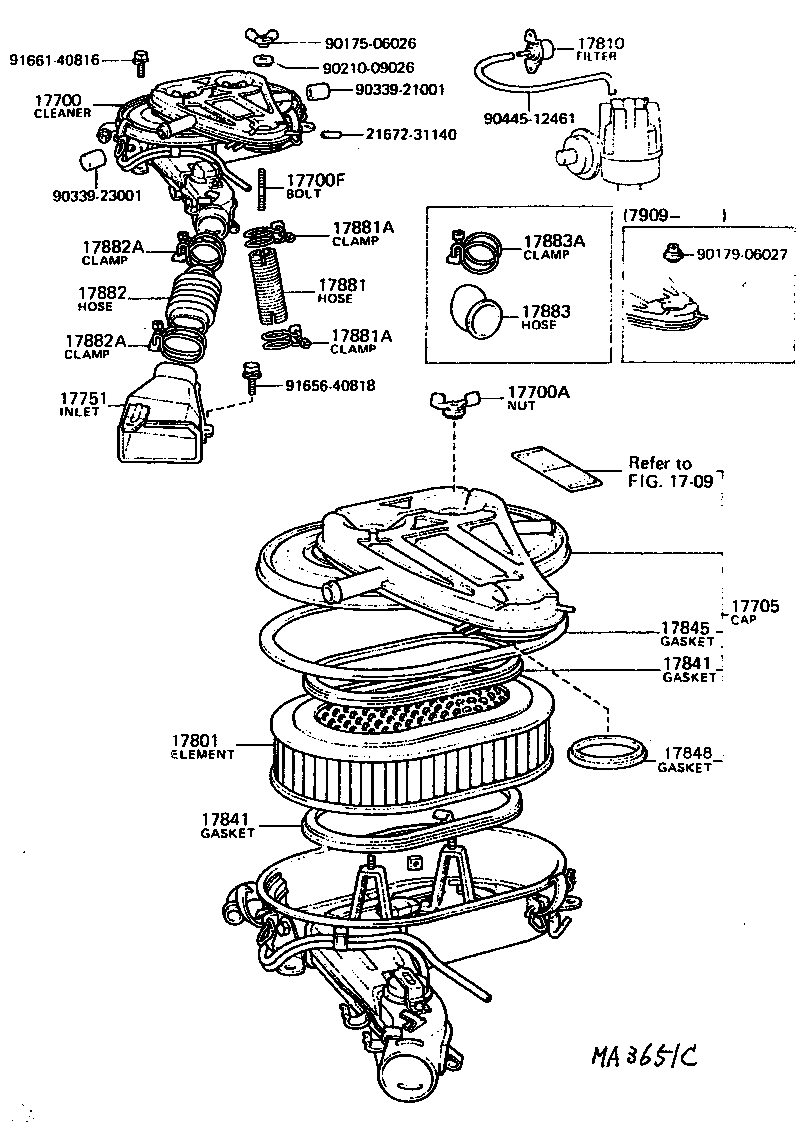

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-69015	F..FJ40,55	03/1969 - 09/1969	1
17700-61022	2F..FJ4#,55	01/1979 - 07/1980	1
17700-61021	2F..FJ4#,55	09/1977 - 01/1979	1
17700A - NUT, WING(FOR AIR CLEANER)
94270-00800	F..FJ40,55	03/1969 - 05/1973	1
90175-06003	2F..FJ4#,55	07/1978 - 07/1980	2
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-08003	F..FJ40,55	03/1969 - 01/1975	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-60040	F..FJ40,55	03/1969 - 01/1975	1
17841 - GASKET, FILTER ELEMENT
17841-60011	F..FJ40,55	03/1969 - 01/1975	2
17841 - GASKET, FILTER ELEMENT
17841-60011	F..FJ40,55	03/1969 - 01/1975	2
17845 - GASKET, AIR CLEANER CAP
17845-60040	F..FJ40,55	03/1969 - 01/1975	1
17881 - HOSE, AIR CLEANER, NO.1
17881-61010	2F..FJ40,55	01/1979 - 07/1980	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10650	2F..FJ40,55	01/1979 - 07/1980	2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10650	2F..FJ40,55	01/1979 - 07/1980	2
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10800	2F..FJ4#,55..CND	02/1976 - 07/1980	1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10800	2F..FJ4#,55..CND	02/1976 - 07/1980	1
Common parts
91611-40820
91651-40616
94611-10800
Linked diagrams
1709

(7901-8007)2F

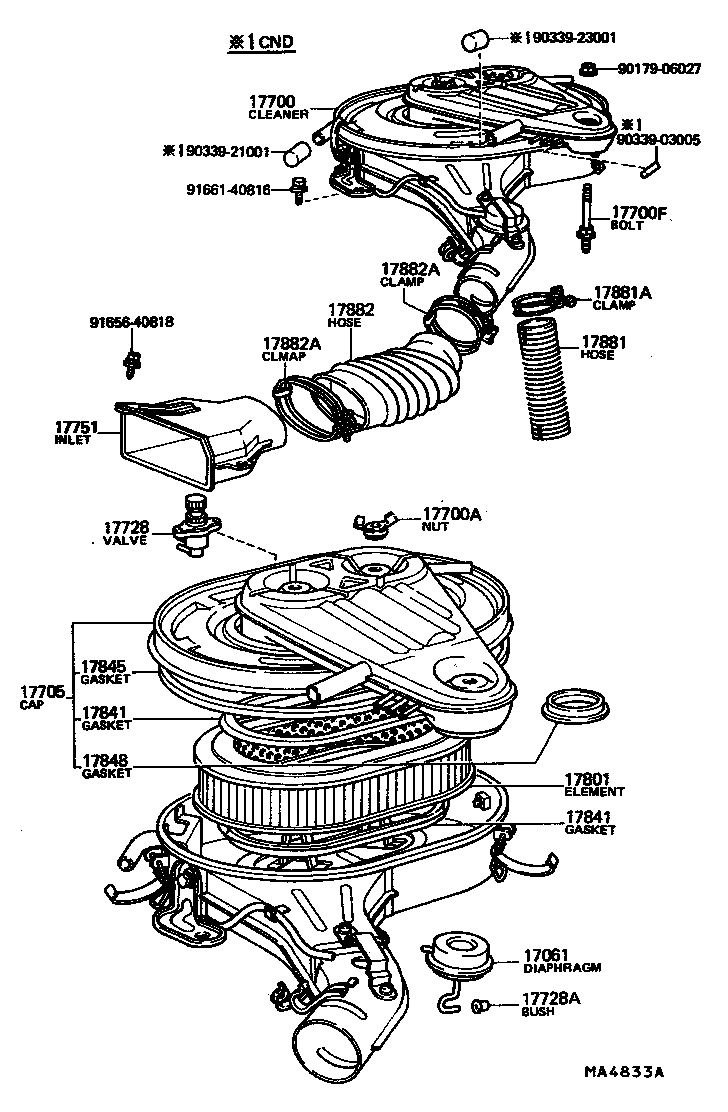

Click highlighted areas on diagram

Part #	Description	Period	Qty
17700 - CLEANER ASSY, AIR
17700-69015	F..FJ40,55	03/1969 - 09/1969	1
17700-61022	2F..FJ4#,55	01/1979 - 07/1980	1
17700-61021	2F..FJ4#,55	09/1977 - 01/1979	1
17700A - NUT, WING(FOR AIR CLEANER)
94270-00800	F..FJ40,55	03/1969 - 05/1973	1
90175-06003	2F..FJ4#,55	07/1978 - 07/1980	2
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06189	F..FJ40,55	03/1969 - 09/1969	1
90116-06222	2F..FJ4#,55..CND L=80,S=12&28	02/1976 - 07/1980	1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-60151	F..FJ40,55	03/1969 - 09/1969	1
17705-61022	2F..FJ4#,55	01/1979 - 07/1980	1
17705-61021	2F..FJ4#,55	09/1977 - 01/1979	1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-60040	F..FJ40,55	03/1969 - 01/1975	1
17810 - FILTER ASSY, AIR
17810-61010	2F..FJ4#,55	09/1977 - 07/1980	1
17841 - GASKET, FILTER ELEMENT
17841-60011	F..FJ40,55	03/1969 - 01/1975	2
17841 - GASKET, FILTER ELEMENT
17841-60011	F..FJ40,55	03/1969 - 01/1975	2
17845 - GASKET, AIR CLEANER CAP
17845-60040	F..FJ40,55	03/1969 - 01/1975	1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-61020	2F..FJ4#,55	01/1979 - 07/1980	1
90430-72178	F..FJ40,55	03/1969 - 09/1969	1
17881 - HOSE, AIR CLEANER, NO.1
17881-61010	2F..FJ40,55	01/1979 - 07/1980	1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10650	2F..FJ40,55	01/1979 - 07/1980	2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10650	2F..FJ40,55	01/1979 - 07/1980	2
17883 - HOSE, AIR CLEANER, NO.3
17881-61020	2F..FJ4#,55..CND	02/1976 - 07/1980	1
17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3)
96111-10800	2F..FJ4#,55..CND	02/1976 - 07/1980	1
Common parts
21672-31140
90175-06026
90179-06027
90210-09026
90339-21001
90339-23001
90445-12461
91656-40818
91661-40816
Linked diagrams
1709

FJ40LV-KCJK (1976)

(8008-8309)2F

(7803-8007)B

(7803-8007)B

(7901-8007)2F
