FJ40LV-KCJA (1975)

Toyota Land Cruiser

Production Jan 1975 - Feb 1976
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9001-9305) ; (9305- )FZJ7#,HDJ7#,HZJ7#,PZJ7#

Click highlighted areas on diagram

diagram 53301 53303 53304 53341B 53341C 53381 53381A 53382 53384A 53385B 53386 53386B 53390 53390 53781 53801 53801 53802 53802 53803 53833 53833 53834 53834 53835A 53859 53878C 53879C 53899B 53903B 53911 9011906366 9011908563 9011908563 9017008034 9017906097 9017906206 9046709036 9046709046 9048018011 9048020276 9095003041 9095003041 9163140814 9165140614 9165140616 9165140616 9165140816 9165140816 9165140816 9165140816 9165140820 9165140820 91665F0616
Part # Description Qty Price
Common parts
90119-06366
90119-08563
90170-08034
90179-06097
90179-06206
90467-09036
90467-09046
90480-18011
90480-20276
90950-03041
91631-40814
91651-40614
91651-40616
91651-40816
91651-40820
91665-F0616

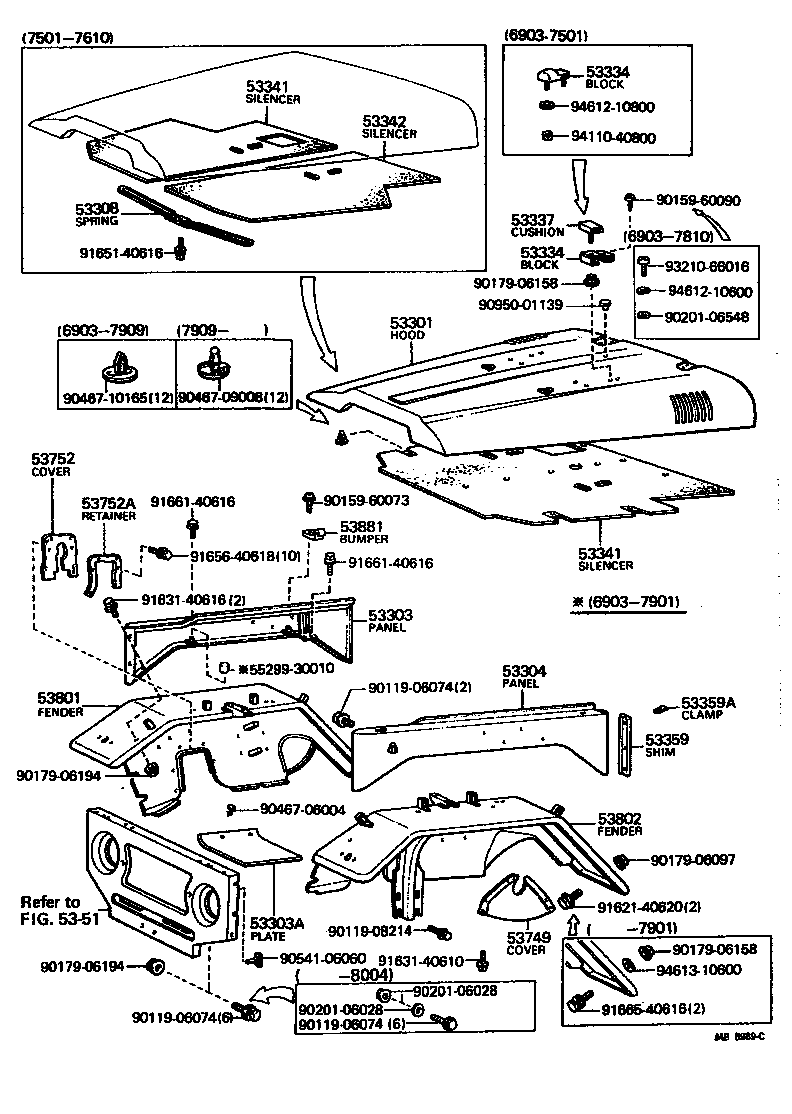

(6903-8007)BJ40,FJ4#

Click highlighted areas on diagram

diagram 53301 53303 53303A 53304 53308 53334 53334 53337 53341 53341 53342 53359 53359A 5351 53749 53752 53752A 53801 53802 53881 5529930010 9011906074 9011906074 9011906074 9011908214 9015960073 9015960090 9017906097 9017906158 9017906158 9017906194 9017906194 9020106028 9020106028 9020106548 9046706004 9046709008 9046710165 9054106060 9095001139 9162140620 9163140610 9163140616 9165140616 9165640618 9166140616 9166140616 9166540616 9321066016 9411040800 9461210600 9461210800 9461310600
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-60040

FJ40

 1
53303 - PANEL SUB-ASSY, HOOD SIDE, RH
53303-60020

FJ40

 1
53304 - PANEL SUB-ASSY, HOOD SIDE, LH
53304-60040

FJ40

 1
53334 - BLOCK, WINDSHIELD REST
53334-60030

FJ40

 2
53334 - BLOCK, WINDSHIELD REST
53334-60030

FJ40

 2
53359 - SHIM, HOOD SIDE PANEL CUSHION
53359-60010

FJ40

 2
53359A - CLAMP OR CLIP, HOOD SIDE PANEL CUSHION SHIM
77653-35010

FJ40

 6
53801 - FENDER SUB-ASSY, FRONT RH
53810-60040

FJ40

 1
53802 - FENDER SUB-ASSY, FRONT LH
53820-90327

FJ40

 1
53820-90342

FJ40

CAL.,W/COOLING

 1
53820-60040

FJ40

 1
Common parts
55299-30010
90119-06074
90119-08214
90159-60073
90159-60090
90179-06097
90179-06158
90179-06194
90201-06028
90201-06548
90467-06004
90467-09008
90467-10165
90541-06060
90950-01139
91621-40620
91631-40610
91631-40616
91651-40616
91656-40618
91661-40616
91665-40616
93210-66016
94110-40800
94612-10600
94612-10800
94613-10600
Linked diagrams
5351
