FJ40LV-KCJA (1975)
Toyota Land Cruiser
Production
Jan 1975
-
Feb 1976
Engine
2F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7501-7509)

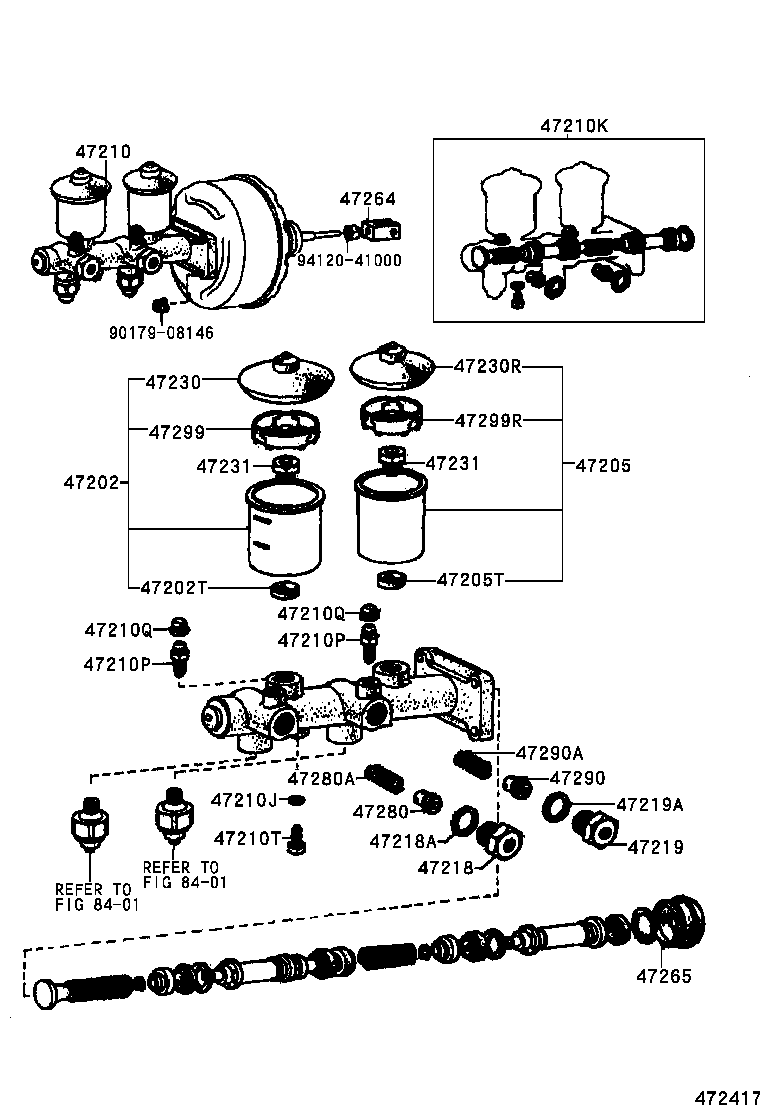

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47202-30010 |
FJ40,55 |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47201-60030 |
FJ40,55 |
1 | ||
| 47200-35011 |
FJ40 |
1 | ||
| 47210K - CYLINDER KIT, BRAKE MASTER | ||||
| 04471-35014 |
FJ40,55 |
1 | ||
| 04493-60020 |
FJ40,55 |
1 | ||
| 47210P - PLUG, BLEEDER(FOR BRAKE MASTER CYLINDER) | ||||
| 47547-40010 |
FJ40,55 |
2 | ||
| 47210P - PLUG, BLEEDER(FOR BRAKE MASTER CYLINDER) | ||||
| 47547-40010 |
FJ40,55 |
2 | ||
| 47210Q - CAP, BLEEDER PLUG(FOR BRAKE MASTER CYLINDER) | ||||
| 47548-60010 |
FJ40,55 |
2 | ||
| 47210Q - CAP, BLEEDER PLUG(FOR BRAKE MASTER CYLINDER) | ||||
| 47548-60010 |
FJ40,55 |
2 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-12011 |
FJ40,55 |
1 | ||
| 47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET | ||||
| 47231-35010 |
FJ40,55 |
2 | ||
| 47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET | ||||
| 47231-35010 |
FJ40,55 |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-35010 |
FJ40,55 |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-35011 |
FJ40,55 |
1 | ||
| 47265-35020 |
FJ40,55 |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47281-55010 |
FJ40,55 |
1 | ||
| 47280-35010 |
FJ40,55 |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47280-35010 |
FJ40,55 |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8401 | ||||
