FJ40LV-KCJA (1975)

Toyota Land Cruiser

Production Jan 1975 - Feb 1976
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

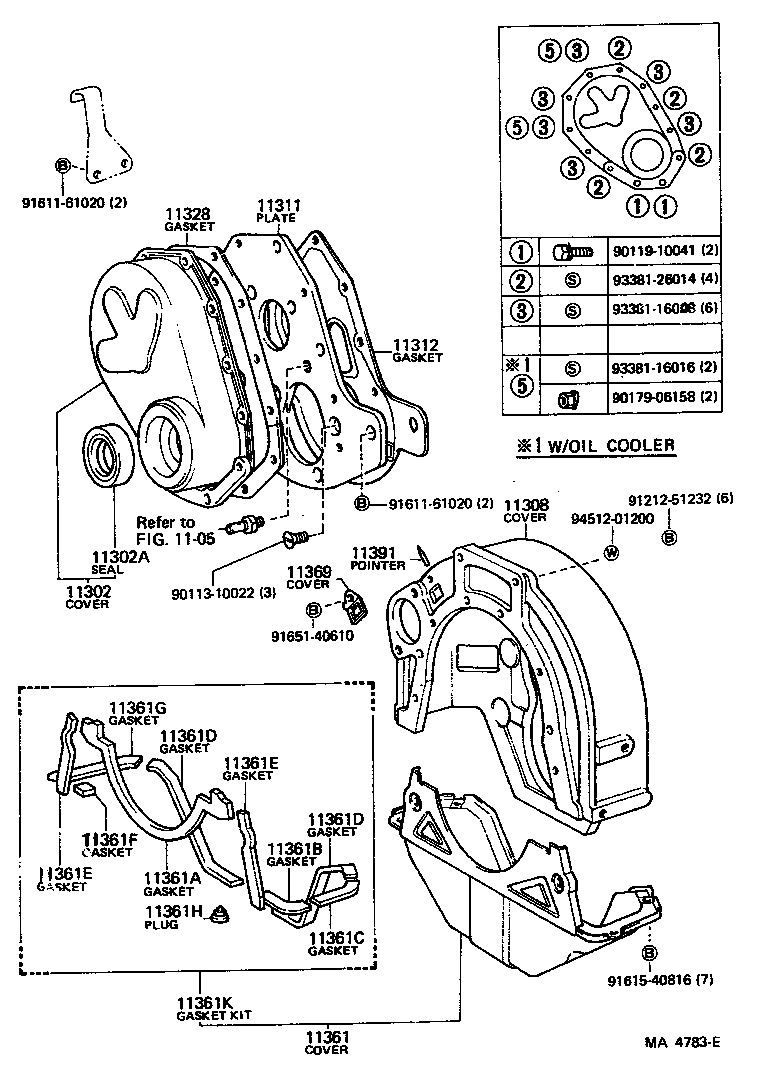

(8008-8309)2F

Click highlighted areas on diagram

diagram 1105 11302 11302A 11308 11311 11312 11328 11361 11361A 11361B 11361C 11361D 11361D 11361E 11361E 11361F 11361G 11361H 11361K 11369 11391 9011310022 9011910041 9017906158 9121251232 9161161020 9161161020 9161540816 9165140610 9338116008 9338116016 9338126014 9451201200
Part # Description Qty Price
Common parts
90113-10022
90119-10041
90179-06158
91212-51232
91611-61020
91615-40816
91651-40610
93381-16008
93381-16016
93381-26014
94512-01200
Linked diagrams
1105

(6903-7605)

Click highlighted areas on diagram

diagram 1105 1105 11302 11302A 11308 11308A 11311 11311 11312 11328 11361 11363 11369 11391 12281 12282 9011310022 9011910041 9111271025 9121251232 9161140616 9161141025 9161161020 9161161020 9161161020 9163140610 9311016010 9318018012 9338116008 9451100600 9451200800 9451201200 9461110600
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-60011

F,2F..FJ4#,55

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-45094

F,2F..FJ4#,55

TC45 68 12X3

 1
11308 - COVER SUB-ASSY, FLYWHEEL HOUSING
11308-60011

F..FJ40,55

 1
11311 - PLATE, FRONT END
11301-60011

F,2F..FJ4#,55

 1
11311 - PLATE, FRONT END
11301-60011

F,2F..FJ4#,55

 1
11312 - GASKET, FRONT END PLATE
11312-60010

F..FJ40,55

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-60010

F,2F..FJ4#,55

 1
11361 - COVER, FLYWHEEL HOUSING UNDER
11361-60011

F..FJ40,55

 1
11363 - COVER, FLYWHEEL SIDE
11363-60010

F,2F..FJ40,55

 1
11391 - POINTER, TIMING
11391-60010

F,2F..FJ4#,55

 1
12281 - HANGER, ENGINE, NO.1
12281-60010

F..FJ40,55

 1
12282 - HANGER, ENGINE, NO.2
12282-60010

F,2F..FJ40,55

 1
Common parts
90113-10022
90119-10041
91112-71025
91212-51232
91611-40616
91611-41025
91611-61020
91631-40610
93110-16010
93180-18012
93381-16008
94511-00600
94512-00800
94512-01200
94611-10600
Linked diagrams
1105
