FJ40LV-KCJA (1980)

Toyota Land Cruiser

Production Aug 1980 - Sep 1983
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

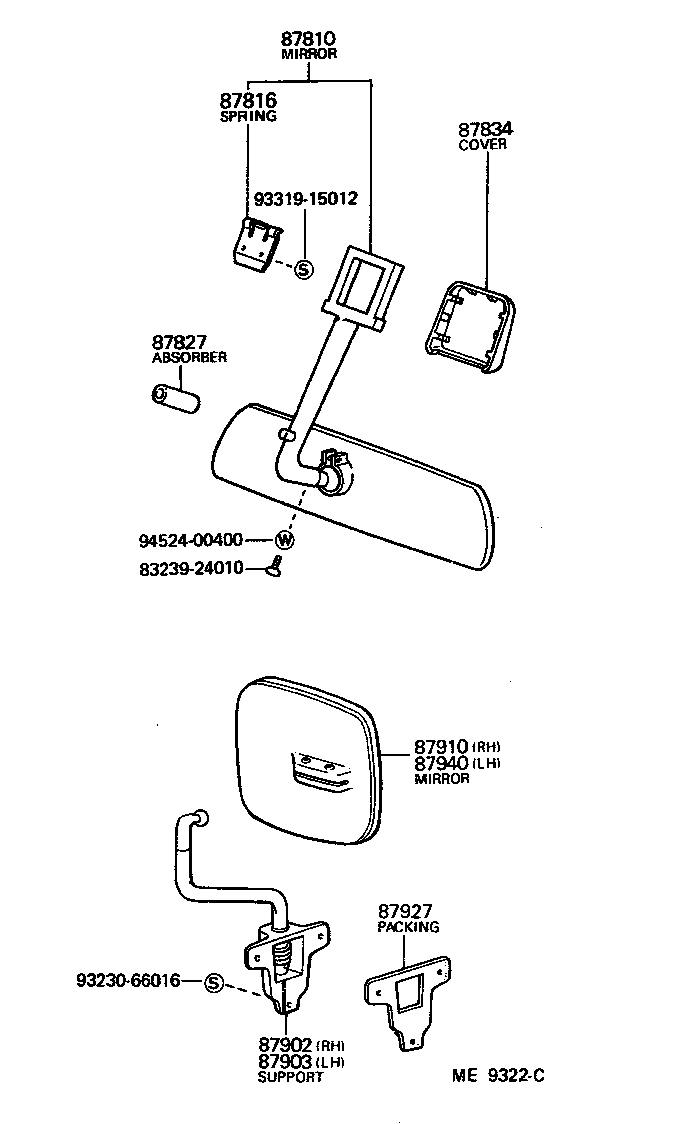

Click highlighted areas on diagram

diagram 8323924010 87810 87816 87827 87834 87902 87903 87910 87927 87940 9323066016 9331915012 9452400400
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-90300

BJ42,FJ40

 1
87816 - SPRING, INNER REAR VIEW MIRROR
74372-30030

BJ42,FJ40

 1
87827 - ABSORBER, INNER REAR VIEW MIRROR
87828-12010

BJ42,FJ40

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87834-1401103

BJ42,FJ40

GRAY

 1
87902 - SUPPORT, REAR VIEW OUTSIDE MIRROR, RH
87902-90301

BJ42,FJ40

 1
87903 - SUPPORT, REAR VIEW OUTSIDE MIRROR, LH
87905-90301

BJ42,FJ40

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87901-90303

BJ42,FJ40

 1
87927 - PACKING, REAR VIEW OUTSIDE MIRROR STAY
87911-90300

BJ42,FJ40

 2
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87901-90303

BJ42,FJ40

 1
Common parts
83239-24010
93230-66016
93319-15012
94524-00400
