FJ40LV-KCJA (1980)

Toyota Land Cruiser

Production Aug 1980 - Sep 1983
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

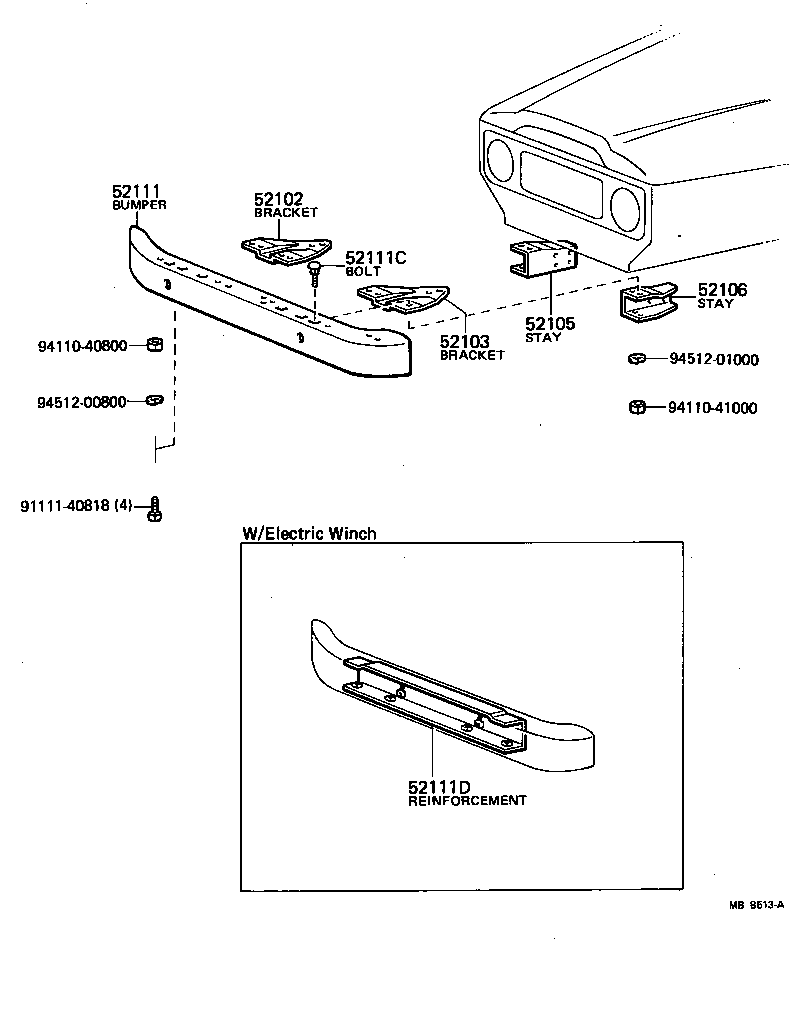

Click highlighted areas on diagram

diagram 52102 52103 52105 52106 52111 52111C 52111D 9111140818 9411040800 9411041000 9451200800 9451201000
Part # Description Qty Price
52102 - BRACKET SUB-ASSY, FRONT BUMPER, RH
52116-60010

BJ42,FJ40

 1
52103 - BRACKET SUB-ASSY, FRONT BUMPER, LH
52116-60010

BJ42,FJ40

 1
52105 - STAY SUB-ASSY, FRONT BUMPER, RH
52141-60011

BJ42,FJ40

 1
52106 - STAY SUB-ASSY, FRONT BUMPER, LH
52142-60011

BJ42,FJ40

 1
52111 - BUMPER ASSY, FRONT
52111-60030

BJ42,FJ40

 1
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-10004

BJ42,FJ40

 6
52111D - REINFORCEMENT, FRONT BUMPER
52131-60010

BJ42,FJ40

W/ELECTRIC WINCH

 1
Common parts
91111-40818
94110-40800
94110-41000
94512-00800
94512-01000
