FJ40LV-KCJA (1976)

Toyota Land Cruiser

Production Feb 1976 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9001-9908)LHD..HT,SOT ; (9908-0701)FZJ70,71,73,74,75,HZJ71..LHD..CBU ; (0701-0808)

Click highlighted areas on diagram

BENCH

diagram 71013S 71014S 71071S 71072S 71073S 71074S 71133 71148 7138960040 71396A 71410S 71420S 71430S 71440S 71511S 71512S 71521 71537A 71551S 71552S 71610S 71620S 71705 71706 71811C 71812C 71910A 71931 71931 72053C 72053D 72054A 72054B 72110A 72110A 72110E 72110F 72120 72130A 72130A 72137A 72137A 72137B 72138B 72140A 72157A 72158 72205D 72206B 72210B 72510A 72510B 72510D 72520D 72570B 72580A 73080A 73810A 73847B 74841B 74842B 74843A 74844A 9011908079 9011908079 9011908079 9011908301 9011908301 9011910560 9011910619 9011910708 9011910708 9011910896 9011910896 9011910896 9015940206 9015940269 9015940269 9016740044 9016740044 9016840011 9016840036 9016840049 9020214007 9038612041 9038612051 9038708053 9038908104 9046707032 9046804006 9046804006 9052308001 9056218094 9338315012 9338315012 9338315012 9338315012
Part # Description Qty Price
Common parts
71389-60040
90119-08079
90119-08301
90119-10560
90119-10619
90119-10708
90119-10896
90159-40206
90159-40269
90167-40044
90168-40011
90168-40036
90168-40049
90202-14007
90386-12041
90386-12051
90387-08053
90389-08104
90467-07032
90468-04006
90523-08001
90562-18094
93383-15012

ILLUST NO. 2 OF 3(9001-0701)FJ70,73,FZJ70,71,73,74,HZJ70,71,73,KZJ70,LJ70,72,PZJ70,73,RJ70 ; (0701-0

Click highlighted areas on diagram

diagram 58048A 71015 71017A 71033 71075B 71077B 71324A 71382A 71611 71651 71651B 71663 71671 71931A 71931A 71955A 71955A 72603 72604 72607 72645 72660A 72660A 72660E 72660E 72665 72666 72690A 72694 78910 78920 78935 78935 78935 78935 78950 79929 8271112120 9010511007 9011910035 9011910037 9011910101 9011910493 9015960108 9016840011 9016840011 9016840011 9018308003 9018308003 9020208039 9020208039 9020208039 9020208039 9020411042 9024908141 9038710069 9038909005 9046708053 9165160620 9331316014 9331616014 9616000600
Part # Description Qty Price
Common parts
82711-12120
90105-11007
90119-10035
90119-10037
90119-10101
90119-10493
90159-60108
90168-40011
90183-08003
90202-08039
90204-11042
90249-08141
90387-10069
90389-09005
90467-08053
91651-60620
93313-16014
93316-16014
96160-00600

ILLUST NO. 2 OF 3(9001-0701)FJ70,73,FZJ70,71,73,74,HZJ70,71,73,KZJ70,LJ70,72,PZJ70,73,RJ70 ; (0701-0

Click highlighted areas on diagram

diagram 71033B 71034A 71085B 71086B 71088B 71089B 71700 71704 71704B 71710A 71720A 71721 71722 71761A 71761B 71800 7997760040 7997760040 9011908364 9024908141 9024908141 9050820072 9050820072 9616000600 9616000600
Part # Description Qty Price
Common parts
79977-60040
90119-08364
90249-08141
90508-20072
96160-00600

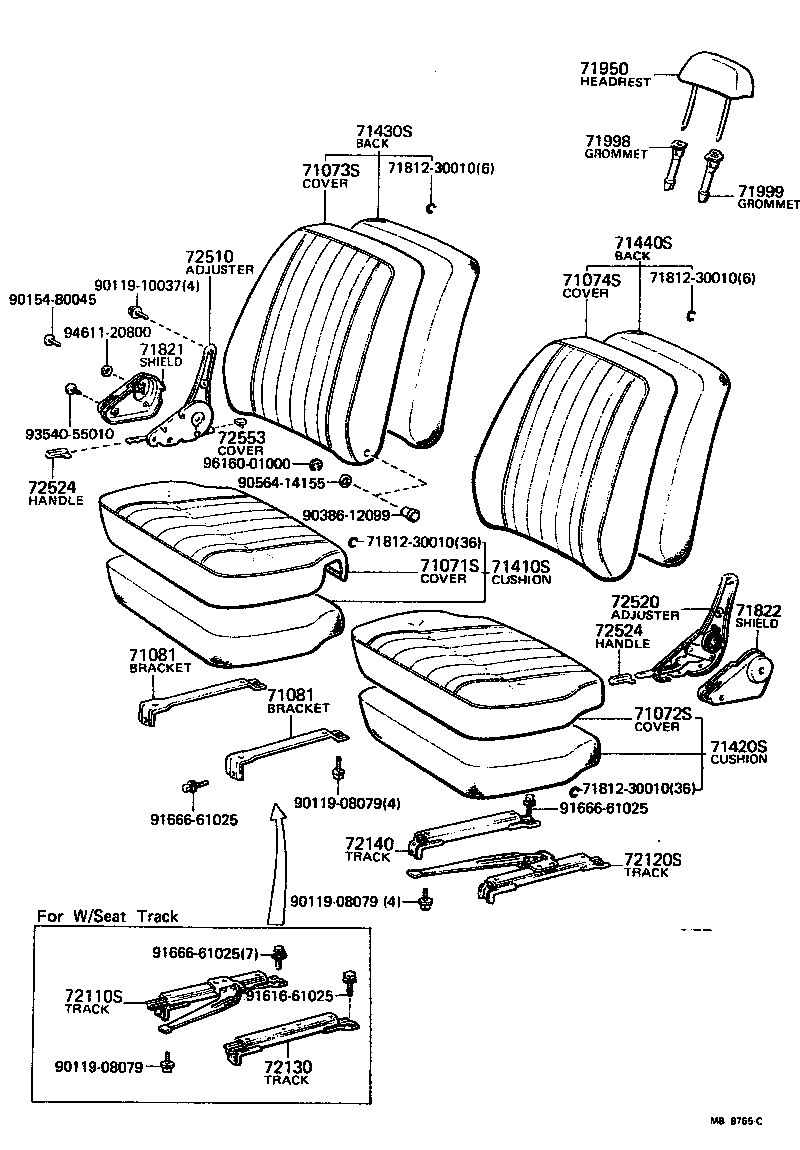

(7901-8007)BJ40,FJ40

Click highlighted areas on diagram

diagram 71071S 71072S 71073S 71074S 71081 71081 71410S 71420S 71430S 71440S 7181230010 7181230010 7181230010 7181230010 71821 71822 71950 71998 71999 72110S 72120S 72130 72140 72510 72520 72524 72524 72553 9011908079 9011908079 9011908079 9011910037 9015480045 9038612099 9056414155 9161661025 9166661025 9166661025 9166661025 9354055010 9461120800 9616001000
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-90336

BJ40,FJ40

 1
71071-90345

BJ40,FJ40

 1
71071-90334

FJ40

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71071-90336

BJ40,FJ40

 1
71071-90345

BJ40,FJ40

 1
71071-90334

FJ40

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-90345

FJ40

 1
71073-90347

BJ40,FJ40

 1
71073-90079

BJ40,FJ40

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-90083

BJ40,FJ40

 1
71073-90345

FJ40

 1
71073-90347

BJ40,FJ40

 1
71081 - BRACKET SUB-ASSY, FRONT SEAT SET
71081-90300

BJ40,FJ40

 2
71081 - BRACKET SUB-ASSY, FRONT SEAT SET
71081-90300

BJ40,FJ40

 2
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-90071

FJ40

 1
71410-90073

BJ40,FJ40

 1
71410-90082

BJ40,FJ40

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71410-90071

FJ40

 1
71420-90082

BJ40,FJ40

 1
71410-90073

BJ40,FJ40

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-90074

FJ40

 1
71430-90085

BJ40,FJ40

 1
71430-90076

BJ40,FJ40

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-90336

FJ40

 1
71440-90338

BJ40,FJ40

 1
71440-90085

BJ40,FJ40

 1
71821 - SHIELD, FRONT SEAT SIDE, RH
71821-60020

FJ40

 1
71821-90300

BJ40,FJ4#

 1
71822 - SHIELD, FRONT SEAT SIDE, LH
71827-60030

FJ40

 1
71822-90300

BJ40,FJ4#

 1
71950 - HEADREST ASSY, FRONT SEAT
71950-90301

BJ40,FJ40

 2
71998 - GROMMET, FRONT SEAT HEADREST, RH
71956-3002001

BJ40,FJ40

BLACK

 2
71999 - GROMMET, FRONT SEAT HEADREST, LH
71990-3002001

BJ40,FJ40

BLACK

 2
72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
72110-60010

FJ40

BENCH SEAT

 1
72110-90333

BJ40,FJ40

SEPARATE SEAT

 1
72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)
72110-60010

FJ40

BENCH SEAT

 1
72120-90333

BJ40,FJ4#

SEPARATE SEAT

 1
72130 - TRACK ASSY, RH SEAT, INNER
72130-90333

BJ40,FJ40

 1
72140 - TRACK ASSY, LH SEAT, INNER
72130-90333

BJ40,FJ4#

 1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72550-90300

BJ40,FJ40

FOR L/SEAT TRACK

 1
72550-90301

BJ40,FJ40

FOR W/SEAT TRACK

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-90300

BJ40,FJ40

 1
72524 - HANDLE, RECLINING ADJUSTER RELEASE
72526-1401001

BJ40,FJ4#

LH.,BLACK

 1
72525-1401001

BJ40,FJ4#

RH.,BLACK

 1
72524 - HANDLE, RECLINING ADJUSTER RELEASE
72526-1401001

BJ40,FJ4#

LH.,BLACK

 1
72525-1401001

BJ40,FJ4#

RH.,BLACK

 1
72553 - COVER, RECLINING PEDAL
72553-12020

BJ40,FJ40

 1
Common parts
71812-30010
90119-08079
90119-10037
90154-80045
90386-12099
90564-14155
91616-61025
91666-61025
93540-55010
94611-20800
96160-01000

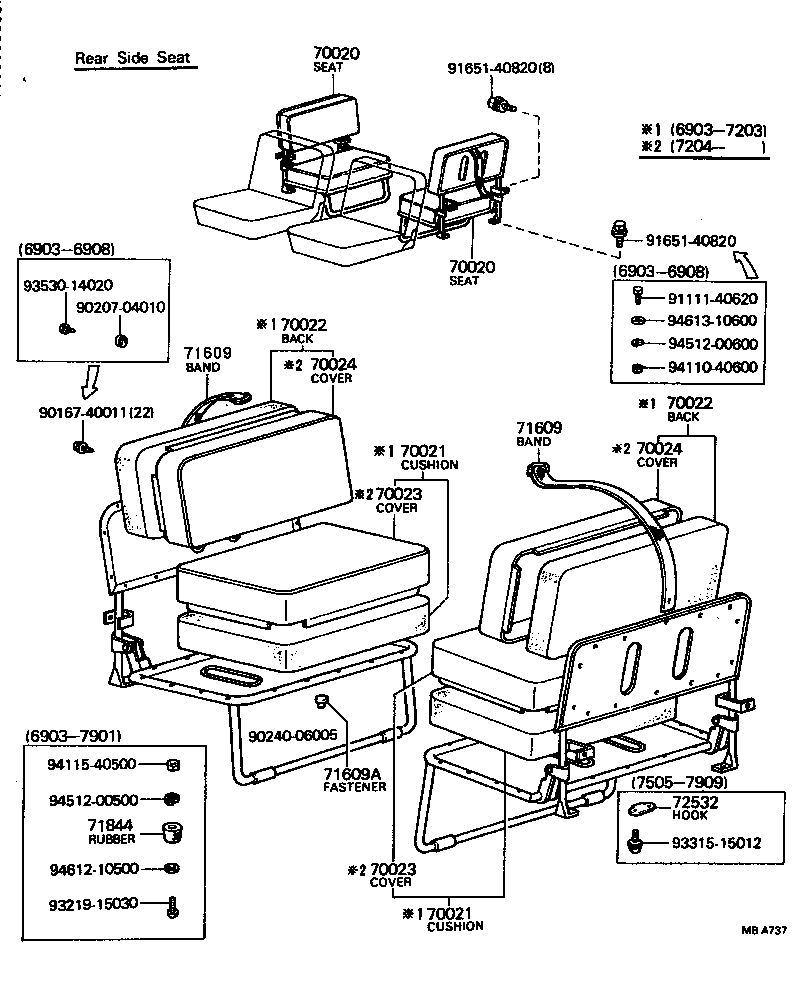

(6903-8007)BJ40,FJ40

Click highlighted areas on diagram

diagram 70020 70020 70021 70021 70022 70022 70023 70023 70024 70024 71609 71609 71609A 71844 72532 9016740011 9020704010 9024006005 9111140620 9165140820 9165140820 9321915030 9331515012 9353014020 9411040600 9411540500 9451200500 9451200600 9461210500 9461310600
Part # Description Qty Price
70020 - SEAT ASSY, NO.2
71700-90078

BJ40,FJ40

 2
71700-90278

BJ40,FJ40

 2
71700-90085

BJ40,FJ40

 2
71700-90272

BJ40,FJ40

 2
71800-6001002

FJ40

LH.,RED/MAROON

 1
71700-6001002

FJ40

RH.,RED/MAROON

 1
70020 - SEAT ASSY, NO.2
71700-90078

BJ40,FJ40

 2
71700-90278

BJ40,FJ40

 2
71700-90085

BJ40,FJ40

 2
71700-90272

BJ40,FJ40

 2
71800-6001002

FJ40

LH.,RED/MAROON

 1
71700-6001002

FJ40

RH.,RED/MAROON

 1
70021 - CUSHION ASSY, NO.2 SEAT
71530-6001002

FJ40

RED/MAROON

 2
70021 - CUSHION ASSY, NO.2 SEAT
71530-6001002

FJ40

RED/MAROON

 2
70022 - BACK ASSY, NO.2 SEAT
71550-6001002

FJ40

RED/MAROON

 2
70022 - BACK ASSY, NO.2 SEAT
71550-6001002

FJ40

RED/MAROON

 2
70023 - COVER ASSY, NO.2 SEAT CUSHION
71075-90071

BJ40,FJ40

 2
71075-90345

BJ40,FJ40

 2
71075-90079

BJ40,FJ40

 2
70023 - COVER ASSY, NO.2 SEAT CUSHION
71075-90071

BJ40,FJ40

 2
71075-90345

BJ40,FJ40

 2
71075-90079

BJ40,FJ40

 2
70024 - COVER ASSY, NO.2 SEAT BACK
71077-90345

BJ40,FJ40

 2
71077-90071

BJ40,FJ40

 2
70024 - COVER ASSY, NO.2 SEAT BACK
71077-90345

BJ40,FJ40

 2
71077-90071

BJ40,FJ40

 2
71609 - BAND SUB-ASSY, REAR SIDE SEAT
71609-60010

FJ40

 2
71609-90301

BJ40,FJ40

 2
71609 - BAND SUB-ASSY, REAR SIDE SEAT
71609-60010

FJ40

 2
71609-90301

BJ40,FJ40

 2
71609A - FASTENER, REAR SIDE SEAT BAND
65921-60010

FJ40

 2
65928-60010

BJ40,FJ40

 2
71844 - RUBBER, REAR SEAT CUSHION BASE
71882-60010

BJ40,FJ40

REAR SEAT

 4
Common parts
90167-40011
90207-04010
90240-06005
91111-40620
91651-40820
93219-15030
93315-15012
93530-14020
94110-40600
94115-40500
94512-00500
94512-00600
94612-10500
94613-10600
