FJ40LV-KCJA (1976)

Toyota Land Cruiser

Production Feb 1976 - Jul 1980
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7602-8007)

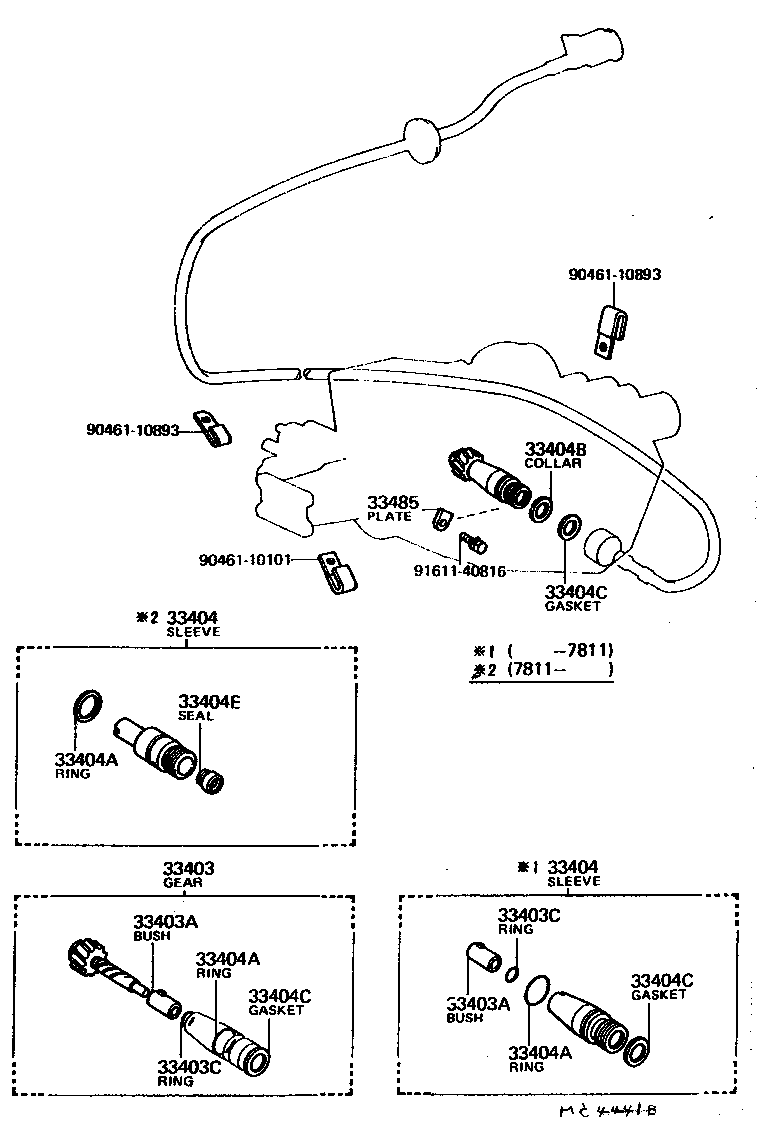

Click highlighted areas on diagram

diagram 33403 33403A 33403A 33403C 33403C 33404 33404 33404A 33404A 33404A 33404B 33404C 33404C 33404C 33404E 33485 9046110101 9046110893 9046110893 9161140816
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-69016

FJ40,55

N=17,MARK 17:6,N=17

 1
33403-69075

FJ40,55

N=16,MARK 16:6,N=16

 1
33403A - BUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE)
90386-09078

BJ40,FJ4#,55

 1
33403A - BUSH (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT SLEEVE)
90386-09078

BJ40,FJ4#,55

 1
33403C - RING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)
90301-09017

BJ40,FJ4#,55

 1
33403C - RING, O (FOR MANUAL TRANSMISSION SPEEDOMETER SHAFT)
90301-09017

BJ40,FJ4#,55

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-39016

BJ40,FJ4#,55

 1
33404-30040

BJ40,FJ4#,55

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-39016

BJ40,FJ4#,55

 1
33404-30040

BJ40,FJ4#,55

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

BJ40,FJ4#,55

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

BJ40,FJ4#,55

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90301-18018

BJ40,FJ4#,55

 1
33404B - COLLAR, SPEEDOMETER FLEXIBLE TUBE SHAFT GASKET (MTM)
90201-07069

BJ40,FJ4#,55

 1
33404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)
90303-06017

BJ40,FJ4#,55

 1
33404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)
90303-06017

BJ40,FJ4#,55

 1
33404C - GASKET, SPEEDOMETER FLEXIBLE TUBE SHAFT (MTM)
90303-06017

BJ40,FJ4#,55

 1
33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90310-09001

BJ40,FJ4#,55

 1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-30020

BJ40,FJ4#,55

 1
33485-30010

BJ40,FJ4#,55

 1
Common parts
90461-10101
90461-10893
91611-40816
