FJ40LV-KCJA (1976)
Toyota Land Cruiser
(8008-8309)2F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90109-08038 | ||||
| 90119-08264 | ||||
| 90119-08344 | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 90201-08135 | ||||
| 91611-40845 | ||||
| 91611-41025 | ||||
| 91611-61020 | ||||
| 91651-40816 | ||||
| 91651-60614 | ||||
| 94531-00800 | ||||
(8008-8309)2F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 1603 | ||||
| 1705 | ||||
| 4503 | ||||
| 8719 | ||||

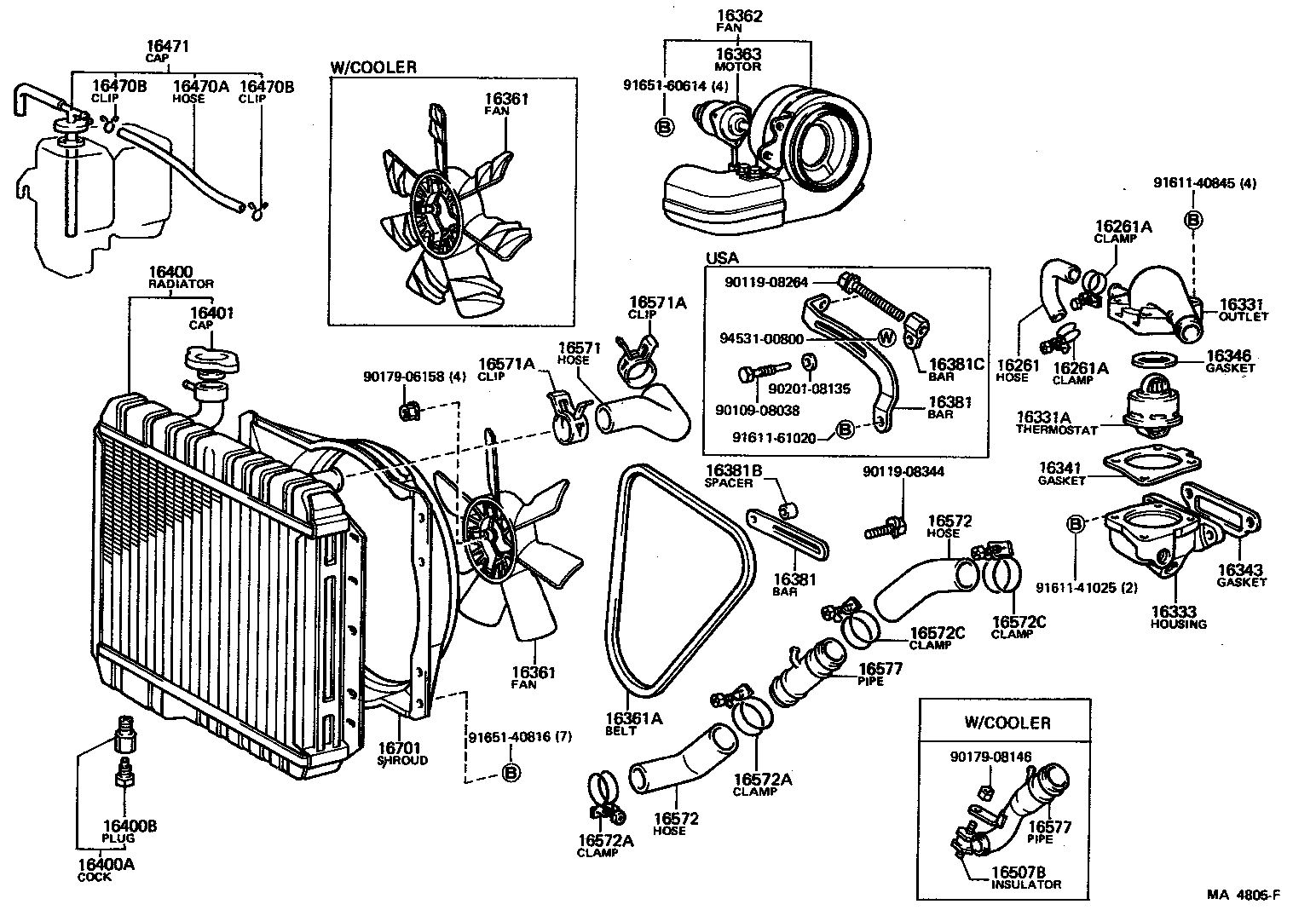

(7608-8007)2F..FJ40..USA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-60011 |
F,2F..FJ4#,55 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90460-33020 |
F..FJ40,55 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90460-33020 |
F..FJ40,55 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16333-60070 |
F,2F..FJ4#,55 |
1 | ||
| 16333-61020 |
2F..FJ40,55..USA W/OIL COOLER |
1 | ||
| 16333-61060 |
2F..FJ40,55..USA W/OIL COOLER |
1 | ||
| 16333-61020 |
2F..FJ40,55..USA CALIFORNIA SPEC. W/OIL COOLER |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03012 |
F..FJ40,55 WAX 76.5-90 FUJI-THOMSON |
1 | ||
| 90916-03014 |
F..FJ40,55 WAX 82-95 FUJI-THOMSON ARCTIC |
1 | ||
| 90916-03048 |
2F..FJ4#,55 WAX 82-95 FUJI-THOMSON |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16331-60040 |
F..FJ40,55 |
1 | ||
| 16331-61031 |
2F..FJ40,55..USA |
1 | ||
| 16331-61030 |
2F..FJ40,55..USA |
1 | ||
| 16331-61020 |
2F..FJ40,55..USA |
1 | ||
| 16331-60040 |
2F..FJ40,55..USA CALIFORNIA SPEC. W/OIL COOLER |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-60020 |
F,2F..FJ4#,55 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-60010 |
F,2F..FJ4#,55 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 90430-43002 |
2F..FJ4#,55 |
1 | ||
| 90430-40058 |
F,2F..FJ4#,55 |
1 | ||
| 16361 - FAN | ||||
| 16361-60050 |
F..FJ40,55 4 BLADES |
1 | ||
| 16361-61010 |
2F..FJ40..USA 7 BLADES |
1 | ||
| 16361-60100 |
2F..FJ40,55..USA 8 BLADES 0/S FAN |
1 | ||
| 16361-60101 |
2F..FJ40,55..USA 8 BLADES 0/S FAN |
1 | ||
| 16361-61020 |
2F..FJ40,55..USA W/COOLER |
1 | ||
| 16361-61011 |
2F..FJ40,55 7 BLADES |
1 | ||

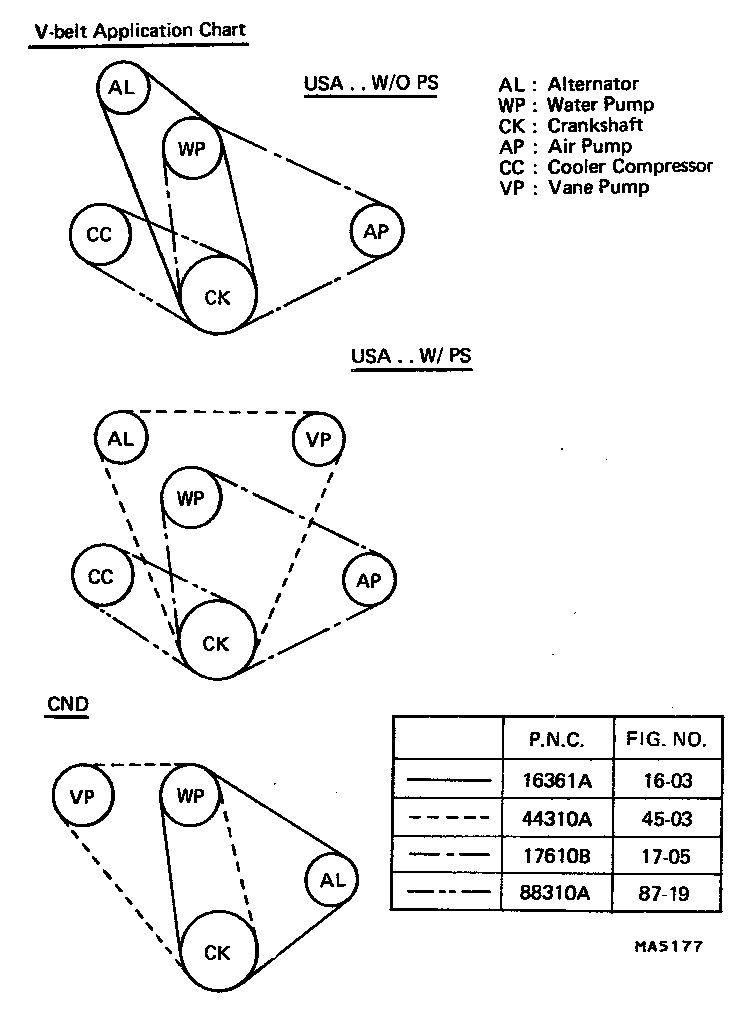

| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99523-11046 |
F..FJ40,55 L=1046 |
1 | ||
| 90916-02047 |
2F..FJ40,55..USA L=1275 |
1 | ||
| 99523-11067 |
F..FJ40,55 L=1067 12V 55A ALTER. |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-60081 |
2F..FJ4#,55 |
1 | ||
| 16381-61011 |
2F..FJ40,55..USA |
1 | ||
| 16381-61010 |
2F..FJ40,55..USA |
1 | ||
| 16381-60081 |
F..FJ40,55 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-60011 |
F..FJ40 |
1 | ||
| 16400-61030 |
2F..FJ40..USA W/COOLER |
1 | ||
| 16400A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 96431-03873 |
2F..FJ4# |
1 | ||
| 90910-09069 |
2F..FJ4# |
1 | ||
| 90910-09022 |
F..FJ40 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09016 |
F..FJ40 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-60040 |
F..FJ40 |
1 | ||
| 16401-41021 |
2F..FJ4#,55 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-60020 |
2F..FJ4#,55 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-60020 |
2F..FJ4#,55 |
1 | ||
| 16507 - PIPE SUB-ASSY, RADIATOR | ||||
| 16577-60100 |
F..FJ40,55 |
1 | ||
| 16577-61030 |
2F..FJ40,55..USA L/COOLER, L/HEATER |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-60060 |
F,2F..FJ4# |
1 | ||
| 16571-61040 |
2F..FJ4# |
1 | ||
| 16571-61041 |
2F..FJ4# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10500 |
2F..FJ4#,55 |
2 | ||
| 90460-50016 |
F..FJ40,55 ID=50 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10500 |
2F..FJ4#,55 |
2 | ||
| 90460-50016 |
F..FJ40,55 ID=50 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 90916-01058 |
F,2F..FJ4# RADIATOR SIDE |
1 | ||
| 16571-61070 |
2F..FJ40..USA W/COOLER RADIATOR SIDE |
1 | ||
| 90916-01056 |
F,2F..FJ4# PUMP SIDE |
1 | ||
| 90916-01163 |
2F..FJ40,55..USA W/COOLER PUMP SIDE |
1 | ||
| 16571-61050 |
2F..FJ4# RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 90916-01058 |
F,2F..FJ4# RADIATOR SIDE |
1 | ||
| 16571-61070 |
2F..FJ40..USA W/COOLER RADIATOR SIDE |
1 | ||
| 90916-01056 |
F,2F..FJ4# PUMP SIDE |
1 | ||
| 90916-01163 |
2F..FJ40,55..USA W/COOLER PUMP SIDE |
1 | ||
| 16571-61050 |
2F..FJ4# RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10580 |
2F..FJ4#,55 ID=58 |
3 | ||
| 90460-58013 |
F,2F..FJ4#,55 ID=58 |
3 | ||
| 90460-50016 |
F..FJ40,55 ID=50 |
1 | ||
| 96111-10600 |
2F..FJ40,55..USA ID=60,W/COOLER |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10580 |
2F..FJ4#,55 ID=58 |
3 | ||
| 90460-58013 |
F,2F..FJ4#,55 ID=58 |
3 | ||
| 90460-50016 |
F..FJ40,55 ID=50 |
1 | ||
| 96111-10600 |
2F..FJ40,55..USA ID=60,W/COOLER |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10580 |
2F..FJ4#,55 ID=58 |
3 | ||
| 90460-58013 |
F,2F..FJ4#,55 ID=58 |
3 | ||
| 90460-50016 |
F..FJ40,55 ID=50 |
1 | ||
| 96111-10600 |
2F..FJ40,55..USA ID=60,W/COOLER |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10580 |
2F..FJ4#,55 ID=58 |
3 | ||
| 90460-58013 |
F,2F..FJ4#,55 ID=58 |
3 | ||
| 90460-50016 |
F..FJ40,55 ID=50 |
1 | ||
| 96111-10600 |
2F..FJ40,55..USA ID=60,W/COOLER |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-60011 |
F..FJ40 |
1 | ||
| 16711-61030 |
2F..FJ40..USA O/S FAN |
1 | ||
| 16711-61022 |
2F..FJ4# |
1 | ||
| 16711-61032 |
2F..FJ40..USA O/S FAN |
1 | ||
| 16711-61090 |
2F..FJ40..USA |
1 | ||
| 16711-61080 |
2F..FJ40..USA W/COOLER |
1 | ||
| 16711-61091 |
2F..FJ40 |
1 | ||
| Common parts | ||||
| 90109-08038 | ||||
| 90201-08065 | ||||
| 90461-10826 | ||||
| 91611-40820 | ||||
| 91611-41025 | ||||
| 91611-60825 | ||||
| 91611-61020 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 94110-40600 | ||||
| 94511-00600 | ||||
| 94612-10800 | ||||

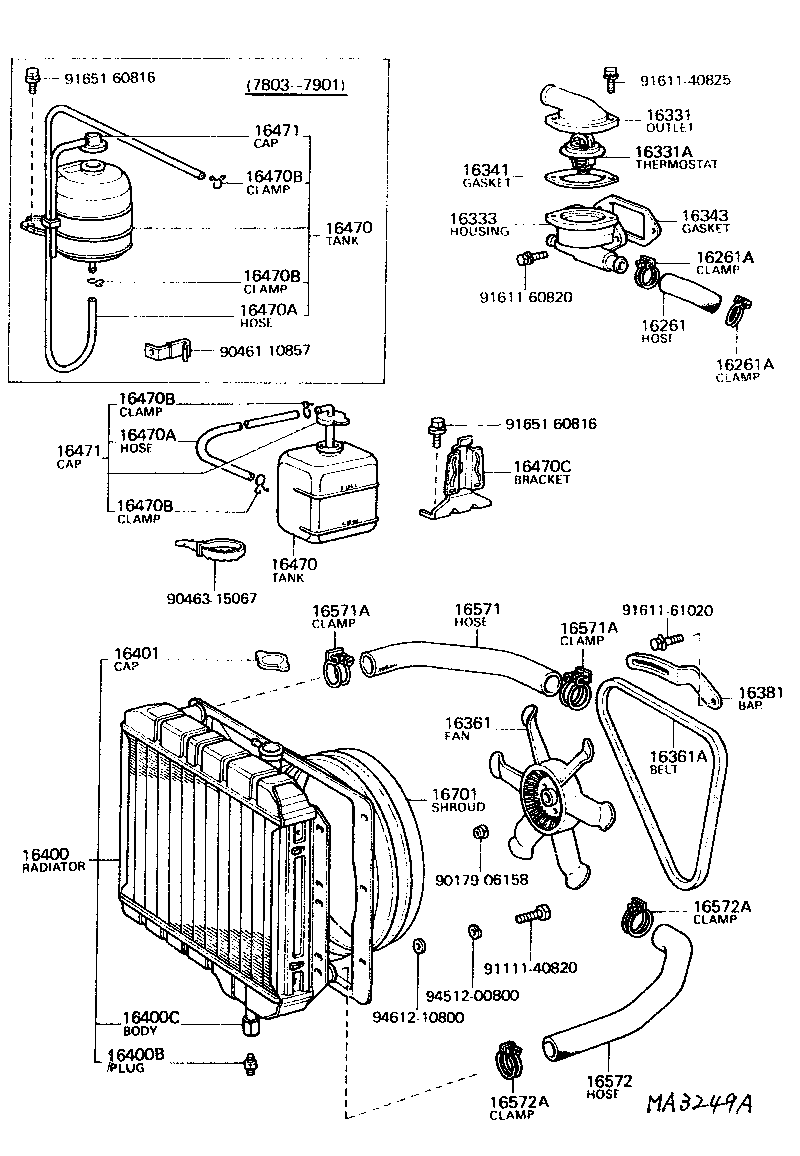

(7803-8007)B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-60011 |
F,2F..FJ4#,55 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90460-33020 |
F..FJ40,55 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90460-33020 |
F..FJ40,55 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16333-60070 |
F,2F..FJ4#,55 |
1 | ||
| 16333-61020 |
2F..FJ40,55..USA W/OIL COOLER |
1 | ||
| 16333-61060 |
2F..FJ40,55..USA W/OIL COOLER |
1 | ||
| 16333-61020 |
2F..FJ40,55..USA CALIFORNIA SPEC. W/OIL COOLER |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03012 |
F..FJ40,55 WAX 76.5-90 FUJI-THOMSON |
1 | ||
| 90916-03014 |
F..FJ40,55 WAX 82-95 FUJI-THOMSON ARCTIC |
1 | ||
| 90916-03048 |
2F..FJ4#,55 WAX 82-95 FUJI-THOMSON |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16331-60040 |
F..FJ40,55 |
1 | ||
| 16331-61031 |
2F..FJ40,55..USA |
1 | ||
| 16331-61030 |
2F..FJ40,55..USA |
1 | ||
| 16331-61020 |
2F..FJ40,55..USA |
1 | ||
| 16331-60040 |
2F..FJ40,55..USA CALIFORNIA SPEC. W/OIL COOLER |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-60020 |
F,2F..FJ4#,55 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-60010 |
F,2F..FJ4#,55 |
1 | ||
| 16361 - FAN | ||||
| 16361-60050 |
F..FJ40,55 4 BLADES |
1 | ||
| 16361-61010 |
2F..FJ40..USA 7 BLADES |
1 | ||
| 16361-60100 |
2F..FJ40,55..USA 8 BLADES 0/S FAN |
1 | ||
| 16361-60101 |
2F..FJ40,55..USA 8 BLADES 0/S FAN |
1 | ||
| 16361-61020 |
2F..FJ40,55..USA W/COOLER |
1 | ||
| 16361-61011 |
2F..FJ40,55 7 BLADES |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99523-11046 |
F..FJ40,55 L=1046 |
1 | ||
| 90916-02047 |
2F..FJ40,55..USA L=1275 |
1 | ||
| 99523-11067 |
F..FJ40,55 L=1067 12V 55A ALTER. |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-60081 |
2F..FJ4#,55 |
1 | ||
| 16381-61011 |
2F..FJ40,55..USA |
1 | ||
| 16381-61010 |
2F..FJ40,55..USA |
1 | ||
| 16381-60081 |
F..FJ40,55 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-60011 |
F..FJ40 |
1 | ||
| 16400-61030 |
2F..FJ40..USA W/COOLER |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09016 |
F..FJ40 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-60040 |
F..FJ40 |
1 | ||
| 16401-41021 |
2F..FJ4#,55 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-60020 |
2F..FJ4#,55 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-60020 |
2F..FJ4#,55 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-60060 |
F,2F..FJ4# |
1 | ||
| 16571-61040 |
2F..FJ4# |
1 | ||
| 16571-61041 |
2F..FJ4# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10500 |
2F..FJ4#,55 |
2 | ||
| 90460-50016 |
F..FJ40,55 ID=50 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10500 |
2F..FJ4#,55 |
2 | ||
| 90460-50016 |
F..FJ40,55 ID=50 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 90916-01058 |
F,2F..FJ4# RADIATOR SIDE |
1 | ||
| 16571-61070 |
2F..FJ40..USA W/COOLER RADIATOR SIDE |
1 | ||
| 90916-01056 |
F,2F..FJ4# PUMP SIDE |
1 | ||
| 90916-01163 |
2F..FJ40,55..USA W/COOLER PUMP SIDE |
1 | ||
| 16571-61050 |
2F..FJ4# RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10580 |
2F..FJ4#,55 ID=58 |
3 | ||
| 90460-58013 |
F,2F..FJ4#,55 ID=58 |
3 | ||
| 90460-50016 |
F..FJ40,55 ID=50 |
1 | ||
| 96111-10600 |
2F..FJ40,55..USA ID=60,W/COOLER |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10580 |
2F..FJ4#,55 ID=58 |
3 | ||
| 90460-58013 |
F,2F..FJ4#,55 ID=58 |
3 | ||
| 90460-50016 |
F..FJ40,55 ID=50 |
1 | ||
| 96111-10600 |
2F..FJ40,55..USA ID=60,W/COOLER |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-60011 |
F..FJ40 |
1 | ||
| 16711-61030 |
2F..FJ40..USA O/S FAN |
1 | ||
| 16711-61022 |
2F..FJ4# |
1 | ||
| 16711-61032 |
2F..FJ40..USA O/S FAN |
1 | ||
| 16711-61090 |
2F..FJ40..USA |
1 | ||
| 16711-61080 |
2F..FJ40..USA W/COOLER |
1 | ||
| 16711-61091 |
2F..FJ40 |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90461-10857 | ||||
| 90463-15067 | ||||
| 91111-40820 | ||||
| 91611-40825 | ||||
| 91611-60820 | ||||
| 91611-61020 | ||||
| 91651-60816 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
