FJ40LV-AC (1972)
Toyota Land Cruiser
Production
Apr 1972
-
Jan 1975
Engine
F
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(6903-7309)

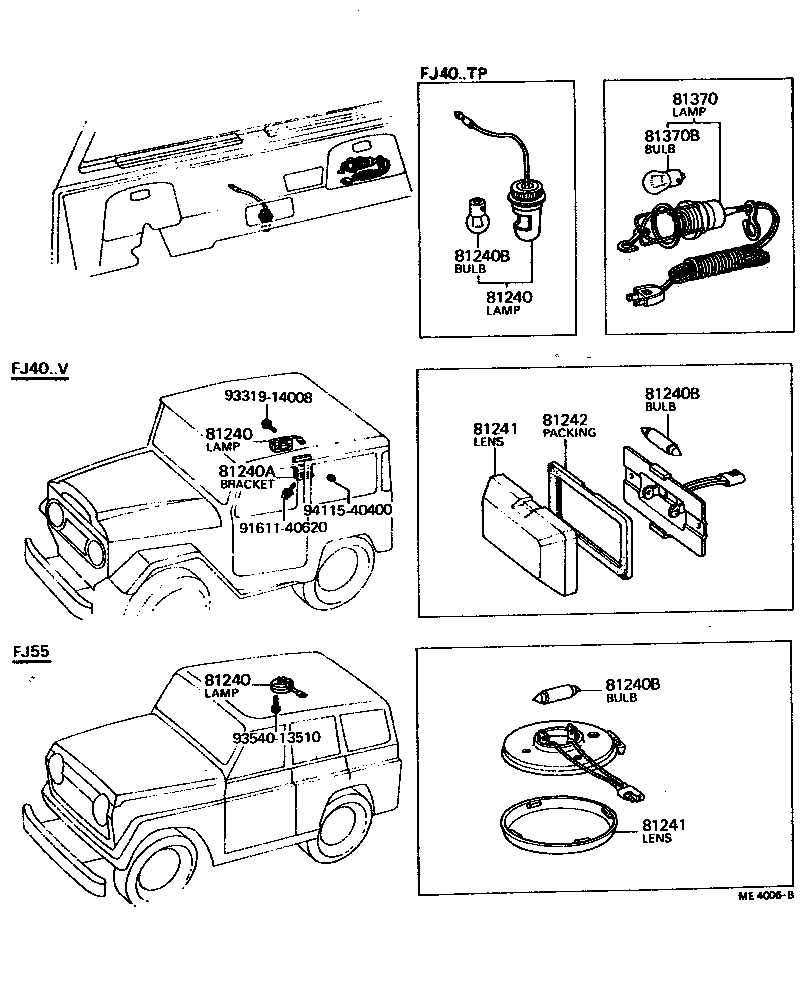

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-21010 |
FJ40..V |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-21010 |
FJ40..V |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-21010 |
FJ40..V |
1 | ||
| 81240A - BRACKET SUB-ASSY, ROOM LAMP, NO.1 | ||||
| 63103-90301 |
FJ40..V |
2 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99132-13050 |
FJ40..V 12V 5W,12V 5W |
1 | ||
| 99132-11075 |
FJ40 12V 7.5W,12V 7.5W |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99132-13050 |
FJ40..V 12V 5W,12V 5W |
1 | ||
| 99132-11075 |
FJ40 12V 7.5W,12V 7.5W |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 99132-13050 |
FJ40..V 12V 5W,12V 5W |
1 | ||
| 99132-11075 |
FJ40 12V 7.5W,12V 7.5W |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-21010 |
FJ40..V |
1 | ||
| 81241 - LENS, ROOM LAMP, NO.1 | ||||
| 81241-21010 |
FJ40..V |
1 | ||
| 81242 - GASKET, ROOM LAMP, NO.1 | ||||
| 81242-21010 |
FJ40..V |
1 | ||
| 81370 - LAMP ASSY, INSPECTION | ||||
| 81370-60010 |
FJ4#,55 |
1 | ||
| 81370B - BULB, INSPECTION LAMP | ||||
| 90981-12003 |
FJ40,55 12V 24W |
1 | ||
| Common parts | ||||
| 91611-40620 | ||||
| 93319-14008 | ||||
| 93540-13510 | ||||
| 94115-40400 | ||||
