FJ40LV-AC (1972)

Toyota Land Cruiser

Production Apr 1972 - Jan 1975
Engine F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-7209)

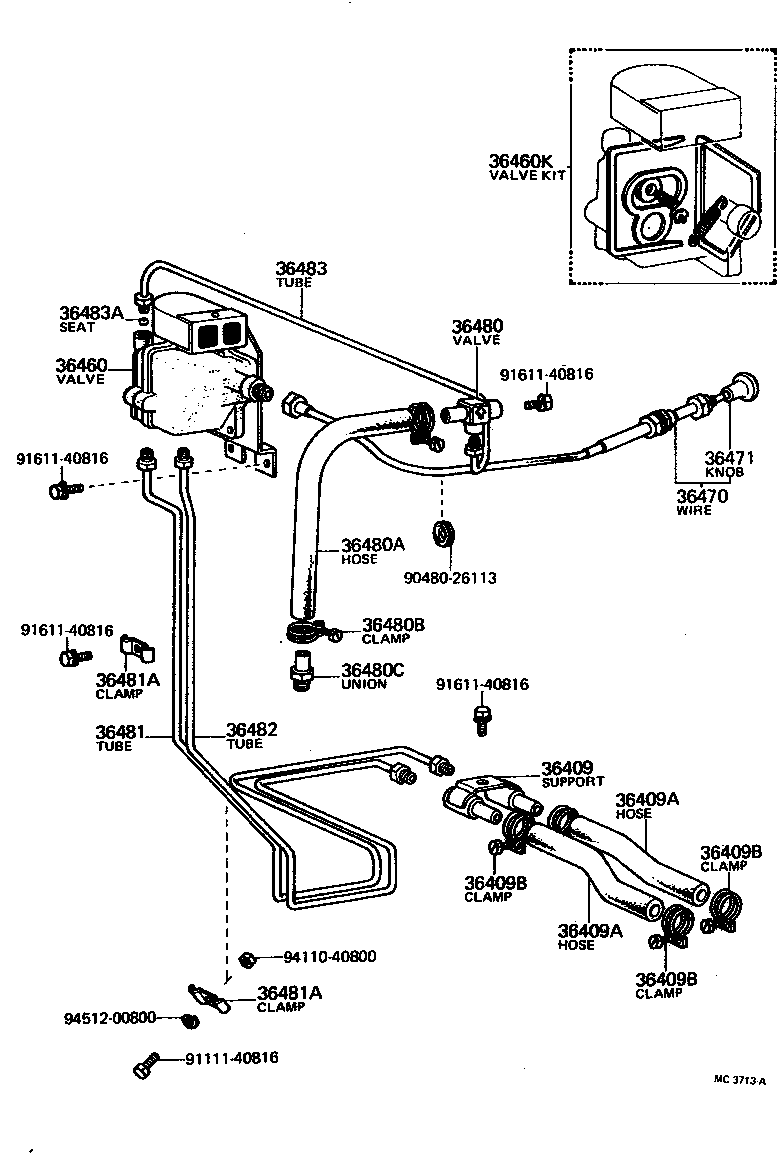

Click highlighted areas on diagram

diagram 36409 36409A 36409A 36409B 36409B 36409B 36460 36460K 36470 36471 36480 36480A 36480B 36480C 36481 36481A 36481A 36482 36483 36483A 9048026113 9111140816 9161140816 9161140816 9161140816 9161140816 9411040800 9451200800
Part # Description Qty Price
36409 - SUPPORT SUB-ASSY, VACUUM TUBE UNION
36409-60020

FJ40,55

 1
36409A - HOSE (FOR VACUUM TUBE)
90445-21012

FJ40

 2
36409A - HOSE (FOR VACUUM TUBE)
90445-21012

FJ40

 2
36409B - CLAMP, VACUUM TUBE
90460-22004

FJ40,55

 4
36409B - CLAMP, VACUUM TUBE
90460-22004

FJ40,55

 4
36409B - CLAMP, VACUUM TUBE
90460-22004

FJ40,55

 4
36460 - VALVE ASSY, VACUUM SHIFT
36460-60020

FJ40,55

 1
36460K - VALVE KIT, VACUUM SHIFT
04411-55011

FJ40,55

 1
36470 - WIRE ASSY, VACUUM SHIFT VALVE
36470-60031

FJ40

 1
36471 - KNOB, FRONT DRIVE SHIFT
36471-60021

FJ40,55

 1
36480 - VALVE ASSY, VACUUM CHECK(FOR FRONT DRIVE)
44730-60010

FJ40,55

 1
36480A - HOSE (FOR VACUUM CHECK VALVE)
90445-24160

FJ40,55

 1
36480B - CLAMP (FOR VACUUM CHECK VALVE)
90460-25019

FJ40,55

 2
36480C - UNION (FOR VACUUM CHECK VALVE)
90404-51001

FJ40,55

 1
36481 - TUBE, FRONT DRIVE VACUUM, NO.1
36481-60012

FJ40

FOR 3-SPEED TRANSMISSION

 1
36481-60014

FJ40

FOR 3-SPEED TRANSMISSION

 1
36481-60050

FJ40

FOR 4-SPEED TRANSMISSION

 1
36481A - CLAMP (FOR FRONT DRIVE VACUUM TUBE)
90462-12054

FJ4#,55

 2
36481A - CLAMP (FOR FRONT DRIVE VACUUM TUBE)
90462-12054

FJ4#,55

 2
36482 - TUBE, FRONT DRIVE VACUUM, NO.2
36482-60050

FJ40

FOR 4-SPEED TRANSMISSION

 1
36482-60012

FJ40

FOR 3-SPEED TRANSMISSION

 1
36482-60014

FJ40

FOR 3-SPEED TRANSMISSION

 1
36483 - TUBE, FRONT DRIVE VACUUM, NO.3
36483-60012

FJ40

 1
36483-60014

FJ40

 1
36483A - SEAT, UNION(FOR DRIVE VACUUM TUBE)
90410-03016

FJ40,55

 3
Common parts
90480-26113
91111-40816
91611-40816
94110-40800
94512-00800
