FJ40L-KJK (1976)

Toyota Land Cruiser

Production Feb 1976 - Sep 1977
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(6903-7709)FJ40

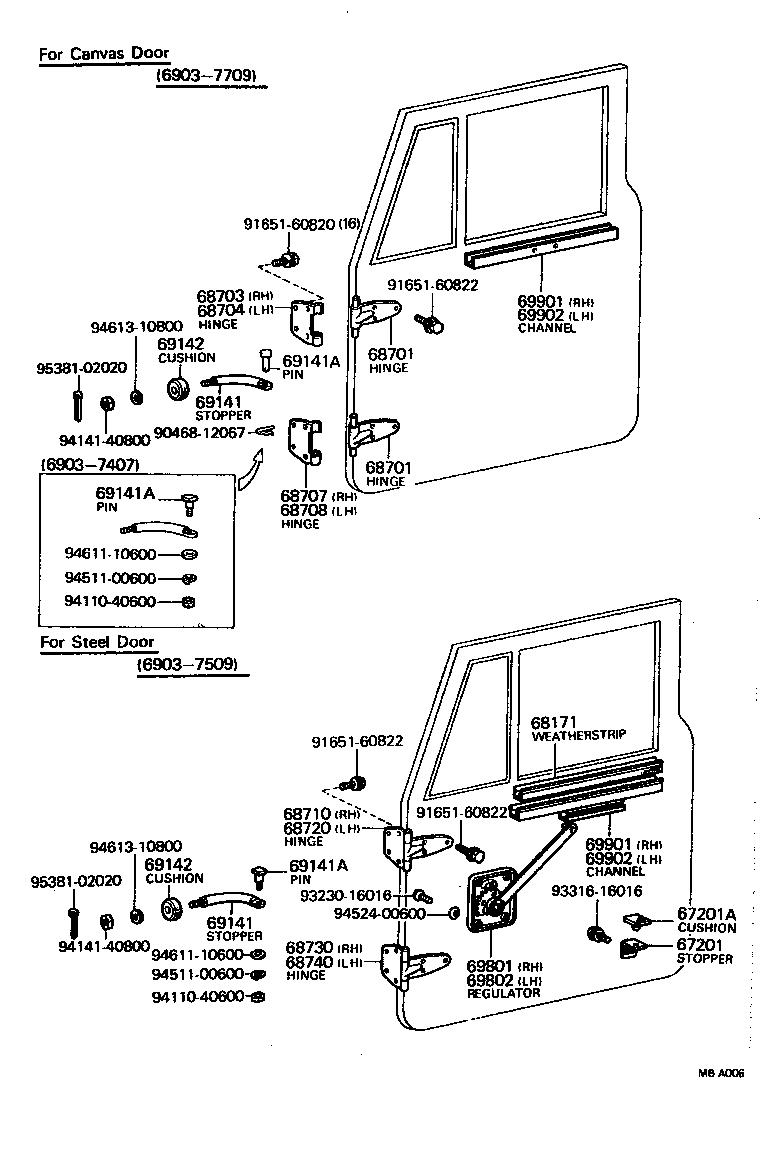

Click highlighted areas on diagram

diagram 67201 67201A 68171 68701 68701 68703 68704 68707 68708 68710 68720 68730 68740 69141 69141 69141A 69141A 69141A 69142 69142 69801 69802 69901 69901 69902 69902 9046812067 9165160820 9165160822 9165160822 9165160822 9323016016 9331616016 9411040600 9411040600 9414140800 9414140800 9451100600 9451100600 9452400600 9461110600 9461110600 9461310800 9461310800 9538102020 9538102020
Part # Description Qty Price
67201 - STOPPER ASSY, DOOR GLASS(FOR FRONT DOOR)
67404-90332

FJ40

 2
67201A - CUSHION, DOOR GLASS DOWN STOPPER(FOR FRONT DOOR)
68191-30010

FJ40

 2
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68211-60011

FJ40

 2
68701 - HINGE SUB-ASSY, CANVAS DOOR MALE
68701-60011

FJ40..TP

 4
68701 - HINGE SUB-ASSY, CANVAS DOOR MALE
68701-60011

FJ40..TP

 4
68703 - HINGE SUB-ASSY, CANVAS DOOR FEMALE, UPPER RH
68713-60010

FJ40..TP

 1
68704 - HINGE SUB-ASSY, CANVAS DOOR FEMALE, UPPER LH
68714-60010

FJ40..TP

 1
68707 - HINGE SUB-ASSY, CANVAS DOOR FEMALE, LOWER RH
68713-60010

FJ40..TP

 1
68708 - HINGE SUB-ASSY, CANVAS DOOR FEMALE, LOWER LH
68714-60010

FJ40..TP

 1
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-60012

FJ40

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-60012

FJ40

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68710-60012

FJ40

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68720-60012

FJ40

 1
69141 - STOPPER, FRONT DOOR OPEN
69141-60010

FJ40..TP

FOR CANVAS DOOR

 2
68957-60010

FJ40

FOR STEEL DOOR

 2
69141 - STOPPER, FRONT DOOR OPEN
69141-60010

FJ40..TP

FOR CANVAS DOOR

 2
68957-60010

FJ40

FOR STEEL DOOR

 2
69141A - PIN, FRONT DOOR OPEN STOPPER
68898-60010

FJ40

 2
69141A - PIN, FRONT DOOR OPEN STOPPER
68898-60010

FJ40

 2
69141A - PIN, FRONT DOOR OPEN STOPPER
68898-60010

FJ40

 2
69142 - CUSHION, DOOR OPEN STOPPER
90540-08008

FJ40

 2
69142 - CUSHION, DOOR OPEN STOPPER
90540-08008

FJ40

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-60011

FJ40

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-60011

FJ40

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-90300

FJ40

FOR STEEL DOOR

 1
68211-60020

FJ40..TP

FOR CANVAS DOOR

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-90300

FJ40

FOR STEEL DOOR

 1
68211-60020

FJ40..TP

FOR CANVAS DOOR

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69902-90300

FJ40

FOR STEEL DOOR

 1
68211-60020

FJ40..TP

FOR CANVAS DOOR

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69902-90300

FJ40

FOR STEEL DOOR

 1
68211-60020

FJ40..TP

FOR CANVAS DOOR

 1
Common parts
90468-12067
91651-60820
91651-60822
93230-16016
93316-16016
94110-40600
94141-40800
94511-00600
94524-00600
94611-10600
94613-10800
95381-02020
