FJ40L-KJA (1980)

Toyota Land Cruiser

Production Aug 1980 - Oct 1981
Engine 2F
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8008- )

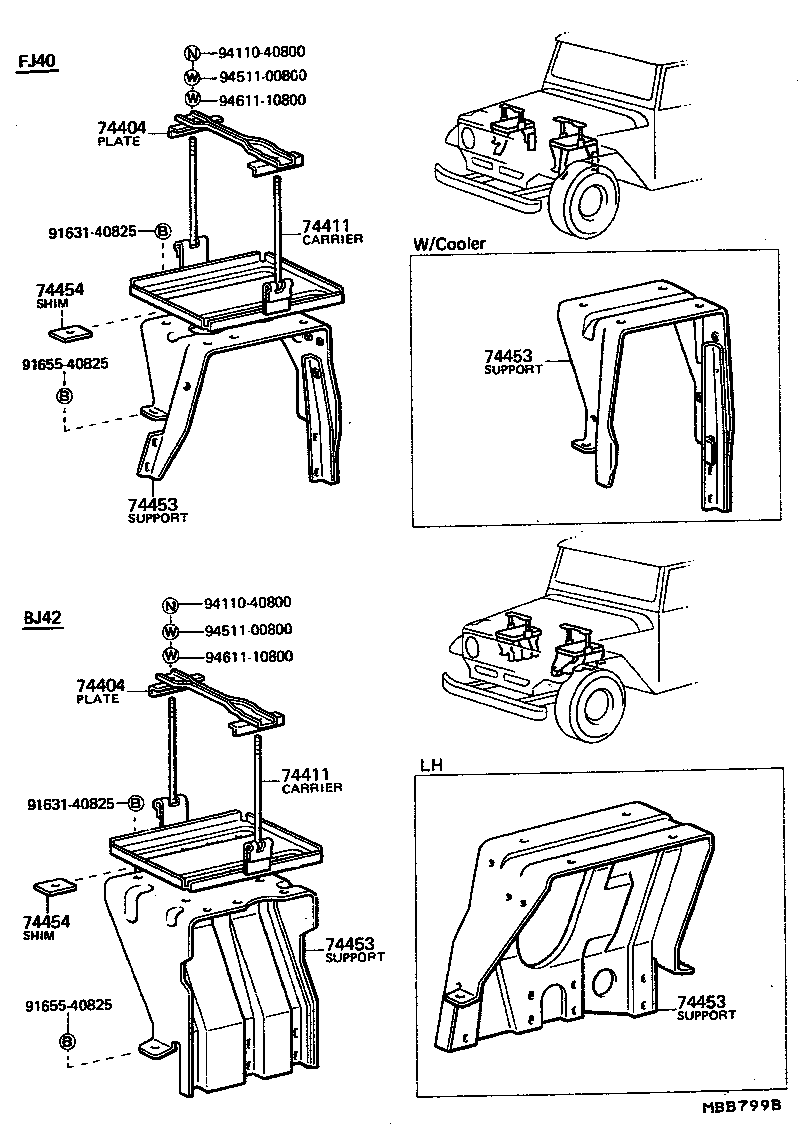

Click highlighted areas on diagram

diagram 74404 74404 74411 74411 74453 74453 74453 74453 74454 74454 9163140825 9163140825 9165540825 9165540825 9411040800 9411040800 9451100800 9451100800 9461110800 9461110800
Part # Description Qty Price
74404 - PLATE SUB-ASSY, BATTERY SET
74404-60060

FJ40

 1
74404 - PLATE SUB-ASSY, BATTERY SET
74404-60060

FJ40

 1
74411 - CARRIER, BATTERY
74403-60050

FJ40

 1
74411 - CARRIER, BATTERY
74403-60050

FJ40

 1
74453 - SUPPORT, BATTERY CARRIER
74401-60022

FJ40

 1
74453 - SUPPORT, BATTERY CARRIER
74401-60022

FJ40

 1
74453 - SUPPORT, BATTERY CARRIER
74401-60022

FJ40

 1
74453 - SUPPORT, BATTERY CARRIER
74401-60022

FJ40

 1
74454 - SHIM (FOR BATTERY CARRIER SUPPORT)
52321-55010

FJ40

 4
74454 - SHIM (FOR BATTERY CARRIER SUPPORT)
52321-55010

FJ40

 4
Common parts
91631-40825
91655-40825
94110-40800
94511-00800
94611-10800
